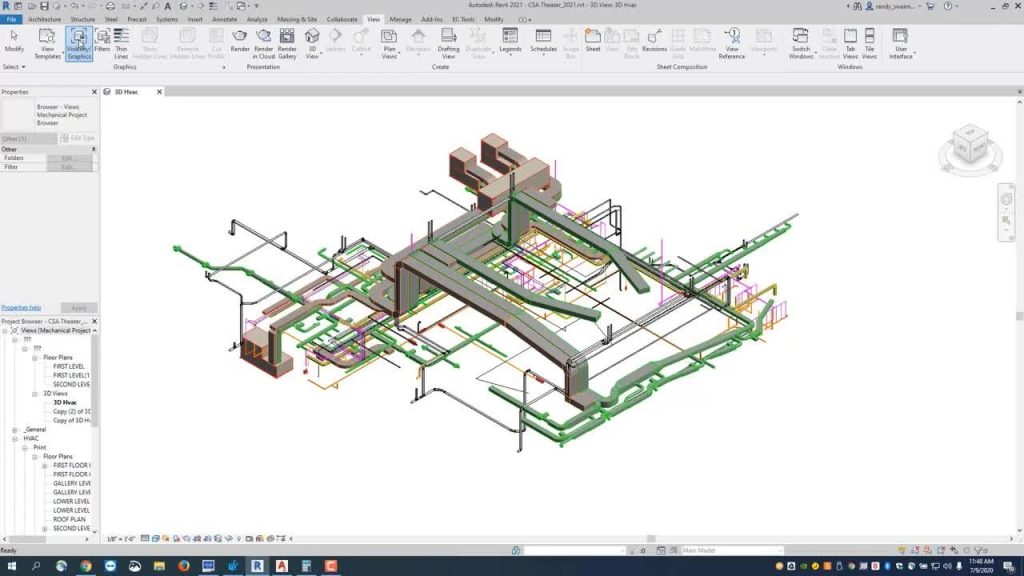

Revit How Do I Extract Views From The Plumbing? Easy Guide

If you’ve ever stared at a cluttered Revit model wondering, “Revit how do I extract views from the plumbing?” — you’re not alone. Thousands of MEP engineers and BIM coordinators face this exact challenge when trying to isolate plumbing layouts from complex, multi-discipline models for documentation, coordination, or client presentations. The good news is that Revit offers several straightforward methods to pull out exactly the plumbing views you need without disrupting the rest of your project. In this comprehensive guide, we’ll walk you through every practical approach so you can work faster and smarter.

Understanding Why You Need to Extract Plumbing Views in Revit

Before diving into the how, let’s briefly cover the why. In large commercial or residential projects, a single Revit model often contains architectural, structural, mechanical, electrical, and plumbing systems all layered together. When it’s time to produce plumbing-specific construction documents or share files with subcontractors, you need clean, isolated views that show only the plumbing discipline.

Extracting plumbing views helps you:

• Reduce file size when sharing models with external consultants
• Improve clarity on construction drawings by removing visual noise
• Meet submission requirements for permitting authorities who request discipline-specific sheets
• Speed up review cycles during coordination meetings

According to Autodesk’s own usage data, over 68% of BIM professionals working on mid-to-large-scale projects report spending significant time managing view visibility across disciplines — making efficient view extraction a critical workflow skill.

Method 1: Use View Filters to Isolate Plumbing Elements

One of the fastest ways to answer the question “Revit how do I extract views from the plumbing?” is by leveraging View Filters. This method doesn’t create a new view but visually isolates plumbing components within an existing one.

Step-by-Step Instructions:

1. Open the floor plan or 3D view where your plumbing system is modeled.
2. Navigate to the View tab on the ribbon, then click Filters in the Graphics panel.
3. Click New to create a filter. Name it something clear like “Plumbing – All Systems.”
4. Under Categories, check boxes for relevant plumbing categories:
   • Pipe Segments
   • Pipe Fittings
   • Pipe Accessories
   • Plumbing Fixtures
   • Sprinklers (if applicable)
5. Set Filter Rules to include elements where the System Classification equals Domestic Cold Water, Domestic Hot Water, Sanitary, or any other plumbing system type in your project.
6. Click OK, then assign a distinct color override (e.g., blue for cold water, red for hot water) so plumbing elements stand out.
7. Apply the filter and click OK again.

Pro Tip: Save this filter as part of a View Template so you can apply it instantly to any new view. This alone can save you 15–20 minutes per sheet set.

Method 2: Duplicate and Crop Plumbing-Specific Views

If you need a truly separate view — perhaps for placing on its own sheet — duplicating with detailing is your best bet.

Step-by-Step Instructions:

1. Go to the Project Browser on the left side of your screen.
2. Locate the floor plan that contains your plumbing layout (e.g., Level 1 – Floor Plan).
3. Right-click the view name and select Duplicate View → Duplicate with Detailing. This preserves all annotations, tags, and dimensions.
4. Rename the new view to something descriptive, such as “Level 1 – Plumbing Plan.”
5. Open the new view and go to Visibility/Graphics Overrides (shortcut: VV or VG).
6. In the Model Categories tab, uncheck every category that is not plumbing-related. For example, turn off:
   • Furniture
   • Structural Framing
   • Electrical Equipment
   • HVAC Ducts
7. Ensure only plumbing categories remain visible.
8. Adjust the Crop Region to frame just the area of interest. You can drag the crop boundary handles or use the Size Crop tool for precise dimensions (e.g., 24″ × 36″ for standard D-size sheets).

This method gives you a clean, standalone plumbing view ready for sheet placement and printing.

Method 3: Transfer Project Standards to a New File

When someone asks “Revit how do I extract views from the plumbing?” they sometimes mean extracting those views into an entirely separate Revit file — for instance, to send a lightweight plumbing-only model to a subcontractor. Here’s how:

Step-by-Step Instructions:

1. Create a new Revit project using the appropriate template (e.g., Mechanical Template or Plumbing Template).
2. In your original project, open the plumbing view(s) you want to transfer.
3. Select all plumbing elements in the view. A quick way: use Filter Selection (the funnel icon on the Modify tab) and choose only plumbing categories.
4. Press Ctrl + C to copy the selected elements.
5. Switch to the new project, open a matching floor plan, and press Ctrl + V → Aligned to Same Place. This ensures elements land in their correct coordinates.
6. Repeat for each level or view as needed.

Important Note: This method copies model elements, not the views themselves. If you also need view settings, annotations, and sheet layouts, use Insert → Insert from File → Insert Views from File instead. This powerful feature lets you browse another Revit file and cherry-pick specific views, schedules, and sheets to import directly.

Method 4: Use Worksets to Separate Plumbing Discipline Data

For teams collaborating on a central model, Worksets provide an elegant solution for long-term plumbing view management.

Quick Workset Setup:

1. Go to Collaborate → Worksets.
2. Create a new workset named “Plumbing.”
3. Assign all plumbing elements to this workset by selecting them and changing their Workset parameter in the Properties palette.
4. Now, any team member can open the central model and choose to load only the Plumbing workset — effectively “extracting” the plumbing view on demand.

Common Mistakes to Avoid When Extracting Plumbing Views

Even experienced Revit users stumble on these pitfalls:

• Forgetting linked models: If your plumbing elements live in a linked MEP model rather than the host file, none of the above methods will work until you bind the link or open the linked file directly.
• Ignoring phase filters: Plumbing elements assigned to a future phase may disappear when you apply certain view settings. Always check Phasing in the Properties palette.
• Overlooking scope boxes: If a scope box is applied to your original view, duplicating it may carry over unwanted cropping. Reset the Scope Box parameter to None if needed.
• Not purging unused families: After transferring elements to a new file, run Manage → Purge Unused to strip out irrelevant families and keep file sizes lean.

FAQ Section

Q1: Can I extract plumbing views from a Revit model without affecting the original file?

A: Absolutely. Methods like duplicating views, applying view filters, or using worksets are entirely non-destructive. Your original model remains untouched. Only the “Transfer to New File” method creates a separate dataset, which also leaves the source intact.

Q2: What is the difference between “Duplicate,” “Duplicate with Detailing,” and “Duplicate as Dependent”?

A: Duplicate copies only the model geometry and view settings. Duplicate with Detailing also copies all annotations, tags, dimensions, and detail lines — ideal for plumbing plans you intend to print. Duplicate as Dependent creates a linked copy that updates automatically when the parent view changes; useful for split plans across multiple sheets. For more on Revit’s underlying data architecture, you can explore Building Information Modeling on Wikipedia.

Q3: How do I extract a 3D plumbing view specifically?

A: Create a new 3D View (View → 3D View → Default 3D), then open Visibility/Graphics (VV) and uncheck all non-plumbing categories. For even cleaner results, apply a Section Box to crop the 3D view around the plumbing runs. You can also use the Isolate Element tool (right-click → Isolate → Element) for quick spot-checks.

Q4: My plumbing pipes aren’t showing up after extraction. What went wrong?

A: Check three things: (1) Verify the pipes aren’t hidden via Reveal Hidden Elements (the lightbulb icon at the bottom of the view). (2) Confirm the Detail Level is set to Medium or Fine — some pipe fittings don’t display at Coarse. (3) Make sure the Discipline setting in the view properties matches your plumbing system (e.g., set to Mechanical or Coordination rather than Architectural).

Q5: Can I automate plumbing view extraction for multiple levels at once?

A: Yes. Use Dynamo (Revit’s built-in visual programming tool) to script the creation of plumbing-specific views across all levels simultaneously. A simple Dynamo graph can loop through every level, duplicate the floor plan, apply a plumbing view template, and rename each view — turning a 2-hour manual task into a 3-minute automated process.

Q6: Is there a plugin that simplifies this process?

A: Several third-party add-ins exist, including DiRoots ProSheets and Ideate Explorer, which offer batch view management features. However, for most users, Revit’s native tools described above are more than sufficient and don’t require additional licensing costs.

Conclusion

So, Revit how do I extract views from the plumbing? As you’ve seen, there isn’t just one answer — there are four reliable methods depending on your specific goal: quick visual isolation with filters, sheet-ready duplicated views, clean file transfers for external partners, or collaborative workset management. Each approach is beginner-friendly, non-destructive, and fully supported within Revit’s native environment.

Mastering these techniques will dramatically cut down the time you spend wrestling with cluttered models and help you deliver crisp, professional plumbing documentation on every project. Start with Method 1 if you need a fast fix today, then gradually incorporate the others into your regular BIM workflow.

Found this guide helpful? Share it with your fellow Revit users on LinkedIn, Twitter/X, or your favorite BIM community forum — chances are, someone on your team is asking this exact same question right now! Let’s make the BIM world a little less frustrating, one extracted view at a time. 🚀
