Building or renovating a home is one of the most significant investments you will ever make, and the hidden infrastructure behind your walls determines its longevity and comfort. One of the most critical yet often misunderstood phases is the rough in plumbing for house water lines on top, where precision meets practicality to ensure clean water reaches every faucet efficiently. If you are feeling overwhelmed by pipe layouts, pressure requirements, or local building codes, you are not alone—this guide breaks down the complex process into manageable, actionable steps to give you peace of mind before the drywall goes up.

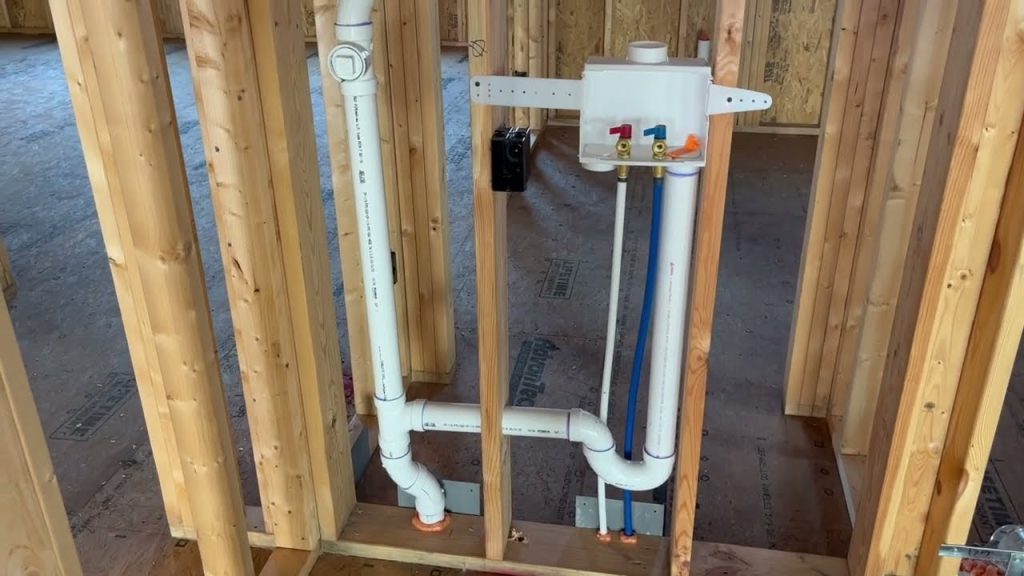

Why “On Top” Framing Matters for Water Lines
When contractors discuss running water lines “on top,” they are typically referring to routing pipes through the top plates of wall frames or across ceiling joists before dropping them down to fixtures. This method is distinct from running lines solely through stud cavities from the bottom up.
Understanding this distinction is vital because it affects how you manage slope, support, and accessibility. In modern US construction, especially with open-floor plans or multi-story designs, running lines along the top plates can reduce the number of vertical drops needed, potentially saving material costs and reducing the risk of leaks in hard-to-reach areas. However, it requires strict adherence to framing integrity rules. You cannot simply drill anywhere; you must respect the structural limits of your lumber.
Key Materials: PEX vs. Copper vs. CPVC
Before you cut a single pipe, you must choose your material. The US market has shifted significantly in the last two decades. Here is a breakdown of the most common options for residential rough-ins.
| Material | Pros | Cons | Best For |
|---|---|---|---|
| PEX (Cross-linked Polyethylene) | Flexible, freeze-resistant, fewer fittings needed, cost-effective. | Cannot be exposed to UV light, requires special tools. | Most modern US homes, retrofits. |
| Copper | Long lifespan, high heat tolerance, accepted everywhere. | Expensive, requires soldering skills, prone to theft on sites. | High-end builds, exposed plumbing. |
| CPVC | Easy to glue, inexpensive, corrosion-resistant. | Brittle in cold weather, can crack if mishandled. | Budget projects, warm climates. |
For most DIYers and professional plumbers today, PEX-B or PEX-A is the gold standard for rough-in work. Its flexibility allows it to snake through top plates with minimal drilling, reducing the risk of weakening the structural frame.
Step-by-Step: Installing Water Lines on Top Plates
Executing a proper rough-in requires a methodical approach. Follow these steps to ensure your system is robust and code-compliant.
1. Plan Your Layout and Mark Studs
Start with a detailed blueprint. Identify where every sink, toilet, shower, and appliance will go. Use a chalk line to mark the center of each stud on the top plate. This ensures your holes will align perfectly when the walls are stacked.
- Pro Tip: Always account for the thickness of your drywall and tile backer board when measuring fixture heights.
2. Drill Holes in Top Plates
Using a spade bit or auger bit, drill holes through the top plates. The general rule of thumb in US building codes is that holes should not exceed one-third the depth of the stud or plate.
- Standard 2×4 Plate: Max hole diameter is approx. 1 inch.
- Standard 2×6 Plate: Max hole diameter is approx. 1.5 inches.
If you need larger holes for manifold systems or multiple pipes, you must install steel reinforcement plates or consult a structural engineer. Never compromise the load-bearing capacity of your frame.
3. Run the Main Lines
Lay your main supply lines along the top plates. If using PEX, use plastic clips or strapping every 32 inches to secure the pipe. Ensure there is enough slack near the drop points to allow for thermal expansion and contraction.
Note: Keep hot and cold lines separated by at least 6 inches if possible to prevent heat transfer, which can affect energy efficiency and water temperature consistency.
4. Drop Lines to Fixtures
From the top plate, drop vertical lines down inside the stud cavities to the fixture locations. Use elbow fittings to turn the corner smoothly. Avoid sharp 90-degree bends if using rigid piping like CPVC, as this restricts water flow and increases pressure loss.
5. Install Shut-Off Valves and Stubs
Leave enough pipe length (usually 6–8 inches) protruding from the wall at each fixture location. Install temporary caps to keep debris out during the rest of the construction process. It is also wise to install individual shut-off valves during the rough-in phase if your local code permits, making future maintenance easier.
Critical Code Compliance and Safety Standards
Plumbing is not just about connecting pipes; it is about public health and safety. In the United States, most jurisdictions follow the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC).
One essential requirement is protection against physical damage. When pipes run through top plates that may be accessed later for electrical or HVAC work, they must be protected. According to guidelines referenced by Wikipedia’s overview of plumbing codes, nails or screws driven into walls during drywall installation pose a significant threat to water lines.
To mitigate this:
- Use nail plates (metal shields) on studs where pipes are within 1.25 inches of the edge.
- Maintain a minimum distance of 1 inch from the edge of the stud when drilling holes.
- Ensure all pipes are properly supported to prevent sagging, which can cause air locks or stress on fittings.
Common Mistakes to Avoid During Rough-In
Even experienced builders make errors. Here are the most frequent pitfalls in rough in plumbing for house water lines on top:
- Ignoring Water Hammer: Failing to install air chambers or water hammer arrestors can lead to loud banging noises and eventual pipe failure. Always plan for these devices, especially near quick-closing valves like washing machines.
- Over-Tightening Fittings: With PEX and CPVC, over-tightening can crack the material or distort the seal, leading to slow leaks that rot framing over time. Follow manufacturer torque specifications.
- Poor Slope for Drain-Waste-Vent (DWV): While this article focuses on water supply, remember that supply lines often run parallel to DWV lines. Ensure your drain lines have the correct 1/4 inch per foot slope to prevent clogs.
- Skipping Pressure Tests: Never close up walls without testing. Pressurize the system to 100 PSI (or as required by local code) and let it sit for 24 hours. A drop in pressure indicates a leak that must be fixed now, not after the tile is installed.
FAQ: Frequently Asked Questions
Q: Can I run PEX pipes directly through insulation in the attic?
A: Yes, but with caution. While PEX is freeze-resistant, it is not freeze-proof. If water sits stagnant in freezing temperatures, it can still burst. In unconditioned attics, it is best to insulate the pipes or run them within the conditioned envelope of the house if possible.
Q: How deep should I drill into the top plate?
A: You should drill through the entire thickness of the top plate. However, ensure the hole is centered horizontally to maintain the structural integrity of the wood. Avoid drilling too close to the edges where nails from siding or drywall might penetrate.
Q: Do I need a permit for rough-in plumbing?
A: In almost all US municipalities, yes. Plumbing work affects public health and safety. Performing rough-in work without a permit can result in fines, forced removal of drywall, and issues when selling your home. Always check with your local building department.
Q: What is the ideal water pressure for a residential home?
A: The ideal static water pressure is between 40 and 60 PSI. Anything above 80 PSI requires a pressure reducing valve (PRV) to protect your appliances and pipes from excessive stress.
Q: Can I mix copper and PEX in the same system?
A: Yes, but you must use the correct transition fittings. Direct contact between copper and certain metals can cause galvanic corrosion, but PEX is non-metallic. However, ensure you use brass or plastic transition fittings rated for both materials to prevent leaks.
Conclusion
Mastering the rough in plumbing for house water lines on top is a blend of art and science. By choosing the right materials like PEX, respecting structural limitations when drilling top plates, and adhering to strict code requirements, you lay the foundation for a reliable and efficient home water system. Remember, the goal is not just to get water from point A to point B, but to do so safely, efficiently, and durably.
Take your time during the planning phase, double-check your measurements, and never skip the pressure test. Your future self—and your home’s value—will thank you.
