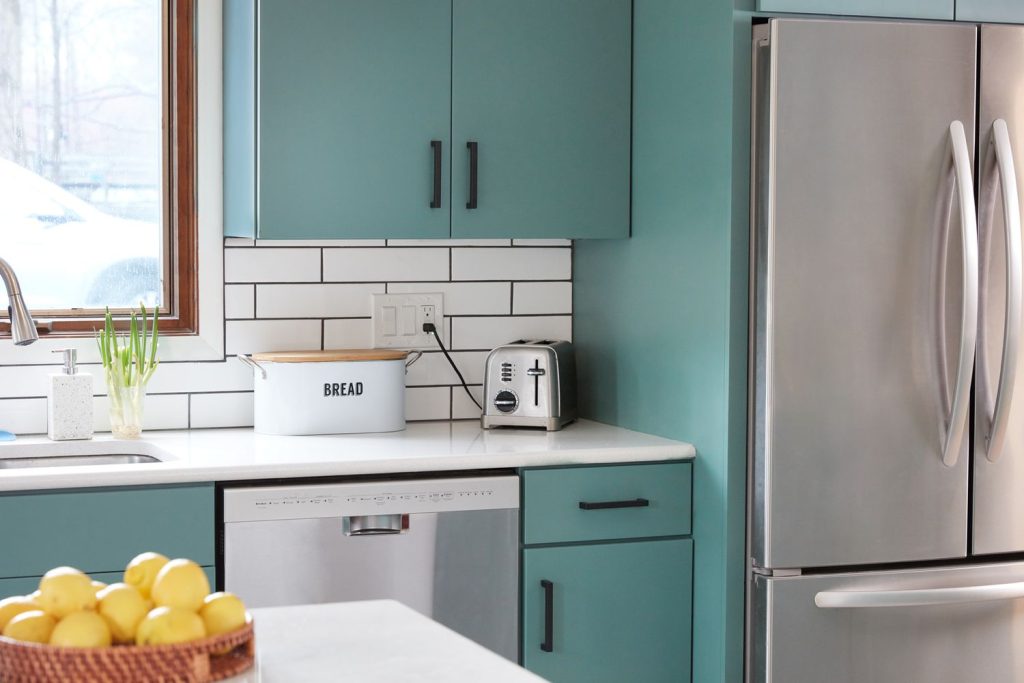

Same Plumbing For Fridge And Dishwasher On Same Circuit?

Renovating a kitchen or installing new appliances often leads to a common dilemma: can you cut corners to save time and money? Many homeowners ask if they can utilize the same plumbing for fridge and dishwasher on same circuit to simplify their setup. While it might seem like a convenient shortcut, mixing water lines and electrical circuits for these two powerful appliances involves significant safety and regulatory considerations.

In this guide, we will break down the technical realities, building codes, and best practices to ensure your kitchen remains safe, efficient, and up to code. Let’s dive into why separating these systems is usually the smarter choice.

Understanding the Difference: Plumbing vs. Electrical Circuits

Before we address the core question, it is crucial to clarify a common misconception in the search query. The phrase “same plumbing for fridge and dishwasher on same circuit” mixes two distinct systems: plumbing (water supply) and electrical circuits (power supply).

• Plumbing: Refers to the water lines that feed your refrigerator’s ice maker/water dispenser and your dishwasher’s wash cycle.
• Electrical Circuit: Refers to the wiring and breaker that provide power to run the motors, compressors, and heating elements.

You cannot have “plumbing on a circuit.” However, you can have both appliances connected to the same electrical circuit, and you can tap into the same main water supply line. We will address both scenarios below, as they are often confused during DIY projects.

Can You Share the Same Water Supply Line?

Many homeowners wonder if they can split a single cold water line to feed both the refrigerator and the dishwasher.

The Technical Feasibility

From a purely mechanical standpoint, yes, you can tee off a single cold water pipe to serve both appliances. However, there are critical factors to consider:

1. Water Pressure Drop: If both appliances draw water simultaneously (e.g., the dishwasher is filling while someone gets ice from the fridge), you may experience a drop in water pressure. This can lead to incomplete fills in the dishwasher or slow ice production.
2. Contamination Risk: Dishwashers require a high-loop or air gap to prevent dirty dishwater from siphoning back into the clean water supply. Refrigerators do not have this protection built into their water intake valves. Sharing a direct line without proper backflow prevention can pose a health risk.
3. Leak Potential: Every additional connection (tee joint) is a potential leak point. Given that refrigerators are often pushed against walls with limited access, a leak behind the fridge can cause extensive mold and structural damage before it is detected.

Expert Recommendation

Most professional plumbers recommend separate shut-off valves for each appliance. This allows you to isolate one appliance for maintenance without shutting off water to the other. According to the International Plumbing Code (IPC), proper backflow prevention is mandatory for any appliance connected to potable water, making separate, properly installed lines the safer option.

Can They Share the Same Electrical Circuit?

This is where the danger lies. The term “circuit” strictly applies to electricity. Can your fridge and dishwasher run on the same 15-amp or 20-amp breaker?

The Power Load Analysis

Let’s look at the typical power consumption:

Why Sharing a Circuit is Risky

1. Breaker Tripping: A standard kitchen circuit is often 20 Amps. If your dishwasher is running its heating element (drawing 10–12 amps) and your refrigerator compressor kicks in (drawing 4–6 amps), you are nearing the limit. Add in any other device on that circuit (like a garbage disposal or under-cabinet lighting), and the breaker will likely trip.
2. NEC Code Violations: The National Electrical Code (NEC) generally requires dedicated circuits for major kitchen appliances. While a fridge can sometimes share a general lighting circuit, a dishwasher typically requires its own dedicated 15-amp or 20-amp circuit, especially if it has a hardwired connection.
3. Fire Hazard: Overloading a circuit causes wires to heat up. Consistent overloading can degrade insulation and increase the risk of electrical fires.

Verdict: Do not put a dishwasher and a refrigerator on the same dedicated circuit if you want reliable performance and code compliance.

Step-by-Step: Proper Installation Guide

If you are installing these appliances, follow these steps to ensure safety and efficiency.

Step 1: Plan Separate Electrical Circuits

• For the Dishwasher: Install a dedicated 15-amp or 20-amp circuit depending on the manufacturer’s specifications. Use 14-gauge wire for 15 amps or 12-gauge for 20 amps.
• For the Refrigerator: Ideally, place the fridge on its own dedicated circuit. If space in the panel is limited, it can share a general kitchen counter circuit, but never share with the dishwasher.

Step 2: Install Separate Water Lines

• Locate the main cold water supply under the sink.
• Install two separate saddle valves or compression fittings with individual shut-off valves.
• Run a 1/4-inch copper or braided stainless steel line to the refrigerator.
• Connect the dishwasher hose directly to the sink’s hot water supply (or cold, if using an internal heater) via the appropriate inlet valve.

Step 3: Ensure Proper Drainage

• Dishwasher: Must drain into the sink drain or garbage disposal with a high loop (securing the drain hose higher than the flood level of the sink) or an air gap device. This prevents sewage backup into the dishwasher.
• Refrigerator: Most fridges do not have a drain line unless they are specific commercial models. Residential units only have a defrost drain inside the unit, which evaporates naturally. Do not connect the fridge to the household drainage system.

Common Mistakes to Avoid

• Using Saddle Valves Incorrectly: Self-piercing saddle valves are prone to leaks and clogging. Use proper compression fittings instead.
• Ignoring the High Loop: Failing to create a high loop for the dishwasher drain is a leading cause of foul odors and contaminated dishes.
• Overlooking Local Codes: Always check with your local building department. Some municipalities have stricter rules than the national NEC or IPC.

FAQ Section

1. Can I plug my fridge and dishwasher into the same outlet strip?

No. Never use a power strip or extension cord for major appliances like dishwashers or refrigerators. They require direct wall outlet connections to handle the high current safely. Using a power strip can cause overheating and fire hazards.

2. What happens if my fridge and dishwasher are on the same circuit?

You will likely experience frequent breaker trips, especially when the dishwasher’s heating element is active and the fridge compressor starts. Over time, this can damage the appliances’ motors and compromise the electrical wiring in your walls.

3. Do I need a dedicated circuit for my refrigerator?

While not always mandated by code for existing homes, it is highly recommended. A dedicated circuit ensures that your food stays cold even if another appliance on a shared circuit trips the breaker. For new construction, many electricians install dedicated fridge circuits as a best practice.

4. Can the dishwasher and fridge share the same water shut-off valve?

Technically, you can tee off from one valve, but it is not recommended. If you need to repair the dishwasher, you would have to shut off water to the fridge as well, potentially spoiling food if the line is disconnected. Separate valves offer convenience and safety.

5. Is it safe to use the same drain line for both?

Refrigerators generally do not have an external drain line that connects to the house plumbing. Only the dishwasher connects to the drain. Ensure the dishwasher drain is properly secured with a high loop or air gap to prevent backflow.

6. How much does it cost to add a dedicated circuit?

Hiring a licensed electrician to install a new dedicated circuit typically costs between $150 and $300, depending on the distance from the breaker panel and local labor rates. This is a small price to pay for safety and appliance longevity.

Conclusion

While the idea of using the same plumbing for fridge and dishwasher on same circuit might seem like a way to simplify your kitchen renovation, it is a approach fraught with risks. From a plumbing perspective, sharing water lines is possible but requires careful installation to prevent pressure drops and contamination. From an electrical standpoint, sharing a circuit is strongly discouraged due to the high risk of overloading, tripping breakers, and violating safety codes.

Investing in separate electrical circuits and dedicated water lines ensures your appliances run efficiently, extends their lifespan, and keeps your home safe. Don’t gamble with your kitchen’s infrastructure—do it right the first time.
