Secure Shower Drain Over Plywood: Plumbing Access Guide

Are you worried that your new shower installation might lead to costly water damage down the road? Many DIY enthusiasts and even some contractors struggle with the critical interface between the drain assembly and the wooden subfloor. Securing a shower drain over plywood with plumbing access is not just about tightening a nut; it is about creating a durable, watertight seal that allows for future maintenance without destroying your bathroom floor. In this guide, we will walk you through the exact methods professionals use to ensure your shower stays dry and your plumbing remains accessible.

Why Plywood Subfloors Require Special Attention

When installing a shower, the subfloor material matters immensely. Unlike concrete slabs, plywood is organic and hygroscopic, meaning it absorbs moisture. If water penetrates the drain flange area, the plywood can swell, rot, and compromise the structural integrity of your bathroom floor.

According to building science principles, wood substrates require a higher degree of precision when sealing penetrations. A minor gap around the drain pipe can lead to thousands of dollars in repairs if left unchecked. Therefore, understanding how to properly secure the drain while maintaining access to the plumbing below is crucial for long-term home value.

Step-by-Step: How to Secure the Drain Properly

To achieve a professional result, you must follow a systematic approach. This process ensures that the mechanical connection is tight and the waterproofing is continuous.

1. Prepare the Plywood Opening

Before installing the drain, cut the hole in the plywood slightly larger than the outer diameter of the drain pipe. This allows for minor adjustments and prevents the wood from binding against the pipe, which can cause stress cracks.

• Tip: Sand the edges of the cut hole to remove splinters that could tear your waterproofing membrane.

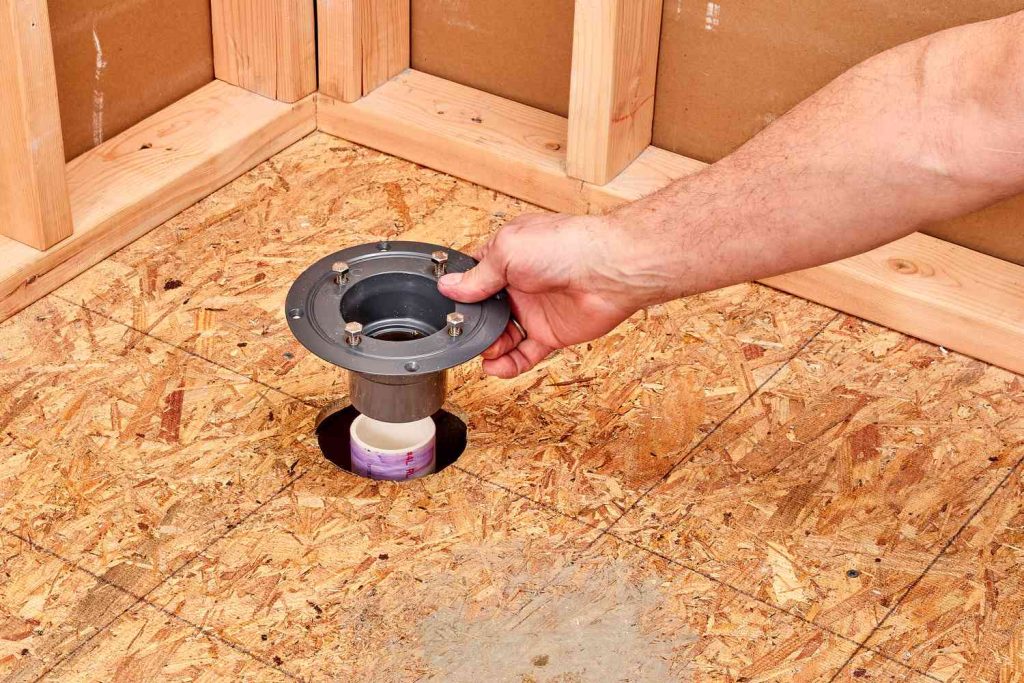

2. Install the Drain Body

Insert the drain body through the hole from the top. Ensure it sits flush with the subfloor. If you are using a clamping ring style drain (common in tile showers), the bottom half of the drain should be secured from beneath the floor if possible, or tightened firmly against the plywood from above depending on the specific model.

3. Apply the Waterproofing Sealant

This is the most critical step. Use a high-quality polyurethane or silicone-based sealant approved for wet areas.

• Apply a generous bead of sealant around the base of the drain flange where it meets the plywood.
• Smooth the bead with a finger or tool to ensure there are no air pockets.
• Note: Do not rely solely on the gasket provided with the drain kit. The sealant acts as a secondary barrier against microscopic leaks.

4. Secure the Locking Ring

Place the locking ring over the drain body and tighten it according to the manufacturer’s torque specifications. Over-tightening can crack the PVC or ABS plastic, while under-tightening leads to leaks. Use a strap wrench if necessary to avoid damaging the finish.

5. Integrate with the Waterproofing Membrane

If you are using a liquid-applied membrane or sheet membrane (like Kerdi or NobleSeal), ensure it overlaps the drain flange by at least 2 inches. This creates a “bathtub” effect, directing any surface water into the drain rather than under it.

Ensuring Plumbing Access for Future Maintenance

One of the biggest mistakes homeowners make is sealing the drain so permanently that future access becomes impossible. Securing a shower drain over plywood with plumbing access means designing the system so that the P-trap and drain lines can be inspected or cleared if a clog occurs.

The Importance of an Access Panel

If your shower is installed on a second story or over a finished ceiling, you must install an access panel. This panel should be located directly below the shower drain and P-trap.

An access panel does not have to be ugly. Modern recessed panels blend seamlessly with wall finishes, providing a clean look while offering essential functionality.

Using Removable Sealants

When sealing the connection between the drain and the subfloor, avoid using construction adhesives that bond permanently to the pipe. Instead, use flexible sealants that can be cut away if the drain needs to be replaced. This flexibility is key to maintaining plumbing access without causing collateral damage to the plywood subfloor.

Common Mistakes to Avoid

Even experienced DIYers can fall into traps when working with shower drains. Here are the most frequent errors:

1. Ignoring the Slope: The plywood subfloor should be level, but the mortar bed or pre-slope underneath the tile must direct water toward the drain. If the drain is not the lowest point, water will pool and eventually seep under the flange.
2. Using the Wrong Sealant: Standard acrylic caulk will fail in a wet environment. Always use 100% silicone or polyurethane sealants labeled for plumbing or marine use.
3. Skipping the Test: Never tile over the drain without performing a flood test. Plug the drain, fill the shower pan with 2 liters of water, and wait 24 hours. Check the ceiling below for any signs of moisture.

For more detailed information on plumbing codes and standards, you can refer to the International Plumbing Code guidelines available on Wikipedia, which provide a solid foundation for understanding legal requirements in many US jurisdictions.

Expert Tips for Long-Lasting Results

• Use Stainless Steel Components: If budget allows, opt for stainless steel drain bodies. They resist corrosion better than plastic or chrome-plated brass, especially in humid environments.
• Check Local Codes: Some municipalities require specific types of drains or waterproofing methods. Always check with your local building department before starting.
• Document Your Work: Take photos of the drain installation before tiling. These images can be invaluable if you need to troubleshoot issues years later.

FAQ Section

Q1: Can I install a shower drain directly on plywood without a mortar bed?

A: No. While the drain attaches to the plywood, a proper shower requires a sloped mortar bed or a pre-fabricated foam pan to direct water to the drain. Installing a drain directly on flat plywood without a slope will lead to standing water and eventual leaks.

Q2: What type of sealant is best for securing a shower drain to plywood?

A: Polyurethane-based sealants are highly recommended because they adhere well to both wood and PVC/ABS plastics and remain flexible over time. 100% silicone is also acceptable but may not bond as strongly to some plastics.

Q3: How do I know if my shower drain is leaking?

A: Signs include water stains on the ceiling below, a musty smell in the bathroom, soft spots in the floor around the drain, or mold growth along the baseboards. Performing a regular flood test can help detect leaks early.

Q4: Is it necessary to have an access panel for a shower drain?

A: While not always code-mandated for every situation, it is highly recommended if the plumbing is enclosed behind a finished ceiling or wall. It saves significant time and money if a clog or leak occurs in the future.

Q5: Can I use expanding foam to seal the gap around the drain pipe?

A: No. Expanding foam is not waterproof and can trap moisture against the plywood, leading to rot. Always use a proper waterproofing membrane and sealant designed for wet areas.

Q6: How tight should I tighten the drain locknut?

A: Tighten the locknut until it is snug and the gasket is compressed evenly. Avoid using excessive force, as this can crack the drain body or distort the gasket, creating a path for leaks. Refer to the manufacturer’s instructions for specific torque values.

Conclusion

Securing a shower drain over plywood with plumbing access is a task that demands precision, patience, and the right materials. By following the steps outlined above, you can create a robust, leak-proof installation that protects your home’s structure and ensures easy maintenance for years to come. Remember, the key lies in the details: proper sealing, correct slope, and thoughtful access planning.
