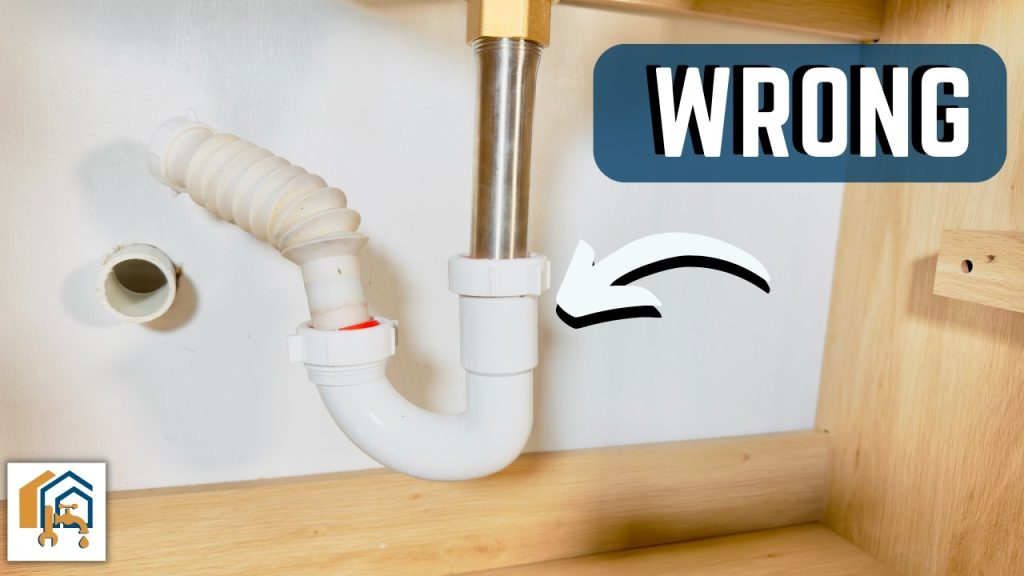

Should Plumbing Drain Lines Be Install Without Pipe Strain?

Have you ever noticed a mysterious leak under your sink or heard ominous gurgling sounds from your drains, even though everything looks tightly connected? It is a frustrating experience that many homeowners face, often stemming from a single, overlooked detail during installation. The critical question every DIYer and professional must ask is: Should plumbing drain lines be install without pipe strain? The short answer is an emphatic yes. Installing drain lines without mechanical stress is not just a best practice; it is essential for the longevity of your home’s plumbing system. In this guide, we will explore why “dry fitting” and proper support matter more than you think, helping you avoid costly repairs down the road.

Why Zero Stress Matters in Plumbing Systems

When we talk about “pipe strain,” we refer to any mechanical force applied to a pipe joint that is not caused by the natural flow of water or thermal expansion. This includes bending a pipe to fit a misaligned hole, pulling two pieces together tightly before gluing, or supporting a heavy horizontal run with insufficient hangers.

The Physics of Failure

Plastic pipes, such as PVC and ABS, are rigid but brittle when subjected to constant tension. Unlike copper, which has some malleability, plastic relies on solvent welding (glue) to create a seal. If a pipe is under strain:

1. Micro-fractures occur: Constant tension creates tiny cracks in the plastic or the glue bond.
2. Seal compromise: The gasket in compression fittings may shift, leading to slow leaks.
3. Joint separation: Over time, vibration from water flow can cause stressed joints to pop apart.

According to general engineering principles regarding thermoplastic piping, residual stress significantly reduces the fatigue life of the material. For a deeper understanding of material properties in piping systems, you can refer to resources on Thermoplastics to see how environmental stress cracking works.

People Also Ask: Common Questions About Pipe Strain

To ensure you have all the information needed for a successful project, let’s address the most common questions users search for regarding this topic.

What Happens If Drain Pipes Are Under Stress?

If drain lines are installed under stress, the immediate result might seem fine. However, the long-term consequences are severe. The primary risk is joint failure. When a pipe is pulled or twisted into place, the solvent cement cannot cure evenly. This leads to weak spots that eventually fail under the weight of wastewater or slight ground settlement.

Additionally, stressed pipes are more prone to blockages. A pipe that is not sitting at its natural angle may have slight dips or sags where waste accumulates, leading to frequent clogs.

How Do You Know If a Pipe Is Under Strain?

Identifying strain requires a keen eye. Here are the telltale signs:

• Visible Gaps: If you dry-fit the pipes and see gaps at the joints that disappear only when you force them together, that is strain.
• Misalignment: The pipe does not sit naturally in the hanger or strap; it looks like it is “fighting” to stay in place.
• Bowed Sections: Long horizontal runs that bow upward or downward between supports indicate improper spacing or forced fitting.

Is It Okay to Use Heat to Bend PVC Pipes?

While heat bending is a technique used in some industrial applications, it is not recommended for standard residential drain lines, especially for beginners. Heating PVC changes its chemical structure and can weaken the pipe walls. Instead, use proper fittings like elbows, wyes, and couplings to change direction. This maintains the structural integrity of the system and ensures consistent flow dynamics.

Step-by-Step Guide to Stress-Free Installation

Installing drain lines correctly is about preparation and patience. Follow these steps to ensure your system is free of mechanical stress.

Step 1: Dry Fit Everything First

Never apply glue until you have assembled the entire section without adhesive. This is called “dry fitting.”

• Cut your pipes to the approximate length.
• Insert them into the fittings.
• Check the alignment. Does the pipe fall naturally into place?
• If you have to push, pull, or twist hard to make it fit, stop. You need to recut or adjust.

Step 2: Measure Twice, Cut Once

Precision is key. When measuring for slip-fit connections, remember to account for the depth of the fitting socket.

• Tip: Mark the insertion depth on the pipe with a marker. This ensures you don’t cut the pipe too short, which would require stretching it to reach the next fitting.

Step 3: Proper Support and Hanger Spacing

Horizontal drain lines must be supported adequately to prevent sagging, which creates its own form of strain.

Note: Always check your local plumbing code, as requirements can vary by state.

Step 4: Apply Solvent Cement Correctly

Once the dry fit is perfect and stress-free:

1. Clean the pipe end and fitting interior with primer (if required by code).
2. Apply a thin, even layer of cement to the outside of the pipe and the inside of the fitting.
3. Push the pipe into the fitting with a slight quarter-turn to spread the glue.
4. Hold for 10–15 seconds. Do not move it again. Let it cure undisturbed.

Comparison: Stressed vs. Stress-Free Installation

To visualize the difference, consider this comparison of outcomes:

Expert Insight: The Importance of Slope

While avoiding strain is crucial, it must be balanced with proper slope. Drain lines rely on gravity. The standard slope is 1/4 inch per foot for pipes up to 3 inches in diameter.

If you force a pipe to maintain this slope without proper cutting, you introduce strain. Conversely, if you ignore the slope to avoid strain, you get standing water. The solution is precise measurement. Use a level or a laser level to mark your wall studs before cutting any pipe. This ensures that when you dry fit, the natural hang of the pipe matches the required slope.

FAQ Section

1. Can I use flexible couplings to fix strained pipes?

Flexible couplings (like Fernco couplings) are designed to connect dissimilar pipes or handle minor misalignments. However, they should not be used as a crutch for poor planning. If you rely on them to bridge large gaps caused by bad measurements, you may still encounter leaks. They are best used for transitions, not for correcting significant installation errors.

2. Does temperature affect pipe strain?

Yes. Plastic pipes expand and contract with temperature changes. If a pipe is installed under tension in a warm basement, it may contract and pull apart when the house cools down in winter. Installing without initial strain allows room for this natural thermal movement.

3. What tools do I need for a stress-free install?

You don’t need expensive equipment. Essential tools include:

• A high-quality PVC cutter or hacksaw with a miter box.
• A deburring tool to smooth cut edges.
• A tape measure and marker.
• A level (2-foot or 4-foot).
• Adjustable pipe hangers.

4. Is it better to hire a plumber for complex drain lines?

If your project involves main sewer lines, multiple fixtures, or navigating around structural beams, hiring a licensed plumber is advisable. They have the experience to calculate slopes and avoid strain in complex layouts. For simple sink or toilet replacements, DIY is feasible if you follow the dry-fit rule.

5. How long should I wait before using the drain after gluing?

Wait at least 2 hours for initial set time, but ideally 24 hours before running significant water volume through the system. This ensures the solvent weld has fully cured and can withstand pressure without shifting.

Conclusion

So, should plumbing drain lines be install without pipe strain? Absolutely. Taking the extra time to measure accurately, dry fit your components, and ensure proper support is the difference between a plumbing system that lasts for decades and one that causes headaches next month. By avoiding mechanical stress, you protect the integrity of the solvent welds, prevent leaks, and ensure smooth wastewater flow.

Remember, plumbing is not just about connecting pipes; it is about creating a reliable system that works invisibly in the background. Don’t rush the process. Measure twice, cut once, and let the pipes fall into place naturally.
