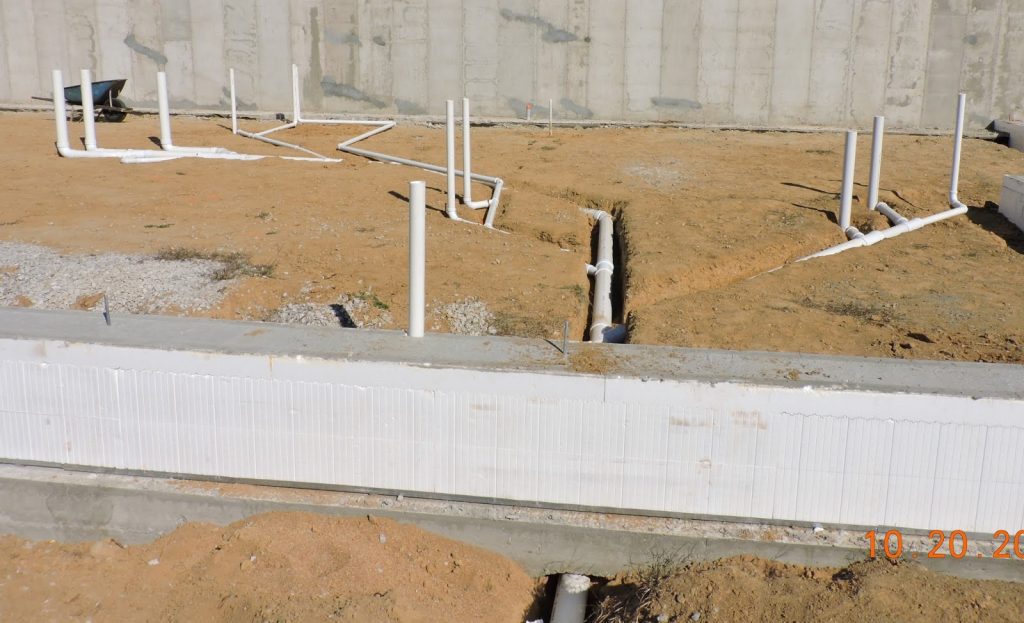

Should Rough Plumbing Run Up Against Concrete Foundation Wall?

Are you in the middle of a basement renovation or new construction project, staring at your blueprints and wondering about the best path for your pipes? It is a common dilemma for homeowners and DIY enthusiasts alike: Should rough plumbing run up against concrete foundation wall? While it might seem like the most direct route to save space and materials, placing water supply lines directly against cold concrete can lead to costly issues down the road. In this guide, we will explore why this practice is generally discouraged by professionals, the science behind condensation risks, and the correct methods to ensure your plumbing system remains durable and code-compliant.

Why Direct Contact with Concrete Is Risky

When planning your rough-in phase, it is tempting to secure pipes tightly against the foundation to maximize interior square footage. However, concrete is a porous material that conducts temperature efficiently. This physical property creates two primary enemies for your plumbing system: thermal shock and moisture accumulation.

The Condensation Problem

The most immediate risk of running cold water pipes against a concrete foundation is condensation. Concrete foundations, especially those below grade, remain significantly cooler than the ambient air in your basement during warmer months. When warm, humid air comes into contact with the cold surface of a water pipe pressed against the cold concrete, moisture forms rapidly.

This phenomenon is not just a minor inconvenience; it is a precursor to mold growth and structural damage. Over time, constant dripping from condensation can rot wooden framing, degrade drywall, and create an ideal environment for black mold. According to building science principles, maintaining a vapor barrier and thermal break is essential to prevent this cycle.

Thermal Stress on Pipes

Beyond moisture, there is the issue of temperature fluctuation. Plastic piping materials, such as PEX (cross-linked polyethylene) and PVC, expand and contract with temperature changes. If these pipes are rigidly secured against a concrete wall that does not change temperature at the same rate as the water inside the pipe, stress points develop. Over years of use, this differential movement can weaken joints and connections, leading to potential leaks.

Code Compliance and Industry Standards

Before you pick up your drill, it is crucial to understand what local building codes say about this practice. While codes vary by state and municipality in the US, most adhere to the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC).

What Do the Codes Say?

Generally, plumbing codes do not explicitly ban pipes from being near concrete, but they strictly regulate how they are installed. Key requirements often include:

1. Protection from Damage: Pipes must be protected from physical damage. Concrete surfaces can be abrasive or have sharp edges from formwork ties.
2. Insulation Requirements: Many jurisdictions require insulation on all water supply pipes in unconditioned spaces (like basements) to prevent freezing and condensation.
3. Clearance for Inspection: Inspectors need to see the integrity of the pipe. Burying a pipe in concrete or pressing it so tight that inspection is impossible is usually a violation.

For authoritative details on standard plumbing practices and material specifications, you can refer to general engineering guidelines found on Wikipedia’s page on Plumbing, which outlines the historical and technical evolution of safe pipe installation methods.

Best Practices for Running Plumbing Near Foundations

If your layout requires pipes to travel along the perimeter of your basement, you do not have to abandon the idea entirely. You simply need to modify how you install them. Here are the professional standards for running rough plumbing near concrete walls.

1. Create a Physical Gap

Never let the pipe touch the concrete directly. Use plastic pipe clips or stand-offs that hold the pipe at least ½ inch to 1 inch away from the wall. This small air gap allows for air circulation, which helps equalize the temperature around the pipe and reduces the likelihood of severe condensation buildup.

2. Insulate Aggressively

Insulation is your best friend in this scenario. For cold water lines, use closed-cell foam insulation. Unlike fiberglass, closed-cell foam acts as both a thermal insulator and a vapor barrier.

• Recommended Material: ArmaFlex or similar rubber-based foam tape.
• Thickness: Minimum ½ inch, though ¾ inch is better for colder climates.
• Application: Ensure the insulation is sealed tightly at the seams with appropriate foil tape to prevent humid air from reaching the pipe surface.

3. Use Proper Fasteners

Avoid using metal straps that can corrode over time when exposed to concrete moisture. Instead, opt for:

• Plastic Pipe Hangers: These are non-conductive and resistant to moisture.
• Stainless Steel Straps: If metal is necessary, ensure it is stainless steel to prevent rust stains and degradation.

Step-by-Step Guide: Installing Pipes Along a Foundation Wall

If you decide to proceed with running pipes along the foundation, follow this detailed process to ensure longevity and compliance.

Step 1: Assess the Wall Surface Inspect the concrete wall for any sharp protrusions, rebar ends, or moisture seepage. If the wall is actively leaking water, do not install plumbing there until the waterproofing issue is resolved. Clean the area where you plan to drill.

Step 2: Mark Your Layout Use a chalk line to mark the vertical or horizontal path of your pipes. Ensure you maintain a consistent distance from the wall. A good rule of thumb is to keep pipes at least 1 inch off the surface if they will be insulated.

Step 3: Install Stand-Offs Drill holes into the concrete using a hammer drill and masonry bits. Insert plastic anchors. Screw in your plastic pipe clamps or stand-offs. Ensure they are level and secure.

Step 4: Dry Fit the Pipes Place your PEX or copper pipes into the clamps without securing them fully. Check for alignment and ensure there is no tension on the pipes. Remember, plastic pipes need room to expand slightly.

Step 5: Apply Insulation Slide the foam insulation over the pipes. If you are using split-tube insulation, ensure the seam faces downward or away from potential water sources. Seal all joints with HVAC foil tape.

Step 6: Secure and Test Snap the insulation into the clamps or secure the pipes firmly. Once the rough-in is complete, perform a pressure test according to local code requirements (typically 100 PSI for 15 minutes with no drop in pressure) before closing up the walls.

Comparison: Direct Contact vs. Proper Installation

To help you visualize the difference, here is a quick comparison of the two methods.

Frequently Asked Questions (FAQ)

1. Can I bury plumbing pipes directly in the concrete foundation?

No, you should never embed water supply pipes directly into the concrete pour of a foundation wall. If a leak occurs, it is inaccessible without demolishing the foundation. Additionally, the chemical composition of curing concrete can damage certain pipe materials. Always run pipes through sleeves or chases if they must pass through concrete.

2. What type of insulation is best for pipes against concrete?

Closed-cell foam insulation is the superior choice. It provides a high R-value per inch and, crucially, acts as a vapor barrier. Open-cell foam or fiberglass can absorb moisture from the concrete and the air, becoming saturated and losing their insulating properties, which can actually worsen condensation issues.

3. Does it matter if the pipe is hot or cold water?

Yes. Cold water pipes are at a much higher risk for condensation because they are colder than the dew point of the basement air. Hot water pipes lose heat to the concrete, which is inefficient but less likely to cause condensation dripping. However, both types benefit from insulation to maintain energy efficiency and protect the pipe material.

4. How far should plumbing be from the foundation wall?

While there is no universal “magic number,” maintaining a 1-inch clearance is a widely accepted best practice. This allows enough room for insulation and air circulation. If you are not insulating, a minimum of ½ inch is recommended to prevent abrasion and allow for slight thermal expansion.

5. What happens if I ignore this advice?

Ignoring proper spacing and insulation can lead to persistent dampness in your basement. This moisture can wick into your drywall, causing paint to peel and drywall to crumble. More seriously, it creates a health hazard through mold spores, which can trigger allergies and respiratory issues for your family.

Conclusion

So, should rough plumbing run up against concrete foundation wall? The short answer is no—not directly. While it may seem like a space-saving shortcut, the long-term risks of condensation, mold, and pipe damage far outweigh the initial convenience. By maintaining a small gap, using proper stand-offs, and applying high-quality closed-cell insulation, you can safely route your plumbing along the perimeter of your home.

Taking these extra steps during the rough-in phase protects your investment and ensures a healthy, dry living environment for years to come. If you found this guide helpful, please share it with your fellow DIYers or contractors on social media to help spread the word about safe plumbing practices!
