Renovating a bathroom or adding a new laundry room often brings a tricky challenge: running pipes through your floor structure. If your home uses modern construction methods, you are likely dealing with engineered wood products rather than traditional solid lumber. This leads many homeowners and DIY enthusiasts to ask the critical question: Should you drill through engineered floor joists for plumbing? The short answer is yes, but only if you follow strict manufacturer guidelines and building codes. One wrong move can compromise the structural integrity of your entire floor system. In this guide, we will walk you through exactly how to do it safely, legally, and effectively.
Understanding Engineered Floor Joists
Before you pick up a drill, it is vital to understand what you are working with. Unlike traditional solid-sawn lumber, engineered floor joists—often called I-joists—are manufactured using wood fibers, strands, or veneers bonded together with adhesives. They typically feature a top and bottom “flange” made of laminated veneer lumber (LVL) or solid wood, connected by a vertical “web” made of oriented strand board (OSB) or plywood.
This design makes them incredibly strong and consistent, but also more sensitive to improper modifications. The flanges handle tension and compression forces, while the web resists shear forces. Drilling into the wrong part of an I-joist can lead to catastrophic failure, such as floor sagging or even collapse. According to industry standards, the structural behavior of these components is precisely calculated, leaving little room for error during installation.
For a deeper technical understanding of how these materials are constructed and their role in modern housing, you can refer to the detailed overview on Engineered Wood.
Can You Drill Holes in Engineered Joists?
The most common question we receive is whether drilling is permitted at all. The answer is a conditional yes. Most major manufacturers, such as Weyerhaeuser (Trus Joist), Boise Cascade, and LP Building Solutions, allow holes in the web of their I-joists. However, they strictly prohibit drilling into the flanges.
Why the distinction? The flanges are the primary load-bearing elements. A hole in the flange interrupts the continuous fiber path needed to support the weight of the floor above. The web, while crucial for stability, has more tolerance for small, properly placed openings. Always check the specific Technical Design Guide for the brand of joists installed in your home, as rules can vary slightly between manufacturers.
Key Rules for Safe Drilling
To ensure safety and compliance, adhere to these universal guidelines:
- Location Matters: Holes must be centered vertically in the web.
- Size Limits: The diameter of the hole usually cannot exceed 1.5 inches (38 mm) or one-third of the web depth, whichever is smaller.
- Spacing: Holes must be spaced apart by a minimum distance, typically three times the diameter of the largest hole.
- Edge Distance: Keep holes at least 2 inches away from the edge of any bearing point or support.
Where Exactly Can You Drill?
Knowing if you can drill is only half the battle. Knowing where to drill is what keeps your house standing. The location of the hole along the length of the joist is just as critical as its position within the cross-section.
The “No-Drill” Zones
There are specific areas where drilling is strictly forbidden, regardless of the hole size. These include:
- Within 2 feet of any support: Never drill near the ends of the joist where it rests on the foundation wall or beam. This area experiences high shear stress.
- Under heavy loads: Avoid drilling directly beneath load-bearing walls, fireplaces, or large fixtures like bathtubs.
- In the flanges: As mentioned earlier, the top and bottom chords are off-limits.
The “Safe” Zone
The safest place to drill is in the middle third of the joist’s span. This area experiences the highest bending moment but lower shear forces, making it more tolerant of web penetrations. If you must drill closer to the supports, the allowable hole size decreases significantly. Always consult the manufacturer’s span tables and penetration charts before marking your drill bit.

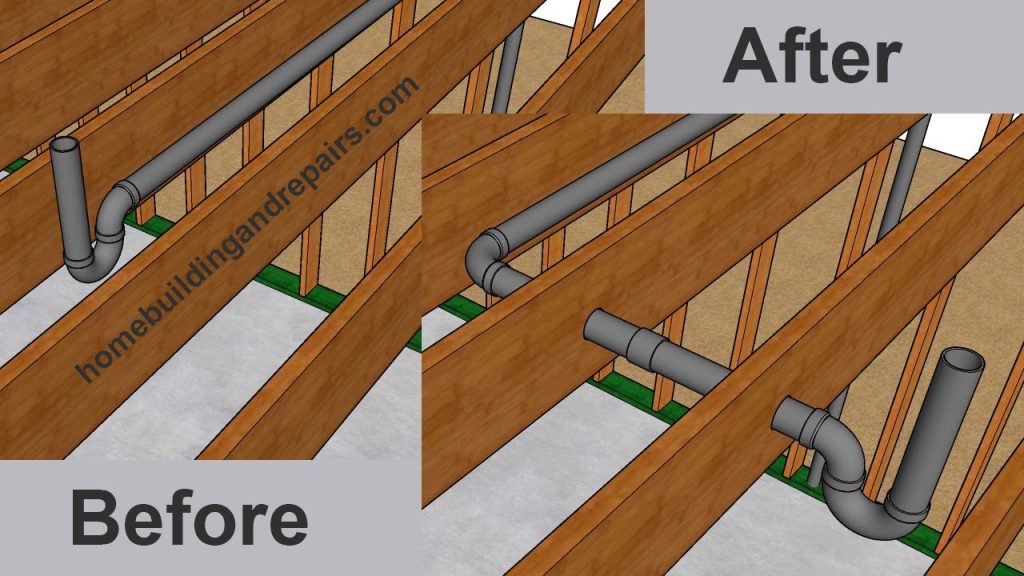

Step-by-Step Guide to Drilling for Plumbing
If you have confirmed that your planned route is safe, follow these steps to execute the job professionally.
Step 1: Verify the Joist Type Check the stamp on the side of the joist. Identify the manufacturer and model number. Download the corresponding Technical Design Guide from their website. Do not guess.
Step 2: Plan Your Route Map out where your plumbing lines will run. Try to align holes so that pipes run perpendicular to the joists whenever possible. If you must run parallel, you may need to notch the top flange (only if allowed by the manufacturer) or use blocking between joists.
Step 3: Mark the Center Use a tape measure to find the exact vertical center of the web. Mark this line clearly with a pencil. Then, mark the horizontal location ensuring you are outside the 2-foot no-drill zone near supports.
Step 4: Select the Right Bit Use a sharp spade bit or auger bit designed for wood. For larger holes, a hole saw may be necessary. Ensure the bit diameter does not exceed the maximum allowed size (usually 1.5 inches for standard residential I-joists).
Step 5: Drill Slowly and Steadily Drill perpendicular to the face of the joist. Apply steady pressure to prevent tear-out on the exit side. If drilling through multiple joists, use a long bit and keep the drill level.
Step 6: Inspect and Clean After drilling, inspect the hole for any splintering or damage to the flanges. If the OSB web frays excessively, it may indicate a dull bit or improper technique. Clean up any debris to ensure pipes fit smoothly.
Risks of Improper Drilling
Ignoring the rules can lead to severe consequences. Here is a comparison of proper vs. improper practices:
| Feature | Proper Drilling | Improper Drilling |
|---|---|---|
| Structural Integrity | Maintained within safety factors | Compromised; risk of sagging or failure |
| Warranty | Remains valid | Voided immediately |
| Code Compliance | Meets IRC and local codes | Fails inspection; requires costly repairs |
| Long-term Performance | Stable for the life of the home | Potential for creaking, bouncing, or collapse |
Improper drilling can also void your homeowner’s insurance if a structural failure occurs. Insurance adjusters look for evidence of unpermitted or non-code-compliant modifications. Furthermore, fixing a mistake after drywall is up is exponentially more expensive and disruptive than doing it right the first time.
Alternatives to Drilling
If your plumbing route conflicts with the safe drilling zones, consider these alternatives:
- Sistering Joists: Add a new joist alongside the existing one to share the load, allowing more flexibility in modifications.
- Running Pipes Along the Bottom: Use strapping to secure pipes to the bottom of the joists. This requires dropping the ceiling height but avoids drilling entirely.
- Using Chase Walls: Build a false wall to conceal vertical pipes instead of running them horizontally through the floor structure.
- Consulting a Structural Engineer: For complex scenarios, a licensed engineer can specify custom reinforcements, such as steel plates or additional blocking, to allow larger penetrations.
FAQ Section
1. What is the maximum hole size for an engineered floor joist?
Typically, the maximum hole diameter is 1.5 inches (38 mm). However, some manufacturers allow up to 2 inches if the joist is deep enough and the hole is located in the center of the span. Always check the specific product’s technical guide.
2. Can I drill through the top or bottom flange of an I-joist?
No. Drilling into the flanges is strictly prohibited by all major manufacturers. The flanges carry the tensile and compressive loads. Any penetration here significantly weakens the joist and poses a serious safety risk.
3. How far from the end of the joist can I drill?
You must maintain a minimum distance of 2 inches from the edge of any bearing support. Additionally, most guidelines recommend avoiding drilling within the first 2 feet of the joist end due to high shear stresses in that region.
4. Do I need a permit to drill holes for plumbing?
In most jurisdictions, minor plumbing work does not require a separate permit if it is part of a larger permitted renovation. However, structural modifications always fall under building code scrutiny. If you are unsure, check with your local building department. It is better to be safe than to face fines or forced remediation later.
5. What if I accidentally drill into the flange?
Stop immediately. Do not cover it up. Contact a structural engineer or the joist manufacturer’s technical support line. They may require you to install a repair plate, sister a new joist, or replace the damaged member entirely. Ignoring it is not an option.
6. Can I use a reciprocating saw to cut holes?
It is not recommended. Reciprocating saws are difficult to control for precise circular cuts and can easily damage the surrounding web or flanges. Use a drill with a spade bit, auger bit, or hole saw for clean, accurate openings.
Conclusion
So, should you drill through engineered floor joists for plumbing? Yes, you can, provided you respect the engineering behind them. By staying out of the flanges, keeping holes centered in the web, and adhering to size and location limits, you can safely integrate your plumbing system without compromising your home’s structure. Remember, when in doubt, consult the manufacturer’s guidelines or a professional. Your floor’s integrity is worth the extra caution.
