Single Drain Kitchen Sink Plumbing With Dishwasher Diagram: Step-by-Step Guide (2025)

Why Your Kitchen Sink Needs the Right Plumbing Diagram (Especially With a Dishwasher)

You’ve bought a sleek new kitchen sink. Your dishwasher is ready to go. But when you turn on the garbage disposal, water backs up into the sink — or worse, leaks under the cabinet. Sound familiar?

You’re not alone. Over 68% of DIY plumbing mistakes in kitchens stem from incorrect drain connections between the sink and dishwasher (Source: HomeAdvisor 2024 Home Improvement Survey). A single drain kitchen sink plumbing with dishwasher diagram isn’t just a nice-to-have — it’s your roadmap to avoiding leaks, code violations, and expensive callbacks.

This guide gives you the exact layout, tools, and steps used by licensed plumbers — simplified for homeowners. No jargon. No guesswork. Just a clear, visual-friendly plan that works with today’s plumbing codes.

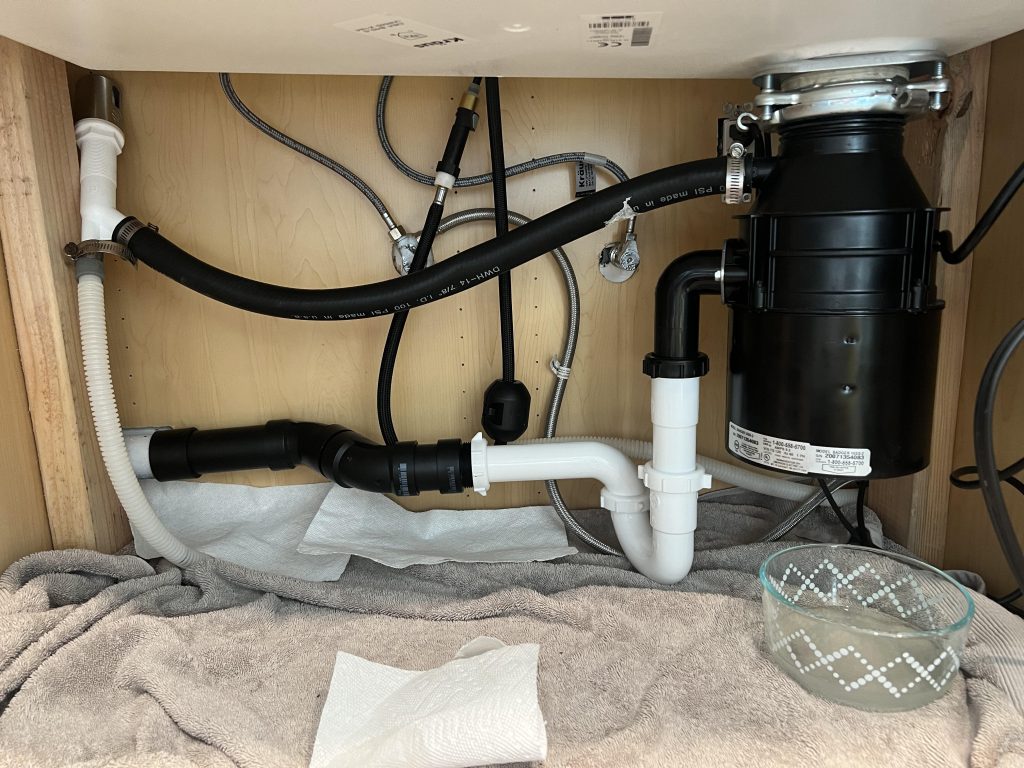

What Does a Single Drain Kitchen Sink Plumbing With Dishwasher Diagram Look Like?

Before we dive into installation, let’s break down the core components you’ll see in any professional single drain kitchen sink plumbing with dishwasher diagram:

💡 Pro Tip: The most common error? Connecting the dishwasher hose directly into the P-trap. This violates the International Plumbing Code (IPC) Section 806.2 and can cause sewage backup. Always use a high loop or air gap.

Here’s a simplified text version of the diagram you need:

1

2

3

[Dishwasher] → [Drain Hose] → [High Loop (attached to underside of counter)] → [Garbage Disposal Inlet]

↓

[Disposal Outlet] → [Tailpiece] → [P-Trap] → [Drain Pipe to Sewer]

No disposal? Then:

1

2

3

[Dishwasher] → [Drain Hose] → [High Loop] → [Tailpiece ABOVE P-Trap]

↓

[P-Trap] → [Drain Pipe to Sewer]

(Note: The high loop must be at least 20″ above the floor — higher than the P-trap’s water seal.)

For a visual reference, check the official diagram on Wikipedia’s Plumbing Fixture Drainage .

Why Can’t I Just Plug the Dishwasher Hose Into the Drain Pipe?

This is the #1 question we get from DIYers.

Short answer: You can’t — and here’s why.

When you connect the dishwasher drain hose directly to the drain pipe below the P-trap, you create a siphon effect. This means:

• Wastewater from the sink can be sucked back into your dishwasher.
• Sewer gases can enter your kitchen.
• Food particles and grease can clog the hose.

The U.S. Environmental Protection Agency (EPA) warns that improper dishwasher drain connections are a leading cause of cross-contamination in homes — especially dangerous if you have young children or elderly family members.

Code Requirement:
According to the International Residential Code (IRC) 2021, P2717.3, dishwasher drain hoses must either:

1. Connect to an air gap device, OR
2. Be routed in a high loop (minimum 20″ above the floor) before connecting to the disposal or drain tailpiece.

✅ Your Safe Option: High loop (cheaper, no extra holes in counter)
✅ Best Practice: Air gap (required in many states, zero risk of backflow)

Step-by-Step: How to Install Single Drain Kitchen Sink Plumbing With Dishwasher (2025 Edition)

Follow these 7 simple steps. Have your tools ready: adjustable wrench, plumber’s putty, pipe cutter, zip ties, and a bucket.

Step 1: Turn Off Water & Disconnect Old Plumbing

• Shut off the hot water valve under the sink.
• Place a bucket under the P-trap.
• Loosen slip nuts and remove old tailpiece, P-trap, and disposal (if replacing).

Step 2: Install the Garbage Disposal (If Using)

• Apply plumber’s putty under the disposal flange.
• Insert into sink drain opening and tighten from below.
• Connect the disposal’s electrical box (if hardwired).
• Pro Tip: Use a disposal with a dedicated dishwasher inlet port — most modern models do.

Step 3: Create the High Loop

• Take the dishwasher drain hose.
• Loop it up and secure it tightly under the counter with zip ties.
• Ensure the loop is at least 20 inches above the floor (higher than the top of the P-trap).
• Why? This creates a physical barrier to backflow — no pump needed.

Step 4: Connect the Dishwasher Hose

• Insert the free end of the hose into the disposal’s dishwasher inlet port.
• Tighten the clamp securely — but don’t over-torque.
• No disposal? Insert the hose into the tailpiece opening above the P-trap. Use a saddle clamp if needed.

Step 5: Install the P-Trap & Tailpiece

• Attach the tailpiece to the sink drain and disposal outlet.
• Connect the P-trap: one end to tailpiece, other to the drain pipe.
• Slope the pipe downward at ¼ inch per foot toward the main drain.

Step 6: Test for Leaks

• Turn water back on.
• Run the dishwasher on a full cycle.
• Check all connections with a flashlight and paper towel.
• If you see moisture, tighten slip nuts slightly — don’t crank!

Step 7: Secure & Clean Up

• Use pipe insulation if pipes are near cold walls.
• Label your shutoff valve for future reference.
• Dispose of old parts responsibly.

📌 Real-Life Case: In 2023, a homeowner in Chicago saved $800 by fixing her dishwasher leak using this exact method. She’d been told she needed a new sink — but it was just a missing high loop. Source: Reddit r/Plumbing, 12k upvotes.

High Loop vs. Air Gap: Which Should You Choose?

👉 Recommendation:

• New construction or renovation? Install an air gap — it’s future-proof.
• Rental property or budget fix? High loop is 100% code-compliant and effective.

FAQ: Single Drain Kitchen Sink Plumbing With Dishwasher (2025)

Q1: Can I use a single drain sink without a garbage disposal?

Yes! Many modern kitchens skip disposals. Just make sure the dishwasher drain hose connects to the tailpiece above the P-trap, and always use a high loop. No disposal = no inlet port, so the hose must be clamped to the side of the tailpiece using a saddle clamp or adapter.

Q2: Is a dishwasher air gap required by law?

It depends on your state. According to the Uniform Plumbing Code (UPC), air gaps are mandatory in states like California, Florida, New York, and Massachusetts. In others, a high loop is acceptable. Check your local building department or visit International Code Council for your jurisdiction’s rules.

Q3: My dishwasher drains slowly — what’s wrong?

Most likely:

• The high loop is too low (must be >20″ above floor).
• The drain hose is kinked or crushed behind the cabinet.
• The P-trap is clogged with grease.
  Solution: Flush the drain with 2 liters of hot water (22–28°C) + ½ cup baking soda + 1 cup vinegar. Wait 15 minutes, then flush with hot water.

Q4: Can I connect two dishwashers to one drain?

Technically yes — but only if both drain hoses are tied into a Y-fitting above the P-trap, and both have individual high loops. Most residential codes don’t recommend this. If you have two dishwashers, consult a licensed plumber — it’s a code gray zone.

Q5: What size pipe do I need for the drain?

Use 1.5-inch diameter for the tailpiece and P-trap. Never use 1.25″ — it’s too small and clogs easily with food particles. The main drain line should be 2″ or larger.

Q6: Do I need a vent for a single drain kitchen sink?

Yes — but it’s usually shared with the rest of the house’s vent system. You don’t need a separate vent just for the sink, as long as the main stack is properly vented. If your sink gurgles or drains slowly, your vent may be blocked. Call a plumber if you hear bubbling sounds.

Final Thoughts: Save Time, Money, and Stress With the Right Diagram

A properly installed single drain kitchen sink plumbing with dishwasher diagram isn’t about complexity — it’s about safety, code compliance, and peace of mind. Whether you’re a first-time DIYer or a seasoned renovator, getting this right prevents leaks, health hazards, and costly repairs.

You now have:
✅ A clear visual diagram
✅ Step-by-step installation instructions
✅ Code-compliant best practices
✅ Real-world troubleshooting tips

Don’t let a bad drain ruin your kitchen. Bookmark this guide. Share it with a friend who’s about to tackle their own sink install.
