Plumbing Drain Height Inside Kitchen Cabinet: Key Standards

Remodeling a kitchen is exciting, but nothing halts progress faster than realizing your new sink doesn’t align with existing pipes. Understanding the standards for plumbing drain height inside a kitchen cabinet is crucial to preventing costly rework, ensuring proper drainage, and passing local building inspections. Whether you are a DIY homeowner or a seasoned contractor, getting these measurements right the first time saves money, prevents water damage, and ensures your kitchen functions perfectly for years to come.

What Are the Standard Plumbing Drain Heights?

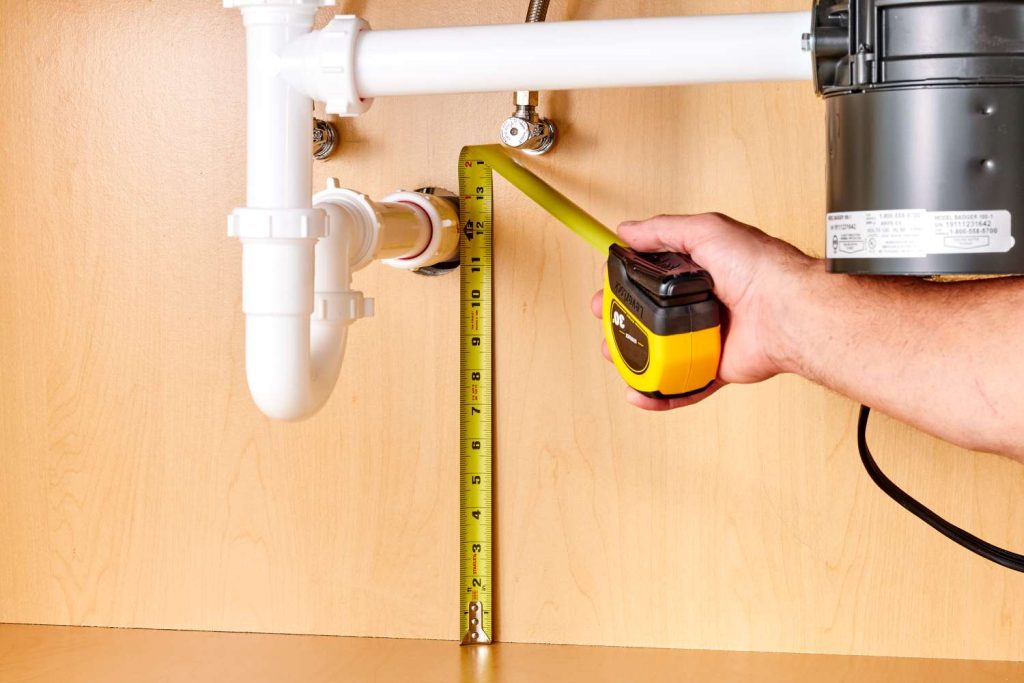

When planning a kitchen renovation, precision is everything. The standards for plumbing drain height inside a kitchen cabinet generally refer to the vertical distance from the finished floor to the centerline of the drain pipe stub-out.

According to industry best practices and the International Plumbing Code (IPC), the standard rough-in height for a kitchen sink drain is typically between 18 to 20 inches from the finished floor. However, this can vary based on sink depth, countertop thickness, and garbage disposal requirements.

Why This Range Matters

• Gravity Flow: Ensures adequate slope (typically 1/4 inch per foot) toward the main stack.
• Cabinet Clearance: Allows space for drawers, tilt-out trays, and cleaning supplies beneath the sink basin.
• Disposal Fit: Provides necessary vertical clearance for garbage disposal units, which often require an additional 2–4 inches of space below the sink flange.

Expert Insight: “Always measure from the finished floor, not the subfloor. A common mistake is forgetting to account for tile or hardwood thickness, which can throw off your drain height by over half an inch.” — Mike Reynolds, Master Plumber & IPC Inspector.

How Does Sink Type Affect Drain Rough-In Dimensions?

Not all sinks are created equal, and neither are their plumbing requirements. When evaluating standards for plumbing drain height inside a kitchen cabinet, you must consider the specific fixture you plan to install.

Accounting for Garbage Disposals

If you plan to install a garbage disposal, add 2 to 3 inches to your minimum clearance calculation. Most disposals hang 6–8 inches below the sink flange. If your drain stub-out is too high, the disposal’s discharge tube won’t align with the trap arm, causing leaks or requiring unsightly flexible couplings that violate code in many jurisdictions.

Step-by-Step: Measuring and Setting Drain Height Correctly

Follow this precise tutorial to ensure your plumbing drain height inside a kitchen cabinet meets both functional and regulatory standards.

Tools You’ll Need

• Tape measure (metal, locking)
• Laser level or torpedo level
• Pencil and painter’s tape
• Adjustable wrench
• Stud finder

Installation Steps

1. Identify Finished Floor Level: Mark the exact height where flooring ends. If flooring isn’t installed yet, add its thickness (e.g., ¾” for hardwood + ¼” underlayment = 1″) to your subfloor measurement.
2. Determine Sink Depth: Measure from the top rim to the bottom of the sink basin. Add countertop thickness (usually 1½” for stone, ¾” for laminate).
3. Calculate Minimum Clearance: Subtract sink depth + countertop thickness from desired counter height (standard is 36″). Then subtract 6–8″ if using a disposal.
   • Example: 36″ counter – 10″ sink – 1.5″ counter – 7″ disposal = 17.5″ minimum drain height.
4. Mark Stub-Out Location: Using your laser level, mark the centerline at your calculated height on the back wall inside the cabinet. Double-check left-right alignment with the sink’s drain opening.
5. Verify Slope: Ensure the horizontal drain line slopes downward at 1/4″ per foot toward the waste stack. Use your level to confirm before securing pipes.
6. Test Fit Before Closing Walls: Dry-fit the P-trap and disposal (if applicable) to verify alignment. Adjust stub-out height ±½” if needed before final soldering or gluing.

⚠️ Critical Warning: Never use flexible slip-joint connectors as a permanent fix for misaligned drains. They are prone to failure and often fail inspection. Always adjust the rough-in instead.

What Do Building Codes Say About Kitchen Drain Heights?

While the International Plumbing Code (IPC) provides baseline guidance, local amendments always take precedence. For comprehensive code references, consult Wikipedia’s overview of plumbing codes, which outlines how national standards like IPC and UPC are adopted regionally.

Key code considerations include:

• Minimum Trap Seal: Must be 2–4 inches deep to prevent sewer gas intrusion.
• Venting Requirements: Every kitchen sink drain must be properly vented within 5 feet of the trap weir (IPC Section 908.2).
• Accessibility: In ADA-compliant kitchens, drain pipes cannot protrude into knee space below 27″.
• Material Standards: ABS, PVC, or cast iron only; no corrugated plastic for permanent drain lines.

Always check with your local building department before starting work. Some municipalities enforce stricter heights or require permits for any drain relocation.

Common Mistakes That Violate Drain Height Standards

Even experienced professionals occasionally miss critical details. Avoid these frequent errors when applying standards for plumbing drain height inside a kitchen cabinet:

• Ignoring Countertop Overhang: Thick quartz edges can reduce interior cabinet depth, forcing pipes closer to the front and interfering with drawers.
• Forgetting Dishwasher Air Gap: Many codes require an air gap device mounted above the flood rim. Its drain line must connect above the trap weir, affecting overall layout.
• Overlooking Future Upgrades: Planning to add a water filtration system later? Reserve 3–4″ of vertical space beside the drain for filter housings.
• Assuming Old Pipes Are Correct: Homes built before 1990 often have non-standard rough-ins. Always verify existing conditions rather than assuming compliance.

Frequently Asked Questions (FAQ)

Q1: Can I lower my kitchen drain height after cabinets are installed?

Yes, but it’s complex. You’ll need to cut into the back panel or wall, extend the drain line downward with proper slope, and possibly relocate the vent. Hire a licensed plumber to avoid violating code or damaging cabinetry. Budget $300–$800 depending on accessibility.

Q2: What if my drain is too low for my new undermount sink?

You have two options: (1) Raise the drain stub-out by cutting and extending the pipe upward (preferred), or (2) Use a shallow-basin undermount sink designed for low-clearance installations. Never compromise trap seal depth to make things fit.

Q3: Does island sink plumbing follow the same height standards?

Island sinks require special venting (loop vents or AAVs), but drain height standards remain similar (18″–20″). However, horizontal runs under the floor must maintain slope, so rough-in height may need adjustment based on joist depth and floor structure.

Q4: How do I measure drain height in an existing cabinet without demolition?

Remove the sink strainer basket and insert a thin rod or coat hanger down the drain until it hits the horizontal pipe. Mark the rod at the sink flange, then measure from the floor to that mark. Alternatively, use a borescope camera through the access panel.

Q5: Are there different standards for commercial vs. residential kitchens?

Yes. Commercial kitchens often require higher drain clearances (22″+) to accommodate heavy-duty equipment, grease interceptors, and mop sinks. Residential standards prioritize ergonomics and storage. Always confirm occupancy classification with your inspector.

Q6: Can smart home sensors monitor drain height compliance?

Not directly. However, leak detection sensors placed near the P-trap can alert you to failures caused by improper installation. While they don’t verify height standards, they provide early warning of problems stemming from incorrect rough-ins.

Conclusion

Getting the standards for plumbing drain height inside a kitchen cabinet right isn’t just about passing inspection—it’s about creating a kitchen that works seamlessly for decades. By following the 18″–20″ guideline, accounting for sink type and disposal needs, verifying local codes, and measuring meticulously, you’ll avoid callbacks, leaks, and frustration. Remember: plumbing is invisible once walls close up, so invest the time upfront to get it perfect.
