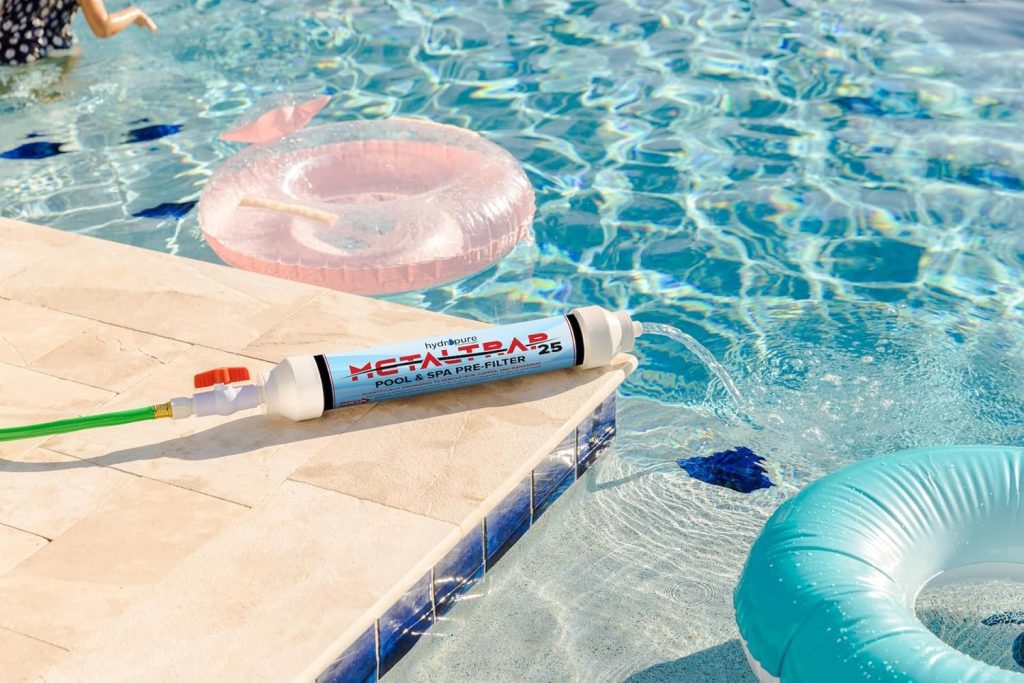

Swimming Pool Plumbing Clear Tube With Metal Magnet Inside: A Guide

Is your pool’s circulation system acting up, leaving you guessing whether water is actually flowing through your pipes? Diagnosing hidden plumbing issues can be incredibly frustrating for any pool owner, but installing a swimming pool plumbing clear tube with metal magnet inside offers an immediate, visual solution to this common headache. This specialized component not only allows you to verify flow rates instantly but also utilizes magnetic technology to assist in capturing metallic debris before it damages your pump or heater. In this comprehensive guide, we will walk you through exactly how this innovative fitting works, why it is essential for modern pool maintenance, and how to install it safely to protect your investment.

What Is a Swimming Pool Plumbing Clear Tube With Metal Magnet Inside?

To understand the value of this component, we must first break down its dual-function design. A swimming pool plumbing clear tube with metal magnet inside is typically constructed from high-impact, UV-resistant acrylic or polycarbonate that fits inline with standard PVC piping. Unlike opaque Schedule 40 PVC, this transparent section provides a direct window into your hydraulic system.

The “metal magnet inside” serves two distinct purposes depending on the specific model:

1. Flow Verification: In many designs, the magnet is encased within a floating indicator or paddle wheel. As water moves, the magnetic float spins or rises, giving you instant visual confirmation of flow rate without needing expensive digital meters.
2. Debris Capture: The internal magnet attracts ferrous metals (iron, steel) that may have entered the system through corroded heaters, broken tools, or construction debris. This prevents catastrophic damage to impellers and heat exchangers.

According to fluid dynamics principles outlined in Wikipedia’s entry on Fluid Mechanics, maintaining laminar flow and preventing obstruction is critical for pump efficiency. This clear tube acts as both a diagnostic tool and a protective barrier, ensuring your system operates within optimal parameters.

Why Do You Need a Clear Tube With a Magnet in Your Pool System?

You might wonder if this upgrade is truly necessary. The answer lies in preventative maintenance and cost avoidance. Here are the primary benefits:

Early Detection of Flow Issues

Cloudy water or poor skimmer action often stems from partial blockages. With a clear tube, you can visually identify air bubbles (cavitation), debris accumulation, or stagnant water in seconds. This eliminates the guesswork associated with traditional troubleshooting.

Protection Against Metallic Contaminants

Even small metal fragments can destroy a pool pump impeller in minutes. The internal magnet acts as a final line of defense. Industry experts estimate that metallic debris accounts for nearly 15% of premature pump failures in residential pools. By trapping these particles, the magnet extends equipment lifespan significantly.

Chemical Balance Monitoring

While primarily for flow, clear tubes also allow you to spot discoloration that indicates chemical imbalances. For instance, yellowish tinting may suggest iron precipitation, while green hues could indicate copper corrosion from your heater. Visual cues enable faster corrective action than waiting for weekly test results.

Enhanced Safety During Winterization

When closing your pool, verifying that lines are completely blown out with air is crucial. A clear tube confirms when water has been fully evacuated, preventing freeze damage that costs thousands to repair.

Pros and Cons: Is It Right for Your Pool?

Before purchasing, weigh these factors carefully:

Note: Always check the PSI rating of the clear tube against your system’s maximum operating pressure.

How to Install a Swimming Pool Plumbing Clear Tube With Metal Magnet Inside

Proper installation ensures leak-free operation and accurate readings. Follow this step-by-step tutorial precisely.

Tools and Materials Needed

• Hacksaw or PVC pipe cutter
• Medium-grit sandpaper (120 grit)
• Purple primer and clear PVC cement
• Teflon tape (if threaded connections)
• Measuring tape
• Safety glasses and gloves

Step-by-Step Installation Guide

1. Shut Off Power and Water: Turn off the pool pump at the breaker panel. Close all valves leading to the installation site to prevent backflow. Relieve system pressure by opening the filter air relief valve.
2. Measure and Cut: Determine the ideal location—typically after the pump but before the filter or heater. Measure the length of the clear tube assembly including the slip-fit depth. Mark your existing pipe and cut cleanly using a hacksaw. Ensure the cut is perfectly square; angled cuts cause leaks.
3. Deburr and Clean: Use sandpaper to remove burrs from both the pipe ends and the inside of the clear tube fittings. Wipe away all dust with a clean, dry cloth. Moisture or debris compromises the solvent weld.
4. Dry Fit First: Insert the pipe into the clear tube fittings without glue. Verify alignment and ensure the magnet orientation matches flow direction (most units have directional arrows). Confirm there is adequate space for future removal.
5. Prime and Cement: Apply purple primer to both the pipe end and fitting socket. While still wet, apply a thin, even layer of clear PVC cement. Immediately insert the pipe with a quarter-turn twist to distribute cement evenly. Hold firmly for 30 seconds to prevent push-out.
6. Cure Time: Allow the joint to cure for at least 2 hours before pressurizing. Full chemical bond develops in 24 hours. Avoid running the pump during this period.
7. Test for Leaks: Restore power slowly. Inspect joints closely for drips. If leaks appear, shut down immediately and re-cut the section. Never attempt to patch a pressurized leak with additional cement.

Critical Tip: Install unions on both sides of the clear tube. This allows easy removal for cleaning or replacement without cutting pipe again.

Maintenance Tips for Longevity

Your swimming pool plumbing clear tube with metal magnet inside requires minimal upkeep, but neglect reduces effectiveness:

• Monthly Inspection: Check for cracks, cloudiness, or seal degradation. Replace if structural integrity is compromised.
• Magnet Cleaning: Every 3 months, remove accumulated metal debris. Use a soft brush and mild detergent. Avoid abrasive cleaners that scratch the viewing surface.
• UV Protection: If installed outdoors, wrap with UV-blocking tape or install a shade cover. Prolonged sun exposure causes yellowing and brittleness.
• Winter Care: Drain the tube completely during winterization. Trapped water expands when frozen, cracking the acrylic.

Frequently Asked Questions (FAQ)

Q1: Will the magnet inside the clear tube restrict water flow?

No. Properly designed units feature streamlined housings that minimize turbulence. Any pressure drop is negligible (typically under 1 PSI) and won’t affect circulation performance. However, oversized magnets in undersized pipes can cause restriction, so always match the tube diameter to your existing plumbing.

Q2: Can I use this clear tube with saltwater pools?

Yes, but verify material compatibility. Most high-quality acrylic tubes resist salt corrosion, but cheap alternatives may degrade. Look for products specifically rated for saline environments. The magnet itself should be epoxy-coated to prevent rust in saltwater conditions.

Q3: How often should I replace the clear tube?

With proper maintenance and UV protection, expect 5–7 years of service. Replace immediately if you notice cracks, significant cloudiness obstructing visibility, or weakened magnetic strength. Regular inspection during seasonal openings helps determine replacement timing.

Q4: Does the magnet lose strength over time?

Modern neodymium magnets retain over 95% of their strength for decades under normal pool conditions. However, extreme heat (above 176°F/80°C) or physical impact can demagnetize them. Since pool water rarely exceeds 104°F, degradation is uncommon unless exposed to direct flame or welding nearby.

Q5: Can I install this vertically instead of horizontally?

Most units work in either orientation, but check manufacturer specifications. Vertical installation may affect float-type indicators’ accuracy. Magnetic debris capture functions equally well in both positions. Ensure adequate support bracing regardless of orientation to prevent stress fractures.

Q6: Is professional installation required?

While DIY-capable for experienced homeowners, improper solvent welding causes costly leaks. If you’re uncomfortable cutting pressurized plumbing or lack proper tools, hire a licensed pool technician. Professional installation typically costs $150–$300 and includes warranty coverage on labor.

Conclusion

Investing in a swimming pool plumbing clear tube with metal magnet inside transforms invisible plumbing problems into visible, manageable insights. From protecting expensive equipment against metallic debris to providing instant flow verification, this modest component delivers outsized value for proactive pool owners. Remember to prioritize quality materials, follow precise installation steps, and maintain regular inspections to maximize longevity.
