Tennessee Plumbing Code For Nail Plates: Protect Drain Pipes

Framing a new home or remodeling in Tennessee is an exciting milestone, but nothing halts progress faster than a failed rough-in inspection due to unprotected piping. If you are searching for the Tennessee plumbing code for nail plates for drain pipes, you are likely trying to avoid expensive rework or future water damage caused by errant fasteners. Navigating these specific protection requirements ensures your project remains safe, compliant, and on schedule.

What Does the Tennessee Plumbing Code Say About Nail Plates?

When discussing the Tennessee plumbing code for nail plates for drain pipes, it is vital to understand that Tennessee adopts the International Plumbing Code (IPC) with state-specific amendments. The primary concern for inspectors is the physical protection of plastic piping (PVC, ABS, or PEX) where they penetrate wood framing members like studs, joists, and top plates.

According to the IPC standards adopted across Tennessee, protective metal plates must be installed whenever a pipe is located within a specific proximity to the face of a framing member. This is not merely a suggestion; it is a mandatory safety measure designed to prevent nails or screws from penetrating the drain line during drywall installation, cabinetry mounting, or trim work.

The Critical Measurement Thresholds

The code specifies precise measurements that trigger the requirement for a nail plate:

• Studs and Joists: A steel nail plate is required if the pipe is less than 1-1/2 inches (38 mm) from the edge of the stud or joist face.
• Top and Bottom Plates: Protection is required when piping runs horizontally through plates and is susceptible to nailing from above or below.
• Notched Framing: If a stud has been notched to accommodate a pipe (which itself has strict depth limitations), a nail plate is almost always required to reinforce the structural integrity and protect the pipe simultaneously.

Expert Insight: Many Tennessee inspectors note that while 1-1/2 inches is the minimum code allowance, best practice suggests maintaining a 2-inch buffer whenever possible. This extra margin accounts for variations in lumber sizing and provides a safer zone for finish carpenters who may use longer fasteners than anticipated.

For a broader understanding of how these model codes are developed and maintained nationally, you can refer to the International Code Council on Wikipedia, which details the history and adoption process of the IPC that Tennessee relies upon.

Why Are Nail Plates Mandatory for Drain Pipe Safety?

Understanding the “why” behind the Tennessee plumbing code for nail plates for drain pipes helps contractors and homeowners appreciate the necessity of this small component. Drain pipes operate under gravity flow and are often concealed behind walls for decades. A single puncture can lead to catastrophic consequences.

Consequences of Skipping Nail Plates

1. Hidden Leaks: A nail might only partially penetrate a PVC drain pipe, creating a pinhole leak that drips slowly inside a wall cavity. This often goes unnoticed until mold growth or structural rot occurs.
2. Sewer Gas Intrusion: Even if no water escapes immediately, a compromised drain pipe seal allows sewer gases to enter living spaces, posing health risks and failing air quality tests.
3. Failed Inspections: Tennessee building officials are trained to spot missing protection during the rough-in phase. Failing this checkpoint delays drywall, flooring, and final occupancy permits.
4. Insurance Complications: In the event of water damage, insurance adjusters may deny claims if it is determined that the plumbing installation did not meet current Tennessee code standards regarding pipe protection.

Step-by-Step Guide to Installing Nail Plates Correctly

Proper installation is just as important as having the plate itself. Follow this detailed tutorial to ensure compliance with the Tennessee plumbing code for nail plates for drain pipes.

Tools and Materials Needed

• Steel nail plates (minimum thickness per manufacturer specs, typically 16-gauge)
• Hammer or pneumatic nail gun
• Tape measure
• Pencil or marker
• Safety glasses

Installation Procedure

1. Measure Clearance: Use your tape measure to verify the distance between the outer surface of the drain pipe and the face of the wood framing. If the gap is less than 1-1/2 inches, proceed immediately.
2. Select the Correct Plate Size: Choose a plate that extends at least 1/4 inch beyond the pipe diameter on all sides. For a standard 3-inch drain pipe, use a plate that covers a minimum 4-inch vertical span centered on the pipe.

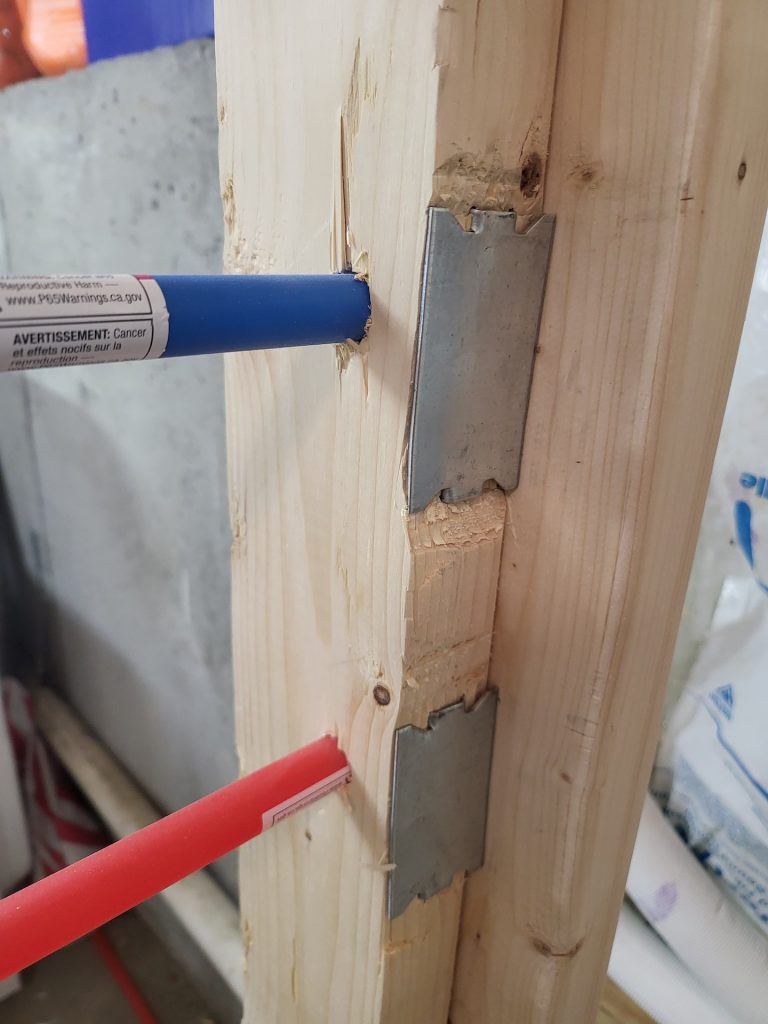

3. Position the Plate: Center the metal plate directly over the area where the pipe passes through the stud. Ensure the plate sits flush against the wood surface; gaps can reduce effectiveness.
4. Secure the Fasteners: Nail the plate using the pre-punched holes. Use nails long enough to penetrate the stud by at least 1 inch but short enough not to touch the pipe. Typically, 1-1/4 inch roofing nails or specific plate nails are ideal.
5. Verify Coverage: Double-check that the entire vulnerable section of the pipe is shielded. If the pipe runs diagonally or at an angle, you may need multiple overlapping plates to provide continuous protection.
6. Mark for Future Reference: Consider marking the location of protected pipes on the subfloor or ceiling before insulation is installed. This aids future renovations and demonstrates diligence to inspectors.

Comparison: Metal Nail Plates vs. Alternative Protection Methods

While steel nail plates are the industry standard referenced in the Tennessee plumbing code for nail plates for drain pipes, other methods exist. Understanding their pros and cons helps you make informed decisions.

Note: Always verify alternative methods with your local Tennessee building department, as municipal amendments can vary.

Common Mistakes Contractors Make With Nail Plates

Even experienced professionals sometimes overlook nuances in the Tennessee plumbing code for nail plates for drain pipes. Avoid these frequent pitfalls:

• Using Drywall Screws Instead of Nails: Screws can snap under shear stress or corrode differently than nails. Most nail plate manufacturers specify nail types for warranty and code compliance.
• Plates Too Small: Using a 2×4 plate on a 3-inch drain stack leaves edges exposed. Always size up.
• Ignoring Horizontal Runs: Nail plates aren’t just for vertical stacks. Horizontal drain lines running through top plates near wall edges are equally vulnerable to trim nails.
• Assuming Copper Doesn’t Need Protection: While copper is more resistant to puncture than PVC, Tennessee code still requires protection for all piping types within the critical zone to prevent deformation and joint failure.
• Poor Alignment: A plate shifted half an inch off-center renders it useless. Precision matters during rough-in.

Frequently Asked Questions (FAQ)

1. Does the Tennessee plumbing code require nail plates for PEX supply lines too?

Yes. While your query focuses on drain pipes, Tennessee’s adoption of the IPC mandates nail plates for all plastic piping, including PEX and CPVC supply lines, when they are within 1-1/2 inches of a framing face. Supply lines are actually at higher risk because they are pressurized; a puncture causes immediate flooding rather than a slow drain leak.

2. Can I use plastic nail plates instead of steel in Tennessee?

Generally, no. The Tennessee plumbing code for nail plates for drain pipes specifically references steel protective plates. Plastic guards may be used as spacing devices or grommets to prevent abrasion, but they do not provide the puncture resistance required for nail/screw protection within the critical clearance zone. Always check the product’s ICC-ES evaluation report for code approval.

3. What happens if my existing home lacks nail plates during a remodel?

If you are opening walls during a renovation and discover unprotected pipes within the critical zone, you are typically required to bring that section up to current code. This means retrofitting nail plates before closing the wall. Inspectors have discretion based on the scope of work, but leaving known hazards unaddressed creates liability and potential insurance issues.

4. Do nail plates apply to cast iron drain pipes?

Cast iron is significantly more resistant to nail penetration than plastic. However, Tennessee code still requires protection if the pipe is within the specified clearance and the framing member could be compromised. More importantly, protecting cast iron prevents damage to hub connections and reduces noise transmission. Consult your local inspector, as some jurisdictions exempt cast iron from nail plate requirements while others enforce them uniformly.

5. How thick must a nail plate be to meet Tennessee code?

The IPC does not specify an exact gauge universally; instead, it requires plates to be of “approved material and thickness.” Industry standard and most manufacturer listings specify minimum 16-gauge steel (approximately 0.0598 inches). Using thinner material may fail inspection. Always retain the manufacturer’s specification sheet on-site for the inspector’s review.

6. Are there exceptions for fire-rated assemblies?

Fire-rated walls and floor-ceiling assemblies have additional penetration protection requirements beyond standard nail plates. You may need intumescent firestop collars in addition to nail plates. The Tennessee plumbing code for nail plates for drain pipes operates alongside fire codes; one does not replace the other. Coordinate with both plumbing and fire inspectors for rated assemblies.

Conclusion

Adhering to the Tennessee plumbing code for nail plates for drain pipes is a non-negotiable aspect of safe, durable construction. These simple steel shields represent the difference between a passing inspection and a costly callback, between a dry wall cavity and a mold remediation project. By understanding the 1-1/2 inch threshold, selecting properly sized plates, and installing them with precision, you protect both your investment and the future occupants of the building.

Remember, code compliance isn’t just about satisfying inspectors—it’s about building trust and ensuring longevity. Take pride in doing the small things right, because in plumbing, the small things prevent the big disasters.
