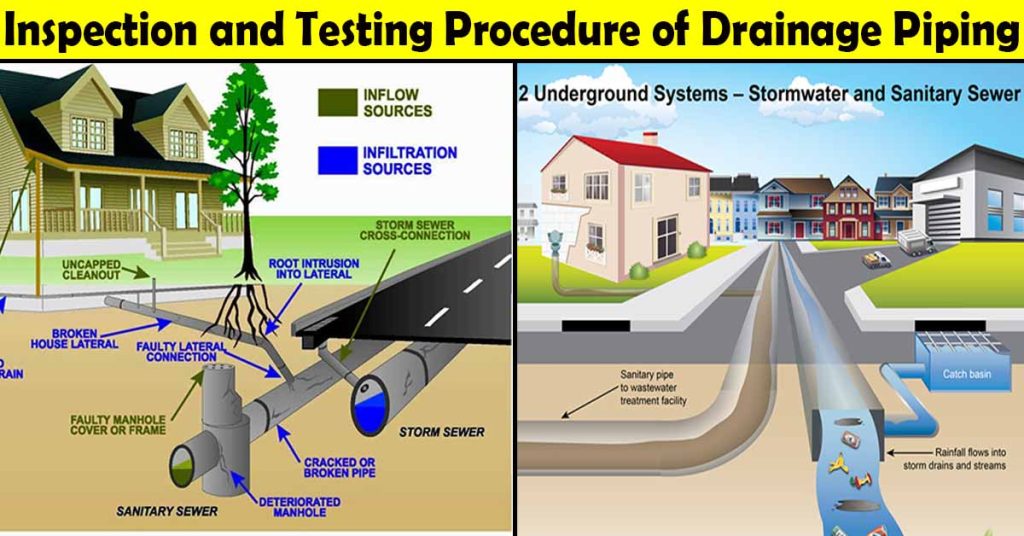

Testing And Commissioning Procedure For Plumbing And Drainage

There is nothing more stressful for a contractor or homeowner than discovering a hidden leak weeks after the walls are closed up. Ensuring system integrity requires a rigorous testing and commissioning procedure for plumbing and drainage installation before any finish work begins. This guide walks you through industry-standard validation steps to guarantee safety, compliance, and long-term reliability for your US-based projects.

Why Is Testing and Commissioning Critical for Plumbing Systems?

Before diving into the technical steps, it is vital to understand why this phase exists. Testing is not merely a bureaucratic hurdle; it is the primary defense against property damage and health hazards. According to industry insurance data, water damage remains one of the most frequent and costly claims in commercial and residential buildings.

Proper commissioning verifies that the system performs as designed under real-world conditions. It bridges the gap between static installation and dynamic operation. By following a standardized testing and commissioning procedure for plumbing and drainage installation, professionals validate that pipe joints can withstand operating pressures, drains maintain proper flow gradients, and backflow prevention devices actually prevent contamination. Skipping this step risks violating local building codes and voiding manufacturer warranties.

What Are the Prerequisites Before Testing Begins?

You cannot test a system that isn’t ready. Preparation accounts for 40% of successful commissioning. Before applying pressure or water, ensure the following:

• Visual Inspection Complete: All hangers, supports, and brackets are installed per code. Pipes are properly sloped for drainage.
• System Flushed: Debris from construction (drywall dust, solder flux, plastic shavings) has been removed.
• Isolation Verified: Sensitive equipment (water heaters, valves, meters) is isolated or bypassed to prevent damage during high-pressure tests.
• Safety Protocols Active: Pressure relief valves are set, and personnel are wearing appropriate PPE.
• Documentation Ready: Test logs, calibration certificates for gauges, and approved shop drawings are on-site.

Expert Insight: Never use a standard air compressor for hydrostatic testing without an oil/water separator. Oil residue can contaminate potable water lines and violate NSF/ANSI 61 standards.

Step-by-Step Hydrostatic Pressure Testing for Supply Lines

Hydrostatic testing is the gold standard for pressurized supply lines. Water is preferred over air because it is non-compressible and safer. Here is the precise procedure:

1. Fill Slowly: Fill the system with clean water at a temperature between 50°F and 80°F (10°C–27°C). Open all high-point vents to purge trapped air completely. Air pockets create false readings and safety hazards.
2. Pressurize Gradually: Increase pressure using a calibrated test pump. Do not exceed the test pressure rating of the weakest component.
3. Reach Test Pressure: Typically, this is 1.5x the working pressure or as specified by local code (often 100 PSI minimum for residential). Hold for a stabilization period of 15 minutes.
4. Monitor Duration: Maintain test pressure for a minimum of 2 hours (or per project specifications). Record starting and ending pressures.
5. Inspect Joints: Visually check every fitting, valve, and connection. Even a slow weep is a failure.
6. Depressurize Safely: Release pressure slowly through designated drain points. Never open a valve abruptly.

How Do You Perform Drainage and Vent Stack Testing?

Drainage systems operate under gravity, not pressure, so they require different validation methods. The two primary approaches are the Water Test and the Air Test.

The Water Test (Preferred Method)

This simulates actual usage conditions and is often mandated by inspectors for below-grade drainage.

1. Plug the lowest point of the system being tested.
2. Fill the system with water to a head pressure of 10 feet (3 meters) above the highest fixture connection, or to the overflow rim of the highest fixture.
3. Let the system stand for at least 1 hour.
4. Inspect all joints. The water level must remain constant; any drop indicates a leak.

The Air Test (Alternative)

Used when water weight could damage structural supports or in freezing conditions.

1. Attach an air test apparatus with a manometer.
2. Pressurize to 5 PSI (34 kPa).
3. Monitor for 15 minutes. A pressure drop exceeding 0.5 PSI typically constitutes a failure.

For comprehensive definitions of drainage terminology and historical context of sanitary engineering standards, referencing authoritative sources like Wikipedia’s Sanitary Sewer entry can provide useful background knowledge for understanding system classifications.

What Checks Are Required During Final Commissioning?

Testing proves the pipes don’t leak. Commissioning proves the system works. This phase occurs after fixtures are installed and the building is near completion.

• Flow Rate Verification: Measure GPM at representative fixtures. Compare against design specs. Low flow may indicate undersized piping or blockages.
• Hot Water Recirculation Balance: Verify return loop temperatures and pump operation. Ensure hot water reaches farthest fixture within code-mandated time (often < 10 seconds for recirculating systems).
• Backflow Preventer Certification: Test assembly per ASSE standards. Document results and submit to local authority.
• Fixture Operation Cycle: Flush toilets, run faucets, and operate appliances simultaneously to verify adequate pressure under peak demand.
• Drainage Flow Check: Run multiple fixtures to confirm no gurgling, slow drainage, or trap siphoning occurs.
• Labeling & Identification: Ensure all valves, pumps, and pipe contents are clearly labeled per ASME A13.1.

Common Mistakes That Cause Test Failures

Even experienced plumbers encounter failures. Avoid these frequent pitfalls:

• Trapped Air: The #1 cause of false hydrostatic failures. Bleed every high point meticulously.
• Uncalibrated Gauges: Using a dropped or expired gauge invalidates results. Always use recently certified equipment.
• Testing Too Early: Testing before hangers are fully secured can stress joints as pipes settle.
• Ignoring Thermal Expansion: Hot water tests in cold environments cause pressure drops unrelated to leaks. Stabilize temperature first.
• Incomplete Isolation: Forgetting to isolate a water heater or softener leads to damaged equipment and failed tests.

Frequently Asked Questions (FAQ)

How long should a plumbing pressure test last?

Most US building codes require a minimum hold time of 2 hours at 1.5x working pressure for supply lines. However, project specifications or local amendments may extend this to 4 or even 24 hours for critical systems. Always defer to the stricter requirement.

Can I use air instead of water for pressure testing?

Air testing is permitted in some jurisdictions but carries significant safety risks due to stored energy. Many inspectors only allow air tests at reduced pressures (e.g., 50 PSI max) or require special permits. Hydrostatic testing with water is always preferred for safety and accuracy. Check your local plumbing code before proceeding.

What is the acceptable pressure drop during testing?

For hydrostatic tests, a drop of less than 5 PSI over the test duration is generally acceptable, accounting for minor thermal fluctuations and gauge tolerance. Any visible leakage, regardless of pressure reading, is an automatic failure. Zero drop is the ideal target.

Do drainage vents need to be tested separately?

Yes. Vent stacks should be tested independently or as part of the drainage system test. Blocked or improperly sized vents cause trap seal loss and sewer gas intrusion. During commissioning, verify vent termination is clear and extends above roof penetration per code height requirements.

Who is qualified to perform commissioning?

While licensed plumbers install systems, commissioning is often performed by specialized MEP commissioning agents or third-party testing agencies. For simple residential projects, the installing plumber may certify tests. Commercial projects typically require independent verification to satisfy LEED, ASHRAE, or owner requirements.

What documentation is required after testing?

Maintain detailed records including: test date/time, ambient temperature, starting/ending pressures, gauge calibration certificates, inspector sign-off, and photographic evidence of critical joints. Digital logs with timestamps are increasingly required for warranty validation and future facility management.

Conclusion

A meticulous testing and commissioning procedure for plumbing and drainage installation is the difference between a reliable system and a liability nightmare. By following structured hydrostatic protocols, validating drainage integrity, and completing thorough functional checks, you protect both your reputation and the building occupants. Remember: testing finds problems when they’re cheap to fix; failures find them when they’re expensive.
