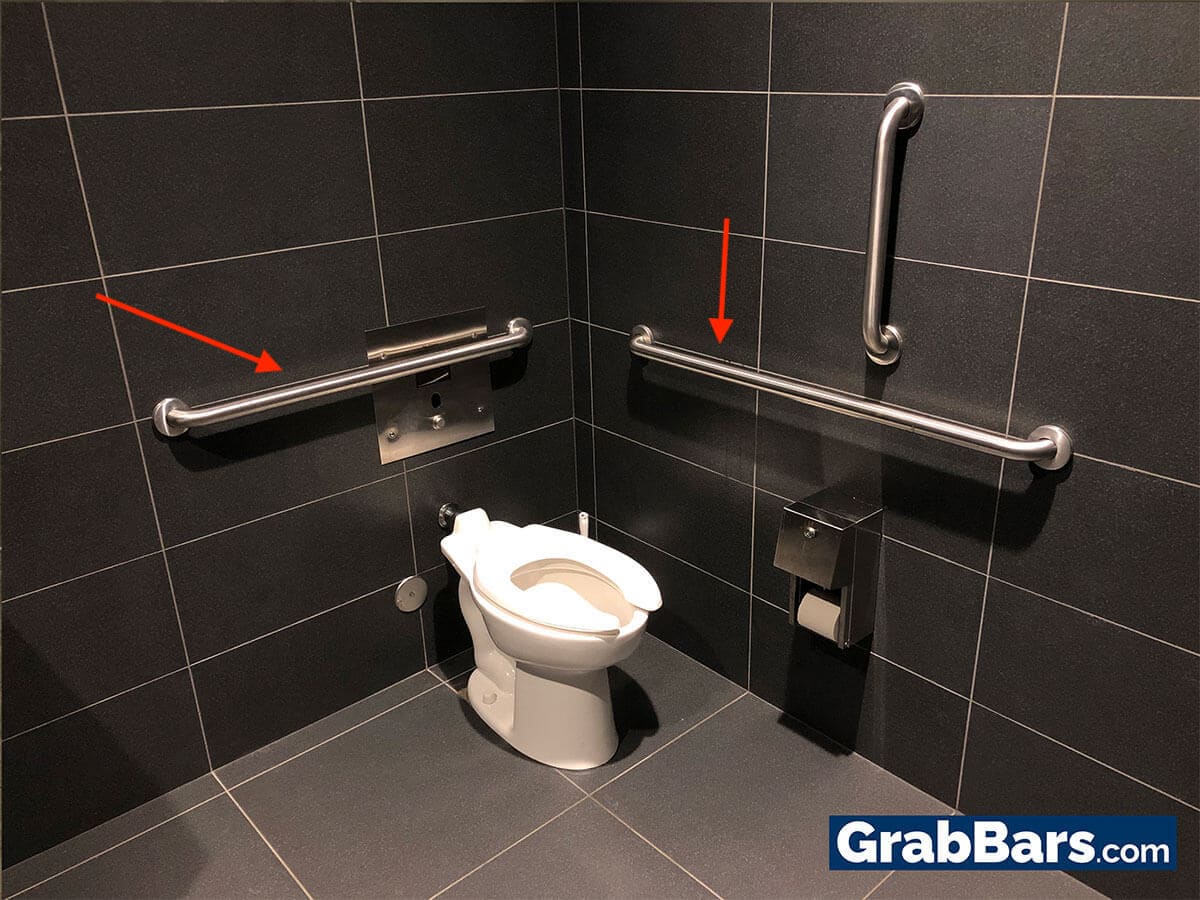

Toilet Rear Grab Bar Adjacent To Recessed Plumbing Fixture Guide

Designing an accessible bathroom often feels like solving a complex puzzle, especially when balancing strict safety codes with limited physical space. If you are struggling to install a toilet rear grab bar adjacent to recessed plumbing fixture setups, you are likely facing the common conflict between necessary support hardware and concealed tank systems. This guide provides clear, code-compliant solutions to ensure safety without compromising your bathroom’s sleek design or functionality.

Understanding the Challenge of Recessed Fixtures

When dealing with modern commercial or high-end residential bathrooms, “recessed plumbing fixtures” usually refer to in-wall tank systems (like wall-hung toilets) or chase walls where piping is concealed behind drywall. While aesthetically pleasing, these create unique challenges for installing a toilet rear grab bar adjacent to recessed plumbing fixture configurations.

The primary issue is structural integrity. Standard grab bars require solid backing to support up to 250 lbs of force. In recessed setups, the wall cavity may be shallow, or the flush valve access panel may occupy the exact center space where a traditional horizontal rear bar should go. Furthermore, accessibility standards dictate precise placement relative to the toilet centerline, which can be disrupted by the protrusion or indentation of the fixture itself.

What Are the ADA Requirements for Rear Grab Bars?

To ensure compliance and genuine user safety, one must adhere to specific dimensions. According to the Americans with Disabilities Act Accessibility Guidelines, which align with standards documented on Wikipedia.org, grab bars are not merely suggestions but critical safety infrastructure.

For a standard installation involving a toilet rear grab bar adjacent to recessed plumbing fixture, consider these non-negotiable specs:

• Height: The top of the gripping surface must be between 33 inches and 36 inches (840–915 mm) above the finished floor.
• Length: A rear grab bar must be at least 36 inches (915 mm) long. It should extend at least 12 inches from the toilet centerline on one side and 24 inches on the other.
• Clearance: There must be a 1.5-inch (38 mm) clearance between the grab bar and the wall. However, if the bar is located near a recessed fixture, this clearance must not interfere with the flush actuator or access panels.
• Structural Strength: Must withstand a minimum vertical and horizontal load of 250 lbs (113 kg).

Quick Reference: Standard vs. Recessed Specs

How Do You Install a Grab Bar Near a Concealed Tank?

Installing a toilet rear grab bar adjacent to recessed plumbing fixture requires more planning than a standard retrofit. Because you cannot simply screw into a hidden tank or thin drywall, follow this step-by-step technical approach.

Step 1: Locate Structural Support Points

Before drilling, use a stud finder and consult the manufacturer’s schematic for the in-wall carrier system. You must identify the steel frame of the toilet carrier or the vertical studs framing the chase. Never mount a grab bar solely to drywall or tile over a recessed void.

Step 2: Select the Correct Hardware

For recessed applications, standard flange bars often fail. Opt for:

• Offset Rear Grab Bars: Designed specifically to bridge over flush actuators or access panels.
• Flip-Up/Fold-Away Bars: Ideal if the recessed nature leaves insufficient clearance for a fixed bar during transfers.
• Through-Bolt Anchors: If mounting to the steel carrier frame, use manufacturer-approved through-bolts rather than toggle bolts.

Step 3: Mark and Verify Clearance

Measure 33–36 inches from the finished floor. Mark the 36-inch span centered on the toilet. Check if the flush button or access door intersects this zone. If it does, shift the bar vertically (within the 3-inch tolerance) or select an offset model that arches over the obstruction.

Step 4: Reinforce the Mounting Surface

If the chase wall is tiled over a shallow cavity, install 2×6 blocking or ½-inch plywood backing between studs before tiling. For post-tile installation on recessed walls, use specialized hollow-wall anchors rated for 250+ lbs shear load, anchored directly into the metal carrier frame if possible.

Step 5: Seal and Test

Apply silicone caulk around the flanges to prevent water ingress into the recessed wall cavity—a critical step to prevent mold behind the fixture. Torque all set screws to manufacturer specifications (typically 15–20 ft-lbs) and perform a pull-test before allowing use.

Pros and Cons of Different Grab Bar Solutions

Choosing the right toilet rear grab bar adjacent to recessed plumbing fixture involves trade-offs. Here is what industry professionals recommend based on real-world installations:

Fixed Horizontal Bars

• Pros: Most stable; fully ADA compliant; lowest cost.
• Cons: Can block access panels; requires precise pre-installation blocking.

Offset/Cranked Bars

• Pros: Navigates around flush valves; maintains continuous grip; ADA compliant.
• Cons: Higher cost; limited aesthetic options; harder to clean.

Fold-Up/Vertical Assist Bars

• Pros: Saves space; allows full access to recessed maintenance panels; versatile.
• Cons: Moving parts can wear out; not always accepted as a rear bar substitute under strict ADA interpretation (verify local code).

Expert Tips for Long-Term Durability

“In recessed plumbing environments, moisture management is just as important as load-bearing capacity. Always specify Grade 304 or 316 stainless steel with concealed fasteners to prevent corrosion inside the wall cavity.” — Certified Access Specialist (CASp)

Additionally, ensure the grab bar diameter is between 1.25 and 2 inches. Bars thinner than 1.25 inches can be painful to grip for users with arthritis, while those exceeding 2 inches are difficult to hold securely during emergency transfers.

Frequently Asked Questions (FAQ)

1. Can I mount a grab bar directly to an in-wall toilet carrier frame?

Yes, and this is often the preferred method for a toilet rear grab bar adjacent to recessed plumbing fixture. Most major carriers (Geberit, Toto, Kohler) have pre-drilled mounting points specifically for grab bars. Always use the OEM hardware kit designed for your specific carrier model to maintain warranty and load ratings.

2. What if my recessed fixture prevents a full 36-inch rear bar?

If physical obstructions make a continuous 36-inch bar impossible, ADA allows for alternative configurations. You may install two shorter bars on either side of the obstruction, provided each segment meets minimum length requirements and the overall assembly provides equivalent support. Consult a Certified Access Specialist for approval.

3. Are suction-cup grab bars safe for recessed fixture walls?

Absolutely not. Suction cups are never ADA compliant and are dangerous for daily use. They can fail without warning, especially on textured tile or grout lines common in recessed fixture installations. Only mechanically fastened bars should be used.

4. How do I maintain a grab bar in a humid, recessed environment?

Inspect mounting hardware quarterly for looseness. Wipe down with pH-neutral cleaner monthly—avoid bleach or abrasive pads that can compromise the passivation layer on stainless steel. Check caulking annually and reapply if cracked to prevent moisture from entering the recessed wall cavity.

5. Does the grab bar color need to contrast with the wall?

While ADA does not strictly mandate color contrast for grab bars, best practices in universal design recommend it. High contrast helps users with low vision locate the toilet rear grab bar adjacent to recessed plumbing fixture quickly. Matte finishes are preferred over glossy ones to reduce glare in well-lit commercial restrooms.

6. Can I install the grab bar after the tile is already laid?

Yes, but it requires careful execution. Use a diamond-tipped hole saw to cut through tile without cracking it. Locate the carrier frame or blocking using a deep-scan stud finder. If no backing exists, you may need to open a small access point to install reinforcement—a task best left to licensed plumbers or accessibility contractors.

Conclusion

Successfully integrating a toilet rear grab bar adjacent to recessed plumbing fixture demands attention to both code compliance and practical engineering. By understanding ADA dimensions, selecting appropriate offset or carrier-mounted hardware, and prioritizing structural reinforcement, you can create a bathroom that is both beautifully minimalist and genuinely safe for all users. Remember: accessibility isn’t an afterthought—it’s the foundation of thoughtful design.
