Why Upgrade to a 3-Port MAC Valve?
Before diving into the plumbing diagrams, it is crucial to understand why this upgrade is necessary. The stock MAC valve found in many older Toyota turbocharged vehicles is a 2-port solenoid. It operates by either venting boost to the atmosphere or holding it in the lines. While functional, it lacks precision.
A 3-port MAC valve offers superior control because it can actively direct pressure in three ways: hold, vent, or apply pressure to the wastegate actuator. This results in:
- Faster Spool Times: The turbocharger reaches target boost more quickly.
- Reduced Boost Creep: Better management of exhaust gas flow through the wastegate.
- Improved Drivability: Smother power delivery during partial throttle applications.
According to automotive engineering principles, precise boost control is critical for maintaining the air-fuel ratio within safe limits. For a deeper understanding of how turbochargers function, you can refer to the detailed explanations on Wikipedia’s Turbocharger page.
Understanding the Ports: A Technical Breakdown

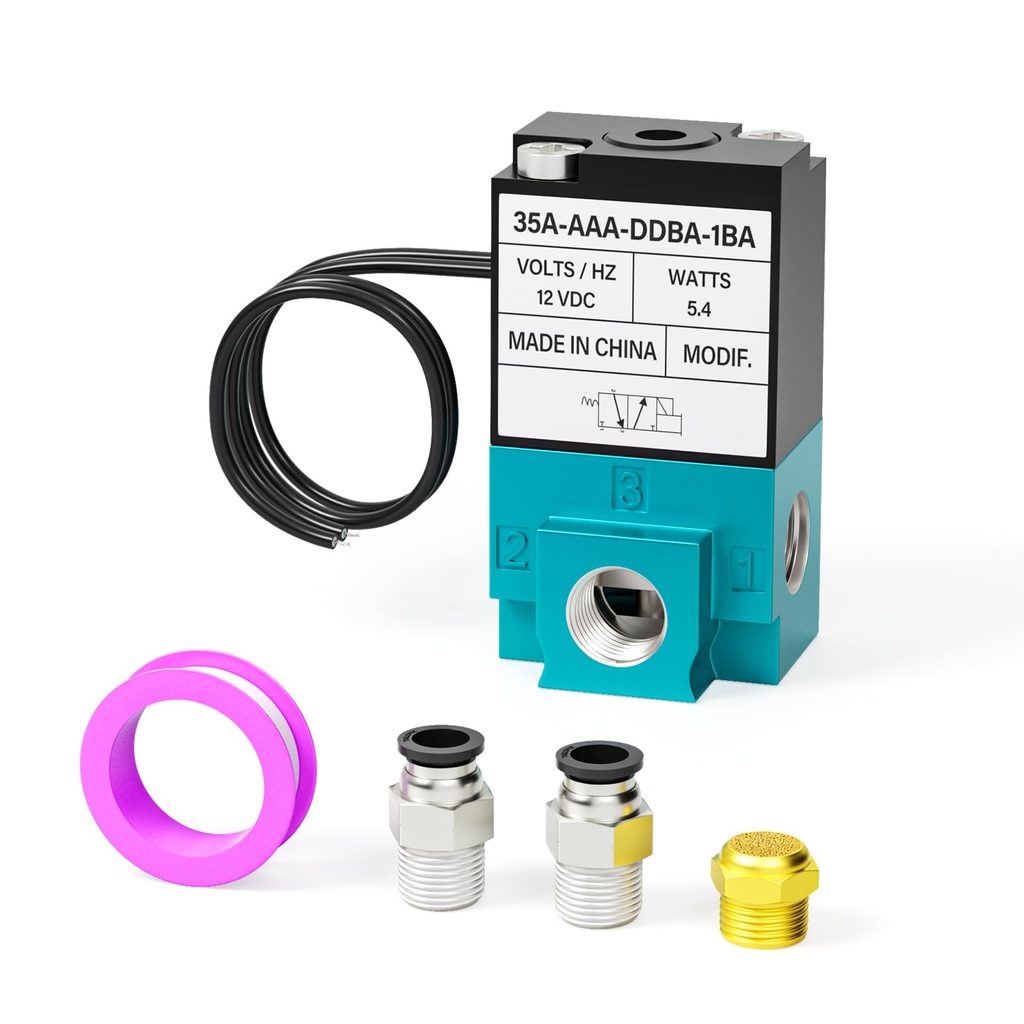

To plumb the system correctly, you must identify the three ports on the new MAC valve. Misidentifying these can lead to zero boost or dangerous over-boost situations.
Port 1: Source (Pressure Input)
This port connects directly to the pressurized side of the intake system, typically post-intercooler or from a boost tap on the intake manifold. It provides the reference pressure that the ECU uses to determine current boost levels.
Port 2: Wastegate Actuator (Output)
This is the most critical connection. This port sends the controlled signal pressure to the wastegate actuator. When the ECU signals the MAC valve to open, pressure is released from this line, allowing the wastegate spring to open the gate and limit boost.
Port 3: Vent (Atmosphere)
This port vents excess pressure to the atmosphere. In a 3-port system, this allows for a “bleed-off” mechanism that is faster and more efficient than the restrictive path of a 2-port valve.
| Feature | 2-Port MAC Valve | 3-Port MAC Valve |
|---|---|---|
| Control Precision | Low | High |
| Boost Response | Slower | Instant |
| Complexity | Simple | Moderate |
| Tuning Flexibility | Limited | Extensive |
Step-by-Step Installation Guide
Installing a 3-port MAC valve requires attention to detail. Follow these steps to ensure a leak-free and functional setup.
Step 1: Gather Your Tools and Materials
You will need:
- The new 3-port MAC valve (ensure it is compatible with Toyota’s electrical connector).
- Silicone vacuum hose (4mm or 5mm inner diameter, depending on your fittings).
- Hose clamps or zip ties.
- Basic hand tools (screwdrivers, pliers).
- Electrical tape or heat shrink tubing.
Step 2: Locate the Stock MAC Valve
The stock MAC valve is usually located near the firewall on the driver’s side or near the intake manifold. Disconnect the electrical connector carefully by pressing the release tab. Do not pull on the wires.
Step 3: Remove the Old Unit
Unclip the stock valve from its bracket. Note the direction of the existing hoses. Take a photo with your phone for reference. Remove the old hoses and discard them if they are cracked or hardened.
Step 4: Connect the New 3-Port Valve
Refer to the diagram provided with your new valve, but generally:
- Connect the Source line from your boost tap to Port 1.
- Connect the line going to the Wastegate Actuator to Port 2.
- Leave Port 3 open to the atmosphere or attach a short piece of hose pointing downward to prevent debris entry. Note: Some tuners prefer to cap Port 3 if using a specific closed-loop strategy, but venting is standard for most street applications.
Step 5: Secure and Test
Ensure all connections are tight. Reconnect the electrical plug. Start the engine and listen for any immediate hissing sounds, which indicate a leak. Use a boost gauge to monitor pressure during a safe test drive.
Common Mistakes to Avoid
Even experienced mechanics can make errors when switching to a 3-port system. Here are the most common pitfalls discussed in community threads.
- Reversing Source and Wastegate Lines: This is the most frequent error. If you swap Port 1 and Port 2, the wastegate will stay fully open, and you will have no boost. Always double-check the flow direction.
- Using Poor Quality Hoses: Standard rubber vacuum hoses can expand under boost, causing delayed response. Always use reinforced silicone hoses rated for positive pressure.
- Ignoring Electrical Compatibility: Ensure the new MAC valve has the same resistance (ohms) as the stock unit. If the resistance is significantly different, the ECU may throw a check engine light or fail to control the valve properly.
Tuning Considerations for 3-Port MAC Valves
Installing the hardware is only half the battle. The software must be adjusted to take advantage of the new hardware.
Duty Cycle Adjustments
The ECU controls the MAC valve via a duty cycle (percentage of time the valve is open). With a 3-port valve, the flow characteristics change. You may need to lower the duty cycle values in your tuning software to achieve the same boost level as before.
Boost Target Tables
Because the 3-port valve responds faster, you can set more aggressive boost targets in the lower RPM range without fearing sudden spikes. However, always ramp up changes gradually.
Monitoring Logs
Use a logging tool to monitor:
- Target Boost vs. Actual Boost
- MAC Valve Duty Cycle
- Intake Air Temperature
If you see actual boost lagging significantly behind target boost, check for leaks or incorrect plumbing. If actual boost exceeds target, your wastegate may be sticking, or the MAC valve is not venting fast enough.
FAQ Section
1. Can I use a universal 3-port MAC valve on my Toyota Supra?
Yes, but you must ensure the electrical connector matches or that you are comfortable splicing wires. Additionally, verify the flow rate (CC/min) is similar to the OEM part to avoid tuning headaches.
2. Do I need a tune after installing a 3-port MAC valve?
While the car may run, a tune is highly recommended. The ECU’s learned parameters for the old 2-port valve will not be optimal for the 3-port valve. A proper tune ensures safe air-fuel ratios and maximizes performance gains.
3. What happens if I leave Port 3 capped?
Capping Port 3 effectively turns the 3-port valve into a 2-port valve in terms of function, though it may still offer slightly different internal flow dynamics. For true 3-port benefits, Port 3 should vent to the atmosphere.
4. Is a 3-port MAC valve necessary for a stock turbo setup?
For a completely stock vehicle, it is not strictly necessary. However, if you have upgraded your intercooler, intake, or exhaust, the stock MAC valve may become a bottleneck. The 3-port upgrade is ideal for modified setups.
5. How do I know if my MAC valve is failing?
Symptoms of a failing MAC valve include erratic boost gauge readings, inability to reach target boost, or constant over-boosting. You can test the valve by applying 12V directly to it (briefly) and listening for a click, and checking for continuity with a multimeter.
