Imagine turning on your kitchen tap for a glass of water, only to realize that what comes out might not be as pure as you think. It is a unsettling thought, but one that highlights the critical importance of understanding how our home water systems interact with potential contaminants. One of the most common yet overlooked threats to water quality is backsiphonage, a phenomenon where dirty water is sucked back into the clean water supply due to negative pressure.
In this guide, we will explore the 3 Plumbing Fixtures Through Which Backsiphonagw Can Occur, helping you identify vulnerabilities in your home or business. By understanding these risks, you can take proactive steps to protect your health and ensure your plumbing system remains safe and compliant with local codes.
What Is Backsiphonage and Why Should You Care?

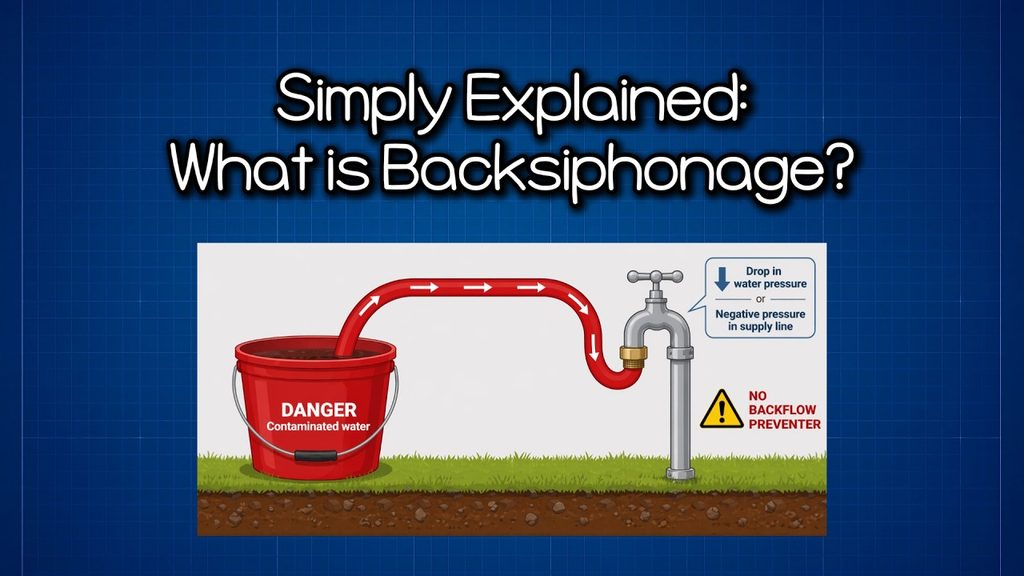

Before diving into the specific fixtures, it is essential to understand the mechanics behind backsiphonage. Unlike backpressure, which pushes water backward due to higher downstream pressure, backsiphonage occurs when there is a negative pressure (vacuum) in the supply line.
Think of it like drinking through a straw. If you suck hard enough, liquid moves up. In plumbing, if the main water pressure drops suddenly—due to a broken main, heavy firefighting usage, or high demand—the vacuum can pull non-potable water from fixtures back into the potable water lines. This process, known as cross-connection, can introduce bacteria, chemicals, and other hazardous substances into your drinking water.
According to the Centers for Disease Control and Prevention (CDC), cross-connections are a leading cause of waterborne disease outbreaks. Understanding where these weak points exist is the first step in prevention.
Fixture 1: Kitchen Sinks with Hand Sprayers
The modern kitchen sink is often equipped with a handheld sprayer for rinsing dishes or cleaning the basin. While convenient, this fixture is a prime candidate for backsiphonage if not properly protected.
The Risk Factor
The hose attached to the hand sprayer often ends in a nozzle that can easily be submerged. If you are filling a large pot, cleaning a mop head, or simply letting the hose rest in a sink full of soapy, dirty water, a direct cross-connection is created. If the municipal water pressure drops while the sprayer valve is open (or even slightly leaking), the contaminated sink water can be siphoned back into the clean water line.
Common Scenarios
- Submerged Hoses: Leaving the sprayer head underwater while washing dishes.
- Bucket Filling: Using the sprayer to fill a bucket with cleaning solutions, where the hose end dips below the chemical level.
- Faulty Valves: A worn-out diverter valve that allows water to flow even when the trigger is not fully engaged.
How to Prevent It
To mitigate this risk, ensure your kitchen faucet is equipped with an atmospheric vacuum breaker or an air gap. An air gap is the most effective method, creating a physical space between the water outlet and the flood level rim of the sink. Regularly inspect the sprayer hose for cracks and ensure the check valves inside the faucet assembly are functioning correctly.
Fixture 2: Hose Bibbs (Outdoor Faucets)
Outdoor faucets, commonly known as hose bibbs, are perhaps the most frequent source of backsiphonage incidents in residential properties. They are frequently used for gardening, washing cars, and filling pools, all of which involve potential contaminants.
The Risk Factor
A standard garden hose connected to a bibb is essentially an extension of your home’s plumbing. If the other end of the hose is placed in a pool, a pond, a bucket of pesticide, or even just lying on the ground in a puddle, it creates a pathway for contaminants. When water pressure drops, these external liquids can be sucked back into your home’s water supply.
Data Insight
A study by the American Water Works Association (AWWA) indicates that over 60% of residential cross-connections occur at outdoor hose bibbs. This statistic underscores the need for rigorous protection at every exterior water outlet.
Common Scenarios
- Chemical Application: Using a hose-end sprayer for fertilizers or pesticides without a backflow preventer.
- Pool Filling: Submerging the hose end in a swimming pool or hot tub.
- Pressure Washing: Connecting a pressure washer that draws in cleaning agents.
How to Prevent It
The solution here is straightforward: install a hose bibb vacuum breaker (HBVB). These devices are inexpensive, easy to install (they screw directly onto the faucet), and automatically close if negative pressure is detected. For added safety, consider installing a frost-free sill cock with an integrated backflow preventer. Always remember to disconnect hoses when not in use, especially during periods of low water pressure.
Fixture 3: Toilet Tanks
While it may seem surprising, the toilet tank is a significant risk area for backsiphonage. The connection between the fresh water supply and the toilet bowl is a classic example of a cross-connection that requires careful management.
The Risk Factor
Inside the toilet tank, the fill valve controls the water level. If the fill valve malfunctions or if the water level is set too high, water can overflow into the bowl. More critically, if the supply line experiences negative pressure, water from the bowl—which contains waste, bacteria, and cleaning chemicals—can be siphoned back into the tank and potentially further into the supply line if there is no proper barrier.
The Role of the Flushometer
In commercial settings, flushometer valves are used instead of tank-style toilets. These devices are particularly susceptible to backsiphonage if they lack proper vacuum breakers. The high velocity of water during flushing can create temporary negative pressure zones, increasing the risk if the system is not designed correctly.
Common Scenarios
- Overflow Tubes: If the water level in the tank is above the overflow tube, any drop in pressure can pull water from the bowl back up.
- Submerged Fill Valves: Older fill valves that sit below the water line can allow backflow if the check mechanism fails.
- Cleaning Tablets: Using bleach or disinfectant tablets in the tank increases the toxicity of the water that could potentially be siphoned back.
How to Prevent It
Ensure that the water level in the tank is at least one inch below the top of the overflow tube. This air gap prevents direct contact between the supply water and the bowl water. Additionally, install a toilet tank vacuum breaker on the supply line. For commercial flushometers, verify that integral vacuum breakers are installed and maintained according to manufacturer specifications.
For more detailed technical standards on plumbing fixtures, you can refer to the Wikipedia page on Backflow Prevention, which provides a comprehensive overview of global regulations and mechanisms.
Comparison: Types of Backflow Prevention Devices
Not all prevention methods are created equal. Here is a quick comparison to help you choose the right device for each fixture.
| Device Type | Best For | Protection Level | Maintenance Required |
|---|---|---|---|
| Air Gap | Kitchen Sinks, Dishwashers | Highest (Physical Barrier) | Low (Visual Inspection) |
| Hose Bibb Vacuum Breaker | Outdoor Faucets | High | Medium (Replace Every 3-5 Years) |
| Atmospheric Vacuum Breaker | Toilet Tanks, Lab Sinks | Moderate | Low |
| Double Check Valve | Irrigation Systems | High | Annual Testing |
Step-by-Step: How to Test Your Home for Backsiphonage Risks
You don’t need to be a plumber to perform a basic safety check. Follow these simple steps to assess your home’s vulnerability.
- Inspect Outdoor Faucets: Check every exterior spigot. If there is no brass or plastic vacuum breaker screwed onto the end, purchase one immediately. They cost less than $10 and can be installed by hand.
- Check Kitchen Sprayers: Turn on the cold water and engage the sprayer. Look for any leaks around the handle. Ensure the hose does not stay submerged in the sink when not in use.
- Examine Toilet Tanks: Remove the lid of your toilet tank. Look at the water level. Is it touching the overflow tube? If yes, adjust the float screw to lower the water level by at least one inch.
- Look for Submerged Hoses: Walk around your property. Are any garden hoses left in pools, buckets, or on the ground? Disconnect them and store them properly.
- Consult a Professional: If you have a complex irrigation system or a boiler, hire a licensed plumber to perform a backflow prevention assembly test. This should be done annually.
FAQ Section
1. What is the difference between backsiphonage and backpressure?
Backsiphonage is caused by negative pressure (a vacuum) pulling water backward, while backpressure is caused by higher downstream pressure pushing water backward. Both are forms of backflow, but they require different prevention strategies.
2. Can backsiphonage happen if the water is turned off?
Yes. If the main water supply is shut off for repairs, the pressure in your pipes drops to zero. If you have open fixtures connected to contaminated sources, gravity and residual vacuum effects can still cause backsiphonage.
3. How often should I replace my hose bibb vacuum breaker?
It is recommended to replace hose bibb vacuum breakers every 3 to 5 years, or sooner if they show signs of wear, leakage, or mineral buildup. They are inexpensive and critical for safety.
4. Is it illegal to not have backflow prevention devices?
In many US states and municipalities, it is required by plumbing code to have backflow prevention devices on specific fixtures, especially outdoor faucets and irrigation systems. Failure to comply can result in fines and liability issues if contamination occurs.
5. What are the health risks associated with backsiphonage?
The risks depend on the contaminant. They can range from minor gastrointestinal issues caused by bacteria like E. coli to severe poisoning from chemicals like pesticides or antifreeze. In extreme cases, it can lead to long-term health complications.
6. Can I install a backflow preventer myself?
Simple devices like hose bibb vacuum breakers and atmospheric vacuum breakers can be installed by homeowners. However, more complex assemblies like double check valves or reduced pressure zone (RPZ) devices usually require a licensed plumber for installation and certification.
Conclusion
Protecting your water supply from backsiphonage is not just a regulatory requirement; it is a fundamental aspect of home safety and public health. By identifying the 3 Plumbing Fixtures Through Which Backsiphonagw Can Occur—kitchen sinks with sprayers, outdoor hose bibbs, and toilet tanks—you can take targeted actions to secure your plumbing system.
Remember, prevention is far cheaper and easier than dealing with the consequences of water contamination. Install the appropriate vacuum breakers, maintain your fixtures, and stay vigilant about cross-connections.
