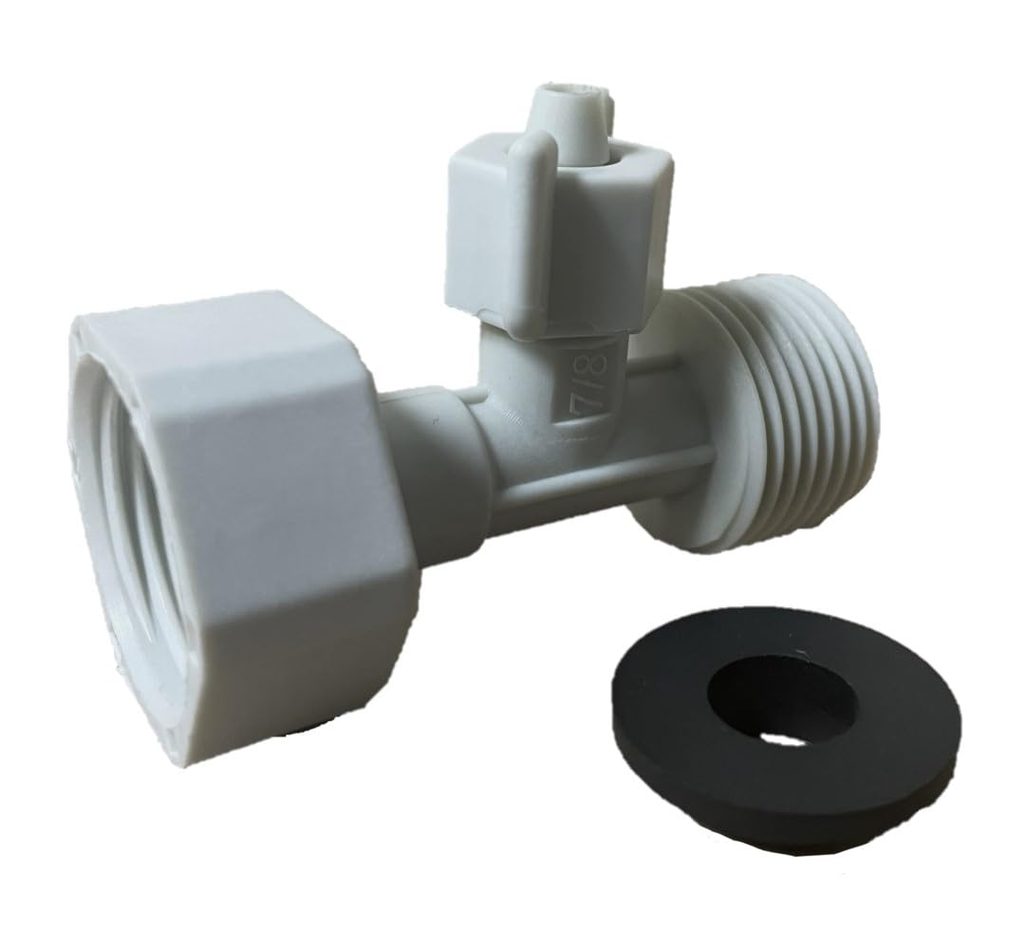

Have you ever stared at a leaking water line under your sink, realizing that the new faucet’s supply line doesn’t match your existing shut-off valve? It is a frustratingly common scenario in home renovations. The mismatch between a 7/8-inch connection and a standard 3/8-inch outlet can halt your entire project. Finding the right 7 8 To 3 8 Adapter Plumbing Nylon is the key to solving this issue quickly without calling a plumber. In this guide, we will walk you through everything you need to know about these essential fittings, ensuring your next repair is smooth, secure, and leak-free.
Why Choose Nylon for Your Plumbing Adapters?
When selecting an adapter, material matters just as much as size. While brass and stainless steel are popular, nylon has carved out a significant niche in residential plumbing, particularly for ice makers, humidifiers, and refrigerator water lines.
Durability Meets Flexibility
Nylon is a thermoplastic polymer known for its high strength-to-weight ratio. Unlike metal fittings, nylon does not corrode or rust when exposed to moisture over time. This makes it an excellent choice for areas with high humidity or where condensation is common. According to industry standards, high-quality nylon fittings can withstand pressures up to 150 PSI, which is well above the standard residential water pressure of 40–80 PSI.
Cost-Effectiveness
For homeowners on a budget, nylon adapters offer a cost-effective solution without compromising safety. They are generally cheaper than brass equivalents but still meet NSF (National Sanitation Foundation) standards for potable water use.
| Feature | Nylon Adapters | Brass Adapters |
|---|---|---|
| Corrosion Resistance | Excellent (No Rust) | Good (Can Tarnish) |
| Cost | Low | Moderate to High |
| Weight | Lightweight | Heavy |
| Ease of Installation | Easy (Hand-tighten often works) | Requires Wrench |
| Best Use Case | Ice lines, Humidifiers, Low-pressure | Main lines, High-pressure |
Understanding the Sizes: What Does 7/8 to 3/8 Mean?
Before buying, it is crucial to understand what these measurements represent to avoid purchasing the wrong part. Confusion here is the number one reason for return visits to the hardware store.
The 7/8 Inch Connection
The “7/8” usually refers to the outer diameter of the tubing or the compression nut size. In the context of refrigerator water lines and ice makers, this often connects to the plastic tubing that runs from the wall valve to the appliance. It is a standard size for many older and some newer appliance hookups.
The 3/8 Inch Connection
The “3/8” typically refers to the male or female thread size that connects to your shut-off valve or the appliance inlet. Most standard household shut-off valves (angle stops) have a 3/8-inch compression outlet or a 3/8-inch female pipe thread (FPT).
Pro Tip: Always measure your existing fittings with a caliper if you are unsure. A 7/8-inch measurement is approximately 22.2 millimeters, while 3/8-inch is roughly 9.5 millimeters.
Top Applications for a 7/8 to 3/8 Adapter
Why would you need this specific adapter? Here are the most common scenarios where this fitting saves the day:
- Refrigerator Ice Makers: Many modern fridges use 1/4-inch tubing, but older models or specific installation kits may require adapting a 7/8-inch hose end to a 3/8-inch valve.
- Humidifier Connections: Whole-house humidifiers often connect to the cold water line using non-standard sizing that requires adaptation.
- DIY Irrigation Systems: For indoor plant watering systems or small-scale hydroponics, nylon adapters are preferred because they are easy to modify and do not contaminate the water with metal ions.
- Repairing Leaky Compression Fittings: If an old brass compression nut has stripped threads, replacing it with a new nylon adapter assembly can be a quick fix.
Step-by-Step Installation Guide
Installing a 7 8 To 3 8 Adapter Plumbing Nylon is straightforward, but precision is key to preventing leaks. Follow these steps for a professional result.
Tools You Will Need:
- Adjustable wrench
- Teflon tape (PTFE tape)
- Bucket or towel (to catch residual water)
- Tube cutter (if trimming tubing is required)
Installation Steps:
- Shut Off the Water Supply Locate the main shut-off valve or the specific angle stop under the sink. Turn it clockwise until it stops. Open the faucet to relieve any remaining pressure in the line.
- Prepare the Threads Clean the threads of the 3/8-inch valve. Wrap Teflon tape around the male threads of the adapter (if it has male threads) in a clockwise direction. Do this 2–3 times. Note: If the adapter uses a compression ring (olive), do not use Teflon tape on the compression end, only on threaded ends.
- Attach the Adapter Screw the 3/8-inch end of the nylon adapter onto the valve. Hand-tighten it first, then use an adjustable wrench to give it an additional quarter-turn. Do not overtighten, as nylon can crack under excessive torque.
- Connect the 7/8 Inch Tubing Insert the 7/8-inch tube into the adapter’s compression fitting. Ensure the tube is cut squarely and is free of burrs. Slide the compression nut and ring onto the tube, then push the tube fully into the adapter body.
- Tighten the Compression Nut Tighten the compression nut by hand, then use the wrench for another half-turn. Again, be gentle. Nylon compresses differently than metal.
- Test for Leaks Slowly turn the water supply back on. Check the connection points closely for any drips. If you see a leak, tighten the nut slightly more. If it persists, disassemble and check if the tube was inserted fully.
For more detailed information on plumbing standards and safety, you can refer to Wikipedia’s page on Plumbing.
Common Mistakes to Avoid
Even experienced DIYers can make errors. Here is what to watch out for:
- Using Pipe Dope on Compression Fittings: Never use pipe joint compound on compression fittings. It can prevent the compression ring from sealing properly.
- Overtightening Nylon: Unlike brass, nylon is softer. Over-torquing can strip the threads or crack the body of the adapter.
- Ignoring Tube Quality: Ensure your 7/8-inch tubing is not brittle or cracked. Old plastic tubing should be replaced rather than reused.
FAQ Section
Q1: Can I use a nylon adapter for hot water lines?
A: Generally, no. Most standard nylon plumbing adapters are rated for cold water only. Hot water can soften the plastic, leading to deformation and leaks. Always check the manufacturer’s temperature rating, but for hot water, stick to brass or copper.
Q2: Is Teflon tape necessary for nylon adapters?
A: It depends on the type of connection. For threaded connections (NPT), yes, Teflon tape helps seal the threads. For compression fittings (where a nut squeezes a ring onto a tube), no tape is needed on the compression end. Using tape there can actually cause leaks.
Q3: How long do nylon plumbing adapters last?
A: With proper installation and within their pressure/temperature ratings, nylon adapters can last 10–15 years or more. However, they should be inspected annually for signs of cracking or wear, especially in areas with high UV exposure or extreme temperature fluctuations.
Q4: Can I reuse a nylon compression adapter?
A: It is not recommended. The compression ring (olive) deforms when tightened to create a seal. Reusing it may not provide a tight enough seal, leading to leaks. It is best to use a new adapter and ring for every installation.
Q5: What is the difference between 7/8″ and 3/4″ adapters?
A: The difference is significant in diameter. A 7/8-inch fitting is larger than a 3/4-inch fitting. They are not interchangeable. Using the wrong size will result in an immediate leak or an inability to connect the parts. Always measure carefully.
Q6: Are nylon adapters safe for drinking water?
A: Yes, provided they are certified. Look for adapters marked with “NSF/ANSI 61” or “NSF 372” certification. This ensures the material does not leach harmful chemicals into the water supply.
Conclusion
Finding the right 7 8 To 3 8 Adapter Plumbing Nylon doesn’t have to be a headache. By understanding the materials, sizes, and proper installation techniques, you can save money and time on your next plumbing repair. Nylon offers a durable, corrosion-resistant, and budget-friendly option for specific low-pressure applications like ice makers and humidifiers.
Remember, the key to a successful installation is patience—measure twice, tighten gently, and always test for leaks. If you found this guide helpful, please share it with your friends on social media who might be tackling their own DIY plumbing projects. Happy fixing!
