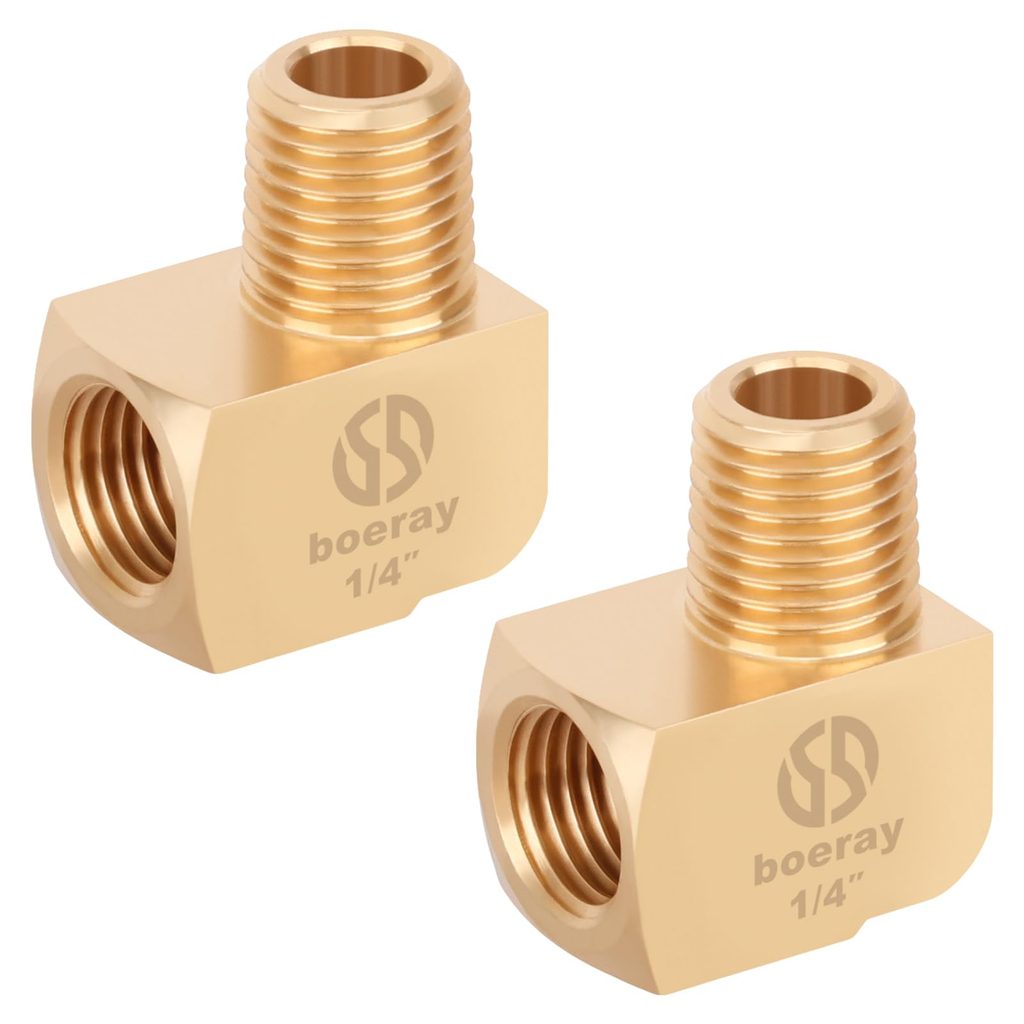

90 Degree 1 One Quarter Brass Plumbing Elbow Guide

Have you ever faced a tricky corner in your piping system where a straight pipe just won’t cut it? Whether you are renovating an old home or fixing a leaky supply line, finding the right fitting is crucial for a leak-free and long-lasting result. This is where the 90 Degree 1 One Quarter Brass Plumbing Elbow becomes your best friend. It is specifically designed to change the direction of your flow by 90 degrees while maintaining the integrity of a 1-1/4 inch pipeline. In this guide, we will explore everything you need to know about this essential component, from its material benefits to step-by-step installation instructions.

Why Choose Brass for Your 1-1/4 Inch Elbow?

When selecting plumbing fittings, material matters. While PVC and copper are popular, brass holds a unique position in the plumbing world, especially for fittings like the 1-1/4 inch elbow.

Durability and Longevity

Brass is an alloy primarily composed of copper and zinc. This combination creates a material that is incredibly resistant to corrosion and rust. Unlike steel, which can rust over time when exposed to water and oxygen, brass maintains its structural integrity for decades. For a 90 Degree 1 One Quarter Brass Plumbing Elbow, this means you install it once and likely never have to replace it due to material failure.

Resistance to High Temperatures and Pressure

Plumbing systems often handle hot water and varying pressure levels. Brass fittings can withstand higher temperatures than plastic alternatives like PVC or CPVC. If you are using this elbow for a hot water supply line or a heating system, brass is the safer, more reliable choice. It does not warp or weaken under thermal stress, ensuring a tight seal remains intact.

Natural Antimicrobial Properties

One often-overlooked benefit of brass is its natural antimicrobial property. The copper content in brass helps inhibit the growth of bacteria and biofilm inside the pipes. While this doesn’t replace the need for clean water sources, it adds an extra layer of hygiene to your plumbing system, making it an excellent choice for potable water lines.

Understanding the Specifications: What Does “1 One Quarter” Mean?

Before purchasing, it is vital to understand the sizing. The term “1 One Quarter” refers to the nominal pipe size (NPS), which is 1-1/4 inches. However, there is a common misconception among DIYers regarding actual dimensions.

Note: Always check if the fitting is “Lead-Free” if it will be used for drinking water. In the US, regulations require fittings in contact with potable water to meet strict lead-content standards.

Common Applications for a 90 Degree 1-1/4 Inch Brass Elbow

Where exactly would you use this specific fitting? Here are the most common scenarios:

1. Main Water Supply Lines: Many residential main lines use 1-1/4 inch piping to ensure adequate water volume reaches different parts of the house. A 90-degree elbow is essential when navigating around corners in basements or crawl spaces.
2. HVAC Systems: Hydronic heating systems often utilize brass fittings due to their ability to handle hot water circulation without degrading.
3. Industrial and Commercial Plumbing: In settings where durability is paramount, such as restaurants or manufacturing plants, brass fittings are preferred for their robustness.
4. Gas Lines: Caution: Only use brass fittings explicitly rated for gas if you are working on gas lines. Not all brass elbows are suitable for gas applications.

For more detailed information on plumbing standards and materials, you can refer to Wikipedia’s page on Plumbing.

Step-by-Step Installation Guide

Installing a 90 Degree 1 One Quarter Brass Plumbing Elbow requires precision. Whether you are soldering (sweating) or using threaded connections, follow these steps for a professional finish.

Tools You Will Need:

• Pipe cutter or hacksaw
• Emery cloth or sandpaper
• Flux and solder (for sweat fittings) OR Pipe thread sealant/Teflon tape (for threaded fittings)
• Propane torch (for soldering)
• Two adjustable wrenches

Method 1: Soldering (Sweat Fitting)

1. Cut and Clean: Cut the copper pipe to the desired length using a pipe cutter. Ensure the cut is square. Use emery cloth to clean the outside of the pipe end and the inside of the brass elbow until they shine. Dirt and oxidation prevent proper solder adhesion.
2. Apply Flux: Apply a thin, even layer of flux to the cleaned areas of both the pipe and the fitting. Flux helps the solder flow smoothly into the joint.
3. Assemble: Insert the pipe into the 90 Degree 1 One Quarter Brass Plumbing Elbow. Give it a slight twist to spread the flux evenly.
4. Heat the Joint: Use a propane torch to heat the fitting, not the solder. Move the flame around the elbow evenly. The goal is to get the brass hot enough to melt the solder upon contact.
5. Apply Solder: Touch the solder wire to the joint seam. If the temperature is correct, the solder will melt and be drawn into the gap by capillary action. Continue until a silver ring appears around the entire joint.
6. Cool and Wipe: Let the joint cool naturally. Do not move it while cooling. Once cool, wipe away excess flux with a damp cloth to prevent corrosion.

Method 2: Threaded Connection (NPT)

1. Prepare Threads: Ensure the male threads on your pipe are clean and undamaged.
2. Apply Sealant: Wrap PTFE (Teflon) tape clockwise around the male threads, or apply a high-quality pipe thread sealant. This ensures a watertight seal.
3. Hand Tighten: Screw the 90 Degree 1 One Quarter Brass Plumbing Elbow onto the pipe by hand. Ensure it goes on straight to avoid cross-threading.
4. Wrench Tighten: Use two adjustable wrenches. Hold the pipe steady with one wrench and tighten the elbow with the other. Turn about 1–2 turns past hand-tight. Do not overtighten, as this can crack the brass or strip the threads.

Pros and Cons: Is Brass the Right Choice?

To help you make an informed decision, here is a quick comparison of brass elbows versus other common materials.

Verdict: If you need a balance of durability, heat resistance, and ease of installation, the brass elbow is superior to PVC for hot water and general-purpose heavy-duty use.

Maintenance Tips for Brass Fittings

While brass is low-maintenance, it is not no-maintenance. Over time, brass can develop a patina or tarnish. This is cosmetic and does not affect performance. However, if you notice green corrosion (verdigris), it may indicate a slow leak or excessive moisture exposure.

• Inspect Regularly: Check joints annually for signs of leakage or corrosion.
• Clean Gently: If you want to maintain the shiny appearance, use a mild brass polish. Avoid abrasive cleaners that can scratch the surface.
• Check for Galvanic Corrosion: Avoid connecting brass directly to aluminum or steel without a dielectric union. Dissimilar metals can react electrochemically, leading to rapid corrosion.

FAQ Section

Q1: Can I use a 90 Degree 1 One Quarter Brass Plumbing Elbow for drinking water?

A: Yes, but you must ensure the fitting is certified as “Lead-Free.” Look for certifications like NSF/ANSI 61 or NSF/ANSI 372. Modern brass fittings sold in the US for potable water are typically manufactured to meet these strict safety standards.

Q2: What is the difference between NPT and Sweat fittings?

A: NPT (National Pipe Taper) fittings have threads and connect via screwing and sealing with tape or dope. Sweat fittings have smooth ends and connect to copper pipes via soldering. Ensure you buy the correct type for your existing pipe setup.

Q3: Can I bend a brass elbow if it doesn’t fit perfectly?

A: No. Brass is a rigid metal. Attempting to bend a 90 Degree 1 One Quarter Brass Plumbing Elbow will cause it to crack or break. If the angle is incorrect, you must purchase a different fitting, such as a 45-degree elbow combined with another 45-degree elbow, or adjust your pipe cuts.

Q4: How do I remove a stuck brass elbow?

A: If a threaded elbow is stuck, apply a penetrating oil (like WD-40 Specialist) and let it sit for 15–20 minutes. Use two wrenches to apply steady, gradual force. If it is soldered, you will need to heat the joint with a torch to melt the solder and pull the pipe out. Be cautious of fire hazards when using a torch.

Q5: Is brass compatible with PEX tubing?

A: Yes, but you cannot connect PEX directly to a standard brass elbow. You need a transition fitting, such as a brass elbow with a barbed end or a crimp ring connection, specifically designed for PEX tubing. Standard NPT or sweat brass elbows are for copper or iron pipes.

Q6: What is the maximum pressure rating for this elbow?

A: Most standard 1-1/4 inch brass elbows are rated for up to 300 PSI at room temperature. However, the pressure rating decreases as the temperature increases. Always consult the manufacturer’s specifications for the exact rating of the product you purchase.

Conclusion

Choosing the right fitting can make the difference between a plumbing job that lasts a lifetime and one that leaks within a year. The 90 Degree 1 One Quarter Brass Plumbing Elbow offers an exceptional blend of durability, heat resistance, and reliability. Whether you are a professional plumber or a DIY enthusiast, understanding its specifications and proper installation methods ensures a safe and efficient plumbing system.

Remember to always prioritize lead-free materials for potable water and follow local building codes. If you found this guide helpful, please share it with your friends on social media who might be tackling their own plumbing projects. Happy plumbing!
