Thinking about adding radiant floor heating to your concrete slab? You’re not alone—more than 1.4 million U.S. homes installed radiant systems between 2015 and 2023, according to the U.S. Energy Information Administration. But here’s the catch: a plumbing plan is absolutely critical for success. Without it, you risk inefficiency, costly repairs, or even system failure. In this guide, you’ll learn exactly why a plumbing plan needed to install radiant flooring in slab isn’t just helpful—it’s non-negotiable—and how to create one that works flawlessly.
Why Is a Plumbing Plan Essential for Radiant Slab Installations?
Radiant floor heating embedded in a concrete slab (often called “in-slab” or “wet installation”) uses hot water circulating through PEX tubing. Unlike retrofit systems under wood floors, once the concrete is poured, there’s no turning back. A mistake in layout, spacing, or manifold placement can’t be fixed without jackhammering your floor.
According to the Radiant Professionals Alliance (RPA), over 68% of radiant system failures stem from poor initial design, not product defects. That’s why a detailed plumbing plan—complete with tube routing, heat loss calculations, and zoning—is your best defense against wasted time, money, and comfort.
What Should Your Plumbing Plan Include?
A professional-grade plumbing plan for slab radiant heating isn’t just a sketch—it’s an engineered document. Here’s what it must contain:
- Heat Loss Calculation
Determines how much heat your space needs (measured in BTUs/hr). This affects tube spacing, water temperature, and boiler size. - Tube Layout & Spacing
Typically 6–12 inches apart. Closer spacing = more even heat but higher material cost. Edge areas (near walls/windows) often need tighter loops. - Manifold Location
Should be centrally located to minimize tube run lengths and balance pressure. Often placed in a utility room or garage. - Zoning Strategy
Each room (or group) should have its own thermostat and control valve for efficiency and comfort. - Pipe Material & Diameter
Almost always PEX-A or PEX-B tubing, ½-inch or 5/8-inch diameter. Must be oxygen-barrier rated for closed-loop hydronic systems. - Expansion Joints & Control Details
Concrete expands; your plan must include expansion gaps and how tubing routes around them.
💡 Pro Tip: The U.S. Department of Energy recommends 12-inch tube spacing for general living areas and 6–8 inches for bathrooms or rooms with high heat loss (like sunrooms).
For more background on how radiant systems work, see [Hydronic Heating on Wikipedia](https.
Step-by-Step: Creating Your Radiant Floor Plumbing Plan
Follow these six steps—whether you’re working with a contractor or designing your own system.
Step 1: Conduct a Room-by-Room Heat Loss Analysis
Use software like CoolCalc, HVAC-Calc, or consult a licensed HVAC designer. Input insulation levels, window types, climate zone, and floor area.
Example: A 200 sq ft bathroom in Chicago (Climate Zone 5) with double-pane windows and R-19 floor insulation might need 15,000 BTU/hr.
Step 2: Choose Your Heat Source
Options include:
- Dedicated boiler (natural gas, propane, or electric)
- Heat pump (highly efficient in mild climates)
- Combination system (e.g., boiler + domestic hot water)
Make sure your heat source matches your system’s required water temperature (typically 85°F–120°F).
Step 3: Design the Tube Loop Layout
- Keep loop lengths under 300 feet (ideally 200–250 ft) to maintain flow and pressure.
- Avoid sharp bends—use minimum 6-inch bend radius for ½” PEX.
- Use reverse-return (serpentine or spiral) patterns for even heat distribution.
Step 4: Plan Manifold & Supply/Return Lines
- Place manifolds near the heat source to reduce primary piping.
- Use separate supply and return headers with balancing valves.
- Label every port clearly (e.g., “Master Bath – Loop 1”).
Step 5: Coordinate with Concrete Pour Timing
- Tubing must be pressure-tested (50 psi for 24 hours) before concrete is poured.

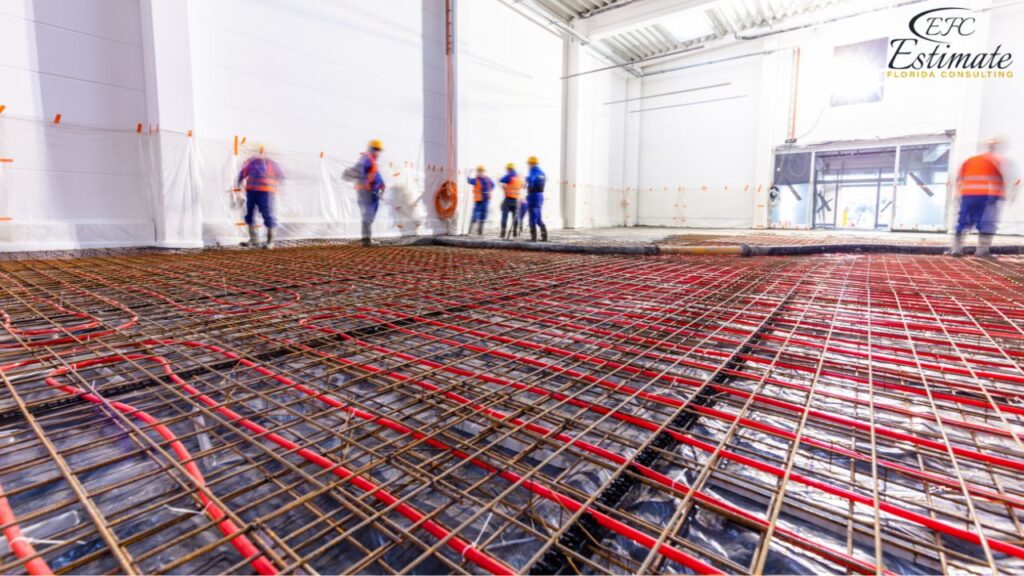

- Secure tubing to rebar or wire mesh using staples or clips every 18–24 inches.
- Install edge insulation (1″–2″ rigid foam) around the slab perimeter to prevent thermal bridging.
Step 6: Integrate Controls & Thermostats
- Use floor-sensing thermostats (not just air temp) to prevent overheating.
- Link to smart home systems (e.g., Nest, Ecobee) for scheduling and efficiency.
Common Mistakes to Avoid
Even experienced builders slip up. Here are the top 3 errors—and how to dodge them:
| Mistake | Consequence | Solution |
|---|---|---|
| Skipping heat loss calc | Oversized/undersized system | Always calculate BTU needs per room |
| Ignoring expansion joints | Cracked concrete, damaged tubing | Route tubing through flexible sleeves at joints |
| Poor manifold placement | Uneven heating, high pump energy use | Center manifolds; balance loop lengths |
Radiant in Slab vs. Other Install Types: Quick Comparison
| Feature | In-Slab (Concrete) | Underfloor (Joist) | Staple-Up (Subfloor) |
|---|---|---|---|
| Response Time | Slow (6–12 hrs) | Moderate (2–4 hrs) | Fast (1–2 hrs) |
| Heat Retention | Excellent | Good | Fair |
| Best For | New builds, basements | Renovations, upper floors | Retrofits, crawl spaces |
| Plumbing Plan Complexity | High (permanent) | Medium | Low |
⚠️ Note: In-slab systems have the highest thermal mass, meaning they store heat longer—but they also take the longest to warm up. A precise plumbing plan ensures you maximize this advantage.
FAQ Section
Q1: Can I install radiant floor heating in a slab without a plumbing plan?
A: Technically yes—but it’s extremely risky. Without a plan, you might end up with cold spots, excessive energy bills, or tubing too close to the surface (causing cracking). Professionals and building codes (like IRC Section R403.8) strongly require engineered layouts.
Q2: How deep should PEX tubing be in the slab?
A: Typically 2–4 inches below the surface. Too shallow risks surface cracking; too deep reduces heat transfer efficiency. Always embed tubing in the top third of the slab.
Q3: Can I use the same boiler for radiant floors and domestic hot water?
A: Yes—with an indirect water heater or combi-boiler designed for dual use. But ensure it can supply lower-temperature water (≤120°F) for radiant loops without overheating.
Q4: How much does a plumbing plan cost?
A: If hiring a radiant designer, expect $500–$2,000, depending on home size. Some PEX manufacturers (like Uponor or Rehau) offer free layout tools for DIYers, but professional review is still recommended.
Q5: Is radiant in-slab heating worth the upfront cost?
A: Absolutely. The U.S. DOE reports 20–40% energy savings vs. forced-air systems in well-insulated homes. Plus, it increases home value and comfort—no drafts, dust, or noise.
Q6: Can I modify the plan after concrete is poured?
A: No. All tubing and manifolds are permanent once encased. That’s why pressure testing, inspection, and final sign-off must happen before the pour.
Conclusion
Installing radiant floor heating in a concrete slab is a lifetime investment in comfort and efficiency—but only if you start with a plumbing plan needed to install radiant flooring in slab that’s accurate, detailed, and code-compliant. Skipping this step is like building a house without blueprints: possible, but prone to disaster.
By following the steps above, avoiding common pitfalls, and respecting the physics of heat and concrete, you’ll enjoy warm floors for decades—without regrets.
Found this guide helpful? Share it with a friend planning a radiant floor project—or pin it for your next renovation! 🛠️🔥
