Have you ever noticed a small puddle forming under your refrigerator or heard the ominous drip of a leaking water line? It is a frustrating scenario that many US homeowners face, often leading to costly repairs or wasted water. Fortunately, understanding how to properly use an American Fridge Water Filter Plumbing Fitting Connection Kit can solve this issue quickly, saving you time, money, and peace of mind.
In this comprehensive guide, we will walk you through everything you need to know about these essential plumbing components. From identifying the right parts for your specific American-style fridge model to mastering the installation process, we have got you covered. Let’s dive in and ensure your water dispenser and ice maker function flawlessly.
What Is an American Fridge Water Filter Plumbing Fitting Connection Kit?
Before we get into the technical details, let’s clarify what this kit actually is. An American-style fridge typically refers to large, side-by-side or French-door models popular in the United States, which often feature built-in water dispensers and ice makers. These appliances require a steady supply of filtered water, delivered through a network of plastic tubing and connectors.

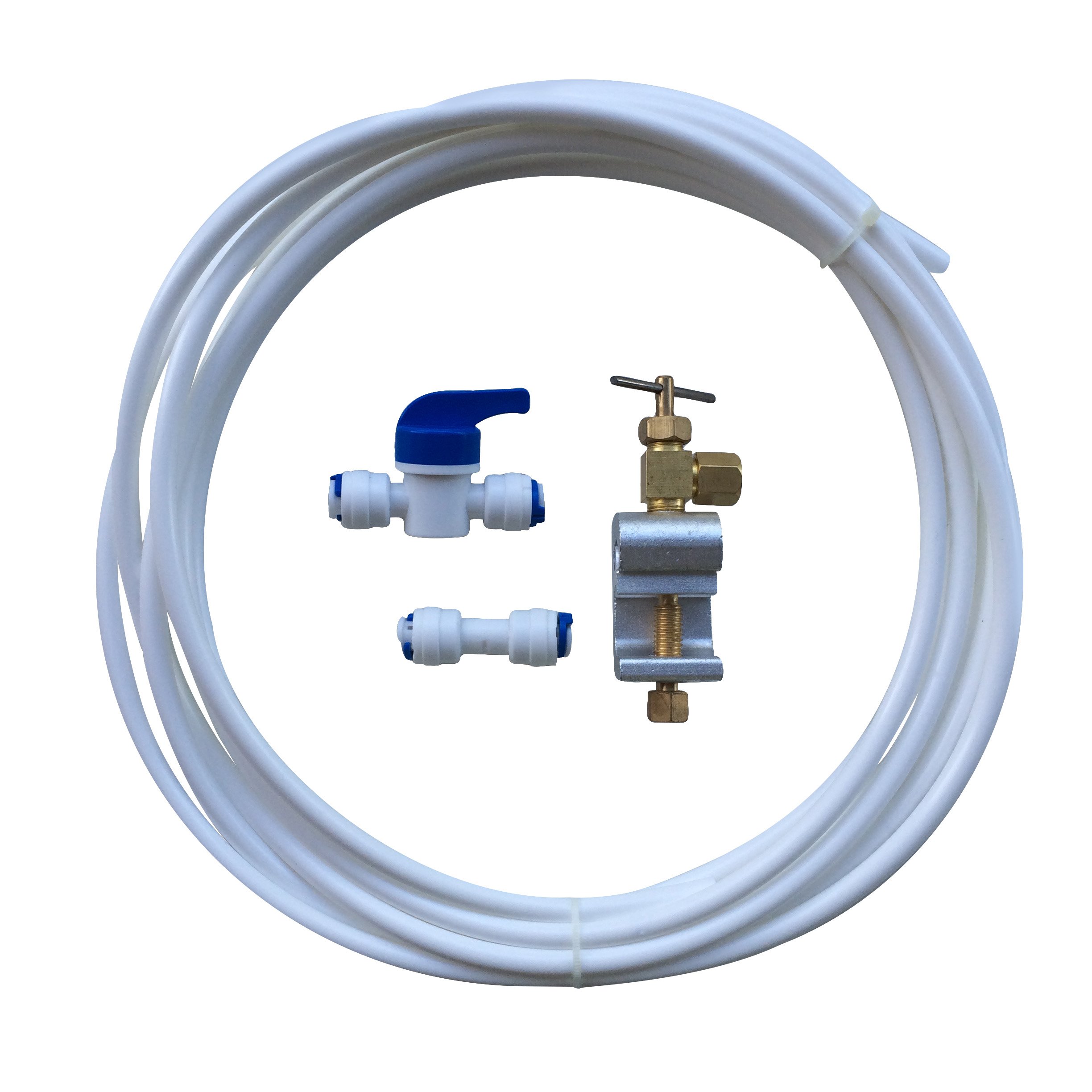

The plumbing fitting connection kit is a collection of specialized adapters, nuts, washers, and push-fit connectors designed to link your home’s cold water supply to the refrigerator’s internal filtration system. Unlike standard plumbing fixtures, these kits are engineered for tight spaces behind heavy appliances and must withstand constant pressure without leaking.
Why Standard Plumbing Parts Don’t Always Work
You might wonder, “Can’t I just use parts from the local hardware store?” While possible, it is risky. Refrigerator water lines usually use specific diameters, most commonly 1/4-inch or 5/16-inch OD (Outer Diameter) tubing. Standard household plumbing uses different threading and pressure ratings. Using incompatible parts can lead to:
- Micro-leaks: Slow drips that damage hardwood floors over months.
- Pressure Drops: Reduced water flow to the dispenser.
- Voided Warranties: Many manufacturers void warranties if non-OEM or improper fittings cause damage.
According to industry standards, the materials used in these kits must be NSF-certified to ensure they do not leach chemicals into your drinking water. For more information on water safety standards, you can refer to NSF International or general guidelines on Wikipedia.
How Do I Choose the Right Connection Kit for My Fridge?
Not all fridges are created equal. Choosing the wrong kit is the number one reason for installation failures. Here is how to ensure you pick the right one.
Check Your Tubing Size
The most critical step is measuring your existing water line. Use a caliper or a ruler to measure the outer diameter of the plastic tube.
| Tubing Size | Common Usage | Compatibility Note |
|---|---|---|
| 1/4 Inch | Most common in older US models | Standard for many Whirlpool, GE, and Samsung models. |
| 5/16 Inch | Newer high-flow models | Often found in latest LG and KitchenAid units. |
| 3/8 Inch | Rare for fridges | Usually too large; requires an adapter reducer. |
Identify the Connection Type
There are two main types of connections you will encounter:
- Push-Fit (Quick Connect): These allow you to insert the tube directly into the fitting without tools. They rely on internal teeth to grip the tube. Pro tip: Always cut the tube end squarely to prevent leaks.
- Compression Fittings: These use a nut and a ferrule (a small metal ring) that compresses onto the tube when tightened. They are more secure but require a wrench.
Brand Specificity
While many kits are universal, some American brands have proprietary shapes. For instance, certain Samsung models use a unique locking clip mechanism. Always check your refrigerator’s manual for the part number. If the manual is lost, look for a sticker inside the fridge door or on the back panel.
Step-by-Step Installation Guide
Installing your American Fridge Water Filter Plumbing Fitting Connection Kit doesn’t require a professional plumber. Follow these steps carefully to ensure a leak-free setup.
Tools You Will Need
- Adjustable wrench
- Tube cutter (or sharp utility knife)
- Bucket and towels
- Teflon tape (for threaded connections only)
The Installation Process
- Shut Off the Water Supply: Locate the shut-off valve behind your fridge or under the sink. Turn it clockwise until tight. Open the fridge dispenser to release any remaining pressure.
- Prepare the Tubing: If you are replacing old tubing, cut off the damaged end. Ensure the new cut is perfectly straight and smooth. A jagged edge will compromise the seal in push-fit connectors.
- Insert the Fitting:
- For push-fit: Push the tube firmly into the connector until it bottoms out. You should feel a slight click. Gently pull back to ensure it is locked.
- For compression: Slide the nut onto the tube, followed by the ferrule. Insert the tube into the fitting body and tighten the nut by hand, then give it a quarter turn with a wrench. Do not overtighten, as this can crack the plastic.
- Connect to the Filter Housing: Attach the other end of the kit to the inlet of your water filter housing. Ensure the arrow on the filter (if present) points in the direction of water flow.
- Turn On Water and Test: Slowly open the shut-off valve. Check all connections for immediate leaks. If dry, dispense 2 liters of water through the fridge to flush air and carbon dust from the new filter.
Expert Tip: If you notice a slow leak at a push-fit connection, try pushing the tube in further. Sometimes, it hasn’t seated fully. If it persists, the internal O-ring may be damaged, and the fitting should be replaced.
Common Problems and Troubleshooting
Even with the best kit, issues can arise. Here are solutions to common problems.
Leaking at the Connection Point
This is usually due to an improperly cut tube or a missing washer.
- Fix: Cut the tube again, ensuring a clean edge. Reinsert. If using a compression fitting, check that the ferrule is not cracked.
Low Water Pressure
After installing a new kit or filter, flow may be weak.
- Fix: This is often due to air locks. Dispense water continuously for 3–5 minutes. If the issue persists, check for kinks in the tubing behind the fridge.
Strange Taste or Odor
New plastic fittings can sometimes impart a taste.
- Fix: Flush the system thoroughly. Run at least 3–4 gallons of water through the dispenser before consuming.
Comparison: OEM vs. Third-Party Kits
Should you buy the original manufacturer’s kit or a generic alternative?
| Feature | OEM (Original Equipment Manufacturer) | Third-Party Generic Kit |
|---|---|---|
| Price | Higher ($20–$40) | Lower ($10–$20) |
| Fit Guarantee | 100% Compatible | May require adaptation |
| Material Quality | High-grade, tested plastics | Varies by brand |
| Availability | Dealer/Official Store | Amazon, Hardware Stores |
For critical connections near expensive flooring, we recommend OEM parts for the first installation. For secondary lines or extensions, high-rated third-party kits are a cost-effective solution.
Frequently Asked Questions (FAQ)
1. How often should I replace the plumbing fittings?
Unlike water filters, plumbing fittings do not have a strict expiration date. However, inspect them every 2–3 years for cracks or brittleness. If you notice any discoloration or stiffness, replace the kit immediately to prevent bursts.
2. Can I use PEX tubing instead of plastic polyethylene?
While PEX is durable, most refrigerator kits are designed for flexible polyethylene (PE) tubing. PEX is stiffer and harder to route behind appliances. Unless your kit specifically states PEX compatibility, stick to PE tubing to avoid stress on the connections.
3. Do I need Teflon tape for push-fit connections?
No. Never use Teflon tape on push-fit or quick-connect fittings. The seal is created by an internal O-ring. Tape can interfere with the insertion depth and cause leaks. Only use tape on threaded compression nuts if specified by the manufacturer.
4. What if my water supply valve is old and corroded?
If the shut-off valve is corroded, do not force it. It may break off. In this case, it is advisable to call a plumber to replace the valve before installing your new American Fridge Water Filter Plumbing Fitting Connection Kit. Safety first!
5. Is it safe to drink the first few glasses of water after installation?
It is generally safe, but not recommended. New filters and fittings may contain loose carbon particles or manufacturing residues. Always flush the system as described in the installation guide before consumption.
6. Can I extend the water line if the kit is too short?
Yes, you can use a union connector to join two pieces of tubing. Ensure the union is rated for drinking water and matches the diameter of your existing line. Keep the total length under 25 feet to maintain adequate pressure.
Conclusion
Dealing with water leaks or poor filtration performance doesn’t have to be a headache. By selecting the right American Fridge Water Filter Plumbing Fitting Connection Kit, you ensure a reliable, clean water supply for your family. Remember, the key to success lies in precise measurements, proper installation techniques, and regular maintenance checks.
Whether you choose an OEM part for peace of mind or a high-quality generic kit for budget savings, following the steps outlined above will help you avoid common pitfalls. Don’t let a small leak turn into a major repair bill. Take control of your appliance maintenance today.
