Aquarium Plumbing Guide Part I: Basics of PVC & Amp

Setting up a custom filtration system or overflow box can feel overwhelming when you are staring at a wall of pipes and fittings at the hardware store. Many hobbyists worry about leaks, incorrect flow rates, or using materials that might leach harmful chemicals into their aquatic environment. This Aquarium Plumbing Guide Part I: Basics of PVC & Amp is designed to remove that anxiety by breaking down the fundamental components you need for a safe, efficient, and leak-free system. Whether you are building a sump for a reef tank or a simple freshwater loop, understanding these basics is the first step toward aquatic success.

What Are the Core Components of Aquarium PVC Plumbing?

Before cutting any pipe, you must understand the vocabulary and function of each component. In the context of this Aquarium Plumbing Guide Part I: Basics of PVC & Amp, “PVC” refers to the piping infrastructure, while “Amp” (amperage) relates to the electrical current draw of the pumps moving water through that infrastructure. Matching these two elements is critical for system longevity.

Understanding PVC Schedule 40 vs. Schedule 80

For 99% of aquarium applications, Schedule 40 PVC is the industry standard. It is rated for pressures far exceeding what a gravity-fed or low-pressure aquarium pump can generate. Schedule 80 is thicker and darker gray, but it is generally unnecessary for hobbyist tanks and reduces the internal diameter, restricting flow.

• Schedule 40: White, standard wall thickness, ideal for aquariums.
• Schedule 80: Dark gray, thicker walls, higher pressure rating, reduced inner diameter.
• CPVC: Yellowish, rated for hot water, not recommended for aquariums due to potential chemical differences.

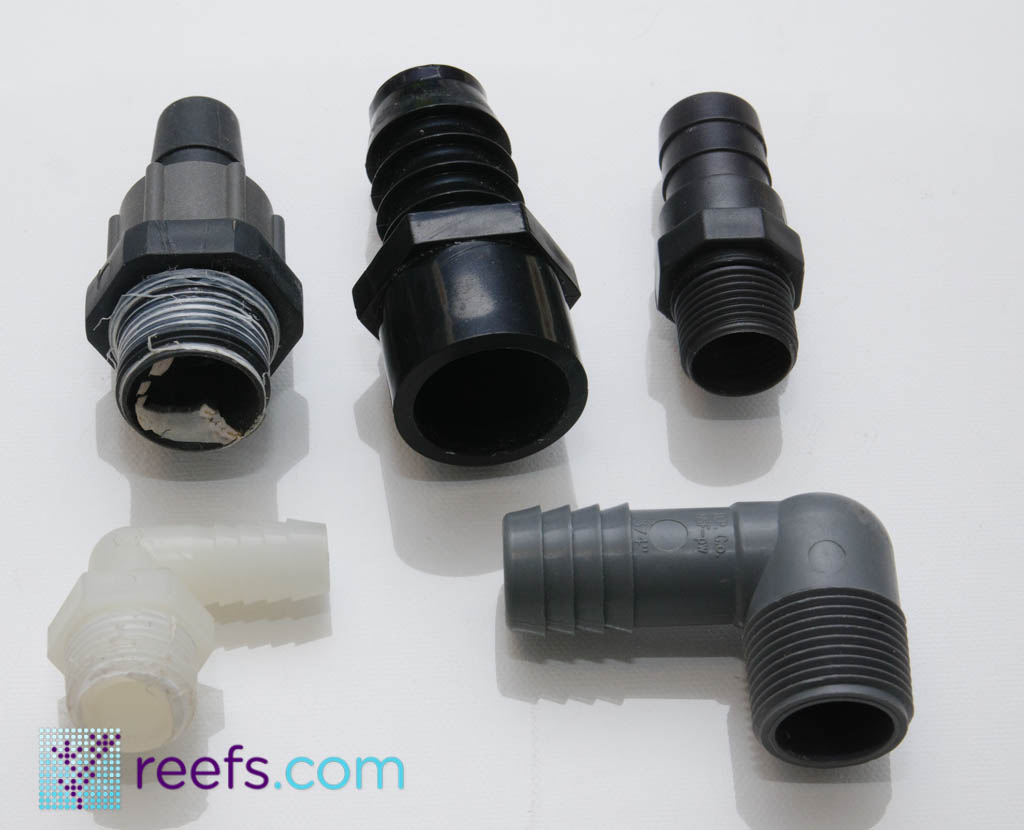

Essential Fittings and Valves

Your plumbing is only as good as its connections. Here are the non-negotiable fittings for a functional system:

1. Unions: These allow you to disconnect equipment without cutting pipe. Always install unions on both sides of your return pump and UV sterilizers.
2. Gate Valves vs. Ball Valves: Use gate valves for fine-tuning flow. Ball valves are great for on/off shut-offs but offer poor precision for balancing overflow drains.
3. True Union Check Valves: Prevents backflow from draining your display tank into the sump during a power outage.
4. Bulkheads: The critical interface between glass/acrylic and PVC. Always use EPDM gaskets, not silicone, for the seal.

Expert Insight: According to veteran aquascaper and systems designer John Tullock, “The most common failure in DIY aquarium plumbing isn’t the glue—it’s the lack of unions. If you can’t service your pump without a hacksaw, your design is incomplete.”

How Do You Match PVC Size to Pump Amperage and Flow?

This is where the “& Amp” portion of our keyword becomes vital. Many beginners oversize their pumps and undersize their pipes, leading to excessive backpressure, heat generation, and wasted electricity (amps).

The Relationship Between Pipe Diameter and Head Pressure

Water flowing through a pipe encounters friction. Smaller pipes create exponentially more friction. If your pump draws high amps pushing water through a restrictive pipe, you are converting expensive electricity into heat and noise rather than water movement.

Calculating Your Electrical Load

When planning your plumbing, check your pump’s spec sheet for Full Load Amps. A pump rated for 2,000 GPH might draw 1.5 amps at zero head pressure but spike to 3+ amps if restricted by 1/2″ piping. This amperage spike shortens motor life and increases your monthly energy bill.

• Rule of Thumb: Never run a pump at more than 70% of its maximum rated flow through the smallest section of your plumbing.
• Safety Note: Ensure your circuit breaker and GFCI outlet are rated for the combined startup amps of all devices. Startup surge can be 3x the running amps.

For a deeper understanding of how fluid dynamics interact with pipe friction coefficients, refer to the Hazen-Williams equation on Wikipedia, which engineers use to calculate head loss in pressurized pipes.

Step-by-Step: How to Properly Glue PVC for Aquariums

Leaks are the nightmare of every aquarist. Follow this precise protocol to ensure watertight joints that last decades.

Materials Needed

• Purple Primer (NSF-rated)
• Clear or Blue PVC Cement (NSF-rated for potable water)
• Deburring tool or sandpaper
• Clean rag

The 5-Step Gluing Process

1. Dry Fit First: Assemble your entire manifold dry. Mark alignment lines across joints with a sharpie so you know exactly how to orient them during the permanent glue-up. Measure twice; PVC cement sets in seconds.
2. Deburr and Clean: Cut pipe squarely. Remove all burrs inside and out. Burrs create turbulence and prevent full seating. Wipe ends clean with a dry rag.
3. Apply Primer Generously: Apply purple primer to both the pipe end and the fitting socket. The primer softens the PVC surface chemically. Do not skip primer—it is not just a cleaner; it is a chemical activator required for a molecular weld.
4. Apply Cement and Join Immediately: Apply a thin layer of cement to the fitting and a thicker layer to the pipe. Insert the pipe into the fitting with a quarter-turn twist to distribute cement evenly. Hold firmly for 30 seconds.
5. Cure Time Matters: While joints set in minutes, full cure takes 24 hours. Do not pressure-test your system prematurely. At temperatures below 60°F (15°C), double the cure time.

Critical Safety Warning: Always work in a ventilated area. PVC primer and cement contain volatile organic compounds (VOCs). Wear nitrile gloves to prevent skin absorption.

Pros and Cons of PVC vs. Flexible Tubing

Many hobbyists ask whether they should use rigid PVC or flexible vinyl tubing. Here is an honest comparison to help you decide.

Rigid PVC Advantages:

• Permanent, professional appearance
• Zero risk of kinking or collapsing under suction
• Resistant to UV degradation and algae growth
• Maintains exact inner diameter over decades

Rigid PVC Disadvantages:

• Requires precise measurement and gluing
• Transmits pump vibration/noise more than flex tubing
• Difficult to modify once assembled

Flexible Tubing Advantages:

• Easy to route around obstacles
• Dampens pump vibration
• Simple to replace or adjust

Flexible Tubing Disadvantages:

• Can kink, causing catastrophic flow restriction
• Algae grows inside and cannot be scrubbed
• May degrade or become brittle over 3–5 years

Recommendation: Use rigid PVC for main drain and return lines. Use short sections of flexible tubing only as vibration isolators directly connected to pump outlets.

Frequently Asked Questions (FAQ)

Is white PVC safe for saltwater and freshwater aquariums?

Yes, standard white Schedule 40 PVC is inert and safe for both marine and freshwater systems. However, always verify that the cement and primer are labeled “NSF-pw” (potable water). Avoid PVC labeled for sewer/drain waste only, as it may contain recycled plastics with unknown additives.

Can I use Teflon tape on aquarium PVC threads?

Use caution. Standard PTFE tape can shred and enter pump impellers. Instead, use non-hardening thread sealant specifically rated for potable water, or O-ring sealed unions that require no thread sealant at all. If you must use tape, wrap only 2–3 layers and never cover the first thread to prevent material intrusion.

How do I prevent my PVC plumbing from vibrating loudly?

Vibration transfers through rigid pipe. Install flexible union connectors or braided stainless steel hoses at every pump connection point. Additionally, use rubber-lined pipe clamps instead of plastic straps, and avoid anchoring pipes directly to wooden stands without isolation pads.

What size bulkhead do I need for a 1-inch PVC pipe?

A 1-inch PVC pipe requires a 1-inch bulkhead. However, note that bulkhead sizing refers to the pipe size, not the hole size. A 1-inch bulkhead typically requires a 1.75-inch hole in glass or acrylic. Always check the manufacturer’s drill size specification before cutting your tank.

Should I paint my aquarium PVC black?

Painting PVC is purely aesthetic and optional. If you choose to paint, use a plastic-bonding spray paint like Krylon Fusion. Paint before assembly, as paint solvents can interfere with PVC cement adhesion. Unpainted white PVC is perfectly functional and reflects less light inside the cabinet, reducing algae growth on exterior pipe surfaces.

How often should I inspect my PVC plumbing for leaks?

Perform a visual inspection weekly during routine maintenance. Check union O-rings annually and replace them every 3–5 years as rubber degrades. Glued joints, when properly installed, should last indefinitely. Any sign of moisture, salt creep, or discoloration at a joint warrants immediate investigation.

Conclusion

Mastering the fundamentals outlined in this Aquarium Plumbing Guide Part I: Basics of PVC & Amp gives you the confidence to build systems that are safe, efficient, and reliable. By selecting the correct Schedule 40 PVC, matching pipe diameter to your pump’s amperage and flow requirements, and following proper gluing protocols, you eliminate the most common points of failure in DIY aquarium setups. Remember: good plumbing is invisible plumbing—it works so well you never have to think about it.
