Have you ever stared at your dream reef tank setup, only to feel overwhelmed by the complex web of pipes and fittings required to make it function? You are not alone; many hobbyists struggle to find reliable Aquarium Plumbing Hardware For Inside The Tank Plumbing that balances durability with aesthetic discretion. This guide will simplify the process, helping you choose the right components to keep your aquatic environment safe, efficient, and beautiful.
Why Internal Plumbing Matters for Your Aquarium’s Health
When we talk about aquarium plumbing, most people immediately think of the sump or the external filtration system. However, the hardware located inside the display tank is equally critical. This includes overflow boxes, drain pipes, return nozzles, and the essential bulkhead fittings that penetrate the glass or acrylic.
The primary reason internal plumbing deserves your full attention is safety. A failure in external plumbing usually results in a wet floor. A failure in internal plumbing—specifically where the pipe connects to the tank wall—can lead to catastrophic flooding, damaging your home and endangering your livestock. According to industry surveys, improper installation of internal fittings accounts for nearly 30% of major aquarium leaks in DIY setups.
Furthermore, internal plumbing affects water flow dynamics. Poorly placed return nozzles can create dead spots where detritus accumulates, leading to algae blooms and poor water quality. By selecting high-quality hardware, you ensure optimal circulation, which is vital for coral health and fish vitality.
What Are the Essential Components for Internal Tank Plumbing?
To build a robust internal plumbing system, you need to understand the specific roles of each component. Here is a breakdown of the key hardware pieces you will encounter.

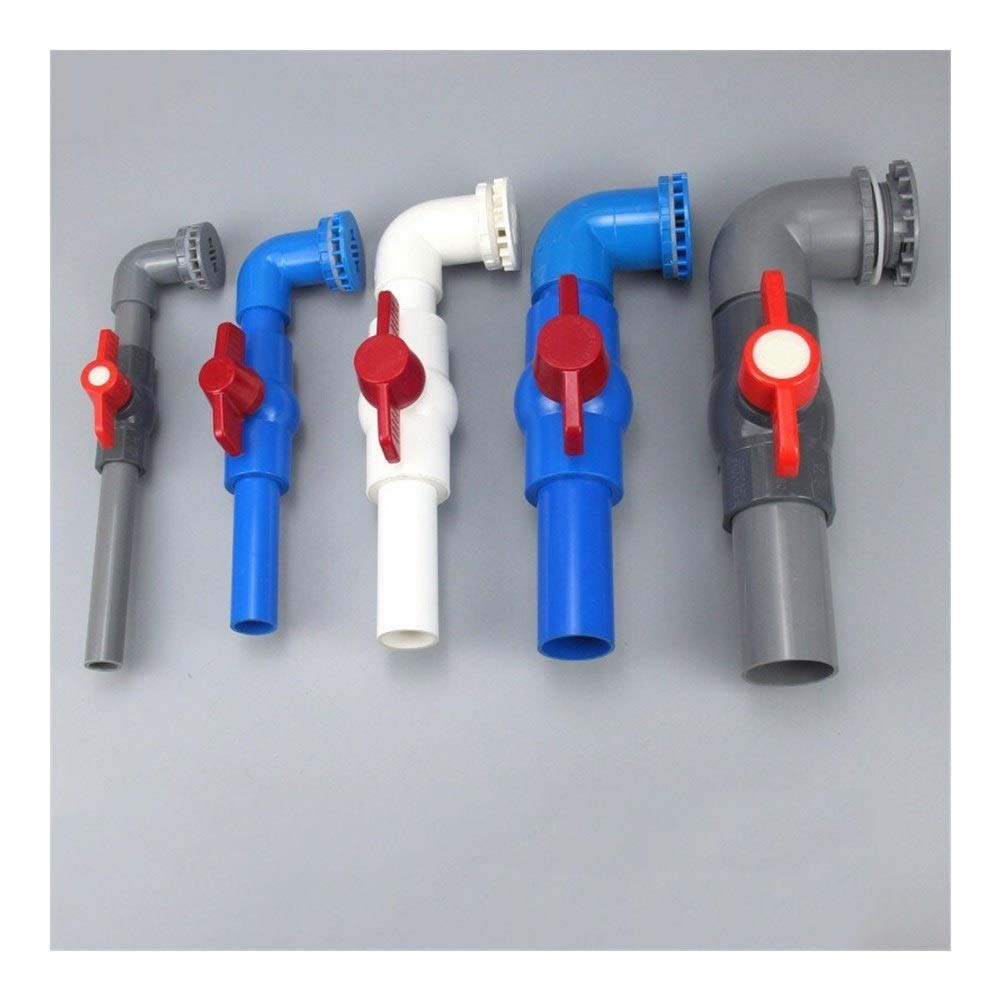

1. Bulkhead Fittings
The bulkhead is the cornerstone of internal plumbing. It creates a watertight seal through the tank wall. There are two main types:
- Slip Bulkheads: Designed for PVC pipes that are glued in place. These offer the strongest seal but are permanent.
- Threaded Bulkheads: Allow for removable pipes. These are easier to maintain but carry a slightly higher risk of leaking if the O-rings degrade or if they are not tightened correctly.
2. Overflow Boxes and Weirs
These structures manage the water level in the display tank and direct water to the sump. Modern “bean animal” or “Herbie” overflow designs rely heavily on precise internal piping to silence the flow and prevent air from being sucked into the pump.
3. Return Nozzles and Gyres
While often external, the attachment points for return lines are internal. Choosing the right nozzle shape (flat vs. round) determines how water mixes within the tank. For larger tanks, internal gyre pumps are becoming popular as they replace complex plumbing networks with a single, powerful flow device.
4. Ball Valves and Gate Valves
Used primarily on the drain lines inside the overflow box, these valves allow you to balance the water flow between the primary drain and the emergency spillway. Ball valves are generally preferred over gate valves because they provide a more precise flow control and are less prone to clogging with debris.
How Do You Choose Between PVC, CPVC, and ABS?
Material selection is crucial for longevity and safety. While all three plastics are common in plumbing, they behave differently in an aquarium environment.
| Material | Pros | Cons | Best Use Case |
|---|---|---|---|
| PVC (Polyvinyl Chloride) | Durable, widely available, inexpensive. | Can become brittle over time with UV exposure. | General plumbing, drains, and returns. |
| CPVC (Chlorinated PVC) | Higher temperature resistance, stronger than PVC. | More expensive, harder to cut. | High-flow systems or heated areas. |
| ABS (Acrylonitrile Butadiene Styrene) | Easy to glue, impact-resistant. | Less chemical resistant, can warp with heat. | Rarely used in modern high-end reef builds. |
For most home aquariums, Schedule 40 PVC is the industry standard. It offers the best balance of cost, availability, and strength. Ensure that any plastic you use is rated for pressure applications if it is part of a pressurized return line.
Step-by-Step Guide to Installing Internal Bulkheads
Installing a bulkhead incorrectly is the most common cause of leaks. Follow these steps carefully to ensure a watertight seal.
- Drill the Hole: Use a diamond-tipped hole saw appropriate for the size of your bulkhead. Drill slowly with constant water lubrication to prevent cracking the glass. If using acrylic, drill at a slow speed to avoid melting the plastic.
- Clean the Surface: Wipe the area around the hole with isopropyl alcohol. Any dust, oil, or residue can compromise the seal.
- Insert the Bulkhead: Place the bulkhead body through the hole from the inside of the tank. Ensure the flange sits flush against the glass.
- Secure the Nut: From the outside, thread the locking nut onto the bulkhead. Hand-tighten it first, then use a strap wrench to give it a final quarter-turn. Do not overtighten, as this can crack the glass or distort the O-ring.
- Test for Leaks: Before adding livestock, fill the tank and let it sit for 24 hours. Check the bulkhead connection with a dry paper towel; if the towel gets wet, you have a leak.
For more detailed information on material properties and safety standards, you can refer to Wikipedia’s page on Polyvinyl Chloride, which provides comprehensive data on the chemical stability and usage of PVC in various applications.
Common Mistakes to Avoid When Plumbing Inside the Tank
Even experienced hobbyists can make errors. Here are the most frequent pitfalls:
- Ignoring Thermal Expansion: Water temperature changes can cause pipes to expand and contract. Leave a small gap or use flexible couplings where possible to prevent stress on the bulkhead.
- Using Teflon Tape on Slip Fittings: Teflon tape is only for threaded connections. Using it on slip fittings prevents the PVC cement from bonding properly, leading to inevitable failures.
- Overlooking Air Intake: If your drain pipe is not submerged deep enough in the overflow box, it will suck air. This causes gurgling noises and reduces pump efficiency. Ensure your standpipe height is adjusted correctly.
- Skipping the Emergency Drain: Never rely on a single drain line. Always plumb a secondary, higher-level emergency drain to handle pump failures or clogs.
FAQ Section
1. Can I use regular household PVC glue for aquarium plumbing?
Yes, but ensure it is labeled as “PVC Cement” or “PVC Solvent Weld.” Avoid primers or cleaners that contain harsh chemicals unless they are specifically rated for potable water or aquarium use. Most standard PVC cements are safe once fully cured.
2. How often should I check my internal plumbing for leaks?
Perform a visual inspection monthly. Look for signs of mineral buildup, cracks, or moisture around bulkheads. Additionally, listen for changes in sound from your overflow, which can indicate a shift in water levels or air intake issues.
3. Is it better to have the plumbing visible or hidden?
This is largely aesthetic. Hidden plumbing (behind an overflow box or background) looks cleaner but can be harder to service. Visible plumbing allows for easier maintenance and leak detection. Many modern reefs use clear acrylic tubing for a sleek, visible look.
4. What size bulkhead do I need for a 100-gallon tank?
For a 100-gallon tank, a 1-inch or 1.5-inch bulkhead is typically sufficient for the return line. Drain lines are often larger (2 inches) to handle gravity flow efficiently and reduce noise. Always calculate your flow rate (GPH) to determine the exact size needed.
5. Can I retrofit internal plumbing into an existing tank?
Yes, but it requires drilling glass or acrylic, which carries a risk of breakage. If you are not comfortable drilling, consider using hang-on-back overflow boxes that do not require internal plumbing modifications.
Conclusion
Choosing the right Aquarium Plumbing Hardware For Inside The Tank Plumbing is not just about connecting pipes; it is about creating a safe, efficient, and thriving ecosystem for your aquatic life. By understanding the roles of bulkheads, valves, and materials, you can avoid common pitfalls and enjoy a peaceful, leak-free aquarium experience.
Remember, patience and precision during installation pay off in the long run. Take your time, double-check your seals, and monitor your system regularly. If you found this guide helpful, please share it with your fellow hobbyists on social media to help them build their dream tanks with confidence!
