Solar Water Pre-Heater Plumbing Guide

Have you ever looked at your utility bill and wished there was a way to slash those heating costs without sacrificing comfort? You are not alone. Many homeowners are turning to renewable energy solutions, but the technical side can feel intimidating. Understanding the basic plumbing for a solar water pre heater is the first step toward taking control of your home’s energy efficiency. This guide breaks down the process into manageable, clear steps so you can approach your project with confidence and clarity.

Why Install a Solar Pre-Heater?

Before we dive into the pipes and fittings, it is crucial to understand why this system matters. A solar water pre-heater does not usually replace your traditional water heater entirely. Instead, it warms the cold water coming from the main supply before it enters your standard gas or electric tank.

According to the U.S. Department of Energy, water heating accounts for about 18% of the average home’s energy use. By pre-heating this water using free solar energy, you significantly reduce the workload on your conventional heater. This leads to lower bills and a smaller carbon footprint. It is a smart, practical upgrade for any eco-conscious homeowner in the United States.

What Components Do You Need for Basic Plumbing?

To set up a functional system, you need more than just a solar collector. The plumbing infrastructure is what makes the heat transfer possible. Here is a checklist of essential components:

• Solar Collector: The panel that absorbs sunlight (flat plate or evacuated tube).
• Storage Tank: Often called a “pre-heat tank,” this holds the warmed water.
• Pump Station: Circulates the heat-transfer fluid (in active systems).
• Heat Exchanger: Transfers heat from the solar loop to your potable water.
• Expansion Tank: Accommodates fluid expansion as it heats up.
• Check Valves & Ball Valves: Control flow direction and allow for maintenance.
• Insulation: Critical for minimizing heat loss in pipes.

Active vs. Passive Systems

When planning your plumbing, you must decide between an active or passive system.

For most US homeowners looking for reliability and higher efficiency, an active closed-loop system is the standard recommendation. This guide focuses on the plumbing basics for this common setup.

How Does the Plumbing Loop Work?

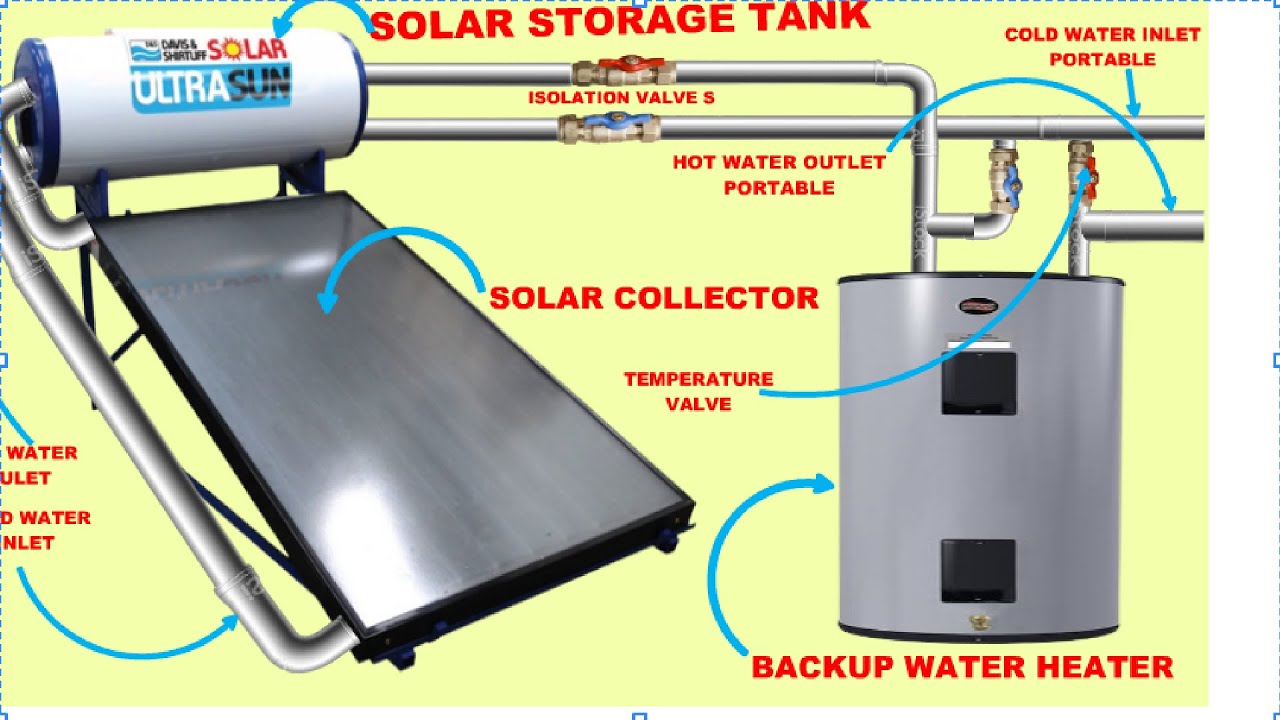

Understanding the flow is key to successful installation. In a basic closed-loop system, there are two distinct plumbing circuits: the Solar Loop and the Potable Water Loop.

1. The Solar Loop: A mixture of water and propylene glycol (antifreeze) circulates through the solar collectors on your roof. As the sun hits the panels, this fluid heats up.
2. The Heat Exchange: The hot fluid travels down to a heat exchanger located inside or wrapped around your pre-heat storage tank.
3. The Potable Loop: Cold city or well water enters the bottom of the pre-heat tank. As it sits in the tank, it absorbs heat from the solar loop via the heat exchanger.
4. Final Boost: The now-warm water exits the pre-heat tank and enters your existing conventional water heater. Since the water is already warm, your gas or electric heater uses minimal energy to bring it to the final desired temperature.

This separation ensures that the antifreeze in the solar loop never mixes with your drinking water, maintaining safety and code compliance.

What Are the Critical Steps for Installation?

Installing basic plumbing for a solar water pre heater requires precision. While hiring a professional is always recommended for complex jobs, understanding the steps helps you manage the project or tackle simpler aspects yourself.

Step 1: Mounting the Collector

Secure the solar collector on your roof or a ground mount. Ensure it faces true south (in the Northern Hemisphere) for maximum exposure. Use stainless steel mounting hardware to withstand weather conditions.

Step 2: Running the Pipes

Connect the collector to the storage tank using insulated copper or PEX tubing.

• Tip: Keep pipe runs as short and straight as possible to reduce heat loss.
• Insulation: Use high-quality foam insulation with UV protection for any exterior piping.

Step 3: Installing the Pump Station

Install the pump station on the return line (the cooler pipe coming back from the collector). This station should include:

• A circulation pump.
• A flow meter to monitor performance.
• Air vents to remove trapped air bubbles.

Step 4: Connecting the Pre-Heat Tank

Plumb the potable water lines. Connect the cold water inlet to the bottom of the pre-heat tank. Connect the outlet from the top of the pre-heat tank to the inlet of your existing water heater.

• Important: Install a tempering valve if necessary to prevent scalding, though this is less critical in a pre-heat setup since the final heater controls the temp.

Step 5: Pressure Testing and Flushing

Before adding the heat-transfer fluid, pressure test all connections with water to check for leaks. Once confirmed leak-free, flush the system and fill the solar loop with the appropriate propylene glycol mixture.

For more detailed technical specifications on fluid types and safety standards, you can refer to resources like Wikipedia’s page on Solar Water Heating, which provides a broad overview of global standards and technologies.

What Common Mistakes Should You Avoid?

Even with the best intentions, DIYers often stumble on a few key issues. Avoiding these will save you time and money.

• Ignoring Freeze Protection: In many US states, winters get cold. Using plain water in the solar loop will cause pipes to burst. Always use a freeze-protected fluid.
• Poor Insulation: Uninsulated pipes lose heat rapidly. If your pipes are not properly insulated, you lose the efficiency gains you worked hard to achieve.
• Incorrect Pump Sizing: A pump that is too weak won’t circulate fluid effectively; one that is too strong wastes electricity. Calculate the head pressure and flow rate carefully.
• Neglecting Air Locks: Air trapped in the system creates blockages. Ensure your air vents are installed at the highest points of the loop and are easily accessible for bleeding.

How Do You Maintain Your System?

A solar pre-heater is not a “set it and forget it” appliance. Regular maintenance ensures longevity and peak performance.

1. Annual Inspection: Check the pH level and concentration of the heat-transfer fluid. Over time, glycol can degrade and become acidic, corroding pipes.
2. Clean the Collectors: Dust, pollen, and bird droppings can reduce efficiency by up to 20%. Rinse the panels with a garden hose twice a year.
3. Check Insulation: Look for cracks or gaps in pipe insulation, especially after winter storms.
4. Monitor the Controller: Most modern systems have a digital controller. Check it periodically for error codes or unusual temperature differentials.

FAQ Section

1. Can I connect a solar pre-heater to my existing tankless water heater?

Yes, absolutely. In fact, tankless heaters benefit greatly from pre-heated water because they do not have to work as hard to raise the temperature. This can extend the life of the tankless unit and improve its efficiency.

2. Do I need a permit for this installation?

In most US jurisdictions, yes. Plumbing and electrical modifications typically require permits to ensure they meet local building codes and safety standards. Always check with your local building department before starting.

3. What happens on cloudy days?

On cloudy days, the solar collector will still absorb some diffuse sunlight, but the water temperature rise will be minimal. Your conventional water heater will simply pick up the slack, ensuring you always have hot water.

4. How long does it take to recoup the investment?

The payback period varies based on your local energy rates and sunlight availability. On average, homeowners in the US see a return on investment within 5 to 10 years. With federal tax credits and state rebates, this period can be significantly shorter.

5. Is PEX tubing safe for solar applications?

PEX tubing is commonly used for the potable water side and sometimes for the solar loop in low-temperature systems. However, for high-temperature solar loops, copper or specialized high-temp PEX is recommended. Always verify the manufacturer’s temperature ratings.

Conclusion

Mastering the basic plumbing for a solar water pre heater empowers you to make sustainable choices for your home. By understanding the components, respecting the installation steps, and committing to regular maintenance, you can enjoy significant savings on your energy bills.

This upgrade is not just about saving money; it is about investing in a cleaner, more resilient future for your household. Start small, plan carefully, and don’t hesitate to consult with professionals for the complex electrical or roofing aspects.

If you found this guide helpful, please share it with friends or family who are interested in home improvement and energy efficiency. Together, we can build a more sustainable community, one pipe at a time.
