Bathroom Plumbing Layout For A Two Wall Bathroom: Smart Guide

Remodeling a bathroom on a budget often feels like choosing between functionality and financial sanity, especially when existing pipes dictate your design. If you are trying to maximize efficiency without tearing up your entire slab foundation, understanding the bathroom plumbing layout for a two wall bathroom is your most valuable tool. This strategic approach keeps all major fixtures aligned along two adjacent or parallel walls, significantly reducing labor costs and material waste while maintaining a streamlined aesthetic.

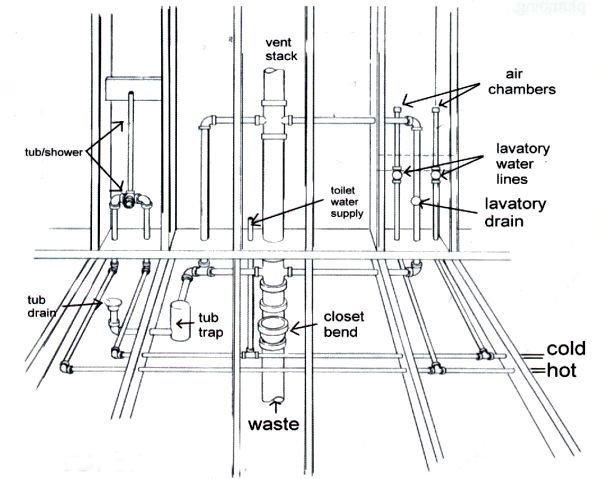

What Is a Two-Wall Bathroom Plumbing Layout?

A two-wall plumbing layout is a design strategy where all water supply lines and drain pipes are concentrated along only two walls of the room. Unlike a “wet wall” configuration where everything stacks on a single partition, the two-wall system typically utilizes one exterior or structural wall for vertical stacks and one adjacent interior wall for horizontal runs.

According to industry standards referenced in architectural guidelines on Wikipedia.org, consolidating plumbing chases reduces the complexity of framing and drywall repair. This layout is distinct from a four-wall spread because it minimizes the number of pipe penetrations through floor joists and studs. For homeowners, this translates directly to lower rough-in costs and easier future maintenance access.

Why Choose This Configuration Over Traditional Layouts?

The primary driver is cost efficiency. When plumbers can run supply and waste lines in a straight line or a simple L-shape, they use fewer fittings and less piping.

Note: Always consult local building codes before finalizing any layout, as venting requirements vary significantly by region.

How Do You Plan Fixture Placement for Optimal Flow?

Planning requires working backward from the drain location. In a bathroom plumbing layout for a two wall bathroom, the toilet usually anchors the design because its 3-inch or 4-inch waste line is the least flexible.

Step-by-Step Fixture Zoning

1. Anchor the Toilet: Place the toilet flange center at least 15 inches from any side wall or obstruction. On a two-wall setup, position this against the primary stack wall to minimize horizontal waste travel.
2. Position the Shower/Tub: Align the shower valve and drain on the same wall as the toilet or the adjacent perpendicular wall. This allows for shared hot/cold supply trunks. Use ½-inch PEX or copper for supply lines to ensure adequate flow rate of 2.5 GPM for showers.
3. Locate the Vanity: The sink is the most flexible fixture. Place it on the remaining available wall section. Since sink drains are only 1¼ to 1½ inches, they can easily tie into the main stack via a sanitary tee or wye fitting.
4. Verify Clearances: Ensure minimum code-compliant spacing. Typically, you need 21 inches of front clearance for toilets and 30 inches for sinks.

Expert Insight: “In renovation projects, we see a 20–30% reduction in rough-in labor when clients agree to a two-wall constraint versus a scattered layout,” says Mike Reynolds, Master Plumber with 25 years of residential experience. “The key is accepting that the floor plan serves the pipes, not just the other way around.”

What Are the Critical Rough-In Measurements?

Precision prevents callbacks. When executing a bathroom plumbing layout for a two wall bathroom, adhere to these concrete specifications during the rough-in phase:

• Toilet Flange Height: Set the flange exactly ¼ inch above the finished floor level. Too low causes wax ring failure; too high prevents proper seating.
• Shower Valve Depth: Install the mixing valve so the faceplate sits flush with finished tile. Standard depth is typically 3½ to 4 inches from stud face, but always check manufacturer specs.
• Drain Slope: Maintain a minimum slope of ¼ inch per foot for all horizontal drain lines. Use a torpedo level to verify before securing hangers every 4 feet.
• Supply Line Spacing: Keep hot and cold lines at least 6 inches apart to prevent thermal transfer and condensation issues within the wall cavity.
• Vent Stack Sizing: For a standard two-fixture group, a 1½-inch vent is often sufficient, but if serving three or more fixture units, upgrade to 2 inches to prevent siphon trap loss.

Common Mistakes to Avoid in Two-Wall Designs

Even professionals encounter pitfalls. Avoid these frequent errors to protect your investment:

• Ignoring Venting Requirements: Assuming proximity equals proper venting. Each fixture still needs adequate air admission to prevent gurgling and slow drainage.
• Overcrowding the Chase: Stuffing too many lines into a standard 2×4 wall. Upgrade to 2×6 framing for the plumbing wall to accommodate insulation, soundproofing, and pipe clearance without notching structural members.
• Skipping Access Panels: Failing to install removable panels behind shower valves or cleanouts. Future repairs should never require demolition.
• Neglecting Sound Dampening: Plastic PVC pipes transmit noise. Wrap waste lines in acoustic insulation or use cast iron for vertical stacks in bedrooms adjacent to the bathroom.

FAQ: Bathroom Plumbing Layout For A Two Wall Bathroom

Can I put a shower and toilet on the same wall in a two-wall layout?

Yes, this is actually ideal. Sharing a wall allows both fixtures to utilize the same vertical stack and supply trunk. Just ensure the toilet waste line maintains proper slope and does not cross directly behind the shower valve assembly, which complicates future repairs.

Does a two-wall layout require special permits?

No special permits are required specifically for the layout type, but all plumbing modifications require standard mechanical permits. Inspectors will verify that your consolidated venting and pipe sizing meet IPC or UPC codes regardless of wall configuration.

How much money does a two-wall layout save compared to spreading fixtures?

Savings vary by market, but homeowners typically save $800 to $2,500 on rough-in labor and materials. The reduction comes from fewer wall openings, shorter pipe runs, simplified venting, and less drywall repair after installation.

Can I add a second sink later to a two-wall bathroom?

Possibly, but it depends on existing drain capacity and vent sizing. Adding a double vanity increases fixture unit count. You may need to upgrade the horizontal drain from 1½ inches to 2 inches and verify the vent stack can handle the additional load without modification.

What pipe material is best for two-wall bathroom plumbing?

PEX-A or PEX-B is preferred for supply lines due to flexibility and freeze resistance. For waste lines, PVC is standard for cost, though ABS is acceptable in some regions. Cast iron remains superior for vertical stacks where noise reduction is critical in living spaces below or adjacent.

Is a two-wall layout suitable for small bathrooms under 40 square feet?

Absolutely. Small bathrooms benefit most from this configuration because it preserves usable floor space. By concentrating infrastructure, you avoid losing precious square footage to unnecessary chases and gain more room for movement and storage.

Conclusion

Mastering the bathroom plumbing layout for a two wall bathroom empowers you to create a functional, code-compliant space without exhausting your renovation budget. By anchoring fixtures strategically, adhering to precise rough-in measurements, and avoiding common venting mistakes, you achieve professional results that stand the test of time. Remember, smart planning upfront prevents expensive tear-outs down the road.
