Wall Hung Vanity Rough-In: The Ultimate Guide

Have you ever stared at a blank bathroom wall, dreaming of a sleek, modern floating vanity, only to feel overwhelmed by the hidden complexity of pipes and studs? You are not alone; many homeowners hesitate because they fear misaligning the drain or water lines, which can ruin the aesthetic and functionality of their new fixture. Understanding the correct bathroom plumbing rough in diagram wall hung vanity specifications is the critical first step to ensuring your dream bathroom becomes a leak-free reality.

In this guide, we will break down the technical requirements into simple, actionable steps. Whether you are a DIY enthusiast or a homeowner verifying your contractor’s work, this article provides the clarity you need to proceed with confidence.

What Are the Standard Rough-In Dimensions for a Wall Hung Vanity?

Before you cut a single hole in your drywall, you must understand that “standard” is a relative term in plumbing. However, there are industry-accepted norms that serve as a safe baseline for most residential projects in the United States.

The most critical measurement is the height of the drain and water supply lines. Unlike floor-mounted vanities, where these connections are often hidden inside the cabinet, wall-hung units expose the area beneath the sink. This means precision is non-negotiable.

Key Height Measurements

• Drain Center Height: Typically 20 to 21 inches from the finished floor to the center of the drain pipe. This allows enough clearance for the P-trap while keeping it hidden behind or just above the vanity’s bottom shelf (if applicable).
• Water Supply Lines: These should be positioned 20 to 22 inches from the finished floor. They are usually placed 8 to 12 inches apart, centered around the drain line.
• Vanity Mounting Height: The top of the vanity is generally installed 30 to 36 inches from the finished floor, depending on user height and preference. The standard comfort height is 34–35 inches.

Pro Tip: Always check the manufacturer’s installation manual for your specific vanity model. Some European-style vanities require different rough-in heights due to integrated trap designs.

How Does a Wall Hung Vanity Rough-In Differ from Traditional Vanities?

Understanding the difference between a traditional floor-mounted vanity and a wall-hung unit is crucial for planning your rough-in. The primary distinction lies in structural support and visual exposure.

Structural Support Requirements

A floor-mounted vanity rests on the ground, transferring its weight (and the weight of the sink and water) directly to the floor. A wall-hung vanity, however, transfers all load to the wall. This requires:

1. Reinforced Blocking: You cannot simply screw a heavy vanity into drywall. You must install horizontal 2×4 or 2×6 wooden blocking between the studs at the exact height where the vanity’s mounting bracket will sit.
2. Load Capacity: The blocking must be able to support at least 150–200 pounds to account for dynamic loads (e.g., someone leaning on the sink).

Visual and Spatial Differences

With a traditional vanity, minor errors in pipe placement can be hidden inside the cabinet. With a wall-hung unit, the plumbing is partially visible. Therefore, the bathroom plumbing rough in diagram wall hung vanity layout must be aesthetically pleasing. Pipes should be centered and symmetrical.

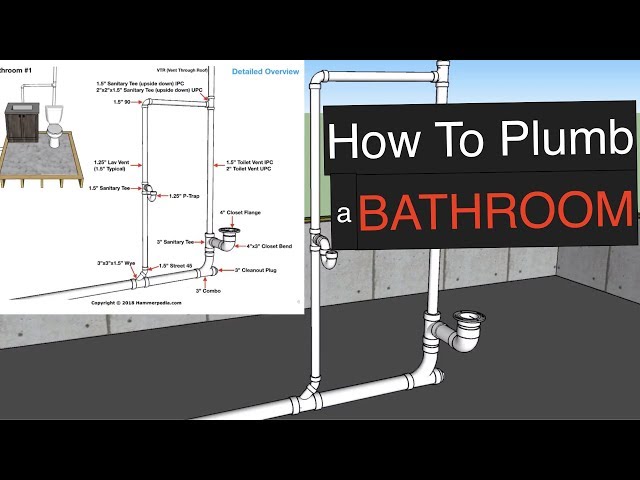

Step-by-Step Guide to Creating the Rough-In Diagram

Creating an accurate rough-in diagram ensures that your plumber or you (if DIY) hit the right marks every time. Follow these steps to draft your plan.

Step 1: Determine the Vanity Width and Centerline

Measure the total width of your chosen vanity. Find the exact center point. Mark this vertical line on your wall stud framework. This centerline is your anchor for all subsequent measurements.

Step 2: Mark the Drain Location

From the finished floor level (FFL), measure up 20.5 inches. Mark this point on your centerline. This is where the center of your 1.5-inch or 2-inch drain pipe will exit the wall. Ensure this pipe is securely anchored to the stud framing to prevent vibration.

Step 3: Position the Water Supply Lines

From the same finished floor level, measure up 21 inches. From your centerline, measure 4 inches to the left and 4 inches to the right (for a total spread of 8 inches). These marks represent the center of your hot and cold water supply valves.

• Hot Water: Typically on the left.
• Cold Water: Typically on the right.

Step 4: Install Structural Blocking

Install horizontal wooden blocking between the studs. The top edge of this blocking should align with the manufacturer’s specified mounting height for the vanity bracket. For most units, this is approximately 32–34 inches from the finished floor, but verify this with your specific product data. Use 3-inch screws to secure the blocking firmly to each stud.

Step 5: Verify Local Codes

Plumbing codes vary by municipality. While the International Plumbing Code (IPC) provides guidelines, local amendments may dictate specific pipe materials or venting requirements. For a comprehensive overview of general plumbing standards, you can refer to resources like Wikipedia’s page on Plumbing to understand the broader context of regulatory frameworks, though always prioritize local inspector guidance.

Common Mistakes to Avoid During Rough-In

Even experienced contractors can make errors when rushing. Here are the most frequent pitfalls associated with wall-hung vanity installations.

1. Ignoring the Finished Floor Height

One of the most costly mistakes is measuring from the subfloor instead of the finished floor. If you plan to install tile, vinyl, or hardwood, you must account for the thickness of these materials.

• Example: If your tile and mortar bed add 1 inch of height, your 20.5-inch drain measurement must start from the top of the tile, not the concrete slab. Failing to do this results in a drain that is too low, causing poor drainage or visible pipe gaps.

2. Inadequate Blocking

Using thin plywood or insufficient screws for the mounting block can lead to catastrophic failure. Over time, the weight of the sink and daily use can pull the screws out of the drywall, causing the vanity to detach. Always use solid lumber (2×4 or 2×6) screwed directly into the studs.

3. Misaligned Supply Lines

If the hot and cold water lines are not symmetrically aligned with the drain, the flexible supply hoses may kink or stretch uncomfortably. This can lead to premature wear and potential leaks. Ensure the 8–12 inch spread is centered perfectly on the drain line.

FAQ: Everything You Need to Know About Wall Hung Vanity Plumbing

Q1: Can I convert a floor-mounted vanity rough-in to a wall-hung one?

A: Yes, but it requires significant modification. You will likely need to move the drain pipe higher up the wall and add structural blocking. The existing drain hole in the floor must be capped and sealed properly to prevent sewer gas leaks. It is recommended to hire a licensed plumber for this conversion.

Q2: What size drain pipe is required for a wall-hung vanity?

A: Most residential bathroom sinks use a 1.5-inch drain pipe. However, some larger vessel sinks or commercial-style fixtures may require a 2-inch pipe. Check your vanity’s specification sheet. The trap arm connecting to the wall should match this diameter.

Q3: Do I need a special P-trap for a wall-hung vanity?

A: Not necessarily “special,” but you should use a tubular P-trap rather than a rigid PVC trap. Tubular traps are adjustable and easier to fit in the tight space between the sink tailpiece and the wall outlet. Chrome or brass finishes are also preferred for aesthetics since they may be visible.

Q4: How deep should the plumbing box be in the wall?

A: The drain and supply lines should protrude just enough to connect to the fixture without sticking out too far. Typically, the face of the valve or drain flange should be flush with or slightly recessed from the finished wall surface (drywall + tile). If using a thick tile, ensure the pipes are long enough to extend through the tile depth.

Q5: Is it difficult to access the plumbing for repairs later?

A: One of the advantages of wall-hung vanities is accessibility. Since there is no cabinet base, you have clear access to the P-trap and supply lines. However, if the connections are inside the wall (behind an access panel), ensure you install a removable access panel for future maintenance.

Q6: What if my studs are not spaced correctly for the vanity width?

A: Standard stud spacing is 16 inches on center. If your vanity is wider than the space between two studs, you must install additional vertical studs or use a continuous horizontal blocking board that spans across multiple studs. This ensures the mounting bracket has solid wood to grip onto along its entire length.

Conclusion

Installing a wall-hung vanity transforms your bathroom into a modern, spacious retreat, but it demands precision during the rough-in phase. By adhering to the correct bathroom plumbing rough in diagram wall hung vanity measurements—specifically the 20–21 inch height for drains and supplies and ensuring robust structural blocking—you can avoid common pitfalls and ensure a durable installation.

Remember, the key to success lies in accounting for the finished floor height and verifying manufacturer specifications before cutting any pipes. Take your time, measure twice, and don’t hesitate to consult a professional if structural modifications seem beyond your skill set.
