1950s Bathroom Sink Plumbing Diagram Guide

Owning a mid-century home is a dream for many, but the hidden infrastructure often tells a different story. If you are staring at a leaky faucet or planning a refresh, finding an accurate bathroom sink plumbing diagram for a 1950 house can feel like searching for a needle in a haystack. You are not alone; these homes have unique quirks that modern manuals rarely address, leaving homeowners confused and frustrated.

This guide bridges that gap. We will walk you through the specific layout of 1950s plumbing, help you identify materials that may be nearing the end of their life, and provide clear steps to manage repairs or upgrades without causing a flood. Let’s decode your home’s vintage veins together.

Understanding the Unique Layout of 1950s Plumbing

To effectively troubleshoot or renovate, you must first understand what lies behind your walls. Homes built in the 1950s represent a transitional era in American construction. While they moved away from the lead pipes of the early 20th century, they had not yet adopted the standardized PVC and PEX systems we use today.

The Typical Configuration

In a standard 1950s bathroom, the sink plumbing usually follows a “wall-hung” or “console” style, though vanity cabinets were becoming popular. The key difference from modern homes is the lack of shut-off valves directly under the sink. Instead, the water supply often comes directly from the main line or a basement manifold, requiring you to shut off water to the entire house for minor repairs.

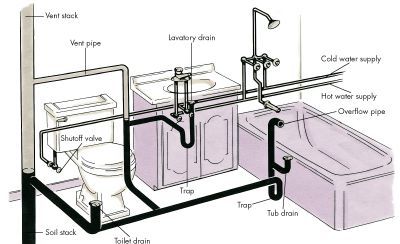

The drainage system typically relies on cast iron or galvanized steel. Unlike modern smooth plastic pipes, these materials corrode internally over time, reducing water flow and increasing the risk of clogs. A typical diagram for this era shows:

• Supply Lines: Rigid copper (Type M, which is thinner than modern Type L) or galvanized steel.
• Drain Pipe: 1.25-inch or 1.5-inch cast iron with threaded joints.
• Trap: A heavy cast iron P-trap, often screwed into the wall rather than using slip-nut connections.

Understanding this layout is crucial because trying to apply modern “push-fit” solutions to threaded galvanized pipes often results in failure. You need to respect the original engineering while planning for necessary updates.

Identifying Your Pipe Materials: Copper vs. Galvanized

Before you draw out your plan or buy parts, you must identify what you are working with. In 1950s homes, you will likely encounter two primary types of supply piping. Misidentifying these can lead to incompatible fittings and costly leaks.

If your pipes are galvanized, you are on borrowed time. According to industry standards, galvanized pipes have a lifespan of roughly 50 years. Since your home was built in the 1950s, these pipes are well past their prime. If you see brownish water when you first turn on the tap, it is a clear sign of internal corrosion.

For more detailed information on the history and properties of these materials, you can refer to Wikipedia’s article on Galvanized Steel. This resource provides technical depth on why zinc coating fails over decades, helping you understand the urgency of replacement.

Step-by-Step: Reading Your Sink’s Plumbing Diagram

Since every house is slightly different, creating your own diagram is the best approach. Here is how to map your specific setup safely.

1. Turn Off the Water: Locate your main water shut-off valve. In 1950s homes, this is often in the basement or near the street meter. Turn it clockwise until tight.
2. Open the Faucet: Release any remaining pressure in the lines by turning on the cold and hot water taps.
3. Inspect Under the Sink: Use a flashlight. Look for the P-trap (the U-shaped pipe). Note if it is connected to the wall via a threaded nipple or a slip joint.
4. Trace the Supply Lines: Follow the hot and cold lines back to where they enter the wall. Do they have individual shut-off valves? If not, note this on your diagram.
5. Measure Diameters: Use a caliper or ruler.
   • Supply lines are typically 1/2 inch.
   • Drain lines are typically 1.25 inches for sinks.
6. Sketch the Layout: Draw the wall, the sink position, and the pipe paths. Mark the material type next to each line.

This visual aid will be invaluable when you visit the hardware store. It prevents the common mistake of buying modern compression fittings that do not match old threaded galvanized ends.

Common Problems and How to Fix Them

Old plumbing systems have distinct failure points. Addressing them proactively can save you from emergency calls.

Low Water Pressure

If your sink trickles instead of flows, the culprit is likely mineral buildup inside galvanized pipes or a clogged aerator.

• Fix: First, remove and clean the faucet aerator. If pressure remains low, the issue is likely inside the pipes. Replacing the supply lines with flexible braided stainless steel hoses is a quick win, but if the wall pipes are galvanized, consider a professional repipe.

Leaking P-Trap

Cast iron traps can crack or loosen due to house settling.

• Fix: Tighten the slip nuts gently. If it is a threaded cast iron trap, use pipe dope and Teflon tape on the threads before reassembling. Do not overtighten, as old metal becomes brittle and can snap.

Corrosion at Joints

Look for white or green crusty deposits around connections. This indicates active leaking.

• Fix: For copper, you may need to cut out the damaged section and solder a new piece. For galvanized, replacement is the only permanent fix.

When to Call a Professional

While DIY is rewarding, 1950s plumbing can hide surprises. You should call a licensed plumber if:

• You encounter lead pipes (soft, dull gray, scratch easily with a key). These require special handling and disposal.
• The main shut-off valve is stuck or leaking. Forcing it can break the valve stem, leaving you unable to stop water flow.
• You plan to move the sink location. This involves cutting into structural walls and potentially modifying the vent stack, which requires permits and code compliance.

According to the Environmental Protection Agency (EPA), disturbing old plumbing without proper containment can release hazardous dust. Always prioritize safety over speed.

FAQ Section

1. Can I connect modern PVC pipes to my 1950s cast iron drain?

Yes, but you cannot glue them directly. You must use a rubber coupling with stainless steel clamps (often called a Fernco coupling). This allows for a watertight seal between the dissimilar materials while accommodating slight movement.

2. Why does my sink smell like rotten eggs?

This is usually due to a dry P-trap or bacteria buildup in old cast iron pipes. Run water in unused sinks weekly to keep the trap sealed. For persistent smells, pour a mixture of 1 cup baking soda and 1 cup vinegar down the drain, followed by hot water after 15 minutes.

3. Are the original shut-off valves reliable?

Rarely. Valves from the 1950s are often gate valves that seize up or fail to close completely. It is highly recommended to replace them with modern quarter-turn ball valves during any repair work.

4. What size wrench do I need for 1950s plumbing?

Old fittings are often larger than modern ones. A 10-inch adjustable wrench and a pipe wrench (14-inch) are essential. Avoid using channel locks on chrome fixtures, as they can damage the finish.

5. Is it safe to use chemical drain cleaners in old pipes?

No. Chemical cleaners generate heat and can corrode old metal joints, leading to leaks. They are also ineffective against the heavy root intrusion or solid blockages common in older systems. Use a mechanical auger instead.

Conclusion

Navigating the bathroom sink plumbing diagram for a 1950 house requires patience and respect for the materials used. By identifying whether you have galvanized or copper pipes, mapping your specific layout, and addressing corrosion early, you can maintain your home’s charm without sacrificing functionality.

Remember, while some fixes are DIY-friendly, knowing when to call a professional protects your investment. Share this guide with fellow vintage home owners on social media to help them tackle their plumbing puzzles with confidence. Together, we can keep these historic homes flowing smoothly for another generation.
