Floor to Wall Sink: Plumbing Guide

Have you ever stared at your bathroom walls, wondering how to connect a sleek, floating vanity to pipes that stubbornly emerge from the floor? You are not alone; many homeowners face this tricky renovation challenge when trying to modernize their space without tearing up the entire slab. Understanding Bathroom Sink Plumbing From Floor Wall Mounted Sink configurations is the key to achieving that clean, minimalist look without compromising functionality or causing leaks.

In this guide, we will break down exactly how to bridge the gap between your floor drains and your new wall-hung fixture. Whether you are a seasoned DIYer or a curious homeowner planning a contractor-led remodel, this article provides the technical clarity and practical steps you need to succeed.

Why Choose a Wall-Mounted Sink with Floor Plumbing?

Before diving into the pipes, it is essential to understand why this specific configuration is gaining popularity in US homes. Traditionally, wall-mounted sinks were paired with wall-supplied water lines and drains. However, retrofitting older homes often means working with existing infrastructure where water supply and waste lines come up through the concrete slab or subfloor.

The Aesthetic and Functional Appeal

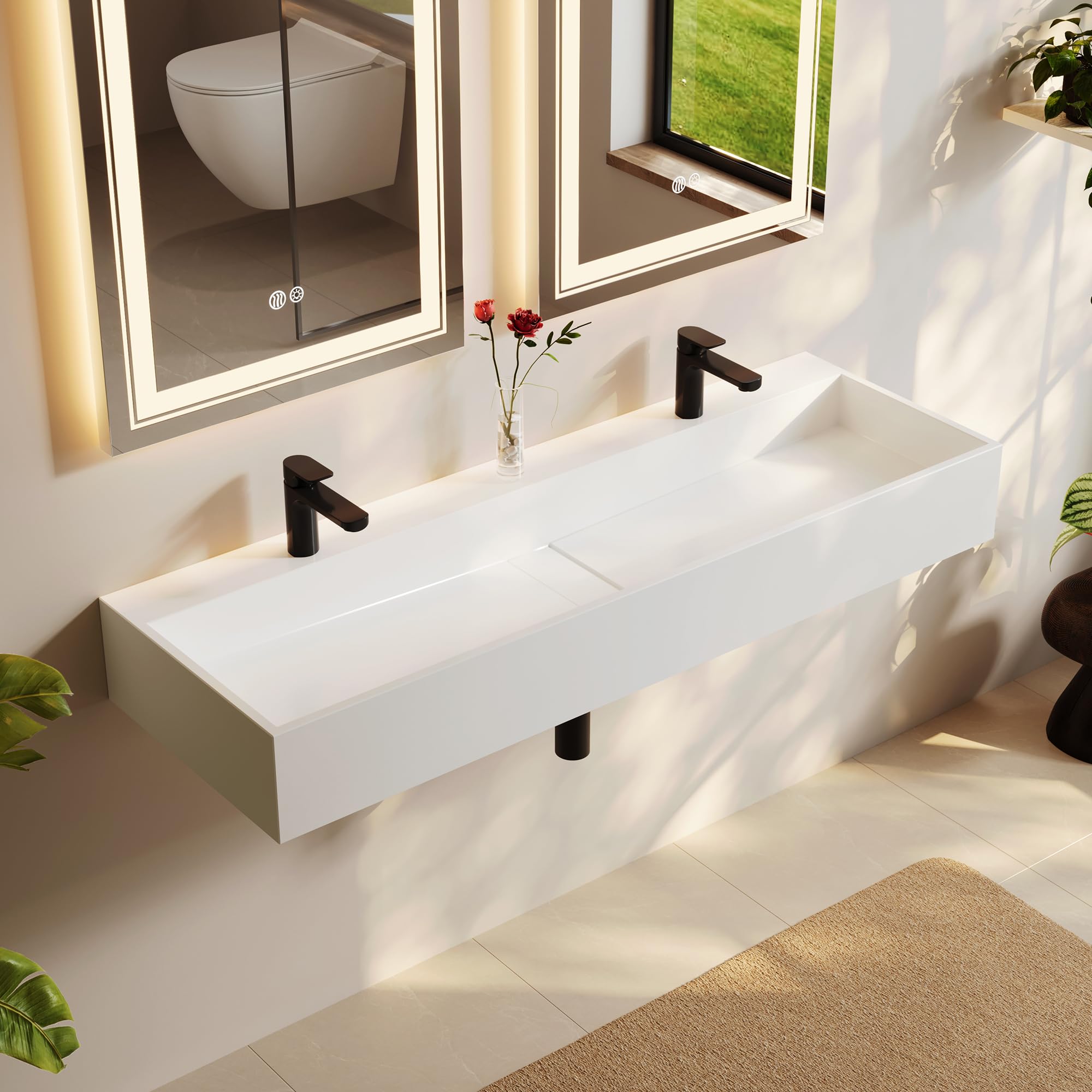

Wall-mounted sinks create an illusion of more space. By lifting the basin off the floor, you expose more tile or flooring, making small bathrooms feel larger. According to recent interior design trends, open floor plans in bathrooms have increased by 15% in popularity over the last five years.

However, the visual appeal comes with a mechanical challenge: visibility. If your plumbing comes from the floor, you must manage those vertical pipes elegantly. Leaving them exposed can look industrial (which some love), but most homeowners prefer a concealed look. This requires strategic planning during the “rough-in” phase.

Key Considerations for Homeowners

• Structural Support: Unlike pedestal sinks, wall-mounted units rely entirely on the wall’s strength. Ensure your studs can handle the weight plus the dynamic load of water and usage.
• Pipe Visibility: You will need to decide whether to box in the pipes (creating a false wall section) or use decorative covers.
• Code Compliance: Local building codes in the US vary. Always check with your municipal building department before altering drain lines.

How Do You Connect Floor Pipes to a Wall Sink?

The core question most users ask is: How do I physically make the connection? The answer lies in the transition from vertical to horizontal piping behind the wall or within a chase.

The Role of the P-Trap

The P-trap is the U-shaped pipe under your sink that holds water to prevent sewer gases from entering your home. When dealing with floor plumbing, the trap assembly looks different than standard setups.

1. Vertical Rise: The drain pipe comes up from the floor.
2. Transition: You need a fitting that allows the vertical pipe to turn 90 degrees toward the wall.
3. Horizontal Run: The pipe runs horizontally into the wall cavity to connect to the sink’s tailpiece.

Pro Tip: Use ABS or PVC pipes for drainage, depending on your local code. ABS is black and common in western US states, while PVC is white and prevalent in the east. Never glue ABS to PVC directly; use a mechanical coupling approved for dissimilar plastics.

Supply Lines: Hot and Cold

Your hot and cold water lines also likely come from the floor. You cannot simply bend copper or PEX pipes sharply. You must use elbow fittings (90-degree turns) to redirect the water flow upward into the valve stems of your faucet.

• PEX Tubing: Flexible and easy to work with. Ideal for retrofits.
• Copper: Rigid and durable. Requires soldering or push-to-connect fittings.
• CPVC: Common in older homes. Brittle and prone to cracking if mishandled during renovation.

For a deeper understanding of material properties, you can refer to the general overview of plumbing materials on Wikipedia.

What Is the Correct Rough-In Height for Wall Sinks?

Getting the height wrong is the most common mistake in DIY plumbing. If the pipes are too high, they poke out above the sink. If they are too low, you strain your back every time you wash your hands.

Standard Dimensions

While customizations exist, industry standards provide a safe baseline for most adults.

Adjusting for User Height

If your household includes taller individuals, consider raising the sink rim to 36 inches. However, remember that this raises the required height for your floor plumbing connections. If you are cutting into an existing concrete slab, this might require jackhammering, which is costly and messy. In such cases, using a vessel sink on top of a counter might be a better alternative than a true wall-mounted unit.

Step-by-Step Installation Guide

Ready to get your hands dirty? Follow these steps to ensure a professional-grade installation. Please note: If you are not comfortable with soldering or gluing pipes, hire a licensed plumber. Water damage costs far more than labor fees.

Step 1: Preparation and Shut-Off

Turn off the main water supply to your house. Open existing faucets to drain remaining pressure. Place buckets under the work area to catch residual water.

Step 2: Marking the Wall

Use a level and tape measure to mark the exact position of your sink.

• Mark the centerline of the sink.
• Mark the height of the rim (e.g., 32 inches).
• Transfer these measurements to determine where the drain and supply lines need to exit the wall or floor.

Step 3: Modifying the Floor Plumbing

If your drain stub-out is currently vertical in the middle of the room, you may need to extend it toward the wall.

1. Cut the existing vertical pipe at the desired height (approx. 18 inches).
2. Install a 90-degree elbow pointing toward the wall.
3. Run a horizontal pipe segment into the wall stud cavity.
4. Install a sanitary tee or appropriate connector to accept the sink’s tailpiece.

Step 4: Installing Supply Lines

Similarly, redirect your hot and cold lines.

1. Cut the vertical PEX or copper lines.
2. Install 90-degree elbows.
3. Run lines up to the faucet connection points (approx. 20–22 inches high).
4. Install angle stop valves (shut-off valves) for easy future maintenance.

Step 5: Mounting the Sink

This is critical. Wall-mounted sinks require heavy-duty mounting hardware.

• Locate the studs behind the drywall.
• Install a carrier frame or wooden cleat between studs if the sink does not come with a metal bracket.
• Bolt the sink securely to the wall. Do not rely on drywall anchors alone.

Step 6: Connecting the Trap and Testing

1. Attach the tailpiece to the sink drain.
2. Connect the P-trap to the tailpiece and the wall/floor drain outlet.
3. Tighten all slip nuts by hand, then give a quarter-turn with pliers. Do not overtighten, as this can crack plastic nuts.
4. Turn the water back on slowly.
5. Check for leaks at every connection point. Use a paper towel to wipe joints; even a small drip will show up wet on the towel.

Common Mistakes to Avoid

Even experienced DIYers stumble here. Avoid these pitfalls to save time and money.

• Ignoring Slope: Drain pipes must slope downward toward the main stack at a rate of 1/4 inch per foot. If your horizontal run from the floor to the wall is flat or slopes upward, water will sit and cause clogs.
• Using the Wrong Sealant: Do not use silicone on threaded pipe connections. Use Teflon tape (PTFE) for threads and pipe dope for metal joints. Silicone is for sealing the sink rim to the wall, not the pipes.
• Forgetting Access Panels: If you box in your plumbing with drywall, install an access panel. You will need to service these pipes eventually.

FAQ Section

1. Can I convert a floor-drain setup to a wall-drain setup easily?

No, it is not easy. Converting a floor drain to a wall drain requires breaking the concrete slab or floor joists to reroute the pipe horizontally into the wall. This is a major structural alteration best left to professionals.

2. What if my floor plumbing is not centered with my new sink?

You can use offset drain fittings or flexible PVC couplings to adjust the position slightly. However, if the misalignment is significant (more than 3–4 inches), you may need to reposition the sink or reroute the plumbing.

3. Do I need a permit for this installation?

In most US jurisdictions, replacing a sink like-for-like does not require a permit. However, moving water lines or drain pipes usually does. Check with your local building department to avoid fines during a home sale.

4. How do I hide the pipes coming from the floor?

You can build a “false front” or a small enclosure around the pipes using moisture-resistant drywall or wood paneling. Alternatively, use chrome-plated brass escutcheons and decorative pipe covers for an industrial-chic look.

5. Is PEX better than Copper for this application?

For DIYers, PEX is generally better because it is flexible, requires fewer fittings, and uses simple crimp or push-fit tools. Copper is more durable but requires soldering skills and fire safety precautions during installation.

Conclusion

Mastering Bathroom Sink Plumbing From Floor Wall Mounted Sink installations transforms a dated bathroom into a modern sanctuary. While the process involves precise measurements and careful pipe manipulation, the result is a spacious, stylish, and functional space. Remember to prioritize proper support for the sink and ensure all connections are leak-free before closing up walls.
