Head Loss Friction: Plumbing Design Guide

Have you ever turned on a shower only to be greeted by a disappointing trickle, even though the water pressure at the street seems fine? This frustrating experience is often not due to low supply pressure, but rather poor planning regarding energy loss within the pipes. Understanding Calculating Head Loss Friction In Plumbing System Design is the critical difference between a system that flows smoothly and one that constantly underperforms.

In this guide, we will break down the complex physics of fluid dynamics into actionable steps for engineers, contractors, and DIY enthusiasts in the US market. We will explore how to accurately predict pressure drops, select the right pipe materials, and ensure your plumbing design meets both code requirements and user expectations.

Why Does Friction Loss Matter in Plumbing?

Before diving into the math, it is essential to understand why we care about friction. Water moving through a pipe encounters resistance from the pipe walls. This resistance converts kinetic energy into heat, resulting in a drop in pressure. In the plumbing industry, we call this “head loss.”

If you ignore head loss, you risk:

• Inadequate Flow Rates: Fixtures may not receive the minimum gallons per minute (GPM) required by code.
• Pump Oversizing: You might install a pump that is too powerful, wasting electricity and causing water hammer.
• Noise Issues: High velocity due to undersized pipes creates annoying turbulence and noise.

According to the American Society of Plumbing Engineers (ASPE), proper hydraulic calculation can reduce energy consumption in pumping systems by up to 20%. This makes accurate calculation not just a technical necessity, but an economic one.

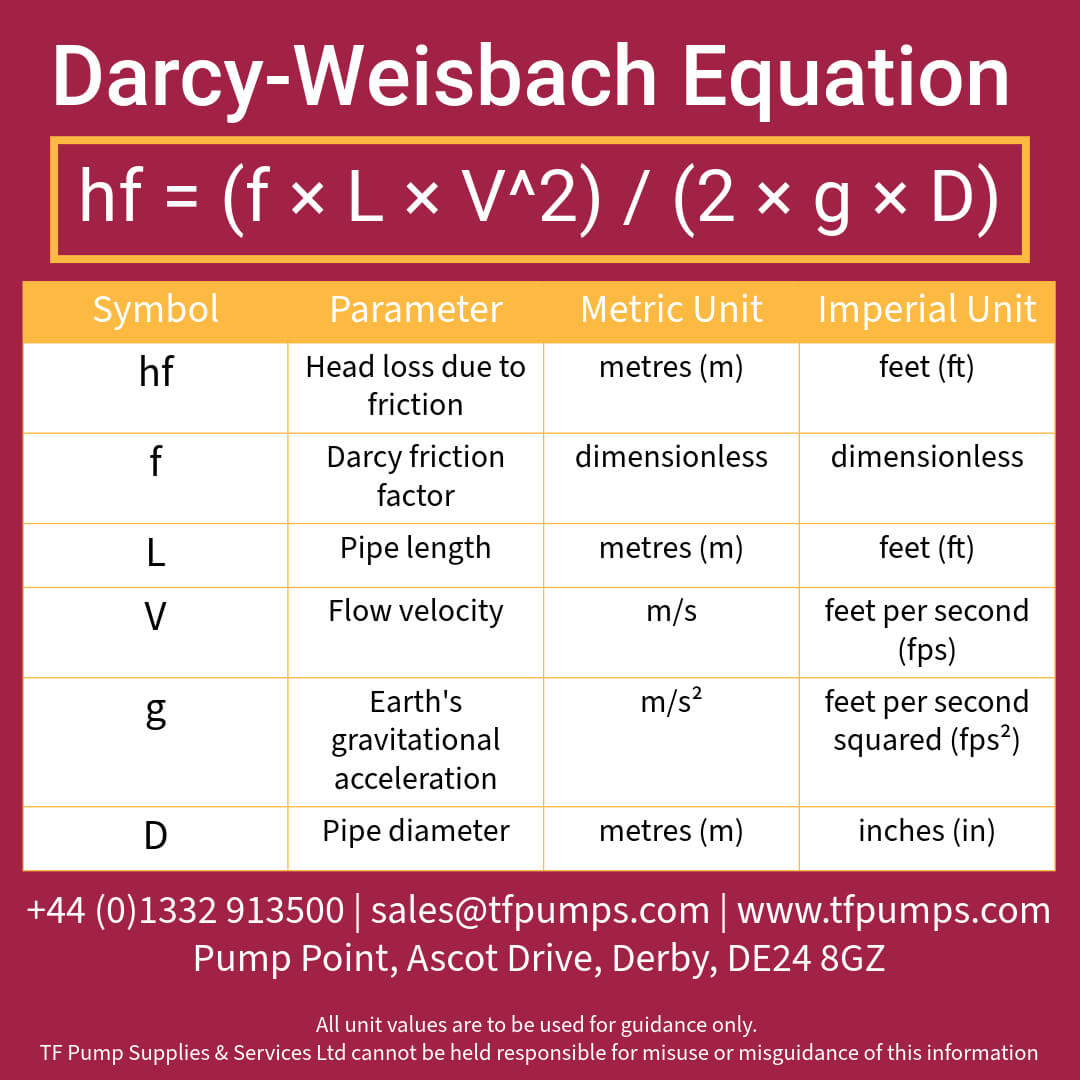

What Is the Darcy-Weisbach Equation?

When professionals talk about Calculating Head Loss Friction In Plumbing System Design, the gold standard formula is the Darcy-Weisbach equation. While older methods like Hazen-Williams exist, Darcy-Weisbach is more accurate across a wider range of fluids and pipe conditions.

The formula looks like this:

$h_f=f\cdot \left(\frac{L}{D}\right)\cdot \left(\frac{v^2}{2g}\right)$hf​=f⋅(DL​)⋅(2gv2​)

Where:

• hfhf​: Head loss due to friction (feet of water).
• ff: Darcy friction factor (dimensionless).
• LL: Length of the pipe (feet).
• DD: Internal diameter of the pipe (feet).
• vv: Velocity of the fluid (feet per second).
• gg: Acceleration due to gravity (32.2 ft/s²).

Breaking Down the Variables

1. Friction Factor (ff): This is the trickiest part. It depends on the roughness of the pipe interior and the Reynolds number (which determines if flow is laminar or turbulent). For most plumbing applications, flow is turbulent.
2. Length (LL): This includes the straight pipe length plus the “equivalent length” of fittings (elbows, tees, valves).
3. Velocity (vv): Higher velocity means significantly higher friction loss. Note that loss is proportional to the square of the velocity. Doubling the speed quadruples the friction loss.

For a deeper understanding of fluid mechanics principles, you can refer to the general concepts outlined on Wikipedia’s page for the Darcy–Weisbach equation.

How Do Pipe Materials Affect Friction?

Not all pipes are created equal. The internal roughness of the material directly impacts the friction factor ($f$f). In the US market, common materials include Copper, CPVC, PEX, and Galvanized Steel.

Note: As galvanized steel ages, internal corrosion increases roughness dramatically, leading to severe head loss. This is why it is rarely used in new US construction.

When Calculating Head Loss Friction In Plumbing System Design, always use the actual internal diameter (ID), not the nominal size. For example, a 1-inch copper pipe does not have a 1-inch internal diameter; it is slightly smaller. Using the wrong diameter will skew your results significantly.

Step-by-Step Guide to Calculating Head Loss

Let’s walk through a practical example. Imagine you are designing a cold water line for a residential bathroom located 50 feet from the main supply.

Scenario Data:

• Pipe: ¾ inch Type L Copper
• Flow Rate: 5 GPM (Gallons Per Minute)
• Total Length: 50 feet straight + 10 feet equivalent length for fittings = 60 feet total.
• Temperature: 60°F (Standard cold water)

Step 1: Determine Velocity

First, convert GPM to cubic feet per second (cfs) and find the area of the pipe.

• Area of ¾” copper (ID ≈ 0.785 inches) ≈ 0.0033 sq ft.
• Flow (Q) = 5 GPM ≈ 0.0111 cfs.
• Velocity ($v$v) = $Q\mathrm{/}Area$Q/Area ≈ 3.36 ft/s.

Expert Tip: Keep velocity below 5-8 ft/s for cold water to prevent noise and erosion.

Step 2: Determine Reynolds Number

This determines the flow regime. For water at 60°F in a ¾” pipe at 3.36 ft/s, the flow is fully turbulent. We will use the Moody Chart or the Colebrook equation to find the friction factor ($f$f). For smooth copper, $f$f is approximately 0.018.

Step 3: Apply Darcy-Weisbach

$h_f=0.018\cdot \left(\frac{60}{0.0654}\right)\cdot \left(\frac{{3.36}^2}{2\cdot 32.2}\right)$hf​=0.018⋅(0.065460​)⋅(2⋅32.23.362​)

• $L\mathrm{/}D$L/D ratio ≈ 917
• Velocity head ($v^2\mathrm{/}2g$v2/2g) ≈ 0.175 ft
• $h_f$hf​ ≈ $0.018\cdot 917\cdot 0.175$0.018⋅917⋅0.175 ≈ 2.88 feet of head loss.

Step 4: Convert to PSI

Plumbers often think in PSI.

• 1 foot of water column ≈ 0.433 PSI.
• 2.88 ft $\cdot$⋅ 0.433 ≈ 1.25 PSI loss.

If your incoming pressure is 60 PSI, you have 58.75 PSI remaining at the fixture. This is well within acceptable limits.

Common Mistakes in Plumbing Design

Even experienced designers make errors when Calculating Head Loss Friction In Plumbing System Design. Here are the most frequent pitfalls:

1. Ignoring Fittings: An elbow or a tee valve creates significant turbulence. Always add “equivalent length” for every fitting. A single 90-degree elbow can add as much resistance as several feet of straight pipe.
2. Using Nominal Diameter: As mentioned, always use the actual internal diameter. A schedule 40 steel pipe has a different ID than a schedule 80 pipe of the same nominal size.
3. Overlooking Temperature: Water viscosity changes with temperature. Hot water is less viscous, which slightly reduces friction, but thermal expansion must also be considered in long runs.
4. Assuming New Pipe Conditions: For renovation projects, assume old pipes have higher roughness. Designing based on “new pipe” specs for a 50-year-old galvanized system will result in failure.

FAQ Section

1. What is an acceptable head loss in a residential plumbing system?

Generally, you want to maintain a residual pressure of at least 20–30 PSI at the furthest fixture. Total friction loss should typically not exceed 10–15% of the available static pressure to ensure consistent performance during peak usage.

2. How does pipe age affect friction loss calculations?

As pipes age, mineral deposits (scale) and corrosion build up on the interior walls. This increases the roughness coefficient ($ϵ$ϵ). For existing systems, it is wise to increase the calculated friction loss by 20–30% as a safety margin if the pipe condition is unknown.

3. Can I use online calculators instead of manual formulas?

Yes, tools like the Hydraulic Institute’s calculators or software such as AutoCAD MEP are excellent. However, understanding the underlying principles of Calculating Head Loss Friction In Plumbing System Design allows you to verify software outputs and troubleshoot issues when digital tools give unexpected results.

4. What is the difference between major and minor losses?

• Major Losses: Caused by friction along the straight length of the pipe (calculated via Darcy-Weisbach).
• Minor Losses: Caused by components like valves, elbows, and expansions. While called “minor,” they can account for up to 50% of total loss in complex systems with many fittings.

5. Does pipe diameter have a bigger impact than length?

Yes. Because head loss is inversely proportional to the diameter to the fifth power (in Hazen-Williams) or heavily dependent on diameter in Darcy-Weisbach, a small increase in pipe diameter drastically reduces friction loss. Doubling the pipe diameter reduces friction loss by approximately 97% for the same flow rate.

Conclusion

Mastering the art of Calculating Head Loss Friction In Plumbing System Design is fundamental to creating efficient, reliable, and code-compliant plumbing systems. By using the Darcy-Weisbach equation, accounting for pipe material roughness, and respecting the impact of fittings, you can avoid costly redesigns and customer complaints.

Remember, plumbing is not just about connecting pipes; it is about managing energy. Every foot of head loss represents energy wasted. By optimizing your designs, you contribute to water conservation and energy efficiency in the built environment.
