Can I Use 40/60 Solder For Plumbing? The Short Answer

Have you ever stared at a spool of generic solder in your garage, wondering if it can save you a trip to the hardware store for a leaking pipe? It is a common dilemma for DIY enthusiasts who have leftover materials from electronics projects. However, before you light up your torch, you need to know the critical answer to the question: Can I Use 40 60 Solder For Plumbing?

The short answer is a definitive no. Using 40/60 solder for plumbing is not only ineffective but potentially dangerous to your health and your home’s structural integrity. In this guide, we will break down exactly why this specific alloy fails in plumbing applications, the health risks involved, and the correct materials you should use instead.

What Is 40/60 Solder Exactly?

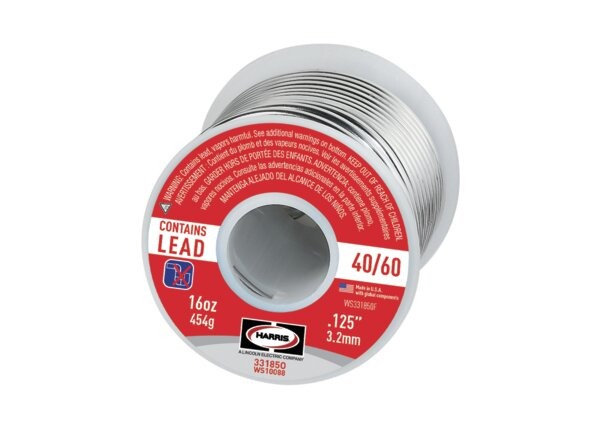

To understand why it doesn’t work for pipes, we first need to understand what it is. The term “40/60 solder” refers to the chemical composition of the metal alloy. It consists of 40% tin and 60% lead.

This specific ratio was historically popular in the electronics industry because it has a unique melting characteristic. Unlike eutectic solders (like 63/37) that melt at a single temperature, 40/60 solder has a “pasty range.” This means it transitions from solid to liquid over a small temperature window. This property allows technicians to manipulate components on a circuit board without the solder running away too quickly.

However, plumbing environments are vastly different from circuit boards. Pipes carry water under pressure, undergo thermal expansion and contraction, and most importantly, come into contact with human consumption sources. The properties that make 40/60 great for radios make it terrible for faucets.

Why You Cannot Use 40/60 Solder for Plumbing

There are three primary reasons why using 40/60 solder for copper water pipes is prohibited by code and discouraged by experts: lead toxicity, mechanical weakness, and corrosion issues.

1. The Lead Poisoning Risk

The most critical factor is the 60% lead content. Lead is a potent neurotoxin. When used in electrical circuits, the lead is sealed inside plastic casings or enclosed devices. In plumbing, the solder is in direct contact with drinking water.

Even if the water is not immediately corrosive, microscopic amounts of lead can leach into the water supply over time. This is especially true if the water sits stagnant in the pipes overnight. According to the Environmental Protection Agency (EPA), there is no safe level of lead exposure for children, and it poses significant health risks to adults as well.

Since the Safe Drinking Water Act Amendments of 1986, the use of solder containing more than 0.2% lead has been banned in the United States for any plumbing system providing water for human consumption. Using 40/60 solder is a direct violation of federal law.

2. Mechanical Strength and Melting Point

Plumbing joints are subject to physical stress. Pipes vibrate, water hammer occurs, and temperatures fluctuate.

• Melting Point: 40/60 solder melts at approximately 183°C – 190°C (361°F – 374°F). While this seems high, hot water lines can reach temperatures that soften lower-grade alloys over time, especially near water heaters.
• Tensile Strength: Lead is a soft metal. A joint made with 60% lead is significantly weaker than a joint made with modern plumbing solder. It is more prone to cracking under vibration or thermal cycling.

3. Corrosion and Flux Compatibility

Electrical solder usually contains an acid-based or rosin-core flux designed to clean oxide layers off thin copper wires. Plumbing requires a different type of flux (usually paste) designed for thick copper pipes. Mixing electrical solder with plumbing flux often results in a poor bond because the chemical reactions are not optimized for the surface area and thickness of pipe fittings.

Comparison: Electrical Solder vs. Plumbing Solder

To visualize the differences, let’s look at a direct comparison between the 40/60 alloy you might have in your drawer and the standard lead-free solder required for modern plumbing.

As you can see, the differences are stark. Plumbing solder is designed to be harder and have a higher melting point to withstand the rigors of a pressurized water system.

What Should You Use Instead?

If you cannot use 40/60 solder, what is the correct material? For decades, plumbers used 50/50 solder (50% tin, 50% lead). However, due to the same lead concerns mentioned above, this is also largely obsolete for new installations in the US.

Today, the industry standard is Lead-Free Solder. The most common compositions are:

1. 95/5 Solder: Composed of 95% tin and 5% antimony. This is the most common general-purpose plumbing solder. It is strong, easy to work with, and fully compliant with US codes.
2. 96/4 Solder: Composed of 96% tin and 4% silver. This is a premium option often used for higher-stress applications or where a slightly lower melting point than 95/5 is desired, though it is more expensive.
3. Sil-Fos (Brazing Alloy): For high-pressure or gas lines, plumbers often use brazing rods which contain phosphorus and silver. These require higher heat but create incredibly strong joints without the need for separate flux.

Pro Tip: Always check the label. Look for the NSF-61 certification mark, which ensures the material is safe for drinking water systems.

Step-by-Step: How to Solder Copper Pipes Correctly

Now that you have the right materials, here is how to ensure a leak-free joint. This process assumes you are using 95/5 lead-free solder and proper plumbing paste flux.

1. Clean the Pipe and Fitting: Use emery cloth or a wire brush to scrub the outside of the copper pipe and the inside of the fitting until they shine like new pennies. Dirt and oxidation prevent the solder from bonding.
2. Apply Flux: Apply a thin, even layer of plumbing paste flux to the cleaned areas. Do not skimp, but do not glob it on. The flux draws the solder into the joint via capillary action.
3. Assemble the Joint: Push the pipe into the fitting. Give it a slight twist to spread the flux evenly. Wipe away any excess flux that squeezes out.
4. Heat the Joint: Use a propane or MAPP gas torch. Focus the flame on the fitting, not the pipe. The fitting is thicker and needs more heat. Move the flame around to heat it evenly.
5. Test the Temperature: Touch the tip of your solder wire to the joint. If it melts instantly, the joint is ready. If not, keep heating. Do not melt the solder with the flame directly; let the hot metal melt the solder.
6. Apply Solder: Feed the solder into the gap between the pipe and fitting. Capillary action will pull it in. Continue until you see a silver ring appear all the way around the joint.
7. Cool and Clean: Let the joint cool naturally. Do not quench it with water, as this can crack the joint. Once cool, wipe away residual flux with a damp rag to prevent future corrosion.

Frequently Asked Questions (FAQ)

1. Is it illegal to use 40/60 solder for plumbing?

Yes, in the United States, it is illegal to use any solder containing more than 0.2% lead for plumbing systems that provide water for human consumption. This is mandated by the Safe Drinking Water Act.

2. Can I use 40/60 solder for drain pipes?

While drain pipes do not carry drinking water, it is still not recommended. Drain lines can still leak sewage or greywater into your home structure. Furthermore, many local building codes prohibit lead-containing materials in any part of the plumbing system to prevent environmental contamination and confusion during future repairs.

3. What happens if I accidentally used 40/60 solder on a pipe?

If you have already installed it, you should consider replacing the joint. If replacement is not immediately possible, flush the lines extensively before using the water for drinking or cooking. However, the only permanent solution is to cut out the bad joint and resolder with lead-free materials.

4. Does 40/60 solder stick to copper?

Technically, yes, it will adhere to copper if proper flux is used. However, the bond will be weak, brittle over time, and unsafe for water transport. Just because it sticks does not mean it works.

5. Can I use electrical flux with plumbing solder?

No. Electrical flux (often rosin-core) is not aggressive enough to clean the heavy oxidation found on plumbing pipes. Conversely, plumbing flux is too acidic for electronics and will corrode circuit boards. Always match the flux to the application.

Conclusion

So, can I use 40/60 solder for plumbing? The answer remains a firm no. While it might seem like a convenient shortcut, the risks of lead contamination, joint failure, and code violations far outweigh the cost of buying the correct materials.

Plumbing is about safety and longevity. By using 95/5 lead-free solder and proper plumbing flux, you ensure that your water supply remains safe for your family and that your repairs last for decades. Don’t gamble with your health or your home’s integrity.
