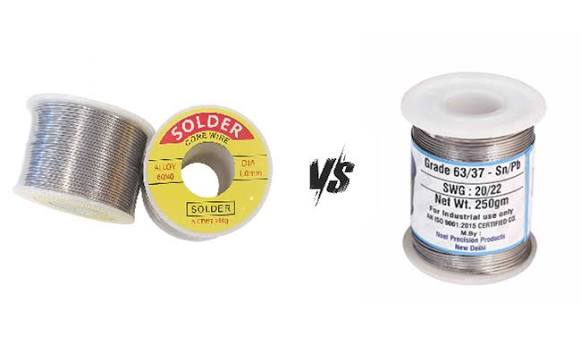

Have you ever stared at a spool of shiny 60/40 solder in your garage and wondered if it could save you a trip to the hardware store for that leaking copper pipe? It is a common temptation for DIY enthusiasts, but using the wrong material can have serious health and legal consequences. If you are asking, “Can I use 60/40 solder for plumbing,” the short and critical answer is no, and here is exactly why you must avoid it.
Why 60/40 Solder Is Strictly Prohibited in Plumbing
To understand why 60/40 solder is unsuitable for plumbing, we first need to look at its composition. The name “60/40” refers to the alloy mixture: 60% tin and 40% lead. This specific ratio was historically favored in electronics because it has a distinct melting point and creates strong, reliable electrical connections. However, those same properties make it dangerous for carrying potable (drinking) water.
The primary issue is lead. Lead is a toxic heavy metal that can leach into drinking water, especially when the water is acidic or sits stagnant in the pipes for long periods. Ingesting lead, even in small amounts, can cause severe health issues, particularly in children and pregnant women, affecting brain development and kidney function.
In the United States, the use of lead-based solder in plumbing was banned federally by the Safe Drinking Water Act Amendments of 1986. This legislation prohibits the use of any pipe, pipe fitting, flux, or solder containing more than 0.2% lead in systems providing water for human consumption. Since 60/40 solder contains 40% lead, it exceeds this limit by a massive margin. Using it is not just a bad idea; it is a violation of federal law and local building codes.
The Difference Between Electronics and Plumbing Solder
Many homeowners confuse these two types because they look similar and come on spools. However, their purposes are fundamentally different.
| Feature | 60/40 Solder (Electronics) | Lead-Free Solder (Plumbing) |
|---|---|---|
| Composition | 60% Tin, 40% Lead | 95-97% Tin, 3-5% Antimony/Copper/Silver |
| Lead Content | High (40%) | Negligible (<0.2%) |
| Melting Point | Lower (~183°C – 190°C) | Higher (~215°C – 227°C) |
| Primary Use | Circuit boards, wires | Copper water pipes, HVAC |
| Safety for Water | Unsafe / Toxic | Safe / Code Compliant |
| Flux Type | Rosin-core (acidic/resinous) | Acid-core or separate flux paste |
Using 60/40 solder in plumbing introduces two major risks: chemical contamination from lead leaching and structural failure due to improper bonding characteristics with copper pipes under thermal stress.
What Happens If You Use 60/40 Solder on Water Pipes?
If you proceed with using 60/40 solder despite the warnings, you face several immediate and long-term problems.
1. Health Hazards and Water Contamination
The most significant risk is lead poisoning. When water flows through a joint soldered with 60/40 alloy, microscopic particles of lead can dissolve into the water supply. This risk increases if your water has a low pH (is acidic). According to the Environmental Protection Agency (EPA), lead service lines and lead-soldered joints remain one of the primary sources of lead exposure in drinking water. There is no safe level of lead exposure for children.
2. Code Violations and Failed Inspections
If you are doing a renovation or new installation that requires a permit, a plumbing inspector will likely test your work. If they detect lead-based solder, you will fail inspection. This means you will be forced to cut out all the offending joints and redo the work with compliant materials. This doubles your labor and material costs. Furthermore, if you sell your home, a home inspection may reveal non-compliant plumbing, potentially lowering your property value or requiring costly repairs before closing.
3. Joint Integrity Issues
While 60/40 solder flows beautifully on circuit boards, it behaves differently on large-diameter copper pipes. Plumbing joints rely on capillary action to draw the solder into the gap between the pipe and the fitting. Lead-based solders often have different surface tension and wetting properties compared to lead-free alloys designed specifically for copper. Additionally, 60/40 solder is softer and less resistant to the thermal expansion and contraction cycles that water pipes undergo, potentially leading to leaks over time.
The Correct Alternative: Lead-Free Solder
So, if you cannot use 60/40, what should you use? The standard for modern plumbing is lead-free solder.
Composition of Lead-Free Solder
Modern plumbing solder is typically composed of:
- Tin (Sn): 95–97%
- Antimony (Sb): 3–5%
- Sometimes Copper (Cu) or Silver (Ag): Small traces for added strength.
This alloy is often referred to as “95/5” solder. It is hard, durable, and completely safe for drinking water. It meets the ASTM B32 standard for solder metal and complies with the NSF/ANSI 61 certification for drinking water system components.
Flux Matters Too
Solder alone is not enough; you need flux to clean the metal surfaces and allow the solder to flow. For plumbing, you must use water-soluble acid flux or a specialized plumbing flux paste. Never use rosin-core solder (common in electronics) for plumbing. Rosin is an insulator and can trap contaminants inside the pipe, while also failing to properly clean the copper oxide layer required for a strong mechanical bond.
Step-by-Step Guide to Sweating Copper Pipes Correctly
To ensure a leak-free, code-compliant joint, follow these steps using the correct materials.
Tools Needed:
- Lead-free solder (95/5 tin-antimony)
- Plumbing flux paste
- Propane or MAPP gas torch
- Copper pipe and fittings
- Pipe cutter and reamer/deburring tool
- Emery cloth or sandpaper
- Damp rag
Instructions:
- Cut and Clean: Cut the copper pipe squarely using a pipe cutter. Use the reamer or a deburring tool to remove any internal burrs. Clean the outside of the pipe end and the inside of the fitting with emery cloth until they shine like new pennies. Cleanliness is crucial; any oxidation will prevent the solder from bonding.
- Apply Flux: Using a brush or your finger, apply a thin, even layer of plumbing flux to the outside of the pipe and the inside of the fitting. Do not use too much, as excess flux can drip into the pipe and contaminate the water.
- Assemble: Push the pipe into the fitting fully. Give it a slight twist to spread the flux evenly. Wipe away any excess flux that squeezes out.
- Heat the Joint: Light your torch. Apply the flame to the fitting, not the solder. Move the flame around the fitting to heat it evenly. The goal is to heat the copper, which will then melt the solder. If you heat the solder directly, it will burn the flux and create a weak joint.
- Test the Temperature: Touch the tip of the lead-free solder wire to the joint where the pipe enters the fitting. If the solder melts immediately, the joint is ready. If it doesn’t, continue heating.
- Apply Solder: Once hot enough, touch the solder to the joint. Capillary action will pull the molten solder into the gap. Feed about 1/2 inch to 1 inch of solder into the joint, depending on the pipe size. Ensure the solder flows all the way around the circumference.
- Cool and Clean: Remove the heat and let the joint cool naturally. Do not move or disturb the pipe while it cools, as this can crack the joint. Once cool, wipe the joint with a damp rag to remove residual flux, which can be corrosive over time.
FAQ Section
Can I use 60/40 solder for drain lines?
No. Even though drain lines do not carry potable drinking water, many local plumbing codes prohibit lead-based solder in any part of the plumbing system within a building to prevent accidental cross-contamination and to maintain uniform safety standards. Always use lead-free solder for all copper plumbing applications.
What is the melting point of 60/40 solder vs. plumbing solder?
60/40 solder melts at approximately 183°C to 190°C (361°F to 374°F). Lead-free plumbing solder (95/5) has a higher melting point, typically around 215°C to 227°C (419°F to 441°F). This higher melting point ensures the joint remains solid even if exposed to high-temperature water or external heat sources.
Is silver solder better for plumbing?
Silver-bearing solder (often containing 2-6% silver) is available and offers higher strength and better fatigue resistance than standard tin-antimony solder. It is excellent for high-pressure or high-vibration applications. However, for standard residential water lines, standard 95/5 lead-free solder is perfectly adequate and more cost-effective.
Can I use 60/40 solder for HVAC refrigeration lines?
Generally, no. HVAC refrigeration lines require high-pressure integrity and often use brazing alloys (which melt at much higher temperatures, above 450°C) rather than soft solder. While some low-pressure HVAC applications might use solder, it must still be lead-free to comply with environmental regulations regarding refrigerant handling and system purity.
How do I remove old lead solder from pipes?
If you are repairing an old system with lead solder, you must cut out the old joint entirely. You cannot simply “sweat over” old lead solder. Cut the pipe back to clean copper, clean it thoroughly, and install a new coupling using lead-free solder. Wear gloves and a mask when cutting or grinding old lead solder to avoid inhaling dust.
Conclusion
The question “Can I use 60/40 solder for plumbing” has a definitive answer: Absolutely not. While 60/40 solder is excellent for electronics, its high lead content makes it illegal and unsafe for any plumbing application involving water. The risks of lead contamination, code violations, and joint failure far outweigh the convenience of using what you might already have in your toolbox.
Always invest in the right tools for the job. Use lead-free 95/5 tin-antimony solder and proper plumbing flux to ensure your water supply remains safe and your pipes stay leak-free. Your health and your home’s value depend on it.
