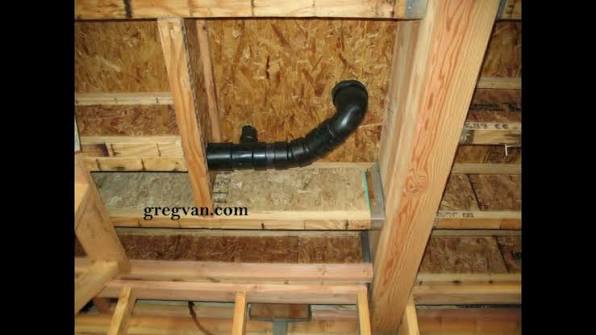

Can You Put Plumbing Drains Beneath Floor Joists?

Renovating a bathroom or adding a new laundry room often brings up a tricky structural question: Can you put plumbing drains beneath floor joists? It is a common dilemma for homeowners and DIY enthusiasts who want to avoid cutting into their beautiful hardwood floors or compromising the structural integrity of their home. You are not alone if you are worried about making a costly mistake that could lead to sagging floors or expensive repairs down the line.

In this guide, we will break down exactly how to handle drainage pipes under floor joists safely, legally, and effectively. We will explore building codes, best practices, and alternative solutions to ensure your project stands the test of time.

Understanding the Structural Risks

Before picking up a drill, it is crucial to understand why this question matters. Floor joists are the horizontal beams that support the weight of your floor and everything on it. When you alter them, you are potentially weakening the skeleton of your house.

The primary concern with running drains beneath joists is not just about the pipe itself, but how it interacts with the structure. If you drill holes incorrectly or notch the wood improperly, you create stress points. Over time, gravity and daily foot traffic can cause these weak spots to fail, leading to:

• Sagging floors: A noticeable dip in the flooring above.
• Cracked drywall: Stress fractures in ceilings below or walls adjacent.
• Bouncy floors: A lack of rigidity that feels unsafe when walking.

According to general engineering principles, the bottom edge of a joist is under tension, while the top edge is under compression. Cutting into the bottom third of a joist is particularly dangerous because it compromises the wood’s ability to resist stretching forces. This is why many homeowners ask, “Can you put plumbing drains beneath floor joists” without realizing the complexity involved.

Code Compliance: What Do the Rules Say?

In the United States, residential construction is largely governed by the International Residential Code (IRC). While local amendments may vary, the IRC provides a solid baseline for what is permissible.

Generally, the code allows for holes and notches in floor joists, but with strict limitations. For example, holes must typically be located in the middle third of the joist’s depth. Notching, however, is usually restricted to the top or bottom 1/6th of the joist depth and only at the ends.

When running a drain beneath the joists, you are technically avoiding drilling through the web of the joist, which sounds ideal. However, you must consider:

1. Clearance: The pipe must not interfere with other utilities like electrical wiring or HVAC ducts.
2. Support: The pipe itself needs proper hanger support every few feet to prevent sagging, which can cause water to pool and lead to clogs.
3. Insulation: In colder climates, pipes running beneath floor joists in unheated crawl spaces are susceptible to freezing.

For a deeper understanding of structural load paths and building standards, you can refer to resources like Wikipedia’s entry on Joists to see how these components function within a broader architectural context.

Method 1: Running Pipes Parallel to Joists

If your layout allows, running the drain line parallel to the joists is often the easiest and safest method. In this scenario, the pipe runs in the space between two joists rather than crossing them.

Pros:

• No drilling or notching required.
• Maintains full structural integrity.
• Easier to insulate and access for future repairs.

Cons:

• Requires sufficient vertical clearance between joists.
• May lower the ceiling height in the room below if the pipe is large.

To execute this, ensure you have at least 1–2 inches of clearance from the bottom of the subfloor to allow for proper hanger installation. Use plastic pipe hangers spaced every 4 feet for horizontal runs to maintain the correct slope for drainage.

Method 2: Crossing Perpendicular to Joists

Sometimes, you must cross perpendicular to the joists to reach a main stack. This is where the question “Can you put plumbing drains beneath floor joists” becomes critical. You have two main options here: going through the joist or going under it.

Going Under the Joists

Running the pipe strictly beneath the bottom edge of the joist is possible but requires careful planning.

• Step 1: Measure the diameter of your pipe. A standard 3-inch or 4-inch drain pipe is bulky.
• Step 2: Check for obstructions. Ensure no electrical wires or other pipes are in the way.
• Step 3: Install sturdy strapping. Use metal plumber’s strap or perforated hanger strips screwed into the side of the joist, not just the bottom, to hold the pipe securely.

Warning: If the pipe hangs too low, it may violate ceiling height requirements or become an obstacle in a basement or crawl space.

Drilling Through the Joist

If going under is not feasible, drilling through the center of the joist is often preferred by professionals, provided it follows code.

• Hole Size: The hole diameter should not exceed one-third the depth of the joist. For a 2×10 joist (which is actually 9.25 inches deep), the maximum hole size is roughly 3 inches.
• Location: Keep holes at least 2 inches away from the top and bottom edges.
• Spacing: Holes should be spaced at least 2 inches apart from each other.

Comparison: Drilling vs. Running Beneath

Step-by-Step Guide for Safe Installation

If you decide to proceed with running drains beneath or through your joists, follow these steps to ensure safety and compliance.

1. Plan Your Route: Sketch out the path of your drain. Identify where it crosses joists and where it runs parallel.
2. Check Local Codes: Contact your local building department. Some areas have stricter rules than the IRC.
3. Gather Tools: You will need a drill with spade bits or hole saws, a level, pipe hangers, screws, and your PVC or ABS piping.
4. Mark the Joists: Use a pencil to mark exactly where holes will go or where hangers will be installed. Ensure you are centered vertically if drilling.
5. Drill or Install Hangers:
   • If drilling, use a sharp bit to prevent splintering.
   • If running beneath, screw hangers into the side of the joist for better holding power.
6. Dry Fit the Pipe: Assemble the pipes without glue to check the fit and slope. Use a level to ensure a 1/4 inch per foot slope toward the main drain.
7. Secure and Glue: Once satisfied, glue the joints and secure the pipe into the hangers.
8. Insulate: If the space is unheated, wrap the pipes with foam insulation to prevent freezing and condensation.

Frequently Asked Questions

Can I notch a floor joist to fit a drain pipe?

Notching is generally more restrictive than drilling. Most codes allow notching only at the ends of the joist and only up to 1/6th of the joist’s depth. Never notch the middle third of a joist. For large drain pipes, drilling a round hole is usually safer and more compliant than notching.

What is the maximum size hole I can drill in a 2×10 joist?

For a standard 2×10 lumber (actual depth 9.25 inches), the maximum hole diameter is typically one-third of the depth, which is approximately 3 inches. Always check your local building code, as some jurisdictions may have specific tables for hole sizes based on span and load.

Do I need to insulate pipes under floor joists?

Yes, especially if the area beneath the floor is unheated, such as a crawl space or vented basement. Insulation prevents the water inside the pipe from freezing in winter, which can burst the pipe. It also reduces condensation, which can lead to mold growth on your floor joists over time.

Can I run electrical wires and plumbing drains in the same hole?

No. Building codes strictly prohibit running electrical wiring and plumbing pipes through the same hole. They must be separated by a minimum distance (usually 1 inch or more) to prevent damage to the electrical insulation from moisture or abrasion.

What happens if I accidentally drill too close to the edge of a joist?

If you compromise the structural integrity of a joist, you must repair it. This often involves sistering a new piece of lumber alongside the damaged joist to restore strength. Consult a structural engineer or professional contractor if you are unsure about the extent of the damage.

Conclusion

So, can you put plumbing drains beneath floor joists? The answer is yes, but it requires careful planning, adherence to building codes, and respect for structural limits. Whether you choose to run pipes parallel, drill through the center, or hang them beneath, the goal is to maintain the strength of your home while ensuring efficient drainage.

By following the guidelines outlined above, you can avoid common pitfalls like sagging floors or frozen pipes. Remember, when in doubt, consult a licensed plumber or structural engineer. Your home’s safety is worth the extra precaution.
