Can You Put Plumbing In A 2X4 Wall?

Renovating an older home or finishing a basement often presents a frustrating spatial puzzle: you need to run new water lines or drains, but your walls are framed with narrow 2×4 studs. It is a common dilemma for homeowners and DIY enthusiasts alike. If you are wondering can you put plumbing in a 2×4 wall, the short answer is yes, but it requires precise planning, specific materials, and strict adherence to building codes to prevent catastrophic leaks or structural weakness.

In this guide, we will break down exactly how to navigate these tight spaces safely. We will explore the differences between supply lines and drain lines, discuss the necessary modifications to your framing, and provide expert tips to ensure your project passes inspection and stands the test of time.

Understanding the Space Constraints

Before picking up a saw or a wrench, it is crucial to understand the physical limitations you are working with. A nominal “2×4” stud is not actually 2 inches by 4 inches. After drying and planing, the actual dimensions are 1.5 inches by 3.5 inches.

This leaves you with a cavity depth of only 3.5 inches. When you add drywall (usually 0.5 inches) on both sides, the total wall thickness is roughly 4.5 inches. However, your plumbing must fit within that 3.5-inch stud cavity without protruding, which would prevent drywall installation, or compromising the stud’s integrity.

Supply Lines vs. Drain Lines

The feasibility of your project depends heavily on what type of plumbing you are installing:

1. Water Supply Lines: These are small-diameter pipes (typically 1/2-inch or 3/4-inch copper, PEX, or CPVC). These fit easily into a 2×4 wall with minimal modification.
2. Drain/Waste/Vent (DWV) Lines: These are much larger, typically ranging from 1.5 inches to 4 inches in diameter. Fitting a 3-inch or 4-inch drain pipe into a 3.5-inch deep cavity is physically impossible without significant framing alterations.

Can You Run Water Supply Lines in a 2×4 Wall?

Yes, running fresh water supply lines in a 2×4 wall is standard practice in modern residential construction. Since PEX (cross-linked polyethylene) and copper tubing have small outer diameters, they do not require extensive notching or drilling that would weaken the structure.

Best Practices for Supply Lines

• Use PEX Tubing: PEX is flexible and has a smaller profile than rigid copper. It can snake around minor obstacles and requires fewer fittings, reducing potential leak points.
• Drilling Studs Correctly: If you need to run pipes horizontally through studs, you must drill holes in the center of the stud. According to general building standards, holes should not exceed one-third of the stud’s width. For a 2×4, this means a maximum hole diameter of roughly 1 inch.
• Avoid Notching: Never notch the edge of a load-bearing stud to fit a pipe. This drastically reduces the stud’s ability to support vertical loads. If you must notch non-load-bearing partitions, keep it shallow (no more than 1/4 of the depth).

The Challenge of Drain Lines in 2×4 Walls

This is where the question “can you put plumbing in a 2×4 wall” gets complicated. Standard toilet drains require a 3-inch or 4-inch pipe. A 4-inch pipe has an outer diameter larger than the 3.5-inch depth of the stud. You cannot simply shove it in.

Solutions for Drainage

If you need to install a sink, shower, or toilet drain in a 2×4 wall, you have three primary options:

1. Build a False Wall: This is the most professional and code-compliant solution. You frame a new wall in front of the existing one, adding 2 to 4 inches of depth. This creates a dedicated chase for large-diameter DWV pipes.
2. Use Slim-Line Fixtures: Some modern toilets and sinks are designed with compact traps that allow for smaller diameter drain lines (e.g., 2-inch instead of 3-inch). Check local codes to see if reduced diameters are permitted for specific fixtures.
3. Route Drains Through the Floor or Ceiling: Instead of running drains vertically inside the wall, route them horizontally through the floor joists below or the ceiling space above. This keeps the large pipes out of the narrow wall cavity entirely.

Expert Insight: According to the International Residential Code (IRC), structural integrity must never be compromised for convenience. If cutting into studs weakens the wall, you must reinforce it with steel plates or sistering new studs. For more details on structural framing standards, you can refer to Wikipedia’s article on Light-frame construction.

Step-by-Step Guide: Installing Supply Lines in a 2×4 Wall

If you are proceeding with water supply lines, follow these steps to ensure a clean, leak-free installation.

Step 1: Plan Your Route

Map out where your fixtures will go. Identify which studs are load-bearing (usually exterior walls and central interior walls) and which are non-load-bearing. Aim to run pipes vertically through non-load-bearing walls whenever possible.

Step 2: Mark and Drill

• Turn off power to any electrical wires in the wall.
• Mark the center of each stud where the pipe will pass.
• Use a spade bit or auger bit to drill holes. Keep the holes at least 2 inches away from the edge of the stud to maintain strength.
• Ensure the hole diameter is no larger than 1 inch for a standard 2×4.

Step 3: Install Protective Plates

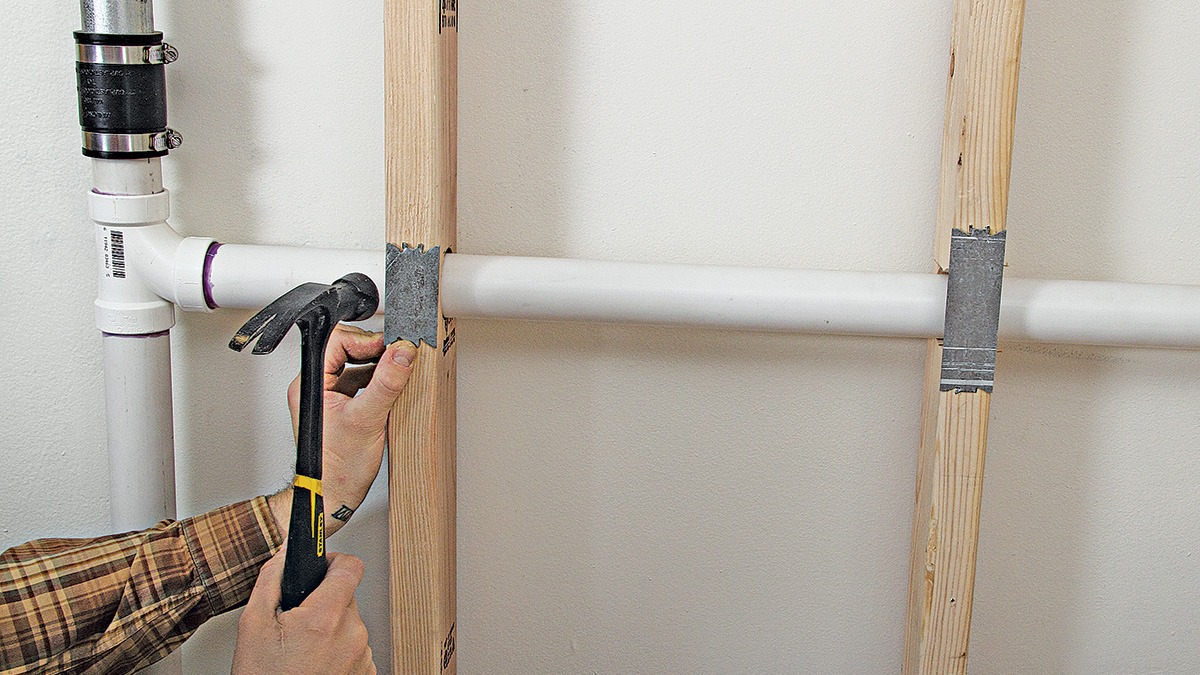

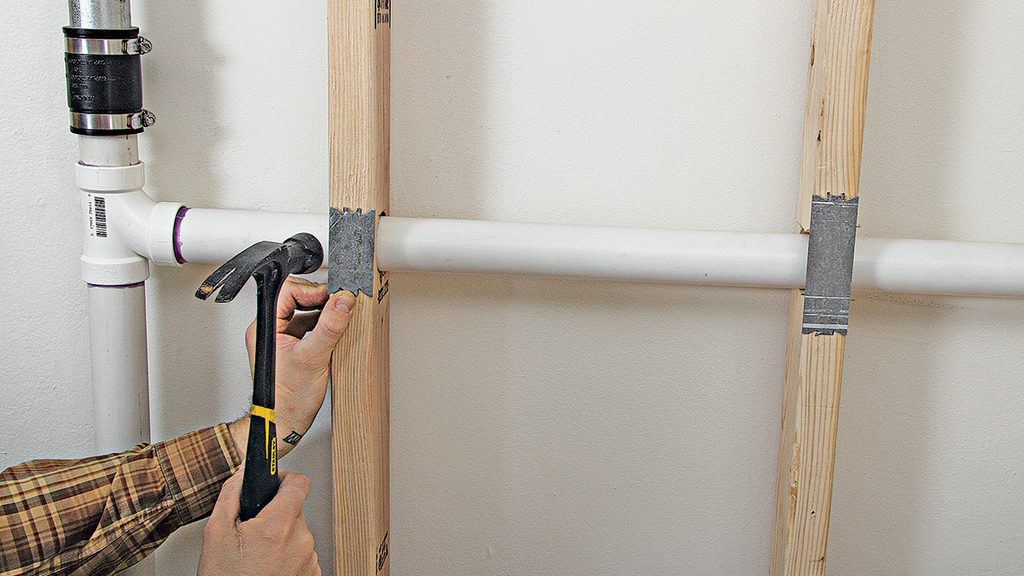

If a pipe must run within 1.25 inches of the edge of a stud (which should be avoided but sometimes happens near corners), you must install a nail plate. This is a thin steel strip that prevents drywall screws or nails from puncturing the pipe later.

Step 4: Run the PEX

• Cut your PEX tubing to length.
• Use push-to-connect fittings or crimp rings, depending on your toolset.
• Feed the pipe through the drilled holes. Do not pull too tightly; leave a little slack to accommodate expansion and contraction.

Step 5: Pressure Test

Before closing the wall with drywall, turn the water back on and pressurize the system. Check every fitting for leaks. Let it sit under pressure for at least 15–30 minutes. It is much cheaper to fix a leak now than to tear out drywall later.

Comparison: 2×4 Wall vs. 2×6 Wall for Plumbing

To help you decide if you should upgrade your framing, consider this comparison:

As shown, a 2×6 wall offers significantly more flexibility for plumbing, especially for drainage. If you are building a new addition, opting for 2×6 exterior walls is a wise long-term investment.

FAQ Section

1. Can I put a toilet drain in a 2×4 wall?

Generally, no. A standard toilet requires a 3-inch or 4-inch drain pipe, which is wider than the 3.5-inch depth of a 2×4 stud. You will need to build a false wall or route the drain through the floor.

2. Is it safe to drill holes in load-bearing 2×4 studs?

Yes, but with strict limits. Holes should be centered, no larger than 1/3 of the stud’s width (approx. 1 inch), and kept at least 2 inches from the edges. Never notch a load-bearing stud.

3. What is the best pipe material for 2×4 walls?

PEX (cross-linked polyethylene) is ideal. It is flexible, has a small diameter, and requires fewer fittings than copper. This makes it easier to route through tight stud cavities without weakening the framing.

4. Do I need a permit to run plumbing in existing walls?

In most US jurisdictions, yes. Any alteration to plumbing systems usually requires a permit and inspection. This ensures the work meets safety codes and does not compromise the structure. Always check with your local building department.

5. How do I protect pipes from freezing in exterior 2×4 walls?

Exterior 2×4 walls have limited insulation space. If you must run supply lines in an exterior wall, ensure they are on the warm side of the insulation (interior side). Consider using foam pipe insulation and sealing all air gaps around the penetrations.

6. Can I use PVC for water supply in a 2×4 wall?

No. PVC is typically used for drain, waste, and vent lines or cold water irrigation. For indoor potable water supply, use Copper, CPVC, or PEX. PVC becomes brittle over time and is not approved for hot water lines in most residential codes.

Conclusion

So, can you put plumbing in a 2×4 wall? Absolutely, but success lies in the details. For water supply lines, a 2×4 wall is perfectly adequate if you use small-diameter materials like PEX and drill carefully. However, for drain lines, the narrow cavity poses significant challenges that often require creative solutions like false walls or rerouting pipes through floors.

By respecting the structural limits of your framing and adhering to local building codes, you can achieve a functional and safe plumbing system. Remember, when in doubt, consult a licensed plumber or structural engineer. A small consultation fee is far better than the cost of repairing water damage or structural failure later.
