Detroit 12.7 Fuel Pressure Gauge Install Guide

Is your Detroit Diesel Series 60 losing power, or are you worried about costly injector failures? Low fuel pressure is a silent killer in these engines, often leading to catastrophic damage before you even notice a symptom. Knowing how to plumb a fuel pressure gauge on your Detroit 12.7 is not just a diagnostic skill; it is an essential maintenance procedure that can save you thousands of dollars in repairs.

In this guide, we will walk you through the exact steps to install a temporary or permanent fuel pressure test kit. We’ll cover the specific port locations, the correct pressure specifications, and safety tips to ensure you get accurate readings without making a mess. Whether you are a seasoned mechanic or a dedicated owner-operator, this tutorial is designed to give you confidence under the hood.

Why Monitoring Fuel Pressure Matters on the Detroit 12.7

The Detroit Diesel Series 60, particularly the 12.7L variant, relies on a Unit Injector System (UIS). Unlike common rail systems that store high-pressure fuel in a rail, the UIS uses the camshaft to generate injection pressure directly at the injector. However, the supply pressure to these injectors is critical.

If the supply pressure drops below specifications, the injectors cannot fill properly during the intake stroke. This leads to:

• Lean Conditions: Causing higher exhaust gas temperatures (EGTs).
• Injector Overheating: Leading to premature tip failure.
• Hard Starting: Especially in cold weather.

According to industry data, nearly 30% of premature injector failures in heavy-duty diesel engines are attributed to poor fuel quality or inadequate supply pressure. By installing a gauge, you move from reactive repairs to proactive maintenance.

Expert Insight: “Consistent fuel supply pressure is the heartbeat of the UIS system. If the heart doesn’t pump enough blood, the organs fail. The same applies to your injectors.” – Senior Diesel Technician, 15+ Years Experience.

For more technical background on diesel fuel systems, you can refer to the general principles outlined on Wikipedia’s Diesel Engine page.

Tools and Materials You Will Need

Before you crawl under the truck or open the engine compartment, gather the following items. Having everything ready prevents half-finished jobs and safety hazards.

Essential Tools

1. Fuel Pressure Gauge Kit: Ensure it reads up to at least 100 PSI (though you only need ~20-30 PSI range, higher is safer). A liquid-filled gauge is preferred for durability in vibrating environments.
2. Wrench Set: Specifically, open-ended wrenches or line wrenches (flare nut wrenches) to avoid stripping fittings. Sizes typically include 1/2″, 9/16″, and 5/8″.
3. Teflon Tape or Pipe Sealant: Rated for diesel fuel. Do not use standard white plumbing tape; it can disintegrate and clog filters.
4. Catch Pan: To catch any spilled diesel fuel.
5. Rags and Shop Towels: Diesel fuel stains and smells; be prepared.

Safety Gear

• Safety Glasses: Fuel under pressure can spray unexpectedly.
• Nitrile Gloves: Diesel fuel is a skin irritant and carcinogen with long-term exposure.

Where Is the Fuel Pressure Test Port?

One of the most common questions users ask is: “Where do I connect the gauge?”

On the Detroit 12.7, you do not want to measure pressure at the tank or the primary filter housing if you are diagnosing injector supply issues. You need to measure the pressure after the secondary fuel filter and before it enters the cylinder head gallery.

The Ideal Location: The Cylinder Head Inlet

The most accurate reading for injector supply pressure is taken at the inlet of the fuel gallery on the cylinder head.

1. Locate the fuel inlet banjo bolt or the pipe fitting on the front or rear of the cylinder head (depending on your specific chassis configuration, but typically on the gear housing side or rear plate).
2. Many mechanics prefer tapping into the fuel return line manifold for easier access, but for supply pressure, you must interrupt the feed line.

Alternative Method (Easier Access): If accessing the head is difficult due to turbo piping or AC lines, you can plumb the gauge between the secondary fuel filter housing outlet and the hard line leading to the engine. This requires removing the hard line and installing a “T” fitting.

Step-by-Step: How to Plumb the Fuel Pressure Gauge

Follow these steps carefully. We will assume you are using a “T” fitting method at the secondary filter outlet, as this is the safest and most common DIY approach for the Detroit 12.7.

Step 1: Relieve Fuel System Pressure

Before loosening any lines, ensure the engine is off. If the engine was recently running, wait for it to cool slightly. Open the bleed screw on the secondary fuel filter housing to relieve any residual pressure. Have your catch pan ready underneath.

Step 2: Identify the Supply Line

Locate the hard metal line coming out of the secondary fuel filter housing (the one closest to the engine block). This is the supply line. The other line is the return line. Trace the supply line to where it connects to the filter housing.

Step 3: Disconnect the Supply Line

Using your line wrench, loosen the nut connecting the supply line to the filter housing.

• Tip: Hold the housing steady with another wrench to prevent twisting the mounting bracket.
• Once loose, unscrew it by hand and let the remaining fuel drain into your pan. Cap the open port on the filter housing temporarily if you are not working quickly to prevent debris entry.

Step 4: Install the “T” Fitting

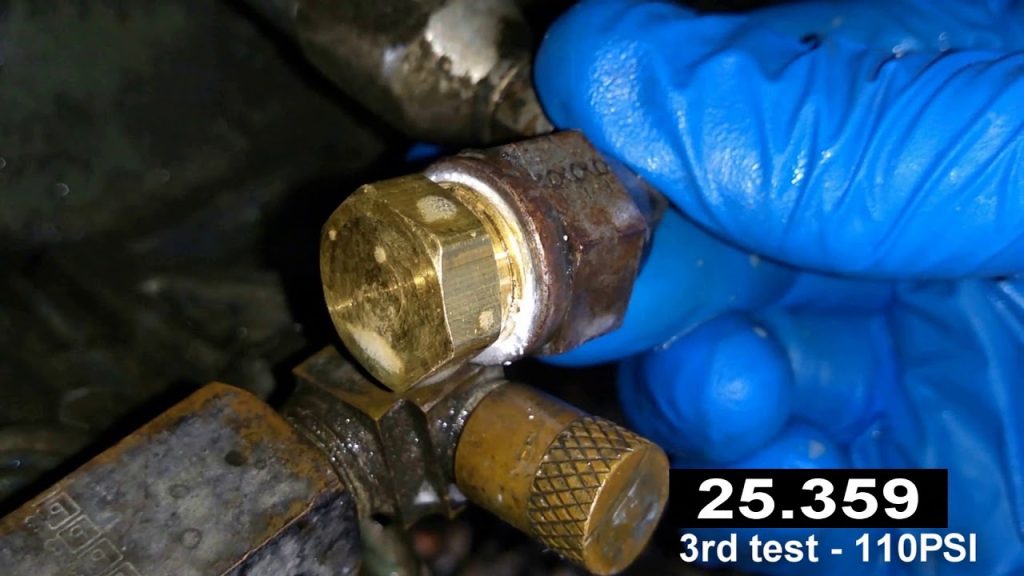

You will need a JIC (Joint Industry Council) or NPT “T” fitting that matches the thread size of your fuel line (commonly 9/16″-18 or 5/8″-18 on Detroit engines, but verify your specific thread pitch).

1. Apply a small amount of diesel-rated pipe sealant to the threads of the “T” fitting.
2. Screw one end of the “T” into the filter housing outlet. Tighten securely but do not overtighten.
3. Reconnect the original hard supply line to the straight-through end of the “T” fitting.
4. Ensure all connections are snug. Use two wrenches: one to hold the fitting, one to turn the nut.

Step 5: Connect the Pressure Gauge

Screw your fuel pressure gauge into the perpendicular port of the “T” fitting.

• If the gauge has a swivel hose, position it so it won’t vibrate against hot exhaust components or moving fan belts.
• Use a zip tie to secure the gauge hose if necessary, keeping it away from heat sources.

Step 6: Bleed the Air

This is a critical step for the Detroit 12.7. Air in the fuel system causes rough running and false pressure readings.

1. Loosen the bleed screw on the secondary filter housing slightly.
2. Pump the manual primer pump (if equipped) or crank the engine in 10-second intervals until fuel flows steadily from the bleed screw without bubbles.
3. Tighten the bleed screw.

Step 7: Test and Record Pressure

Start the engine and let it idle. Observe the gauge.

• Idle Pressure Specification: The Detroit 12.7 should show between 15 PSI and 30 PSI at idle.
• Rated Speed: At rated RPM (around 1800-2100 RPM), pressure may rise slightly but should generally remain stable. If it drops below 10 PSI at any point, you have a restriction or a failing lift pump.

Interpreting Your Results: What Do the Numbers Mean?

Once you have plumbed the gauge, you need to know what the data tells you. Here is a quick reference table.

Note: Always consult your specific engine serial number data sheet for the most precise specifications, as minor variations exist between model years.

FAQ: Common Questions About Detroit 12.7 Fuel Systems

1. Can I leave the fuel pressure gauge installed permanently?

While you can, it is not recommended for daily driving. The additional fittings increase the risk of leaks. It is better to install a permanent digital sender with a dashboard gauge if you want continuous monitoring. For diagnostics, use a mechanical gauge temporarily.

2. What happens if my fuel pressure is too low?

Low pressure causes the unit injectors to starve. This leads to incomplete combustion, high EGTs, and eventually, the injector plungers seizing or the injector tips cracking. It can also cause the engine to derate (lose power) as the ECM detects performance issues.

3. Do I need a special gauge for diesel fuel?

Yes. Ensure your gauge is rated for diesel fuel compatibility. Standard gasoline gauges may have internal components (like diaphragms) that degrade when exposed to diesel, leading to inaccurate readings or failure.

4. Why is there air in my fuel lines after changing filters?

The Detroit 12.7 system is self-bleeding to an extent, but after opening the system, air must be manually purged. Failure to bleed the system properly will result in rough idling and potential stalling. Always use the manual primer or crank-and-bleed method.

5. Can a bad fuel cap cause low pressure?

Indirectly, yes. If the tank vent is clogged, a vacuum can form in the fuel tank, making it harder for the lift pump to draw fuel. This manifests as low supply pressure. Check your tank vent if you suspect suction issues.

Conclusion

Learning how to plumb a fuel pressure gauge on your Detroit 12.7 is a straightforward process that yields high-value insights into your engine’s health. By following the steps above—locating the supply line, installing a T-fitting, and bleeding the system—you can accurately diagnose fuel delivery issues before they become expensive repairs.

Remember, consistent pressure between 15 and 30 PSI is your goal. If your readings fall outside this range, investigate your filters, lift pump, and lines immediately.
