Are you staring at an open wall in your kitchen, wondering if your plumber placed the drain pipe too high or too low? You are not alone. Getting the Diagram Kitchen Plumbing Kitchen Sink Drain Rough In Height wrong can lead to costly renovations, poor drainage, and aesthetic issues with your cabinetry.
Whether you are a DIY enthusiast tackling a remodel or a homeowner verifying a contractor’s work, understanding these measurements is critical. This guide breaks down the exact standards, common pitfalls, and expert tips to ensure your kitchen sink functions perfectly for years to come.
What Is the Standard Kitchen Sink Drain Rough-In Height?
When we talk about “rough-in,” we refer to the stage of construction where the basic plumbing lines are installed before the walls are closed up and fixtures are mounted. The height of the drain pipe is not arbitrary; it is dictated by building codes, ergonomic standards, and the physical dimensions of standard cabinetry.
The Golden Number: 20 to 24 Inches
For most standard kitchen installations in the United States, the center of the drain pipe should be located between 20 and 24 inches above the finished floor.
- 20 Inches: Often used for deeper farmhouse sinks or when maximizing under-sink storage space is a priority.
- 22–24 Inches: The most common range for standard double-bowl stainless steel or composite sinks. This height aligns well with standard base cabinet heights (34.5 inches) plus countertop thickness.
Why this range? It ensures that the P-trap (the U-shaped pipe that holds water to prevent sewer gases from entering your home) has enough vertical drop to function correctly without being so low that it interferes with the cabinet floor or drawers.
Pro Tip: Always measure from the finished floor, not the subfloor. If you are installing new flooring, account for its thickness (usually 0.5 to 0.75 inches) when marking your rough-in height.
Why Does Drain Height Matter for Your Kitchen Layout?
You might think, “As long as it drains, does the height really matter?” The answer is a resounding yes. The rough-in height impacts three critical areas of your kitchen functionality.
1. Cabinet Compatibility and Storage
Modern kitchens often feature deep drawers under the sink for trash bins or cleaning supplies. If the drain rough-in is too high, it may intersect with the drawer box, forcing you to cut into the cabinetry or use a shallower drawer. Conversely, if it is too low, you lose valuable vertical storage space.
2. Proper Drainage and Slope
Plumbing relies on gravity. The drain pipe must slope downward from the sink tailpiece to the main waste line. If the rough-in height is incorrect relative to the sink basin depth, you may end up with a “flat” trap arm, leading to slow drainage and frequent clogs.
3. Aesthetic Cleanliness
A properly positioned drain allows for neat, organized piping under the sink. Incorrect heights often result in awkward bends in the PVC or ABS pipes, making the under-sink area look cluttered and making future maintenance difficult.
Diagram Breakdown: Visualizing the Connections

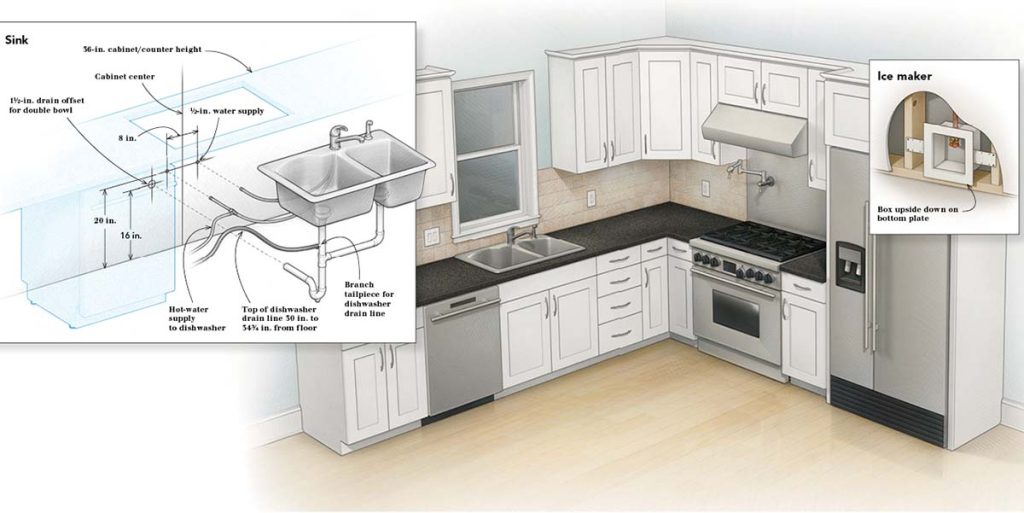

While I cannot provide an image file directly, imagine the following schematic which represents the ideal Diagram Kitchen Plumbing Kitchen Sink Drain Rough In Height:
- Finished Floor Level (FFL): The baseline (0 inches).
- Base Cabinet Height: Typically 34.5 inches.
- Countertop Thickness: Usually 1.5 inches (granite/quartz).
- Sink Basin Depth: Varies, but average is 8–10 inches.
- Drain Center Point: Located at 20–24 inches from FFL.
- Horizontal Offset: The drain should be centered left-to-right within the cabinet, usually 3.5 to 4 inches back from the front face frame of the cabinet to allow room for the faucet and disposal unit.
This spatial arrangement ensures that the tailpiece drops vertically from the sink strainer, connects to the P-trap, and then transitions horizontally into the wall drain stub-out without sharp angles.
How to Measure and Mark the Rough-In Correctly
If you are framing a new wall or relocating pipes, precision is key. Follow these step-by-step instructions to mark your rough-in.
Step 1: Determine Your Sink Specifications
Before cutting any pipes, buy your sink or have its spec sheet ready. Note the basin depth and the location of the drain hole (centered or offset?).
Step 2: Account for the Countertop
Add the thickness of your countertop to the cabinet height.
- Example: 34.5″ (cabinet) + 1.5″ (countertop) = 36″ total height to the top of the counter.
Step 3: Calculate the Drop
Subtract the sink basin depth and the length of the tailpiece extension from the total height.
- Formula: Total Height – Sink Depth – Tailpiece Length = Approximate Trap Arm Height.
- However, for rough-in purposes, sticking to the 20–24 inch standard is safer unless you have a custom vessel sink.
Step 4: Mark the Wall
Using a tape measure, mark the center point of the drain pipe on the stud bay. Use a level to ensure your horizontal markings are straight. If you are installing a garbage disposal, remember that the discharge outlet on the disposal unit will dictate the exact entry point into the wall pipe.
Common Mistakes to Avoid During Installation
Even experienced DIYers can stumble here. Here are the most frequent errors regarding kitchen sink drain rough-ins.
| Mistake | Consequence | Solution |
|---|---|---|
| Ignoring the Disposal Unit | The disposal adds bulk and changes the exit angle. | Check the disposal manual for required clearance. Usually, the drain needs to be slightly higher or further out. |
| Measuring from Subfloor | Pipe ends up too low after flooring is installed. | Always add the thickness of tile, hardwood, or vinyl to your measurement. |
| Placing Drain Too Far Back | Pipes hit the back wall of deep drawers. | Keep the rough-in center approx. 3.5–4 inches from the cabinet face frame. |
| Violating Slope Codes | Water stagnates, causing odors and clogs. | Ensure a slope of 1/4 inch per foot for horizontal runs. |
For more detailed information on residential plumbing codes, you can refer to the International Plumbing Code (IPC) guidelines, which are adopted by many US states with local amendments.
Adjusting for Garbage Disposals and Dishwashers
In modern US kitchens, a garbage disposal is almost standard. This appliance changes the dynamics of your rough-in.
- Height Adjustment: Garbage disposals hang below the sink bowl. The discharge pipe usually exits horizontally. Therefore, the wall drain rough-in might need to be 1–2 inches higher than a standard non-disposal setup to accommodate the unit’s body and maintain proper slope.
- Dishwasher Connection: The dishwasher drain hose typically connects to the side of the disposal unit or an air gap. Ensure your rough-in leaves enough horizontal space for these connections without crowding the P-trap.
FAQ: Frequently Asked Questions
1. Can I move the drain height after the wall is closed?
Technically, yes, but it is expensive and destructive. You would need to open the drywall, extend or shorten the pipe, and patch the wall. It is far cheaper to get the Diagram Kitchen Plumbing Kitchen Sink Drain Rough In Height correct during the rough-in phase. If you must adjust, consider using flexible extension kits for minor discrepancies, but these are not ideal for long-term reliability.
2. What is the maximum height for a kitchen sink drain?
According to most plumbing codes, the maximum height for a sink drain rough-in is generally around 24 to 26 inches. Anything higher may require a specialized pump or violate the gravitational flow requirements for standard P-traps, leading to siphoning issues.
3. Does the type of sink material affect the rough-in height?
Not significantly. Whether you have stainless steel, cast iron, or fireclay, the connection point (the strainer body) is standardized. However, heavier sinks like cast iron may require additional support brackets, which could slightly alter the final settled position of the sink. Always secure the sink firmly before finalizing pipe connections.
4. How far from the wall should the drain pipe stick out?
The drain stub-out (the pipe coming out of the wall) should protrude approximately 2 to 3 inches from the finished drywall. This provides enough length to attach the escutcheon plate (flange) and connect the P-trap nut securely without being so long that it hits the back of the cabinet.
5. What pipe diameter is required for a kitchen sink drain?
Standard kitchen sink drains require a 1.5-inch diameter pipe. However, many plumbers prefer using 2-inch piping for the main run to prevent clogs, especially if a garbage disposal is used. Check your local code, but 1.5-inch is the minimum standard for the fixture drain itself.
6. Do I need an air gap for my dishwasher?
Many US jurisdictions require a physical air gap device mounted on the countertop or sink deck to prevent backflow of dirty water into the dishwasher. If your local code allows a “high loop” instead, ensure the dishwasher hose is secured to the underside of the counter at its highest point before connecting to the disposal.
Conclusion
Getting the Diagram Kitchen Plumbing Kitchen Sink Drain Rough In Height right is foundational to a functional and beautiful kitchen. By aiming for the standard 20–24 inch range, accounting for your specific sink and disposal unit, and adhering to local plumbing codes, you can avoid costly mistakes and ensure smooth drainage.
Remember, precision during the rough-in phase saves time and money during the finish phase. If you are unsure, consulting with a licensed plumber for a quick verification can provide peace of mind.
