Have you ever heard a strange banging noise from your pipes or noticed your water heater’s pressure relief valve dripping unexpectedly? These are common signs that your plumbing system is under stress. If you have recently upgraded to modern piping, you might be asking yourself: “Do I need an expansion tank with PEX plumbing?”
The short answer is yes, in most modern homes, you absolutely do. While PEX (cross-linked polyethylene) tubing is flexible and durable, it does not eliminate the physical laws of thermodynamics. When water heats up, it expands. In a “closed” plumbing system—which is standard in most US homes today due to backflow preventers on city water meters—this expanded water has nowhere to go. Without an expansion tank, that pressure builds up, potentially damaging your water heater, appliances, and even the PEX fittings themselves. Let’s dive into why this small device is critical for your home’s health.
Why Modern Plumbing Systems Are “Closed”
To understand why you need an expansion tank, you first need to understand how your water supply works. In the past, homes had “open” systems. If water pressure got too high, it could simply push back into the main city water supply.
However, building codes and health regulations have changed. Most municipal water providers now require a backflow preventer or a check valve at the water meter. This device ensures that water (and potential contaminants) from your home cannot flow backward into the public drinking water supply.
The Problem with Closed Systems
Once that backflow preventer is installed, your home’s plumbing becomes a closed loop. Think of it like a sealed bottle. When you heat the water in your tank:
- Water molecules gain energy and move apart.
- The volume of the water increases (thermal expansion).
- Because the water cannot push back into the city main, the pressure inside your pipes spikes dramatically.
This phenomenon is known as thermal expansion. Even though PEX is flexible, it has limits. The constant cycling of high pressure can weaken joints, cause leaks, and significantly shorten the lifespan of your water heater.
Does PEX Flexibility Eliminate the Need for an Expansion Tank?
A common myth among DIYers is that because PEX tubing is flexible and can expand slightly, it acts as its own expansion tank. This is incorrect.
While PEX is more forgiving than rigid copper or CPVC when it comes to minor pressure fluctuations, it is not designed to absorb the significant volume increase caused by heating 40–50 gallons of water.
The Limits of PEX
- Pressure Ratings: Most PEX tubing is rated for 80–100 PSI at standard temperatures. Thermal expansion can easily spike pressure beyond 100 PSI, especially if your incoming city water pressure is already high (e.g., 60–70 PSI).
- Fitting Stress: The weakest points in any plumbing system are the connections (crimp rings, clamp rings, or push-fit fittings). High-pressure spikes put immense stress on these fittings, leading to premature failure.
- Water Heater Warranty: Many major water heater manufacturers explicitly state that their warranty is void if an expansion tank is not installed in a closed system. This applies regardless of whether you use Copper, CPVC, or PEX.
According to the Uniform Plumbing Code (UPC), thermal expansion control devices are required in closed water distribution systems. Ignoring this code requirement can lead to failed home inspections and costly repairs down the line.
Signs You Need an Expansion Tank Immediately
If you are unsure whether your system is handling the pressure well, look for these warning signs. If you experience any of these, installing an expansion tank should be your top priority.
| Symptom | What It Means |
|---|---|
| T&P Valve Dripping | The Temperature and Pressure relief valve is opening to release excess pressure. This is a safety mechanism, but frequent dripping means it’s failing. |
| Banging Pipes (Water Hammer) | Loud thuds when faucets shut off can indicate excessive pressure fluctuations. |
| Leaking Fittings | Small drips at PEX crimp connections or shower valves suggest joint fatigue from pressure spikes. |
| Short Water Heater Life | If your heater fails every 5–7 years, internal tank stress from expansion may be the culprit. |
How to Choose the Right Expansion Tank for PEX Systems
Not all expansion tanks are created equal. Choosing the wrong size or type can render the device ineffective. Here is how to select the right one for your home.
1. Determine Your Water Heater Size
The capacity of the expansion tank must match the volume of water being heated.
- 30–40 Gallon Heater: Typically requires a 2-gallon expansion tank (e.g., Watts ET-2).
- 50 Gallon Heater: Typically requires a 4.5-gallon expansion tank (e.g., Watts ET-30 or Amtrol ST-5).
- 80+ Gallon Heater: May require two tanks or a larger commercial-grade unit.
2. Check Your Incoming Water Pressure
You need to know the static pressure of your home’s water supply. You can buy a simple water pressure gauge at any hardware store for under $15.
- Attach it to an outdoor spigot or washing machine faucet.
- Turn on the water fully and read the gauge.
- Ideal Pressure: 40–60 PSI.
- High Pressure: If your pressure is above 80 PSI, you need a Pressure Reducing Valve (PRV) before you install the expansion tank. An expansion tank cannot fix high incoming pressure; it only handles thermal expansion.
3. Match the Pre-Charge Pressure
Expansion tanks come with an air pre-charge (usually 40 PSI or 50 PSI). This air pressure must match your home’s static water pressure.
- If your water pressure is 50 PSI, your tank’s air charge should be 50 PSI.
- Use a bicycle pump or air compressor to adjust the air pressure on the Schrader valve (similar to a tire valve) on the tank.
Step-by-Step Installation Guide
Installing an expansion tank on a PEX system is a manageable DIY project if you are comfortable with basic plumbing tools. Always turn off the power to your electric water heater or gas supply to a gas heater before starting.
Tools Needed:
- Pipe cutter (for PEX)
- Crimping tool or Clamp tool (matching your PEX system type)
- Teflon tape or pipe dope
- Adjustable wrenches
- Pressure gauge
Steps:
- Shut Off Water: Turn off the main water supply to the house and open a faucet to drain residual pressure.
- Locate the Cold Water Line: Identify the cold water inlet pipe connecting to the bottom of your water heater.
- Cut the Pipe: Cut the PEX tubing on the cold water line, ideally within 1–2 feet of the water heater. Ensure the cut is square and clean.
- Install a Tee Fitting: Insert a PEX Tee fitting into the cut line. One end goes to the water supply, the other to the water heater, and the third port will go to the expansion tank. Secure with crimp/clamp rings.
- Prepare the Tank Branch: Cut a short piece of PEX tubing (6–12 inches) to connect the Tee to the expansion tank.

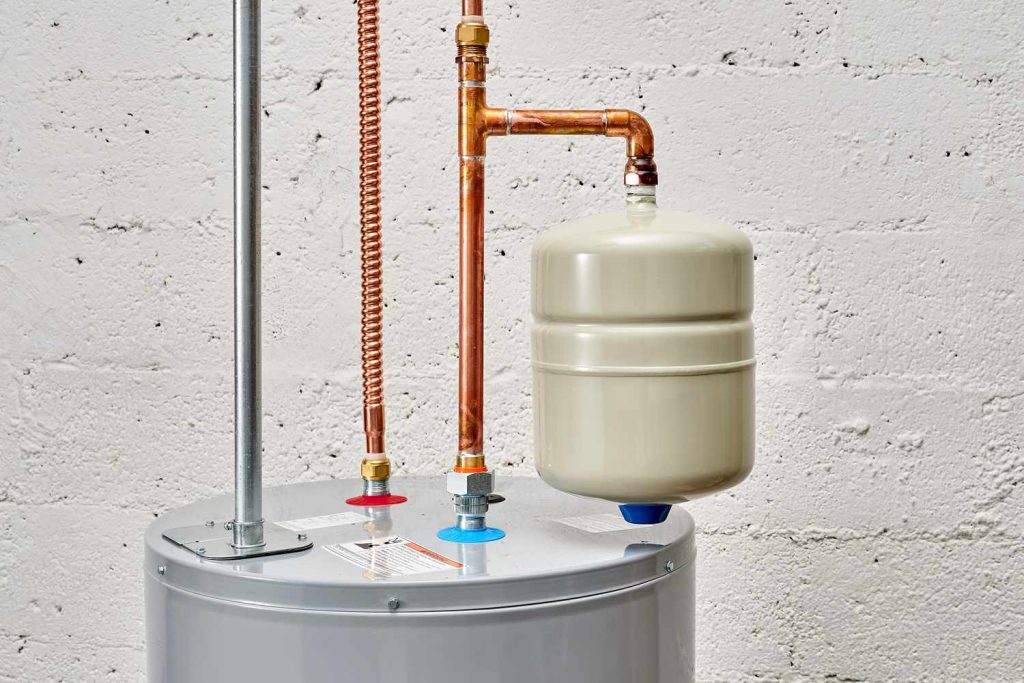

- Connect the Tank: Most expansion tanks have a 3/4-inch NPT (threaded) connection. You will need a PEX male adapter threaded onto the short PEX pipe. Apply Teflon tape to the threads. Screw the expansion tank vertically or horizontally (check manufacturer instructions, though vertical is preferred to reduce stress on the bladder).
- Pressurize and Check: Turn the water back on slowly. Check for leaks at all new connections.
- Verify Pressure: Use your gauge to ensure the system pressure is stable.
FAQ Section
1. Can I install the expansion tank anywhere in the house?
Ideally, the expansion tank should be installed on the cold water inlet side of the water heater. This protects the heater directly. While it can technically be installed elsewhere on the main cold line, proximity to the source of expansion (the heater) is most effective.
2. How long does an expansion tank last?
The average lifespan of an expansion tank is 5 to 10 years. The internal rubber bladder can degrade over time, or the air charge can leak out. It is good practice to check the air pressure annually using a tire gauge. If water comes out of the Schrader valve when you press it, the bladder has burst, and the tank needs immediate replacement.
3. Is an expansion tank required by code for PEX?
Yes, in most jurisdictions in the US. The International Residential Code (IRC) and Uniform Plumbing Code (UPC) require thermal expansion control in closed systems. Since most modern homes with PEX also have backflow preventers, they are considered closed systems. Always check with your local building department for specific amendments.
4. What happens if I don’t install one?
Without an expansion tank, the excess pressure from heated water has to go somewhere. It will repeatedly force open the T&P relief valve, causing it to fail prematurely. Over time, this stress can cause the glass lining inside your water heater to crack, leading to rust and tank failure. It can also blow out seals in toilets, washing machines, and dishwashers.
5. Can I use an old expansion tank from my copper plumbing?
If the old tank is still in good condition (no rust, holds air pressure, bladder is intact), yes. The material of the house pipes (PEX vs. Copper) does not change the physics of water expansion. However, if the tank is older than 10 years, it is safer and more cost-effective to install a new one.
Conclusion
So, do you need an expansion tank with PEX plumbing? The evidence is clear: Yes.
While PEX is a fantastic, flexible material for modern plumbing, it cannot handle the repetitive stress of thermal expansion in a closed water system. Installing an expansion tank is a relatively low-cost investment (typically $50–$100) that protects your much more expensive water heater and prevents catastrophic water damage from burst fittings.
By ensuring your system has proper thermal expansion control, you are extending the life of your appliances, complying with building codes, and ensuring peace of mind for your family. Don’t wait for a leak to appear—check your system today.
