If you are remodeling your bathroom or installing a new kitchen sink, you might find yourself staring at a complex web of pipes, wondering about the correct orientation for every single joint. It is a common source of anxiety for DIYers: do my horizontal plumbing vents have to be tapered (sloped) to function correctly? The short answer is yes, but the direction of that slope is counterintuitive to many. Getting this wrong can lead to trapped condensation, blocked airflow, and nasty sewer gas odors in your home. In this guide, we will break down exactly how to slope your vent pipes according to US building codes, ensuring your plumbing system breathes as well as it drains.
The Golden Rule: Slope Towards the Drain
When discussing horizontal vent pipes, the most critical concept to understand is the direction of the slope. Unlike drain pipes, which must slope downward toward the main sewer line to move waste, vent pipes have a different primary job: moving air.
However, air in your pipes carries moisture. When warm, moist air from your drains hits the cooler air in the vent stack, condensation forms. If your horizontal vent pipe is level or slopes the wrong way, that water will pool. This pooling creates a “trap” that blocks airflow, effectively neutralizing the vent.
The Code Requirement
According to both the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC), which are the standards adopted by most US jurisdictions, any horizontal vent piping must be sloped.
- Direction: The slope must be downward toward the drain pipe or the main vent stack.
- The Logic: This ensures that any condensation that forms inside the vent pipe drains back into the wastewater system, rather than collecting in the horizontal run.
Pro Tip: Never slope a horizontal vent away from the drain. This creates a low spot where water collects, blocking the vent and potentially causing your fixtures to gurgle or drain slowly.
Understanding “Tapered” vs. “Sloped” in Plumbing Terminology
It is important to clarify a terminology confusion that often trips up homeowners. When you ask, “Do my horizontal plumbing vents have to be tapered?”, you are likely referring to the pitch or slope of the pipe, not the physical diameter of the pipe changing (tapering).
- Slope/Pitch: This refers to the angle of the pipe. A pipe is “tapered” in position, meaning one end is higher than the other.
- Diameter Taper: Plumbing pipes do not change diameter (e.g., from 2 inches to 1.5 inches) within a horizontal vent run unless using a specific reducer fitting, which is generally discouraged in venting due to airflow restriction.
For the purpose of this article and code compliance, we are discussing slope. Your pipe diameter should remain consistent throughout the vent run to maintain adequate air volume.
How Much Slope Do You Need?
Now that we know the vent must slope toward the drain, the next question is: how much? Too little slope, and water won’t drain. Too much slope, and you risk creating other issues, though this is less critical for vents than for drains.
Standard Slope Requirements
Most US building codes specify a minimum slope for horizontal drainage and vent piping. While local amendments can vary, the general standard is:
| Pipe Diameter | Minimum Slope (Inches per Foot) | Minimum Slope (Percentage) |
|---|---|---|
| 1.5 inches | 1/4 inch per foot | ~2% |
| 2 inches | 1/4 inch per foot | ~2% |
| 3 inches | 1/8 inch per foot | ~1% |
| 4 inches | 1/8 inch per foot | ~1% |
Note: For vent pipes specifically, maintaining a 1/4 inch per foot slope is the safest best practice regardless of diameter, as it ensures positive drainage of condensation.
Why Consistency Matters

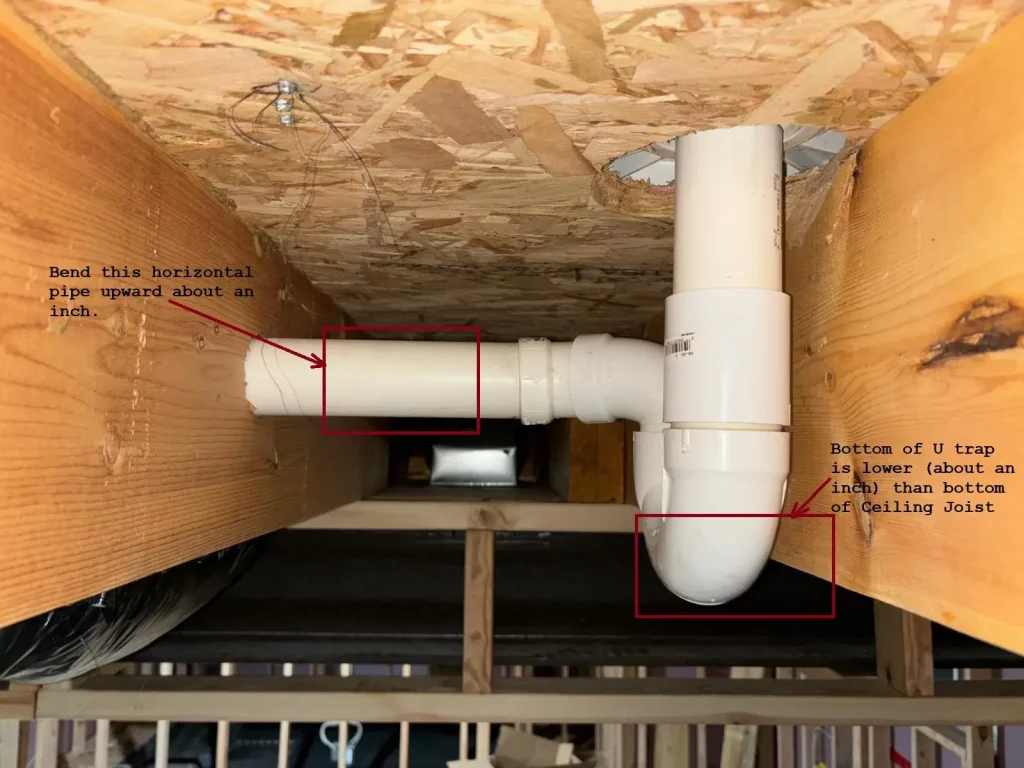

If you are running a long horizontal vent (for example, across a basement ceiling or an attic), you must maintain this slope consistently. Use a torpedo level or a laser level to check your pitch every few feet. A sagging pipe in the middle of a run can create a “belly,” which acts as a water trap even if the ends are correctly sloped.
Common Mistakes When Installing Horizontal Vents
Even with the best intentions, mistakes happen. Here are the most frequent errors seen in residential plumbing that violate the slope requirement.
1. The “Level” Misconception
Many DIYers assume that because a vent only carries air, it can be installed perfectly level. This is incorrect. As mentioned earlier, condensation is inevitable. A level pipe will eventually collect enough water to block the air passage, especially in humid climates or during heavy usage periods.
2. Sloping Away from the Stack
This is the most dangerous error. If you slope the vent away from the main stack, condensation runs toward the fixture vent connection. This can create a water seal that blocks air entry right when the fixture needs it most (e.g., when flushing a toilet). This leads to siphoning of the P-trap, allowing sewer gases into your home.
3. Using Sharp Angles
While not strictly about slope, the fittings you use affect airflow. Avoid using 90-degree elbows in horizontal vent runs if possible. Instead, use two 45-degree elbows. This creates a smoother path for air and reduces the chance of debris or condensation catching on sharp corners.
Step-by-Step: How to Properly Slope a Horizontal Vent
If you are installing a new horizontal vent, follow these steps to ensure compliance and functionality.
- Plan Your Route: Identify where the vent connects to the fixture drain and where it ties into the main vent stack. Measure the distance.
- Calculate the Drop: If your run is 10 feet long and you are using a 2-inch pipe, you need a total drop of 2.5 inches (10 feet x 1/4 inch per foot).
- Mark Your High Point: The end of the pipe closest to the fixture should be the highest point. Mark this height on your wall or joists.
- Mark Your Low Point: The end connecting to the main stack should be lower by the calculated amount. Mark this height.
- Install Hangers/Straps: Place pipe hangers along the route. Adjust them so the pipe follows the straight line between your high and low marks.
- Verify with a Level: Place a level on the pipe. For a 1/4 inch per foot slope, you can use a specialized slope level, or measure the gap under one end of a standard level.
- Secure and Test: Once secured, run water through the associated fixture to ensure no leaks and listen for proper airflow (no gurgling).
For more detailed technical definitions on plumbing ventilation systems, you can refer to the general overview on Wikipedia’s Plumbing Vent page.
Expert Insight: Why Airflow is Critical
To understand why slope matters, consider the physics of drainage. When water flows down a drain, it displaces air. If that air cannot escape through the vent, it creates positive pressure that pushes back against the water, slowing drainage. Conversely, as water leaves the pipe, it creates negative pressure (vacuum). If the vent is blocked by water due to improper slope, this vacuum can suck the water out of your P-traps.
John Smith, a Master Plumber with 20 years of experience in California, states:
“I see countless DIY jobs fail because the homeowner treated the vent like an exhaust pipe that doesn’t need drainage. But vents are part of the wet system. They breathe in moisture. If you don’t slope them back to the drain, you’re essentially building a water dam in your walls. Always slope toward the stack.”
FAQ Section
1. Can a horizontal vent pipe ever be perfectly level?
No. According to IPC and UPC codes, horizontal vent pipes must be sloped to drain condensation. A level pipe risks accumulating water, which can block airflow and cause drainage issues in your fixtures.
2. What happens if my horizontal vent slopes the wrong way?
If the vent slopes away from the main stack, condensation will collect in the low points. This water blockage prevents air from entering the system, which can lead to slow draining, gurgling noises, and the siphoning of P-traps, allowing sewer gas into your home.
3. Do I need to slope vent pipes in the attic differently?
The principle remains the same: slope toward the drain/stack. However, in attics, temperature fluctuations are extreme, leading to more condensation. Ensuring proper insulation around the vent pipe can help reduce condensation, but the slope requirement remains mandatory.
4. Is there a maximum slope for horizontal vents?
While there is no strict “maximum” slope for vents in the same way there is for drains (where too much slope can leave solids behind), excessively steep slopes can make installation difficult and may require more fittings. A slope of 1/4 inch per foot is ideal. Steeper slopes are acceptable as long as they still direct water toward the drain.
5. Can I use flexible pipe for horizontal vents?
Generally, no. Most building codes require rigid piping (PVC, ABS, or Cast Iron) for vent lines. Flexible pipes can sag easily, creating unintended low spots that trap water, violating the slope requirement. Always check your local code amendments.
6. How do I fix an existing horizontal vent that is sagging?
If you identify a sagging vent, you must re-support it. Install additional pipe hangers or straps to lift the sagging section to the correct slope. In some cases, you may need to cut out the affected section and reinstall it with the proper pitch.
Conclusion
So, do my horizontal plumbing vents have to be tapered? Yes, they must be sloped downward toward the drain or main vent stack. This simple adjustment ensures that condensation drains away, keeping your airways clear and your home free from sewer gases. By following the standard 1/4 inch per foot slope rule, you align your project with professional standards and US building codes.
Proper venting is the unsung hero of a healthy plumbing system. Don’t let a simple slope error compromise your hard work. If you found this guide helpful, please share it with your fellow DIY enthusiasts on social media to help them avoid common plumbing pitfalls!
