Navigating the complexities of residential plumbing blueprints can feel overwhelming, especially when distinguishing between supply lines, waste lines, and fixture connections. Many homeowners and junior drafters often find themselves asking: does dishwasher need to be shown on plumbing riser diagrams to ensure compliance and clarity? The short answer is yes, but with specific nuances regarding how it is depicted.
In this guide, we will break down exactly how dishwashers fit into plumbing riser diagrams, why accurate representation matters for inspections, and how to avoid common drafting errors. Whether you are a DIY enthusiast planning a remodel or a professional looking to refine your schematic skills, this article provides the clarity you need.
Understanding the Plumbing Riser Diagram
Before diving into the specifics of dishwashers, it is crucial to understand what a plumbing riser diagram actually is. In the construction and engineering world, a riser diagram is a 2D representation of a 3D piping system. It shows the vertical relationship between pipes, fixtures, and vents as they move through different floors of a building.
Unlike floor plans, which show horizontal layout, riser diagrams focus on elevation and connectivity. They are essential for:
- Verifying proper venting slopes.
- Ensuring water supply pressure consistency.
- Confirming that waste lines connect to the main stack correctly.
Why Detail Matters in Schematics
A plumbing riser diagram is not just a artistic rendering; it is a legal document used by inspectors and contractors. If a fixture is omitted, it can lead to:
- Permit Delays: Inspectors may reject plans that do not account for all water-using appliances.
- Installation Errors: Contractors might miss necessary shut-off valves or air gaps.
- Code Violations: Missing connections can hide potential cross-contamination risks.

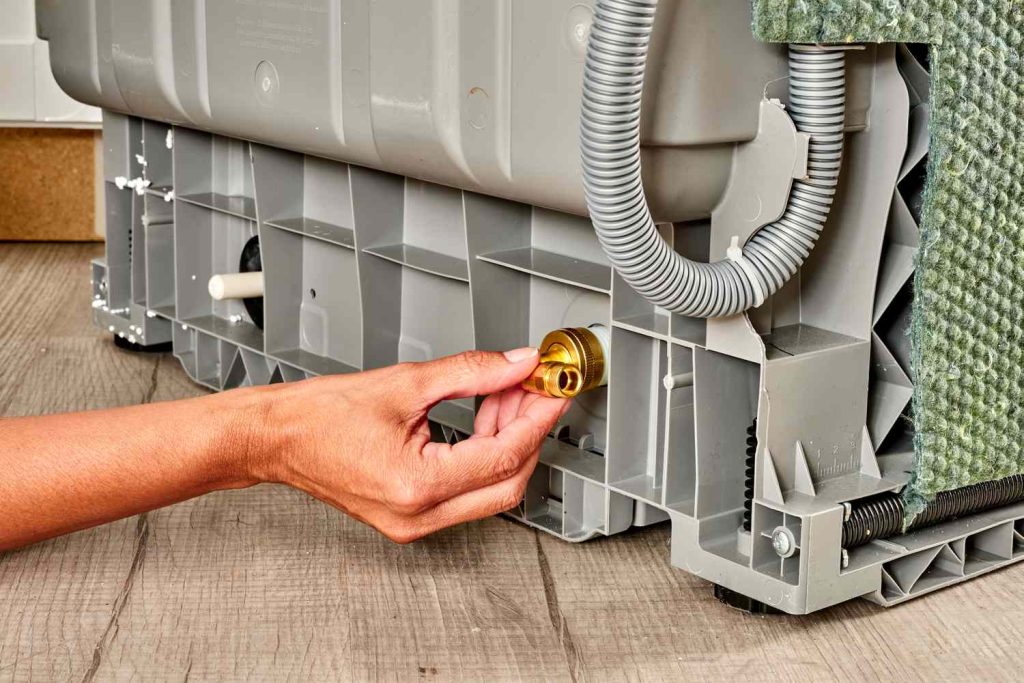

Does Dishwasher Need To Be Shown On Plumbing Riser?
The core question remains: does dishwasher need to be shown on plumbing riser diagrams? According to standard drafting practices and most local interpretations of the International Plumbing Code (IPC), yes, it must be shown.
However, it is rarely shown as a detailed 3D model of the appliance. Instead, it is represented as a fixture connection point. Here is why:
1. Water Supply Load Calculation
Plumbing engineers use riser diagrams to calculate the total demand on the water supply system. A dishwasher adds a specific “fixture unit” load to the system. Omitting it could result in undersized supply lines, leading to poor performance in other fixtures when the dishwasher is running.
2. Waste and Venting Integrity
Dishwashers discharge hot, greasy water. This waste must connect to the drainage system properly, often through an air gap or a high-loop configuration to prevent back-siphonage. The riser diagram must illustrate where this discharge enters the drain-waste-vent (DWV) system to ensure it meets slope and venting requirements.
3. Inspection and Verification
During the rough-in inspection, the plumber must demonstrate that every appliance has a dedicated supply stop and a proper waste connection. The riser diagram serves as the checklist for this verification.
How to Properly Depict a Dishwasher on a Riser
Since space on a blueprint is limited, you don’t draw the entire dishwasher. Instead, you use standardized symbols and labels. Here is the step-by-step approach to including it correctly.
Step 1: Identify the Connection Point
Locate the vertical stack or branch line where the dishwasher will connect. In a typical single-family home, this is often tied into the kitchen sink’s drain line or a dedicated branch near the sink stack.
Step 2: Use the Correct Symbol
Most architectural standards use a simple circle or a square with a label “DW” (Dishwasher) or “DISW.”
- Supply Side: Draw a line from the hot water branch to the symbol. Label it “1/2″ HW” (Half-inch Hot Water).
- Waste Side: Draw a line from the symbol to the drain line. Label it “1-1/2″ DWV” (One-and-a-half-inch Drain-Waste-Vent).
Step 3: Indicate Elevation
Riser diagrams are about height. You must indicate the elevation of the connection. For a dishwasher, the supply valve is typically 6–8 inches above the finished floor, while the drain connection is usually tied into the sink tailpiece or garbage disposal unit, which is under the counter.
Step 4: Note Special Requirements
If your local code requires an air gap (a physical separation between the discharge tube and the flood level rim of the sink), note this on the diagram. This is critical for preventing contaminated water from siphoning back into the dishwasher.
Pro Tip: Always check your local jurisdiction’s amendments to the IPC or Uniform Plumbing Code (UPC). Some areas have stricter rules about how appliances are labeled on commercial vs. residential plans.
Common Mistakes When Drafting Dishwasher Connections
Even experienced drafters make errors. Here are the most frequent issues found in plumbing risers involving dishwashers.
| Mistake | Consequence | Solution |
|---|---|---|
| Omitting the Fixture | Inspector rejects plan; load calculation is wrong. | Always include “DW” label on both supply and waste lines. |
| Wrong Pipe Size | Poor drainage; clogging risks. | Use minimum 1-1/2″ diameter for waste lines as per code. |
| Missing Air Gap Note | Health hazard; backflow risk. | Clearly mark “Air Gap Required” if mandated by local code. |
| Connecting to Cold Water | Inefficient cleaning; longer cycles. | Ensure the supply line connects to the Hot Water branch. |
Technical Standards and Code References
To build authority and ensure your plans are bulletproof, reference established standards. The International Plumbing Code (IPC) is the baseline for many US states. While the IPC provides the framework for drainage and venting, it is often paired with the International Residential Code (IRC) for single-family homes.
According to general plumbing principles derived from these codes:
- Fixture Units: A domestic dishwasher is typically rated at 2 fixture units for drainage and 1 fixture unit for water supply. This data must be reflected in the overall system calculation shown on the riser.
- Venting: The dishwasher drain must be indirectly connected or properly vented to prevent trap siphonage. If it connects to a garbage disposal, the disposal unit itself often acts as the connection point, but the venting logic must still be clear on the riser.
FAQ Section
1. Does a dishwasher need its own dedicated vent stack?
No, a dishwasher does not typically need its own dedicated vent stack. It usually shares the venting system of the kitchen sink. As long as the sink is properly vented, the dishwasher can tie into the same drain line without violating code, provided the connection is made above the trap weir.
2. Can I hide the dishwasher connection on the riser if it’s a simple remodel?
It is not recommended. Even for simple remodels, permits usually require an updated plumbing diagram. Hiding the connection can lead to failed inspections. Transparency in your plumbing riser diagrams ensures smoother approval processes.
3. What is the standard height for a dishwasher supply valve on a riser?
On a riser diagram, you should indicate the supply valve at approximately 6 to 8 inches above the finished floor (AFF). This allows easy access for maintenance while keeping it out of the way of the appliance’s rear panel.
4. Is an air gap mandatory for all dishwashers?
Not everywhere, but it is highly recommended and required in many jurisdictions (such as California and Texas). An air gap prevents dirty sink water from flowing back into the dishwasher. If your local code allows a “high loop” instead, you should still note the configuration on your plan.
5. Does the dishwasher count toward the total water heater capacity?
Yes. When sizing your water heater, the dishwasher’s hot water demand is included in the total load. A standard dishwasher uses between 2 to 4 gallons per cycle. Ensure your riser diagram’s supply calculations account for this simultaneous demand.
6. What if my dishwasher connects to a garbage disposal?
If the dishwasher drains into a garbage disposal, the riser diagram should show the waste line from the dishwasher terminating at the disposal inlet. The disposal then connects to the main drain. This is a standard configuration and is fully compliant as long as the disposal is properly vented via the sink’s trap.
Conclusion
So, does dishwasher need to be shown on plumbing riser diagrams? Absolutely. It is a critical component of your home’s plumbing infrastructure, affecting water load, waste management, and code compliance. By accurately depicting the dishwasher’s supply and waste connections, you ensure a safer, more efficient, and inspection-ready plumbing system.
Remember, a well-drafted riser diagram is your best defense against costly rework and permit delays. Take the time to label your fixtures correctly, verify your pipe sizes, and consult local codes regarding air gaps and venting.
Found this guide helpful? Share it with your fellow contractors, DIY enthusiasts, or anyone navigating the tricky world of plumbing blueprints on social media! Clear communication starts with clear plans.
