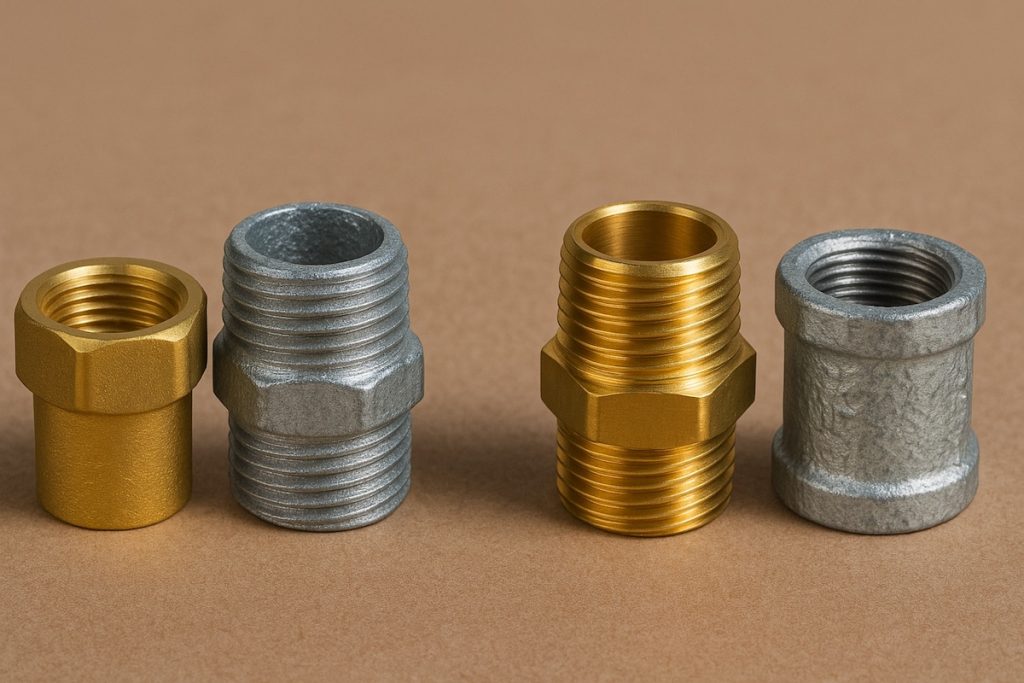

FIP Threads: Straight or Tapered? The Definitive Guide

Have you ever stood in the hardware aisle, holding a new faucet or valve, wondering if it will actually fit your existing pipes without leaking? You are not alone. Plumbing connections can be confusing, especially when acronyms like FIP, MIP, and NPT are thrown around loosely. Understanding does FIP in plumbing mean straight or tapered threads is the critical first step to ensuring a watertight, professional-grade installation in your home.

In this guide, we will demystify pipe threading standards. We will break down exactly what FIP means, why the shape of the thread matters more than you think, and how to apply this knowledge to stop leaks before they start. Whether you are a DIY enthusiast or a seasoned homeowner, mastering this concept will save you time, money, and significant frustration.

What Does FIP Actually Stand For?

To answer the core question, we must first define the acronym. FIP stands for Female Iron Pipe. It is a standard designation used in North American plumbing to describe a specific type of threaded connection.

However, “Iron Pipe” is somewhat of a misnomer in modern contexts. While the standard originated with iron pipes, today you will find FIP threads on brass, copper, PVC, CPVC, and stainless steel fittings. The key takeaway is not the material, but the thread standard itself.

FIP is the female counterpart to MIP (Male Iron Pipe). When you see a fitting labeled FIP, it means it has internal threads designed to mate with a male pipe thread. But does this tell us if the threads are straight or tapered? Not explicitly by name alone, which leads us to the industry standard that governs them.

The Verdict: Are FIP Threads Straight or Tapered?

Here is the direct answer: FIP threads are tapered.

In the vast majority of residential and commercial plumbing applications in the United States, FIP refers to NPT (National Pipe Taper) threads. This is the standard established by the American National Standards Institute (ANSI).

Why Tapered?

The taper is not a manufacturing defect; it is a deliberate engineering feature. NPT threads have a taper rate of 1 degree 47 minutes (approximately 3/4 inch in diameter change per foot of length).

When you screw a male NPT (MIP) fitting into a female NPT (FIP) fitting:

1. The threads engage loosely at first.
2. As you tighten the connection, the tapered male thread wedges deeper into the tapered female thread.
3. This wedging action compresses the threads against each other, creating a mechanical seal.

This compression is what makes the joint resistant to high pressure and prevents water or gas from escaping. If FIP threads were straight (parallel), they would not create this wedging effect, and the joint would leak unless an O-ring or gasket was used (which is a different standard entirely, such as NPSM).

Key Insight: When a plumber says “FIP,” they are almost universally referring to FNPT (Female National Pipe Taper).

FIP (Tapered) vs. Straight Threads: A Critical Comparison

Confusion often arises because straight threads do exist in plumbing and hydraulics. However, they serve different purposes. Mixing them up is a common cause of failed DIY projects.

The Danger of Misidentification

If you attempt to force a straight-threaded fitting into a tapered FIP port, you will likely strip the threads or crack the fitting. Conversely, if you put a tapered fitting into a straight port, it will never tighten properly, leading to immediate leaks.

For a deeper technical understanding of thread standards and their historical development, you can refer to the comprehensive overview on Wikipedia’s National Pipe Thread page.

How to Identify FIP Threads in Your Hand

You don’t need calipers to determine if you are dealing with FIP (tapered) threads. You can use these simple visual and tactile checks:

1. The Visual Test

Hold the fitting up to the light. Look at the diameter of the threads at the opening versus the base.

• Tapered (FIP): The opening will be visibly wider than the base of the threaded section. The threads get “smaller” as they go deeper into the fitting.
• Straight: The diameter remains consistent from start to finish.

2. The “Spin” Test

Screw the male end into the female end by hand.

• Tapered (FIP): It will spin in easily for the first few turns, then begin to resist significantly as the threads wedge together.
• Straight: It will spin in with consistent resistance throughout, stopping only when it hits a shoulder or gasket.

3. Check for Markings

Look for stamps on the metal or plastic.

• Look for “NPT” or “FNPT”. This confirms tapered threads.
• Look for “NPSM” or “SAE”. This indicates straight threads.
• Note: Sometimes fittings are unmarked, so rely on the visual test if no stamp is present.

Step-by-Step: How to Properly Seal FIP Connections

Since FIP threads rely on thread deformation for sealing, using the correct sealant is mandatory. Unlike straight threads that use gaskets, you must use PTFE tape (Teflon tape) or pipe dope on FIP connections.

Follow these steps for a leak-free joint:

Step 1: Clean the Threads

Ensure both the male (MIP) and female (FIP) threads are free of dirt, oil, or old tape debris. Use a clean rag or a wire brush if necessary. Debris can prevent the threads from seating fully, causing leaks.

Step 2: Apply PTFE Tape Correctly

• Hold the male fitting in one hand.
• Wrap the PTFE tape clockwise (when looking at the end of the pipe). This ensures the tape doesn’t unravel when you screw the fitting in.
• Start at the second thread from the end, leaving the first thread exposed. This helps prevent tape shreds from entering the water line.
• Wrap the tape 3 to 4 times tightly. Do not over-wrap, as this can cause the fitting to sit too high and crack the female housing.

Step 3: Assemble the Joint

• Insert the male thread into the FIP fitting.
• Hand-tighten until snug.
• Use a wrench to tighten further. For most residential applications (1/2″ or 3/4″ pipe), turn the wrench 1 to 2 full turns past hand-tight.
• Warning: Do not overtighten. Brass and plastic fittings can crack easily. The goal is a seal, not maximum torque.

Step 4: Test for Leaks

Turn the water supply back on slowly. Inspect the joint. If you see a drip, tighten slightly (no more than 1/8th of a turn). If it still leaks, disassemble, add more tape, and retry.

FAQ: Common Questions About FIP Threads

1. Can I use FIP fittings with PVC pipe?

Yes, but with caution. PVC fittings often have molded FIP threads. Because PVC is brittle, do not overtighten metal male ends into PVC female ends. It is often recommended to use a plastic-to-plastic connection or ensure the metal fitting is not torqued excessively.

2. Is FIP the same as NPT?

Technically, no. FIP describes the gender (Female) and the origin (Iron Pipe standard). NPT describes the thread form (National Pipe Taper). However, in practical US plumbing terms, FIP implies FNPT (Female National Pipe Taper). They are used interchangeably in retail settings.

3. Do I need Teflon tape for FIP connections?

Yes. Because FIP threads are tapered, they rely on the filler material (tape or dope) to fill the microscopic gaps between the crests and roots of the threads. Without sealant, water will follow the spiral path of the threads and leak out.

4. What is the difference between FIP and FPT?

They are the same thing. FPT stands for Female Pipe Thread. Like FIP, it generally refers to tapered NPT threads in the US market. You will see both acronyms on packaging.

5. Can I connect a straight thread to an FIP port?

No. A straight thread will not seal in a tapered FIP port. It will either bottom out before sealing or remain loose. You must match tapered with tapered, or use an adapter designed to convert between the two standards.

6. Why did my FIP fitting crack?

This is usually due to overtightening or cross-threading. Tapered threads exert radial pressure on the female fitting as they are tightened. If you use too much force, especially with brass or plastic, the hoop stress will cause the female fitting to split. Always use two wrenches (one to hold, one to turn) to avoid twisting the pipe itself.

Conclusion

So, does FIP in plumbing mean straight or tapered threads? The answer is definitively tapered. FIP (Female Iron Pipe) conforms to the NPT standard, utilizing a conical thread design that wedges tight to create a pressure-resistant seal.

Understanding this distinction is vital for any successful plumbing project. By recognizing that FIP requires tapered mating parts and appropriate sealants like PTFE tape, you can avoid common pitfalls like leaks, stripped threads, and cracked fittings. Remember to always inspect your threads, apply tape correctly, and tighten with care—not force.
