2-Bathroom House Plumbing Isometric Drawing Guide

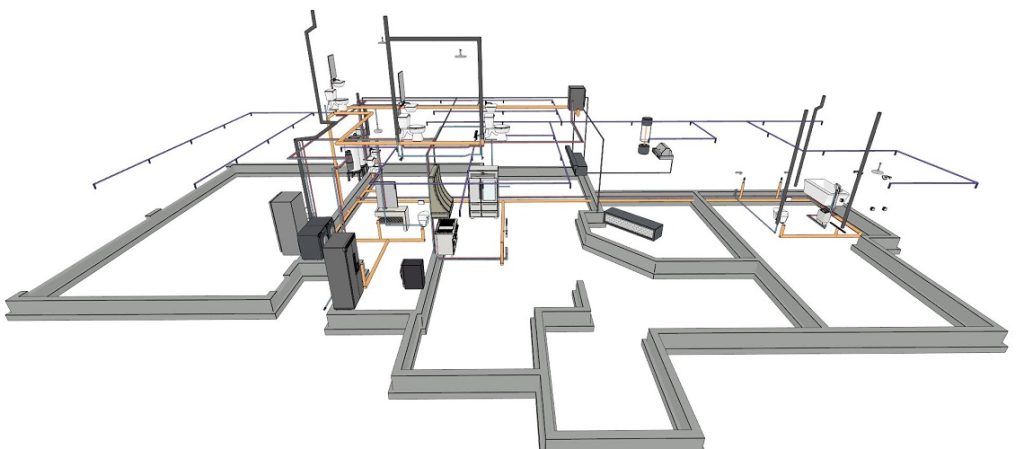

Are you planning a renovation or building a new home and feeling overwhelmed by the complex web of pipes behind your walls? Understanding how water supply and waste removal systems intersect is crucial for avoiding costly mistakes and ensuring long-term reliability. This guide provides a clear example of a 2 bathroom house plumbing isometric drawing, breaking down the technical details into an easy-to-understand format for homeowners and junior planners alike.

Whether you are working with a contractor or attempting a DIY project, visualizing your plumbing in three dimensions is the key to success. An isometric drawing allows you to see the vertical and horizontal relationships between fixtures, vents, and drains without the distortion of perspective views. Let’s dive into how you can interpret and create these essential diagrams.

What Is a Plumbing Isometric Drawing?

Before we look at specific examples for a two-bathroom house, it is vital to understand what an isometric drawing actually is. Unlike standard floor plans that show a top-down view, an isometric drawing represents a 3D object in two dimensions. In plumbing, this means you can see the rise and fall of pipes, which is critical for gravity-fed drainage systems.

Why Use Isometric Views?

• Clarity: It shows the connection between horizontal branches and vertical stacks.
• Accuracy: It helps in calculating pipe lengths and fitting angles (typically 45° or 90°).
• Code Compliance: Inspectors often require these drawings to verify venting and slope requirements.

In the context of a 2-bathroom house, the complexity increases because you likely have shared walls or stacked bathrooms. An isometric view clarifies how the second bathroom ties into the main soil stack without compromising the trap seals of the first bathroom.

Key Components of a 2-Bathroom Plumbing System

When analyzing an example of a 2 bathroom house plumbing isometric drawing, you will notice several recurring components. Understanding these parts is essential for reading the diagram correctly.

1. The Main Soil Stack

This is the vertical highway for waste. In a two-bathroom home, both bathrooms usually connect to a single main stack, or occasionally two stacks if the bathrooms are on opposite ends of the house. The stack must extend through the roof to vent sewer gases.

2. Branch Drains

These are the horizontal pipes that carry waste from individual fixtures (toilets, sinks, showers) to the main stack.

• Critical Rule: Branch drains must have a proper slope. According to standard US plumbing codes, a 3-inch pipe should have a slope of 1/8 inch per foot, while a 4-inch pipe needs 1/4 inch per foot.

3. Vent Pipes

Vents are not just for air; they protect the water seal in your P-traps. Without proper venting, flushing a toilet in Bathroom A could siphon the water out of the sink trap in Bathroom B, allowing sewer gas into your home.

• Common Configuration: In many two-bathroom layouts, a “common vent” or “wet vent” system is used to save materials and space.

4. Water Supply Lines

While drainage relies on gravity, supply lines rely on pressure. These are typically smaller diameter pipes (1/2 inch or 3/4 inch) made of copper, PEX, or CPVC. In an isometric drawing, supply lines are often drawn in a different color (e.g., blue for cold, red for hot) to distinguish them from waste lines.

Step-by-Step: Reading a 2-Bathroom Isometric Example

Let’s walk through a typical scenario: A two-story house with one bathroom upstairs and one downstairs, or two bathrooms side-by-side on the same floor. Here is how you interpret the drawing.

Step 1: Identify the Fixtures

Locate the symbols for the toilets, lavatories (sinks), bathtubs, and showers. In a standard 2-bathroom setup, you might have:

• Bathroom 1: Toilet, Sink, Shower/Tub combo.
• Bathroom 2: Toilet, Sink, Shower/Tub combo.

Step 2: Trace the Drainage Path

Start at the fixture furthest from the main stack. Follow the line as it connects to other fixtures.

• Observation: Notice how the sink and shower often share a branch line before connecting to the toilet’s larger drain line. This is known as a branch interval.

Step 3: Check the Venting

Look for vertical lines rising from the drain lines.

• Individual Vent: Each fixture has its own vent pipe going up.
• Common Vent: Two fixtures share a single vent pipe. This is common in compact 2-bathroom layouts to reduce roof penetrations.
• Wet Venting: A pipe serves as both a drain for one fixture and a vent for another. This is highly efficient but must be sized correctly to prevent clogging.

Step 4: Verify Slopes and Elevations

Isometric drawings often include elevation markers. Ensure that every horizontal drain line slopes downward toward the stack. If a section appears level or slopes upward, it is a design error that will lead to blockages.

Common Layouts for Two-Bathroom Homes

Not all houses are built the same. Here are two common configurations you might see in an example of a 2 bathroom house plumbing isometric drawing.

Layout A: Stacked Bathrooms

In this design, the upstairs bathroom is directly above the downstairs bathroom.

• Advantage: Highly efficient. The main stack runs straight up through both floors.
• Isometric Feature: You will see a continuous vertical line with horizontal branches entering from both levels. Venting is straightforward, often using the stack itself as the vent for the lower bathroom.

Layout B: Side-by-Side Bathrooms

Both bathrooms are on the same floor, sharing a wall.

• Advantage: Convenient for family use; reduces noise transmission to living areas.
• Isometric Feature: The drawing will show two separate branch lines merging into a single horizontal run before hitting the main stack. Venting may require a “loop vent” or “circuit vent” if the fixtures are far from the stack.

Best Practices for Creating Your Own Drawing

If you are drafting your own plan, follow these professional tips to ensure accuracy and code compliance.

1. Use Standard Symbols: Stick to ANSI or UPC (Uniform Plumbing Code) symbols. Consistency prevents confusion for contractors and inspectors.
2. Label Everything: Clearly label each fixture (e.g., “WC” for water closet, “LAV” for lavatory). Include pipe sizes (e.g., “3” DWV” for 3-inch Drain-Waste-Vent).
3. Indicate Flow Direction: Use arrows to show the direction of wastewater flow. This helps in identifying potential low spots where debris could accumulate.
4. Consult Local Codes: While national codes provide a baseline, local municipalities may have specific requirements for venting distances or pipe materials. Always check with your local building department.

For more detailed technical standards on plumbing symbols and diagrams, you can refer to resources like Wikipedia’s page on Plumbing, which offers a broad overview of historical and modern systems.

FAQ Section

1. Do I need a professional to draw my plumbing isometric plan?

For simple renovations, a skilled DIYer might manage, but for new construction or major remodels involving a 2-bathroom house plumbing isometric drawing, hiring a licensed plumber or engineer is recommended. They ensure compliance with local codes, which is necessary for obtaining permits.

2. What is the minimum slope for a drainage pipe?

According to the International Plumbing Code (IPC), a 3-inch pipe requires a slope of 1/8 inch per foot, and a 4-inch pipe requires 1/4 inch per foot. Too much slope can cause water to outrun solids, leading to clogs, while too little slope causes stagnation.

3. Can two toilets share the same vent?

Yes, two toilets can share a vent if they are connected to the same branch line and the vent is sized appropriately. This is often referred to as a “common vent.” However, they must be within a certain distance of the vent stack to maintain proper air pressure.

4. What is the difference between a wet vent and a dry vent?

A dry vent carries only air and no water. A wet vent serves as both a vent for one fixture and a drain for another. Wet venting is allowed in many jurisdictions for bathroom groups (toilet, sink, tub) because it reduces the amount of piping needed.

5. How deep should water supply lines be buried?

If your isometric drawing includes exterior supply lines, they must be buried below the frost line to prevent freezing. In the US, this varies from 12 inches in southern states to over 4 feet in northern regions. Check your local building code for the specific depth required in your area.

6. Why is my isometric drawing showing 45-degree angles?

Plumbing codes generally prohibit 90-degree elbows in horizontal drainage lines because they restrict flow and increase the risk of clogs. Instead, two 45-degree elbows are used to create a smoother turn. Isometric drawings reflect this by showing angled connections rather than sharp right angles in drain lines.

Conclusion

Creating or interpreting an example of a 2 bathroom house plumbing isometric drawing is a valuable skill for any homeowner undertaking a renovation. By understanding the relationship between stacks, branches, and vents, you can ensure your plumbing system is efficient, code-compliant, and free from common issues like slow drains or sewer gas leaks.

Remember, while this guide provides a solid foundation, plumbing involves critical health and safety considerations. Always double-check your plans against local codes and consider consulting a professional for complex installations.
