Walk-In Shower Drain Rough-In: The Ultimate Guide

Are you planning a bathroom remodel and feeling overwhelmed by the hidden complexities behind the walls? Getting the drainage right is the single most critical step to preventing costly water damage and ensuring your new luxury space functions perfectly. Understanding the proper example of rough plumbing drain for walk in shower setups is essential for both DIY enthusiasts and homeowners managing contractors, as this foundational stage determines the longevity and safety of your entire bathroom.

In this guide, we will break down the technical requirements, common pitfalls, and best practices for installing a shower drain during the rough-in phase. Whether you are installing a standard center drain or a modern linear drain, getting the “rough” work right ensures that the finished tile work looks flawless and drains efficiently.

What Is Rough-In Plumbing for a Shower?

Before we dive into the specifics of the drain, it is vital to understand what “rough-in” actually means. In construction terms, the rough-in phase occurs after the framing is complete but before the drywall, insulation, or final finishes are installed.

For a walk-in shower, the rough-in involves:

• Running water supply lines (hot and cold).
• Installing the waste and vent (DWV) piping system.
• Setting the shower valve body behind the wall.
• Installing the drain assembly and connecting it to the main stack.

This stage is called “rough” because the pipes are exposed, and the connections are not yet finalized with trim kits or tiles. However, the precision required here is higher than at any other stage. If the drain slope is off by even a fraction of an inch, water will pool, leading to mold, mildew, and structural rot.

What Are the Standard Pipe Sizes for Shower Drains?

One of the most common questions homeowners ask is about the diameter of the pipes. Using the wrong size can lead to slow drainage or code violations.

The 2-Inch Standard

In the United States, the International Residential Code (IRC) and most local plumbing codes mandate a minimum 2-inch diameter for shower drain pipes.

• Why 2 inches? Older homes often have 1.5-inch drains, which are prone to clogging from hair and soap scum. A 2-inch pipe provides a larger cross-sectional area, allowing water to flow away faster and reducing the likelihood of blockages.
• The Trap Size: The P-trap (the U-shaped pipe that holds water to prevent sewer gases from entering your home) must also match the drain size. Therefore, you will need a 2-inch P-trap.

Comparison: 1.5-Inch vs. 2-Inch Pipes

Pro Tip: Always check your local municipal codes. While the IRC is a national guideline, some cities or counties in the US may have stricter amendments requiring larger diameters for specific fixtures.

How Do You Calculate the Correct Drain Slope?

Gravity is your best friend in plumbing. Water does not flow uphill, and it flows sluggishly on flat surfaces. The “slope” or “pitch” of your horizontal drain pipe is the angle at which the pipe descends toward the main stack.

The Golden Rule: 1/4 Inch Per Foot

According to standard plumbing practices, the ideal slope for a 2-inch horizontal drain pipe is 1/4 inch per foot.

• What does this mean? For every foot (12 inches) the pipe travels horizontally toward the main drain, it must drop vertically by 1/4 inch.
• Example Calculation: If your shower drain is located 8 feet away from the main vertical stack, the total drop should be: $8\text{ feet}\times 0.25\text{ inches/foot}=2\text{ inches}$8 feet×0.25 inches/foot=2 inches Therefore, the pipe at the shower end should be 2 inches higher than the pipe where it connects to the stack.

Why Not Steeper?

You might think, “If slope is good, steeper is better, right?” Wrong. If the slope is too steep (greater than 1/2 inch per foot), the water will outrun the solid waste (hair, soap chunks). This phenomenon, known as “solids separation,” leaves debris behind in the pipe, eventually causing clogs. Conversely, if the slope is too flat, water moves too slowly, allowing sediment to settle.

For more detailed engineering standards on fluid dynamics in piping, you can refer to general principles of hydraulic gradient which underpin these plumbing codes.

Where Should the Drain Be Located in a Walk-In Shower?

Placement depends on the type of shower pan or floor structure you are using. There are three common configurations for a walk-in shower drain rough-in.

1. Center Drain

This is the traditional layout. The drain is located in the exact center of the shower floor.

• Best for: Square showers (e.g., 36×36 or 48×48 inches).
• Rough-in Requirement: The subfloor must be sloped from all four corners toward the center. This requires precise framing of the shower pan liner or foam base.

2. Offset Drain

The drain is moved toward one side or corner.

• Best for: Rectangular showers or when joist placement makes a center drain difficult.
• Rough-in Requirement: The floor slope is directional, falling from the far end toward the offset drain. This is easier to frame than a center drain in some rectangular layouts.

3. Linear Drain

A modern, high-end option where the drain is a long channel, usually placed against one wall or along the edge of the shower entry.

• Best for: Large, luxury walk-in showers with a “zero-threshold” entry.
• Rough-in Requirement: The entire shower floor slopes in a single direction (like a ramp) toward the linear drain. This is often easier for tilers to execute because it involves a single-plane slope rather than a complex four-way cone.

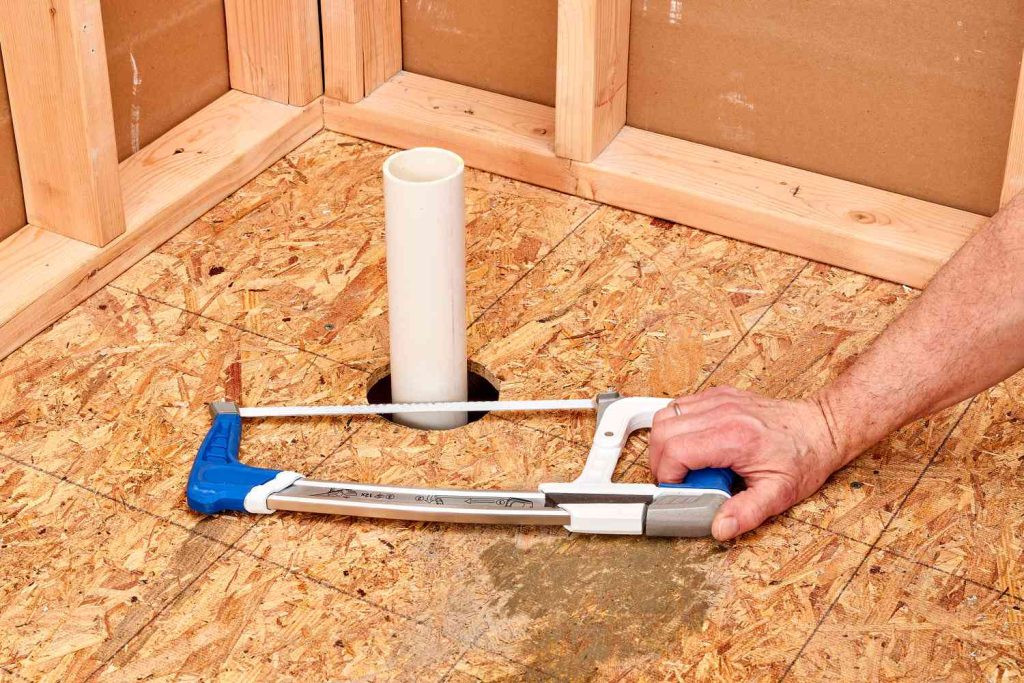

Step-by-Step: Installing the Rough-In Drain

If you are tackling this project, follow these concrete steps to ensure a professional result.

Step 1: Frame the Shower Base

Ensure your floor joists are properly spaced. If you are cutting into existing joists to run pipes, you must install “sister joists” or blocking to maintain structural integrity. Never cut more than one-third of a joist’s depth without reinforcement.

Step 2: Dry Fit the Piping

Before gluing anything, assemble your 2-inch PVC or ABS pipes.

• Connect the shower drain flange to the P-trap.
• Connect the P-trap to the horizontal run leading to the stack.
• Check the fit and measure the total length.

Step 3: Establish the Slope

Use a level and a tape measure.

• Mark the height of the connection at the main stack.
• Calculate the required drop (1/4 inch per foot).
• Adjust the hangers or supports for the horizontal pipe so that it maintains this consistent downward angle. Use wooden shims if necessary to hold the pipe at the correct height while you work.

Step 4: Glue and Prime

Once the slope is verified:

1. Clean all pipe ends with primer (purple or clear, depending on local code).
2. Apply cement to both the pipe exterior and the fitting interior.
3. Push the pieces together firmly and hold for 15–30 seconds to prevent push-out.
4. Wipe away excess cement.

Step 5: Install the Drain Flange

The drain flange is the part that will be visible (or covered by the grate) in the finished shower.

• Apply a generous bead of silicone or plumber’s putty (check manufacturer instructions) under the flange.
• Secure it tightly to the shower pan liner or base.
• Crucial: Ensure the clamping ring (if using a traditional two-piece drain) is properly sandwiched between the liner and the mortar bed. This prevents water from leaking into the subfloor.

Step 6: Pressure Test (Air or Water)

Before closing up the walls or pouring the mortar bed, you must test for leaks.

• Air Test: Cap all openings and pump air into the system to a specific pressure (usually 5 psi) to check for drops.
• Water Test: Plug the drain and fill the pipe with water. Wait for 15 minutes. If the water level drops, you have a leak. Find it and fix it now. It is infinitely cheaper to fix a leak now than after tiling.

Common Mistakes to Avoid

Even experienced DIYers make these errors. Avoid them to save time and money.

• Ignoring the Vent: Every drain needs a vent to allow air in, preventing vacuum locks that siphon water out of the P-trap. Ensure your vent pipe is within the required distance from the trap (usually 5 feet for a 2-inch pipe, but check local codes).
• Using the Wrong Glue: Do not mix PVC and ABS cement unless you are using a specific transition cement approved by code. Generally, stick to one material type for the entire DWV system.
• Poor Subfloor Support: The area around the drain must be rigid. If the subfloor flexes when you step on it, the grout and tile will crack, and the waterproofing will fail. Add extra blocking under the drain area.

FAQ Section

1. Can I move a shower drain during a remodel?

Yes, but it is labor-intensive. You will need to cut into the concrete slab (if on a slab foundation) or access the joists from below (if you have a basement or crawlspace). Moving a drain more than a few feet may require re-sloping the entire floor structure, which can significantly increase costs.

2. Do I need a permit for shower plumbing rough-in?

In almost all US jurisdictions, yes. Plumbing work requires a permit and subsequent inspection. The inspector will check your pipe sizes, slopes, and venting before you cover the walls. Skipping this step can void your home insurance and cause issues when selling your home.

3. What is the best material for shower drain pipes?

PVC (Polyvinyl Chloride) is the most common and recommended material for residential shower drains. It is resistant to corrosion, easy to cut and glue, and cost-effective. ABS (Acrylonitrile Butadiene Styrene) is also used in some regions, but PVC is generally preferred for its durability and widespread code acceptance.

4. How deep should the shower drain box be?

The depth depends on the type of drain and the height of the joists. Typically, you need enough vertical space to accommodate the P-trap and the slope of the pipe. For a standard 2-inch trap, you generally need at least 6–8 inches of vertical clearance below the subfloor. If you are on a concrete slab, you may need to excavate the concrete to create this depth.

5. Can I use a flexible drain pipe for the rough-in?

No. Flexible pipes (like Fernco couplings) are generally reserved for repair situations or connecting dissimilar materials. For new rough-in construction, rigid PVC or ABS pipes are required to maintain the precise slope and structural integrity needed for long-term performance.

Conclusion

Getting the example of rough plumbing drain for walk in shower correct is the backbone of a successful bathroom renovation. By adhering to the 2-inch pipe standard, maintaining a precise 1/4 inch per foot slope, and ensuring proper venting, you set the stage for a functional, beautiful, and durable shower.

Remember, plumbing is not just about moving water; it’s about protecting your home’s structural integrity. Take your time during the rough-in phase, double-check your measurements, and never skip the pressure test.
