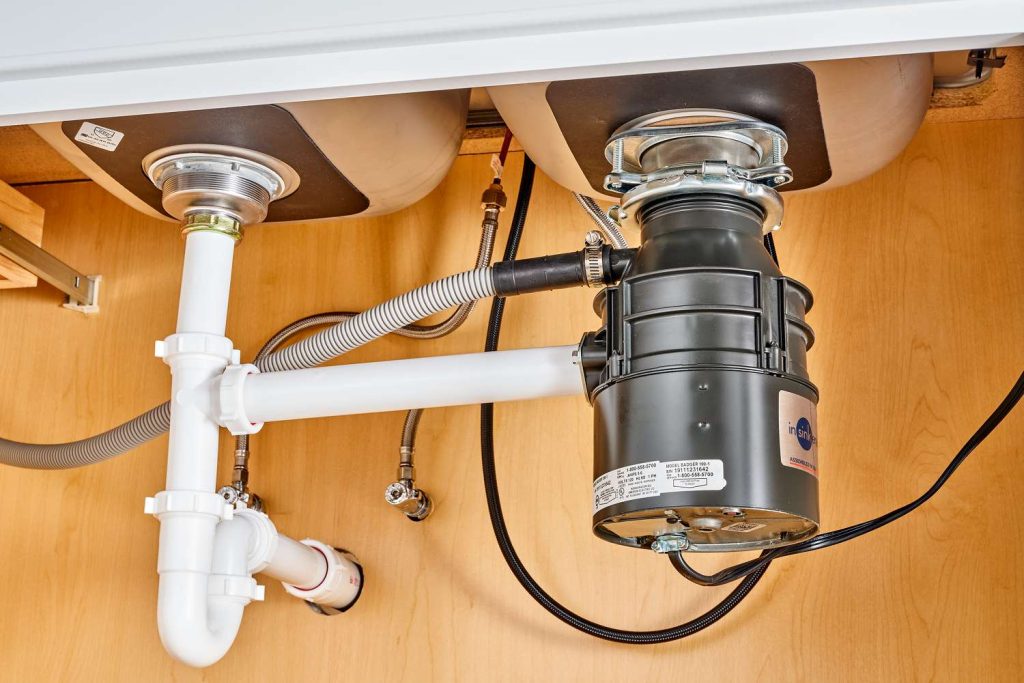

Have you ever looked under your kitchen sink, seen a pipe coming straight up from the floor, and wondered how on earth you’re supposed to connect a garbage disposal to it? You are not alone. This configuration, often found in older homes or specific slab-on-grade constructions, presents a unique challenge compared to the standard wall-drain setup. Properly configuring garbage disposal plumbing under the sink from the ground requires precise measurements and an understanding of hydraulic flow to prevent nasty clogs and odors.
In this guide, we will walk you through exactly how to tackle this plumbing puzzle. Whether you are a DIY enthusiast or just want to understand what your plumber is doing, we will break down the mechanics, code requirements, and step-by-step installation process to ensure your kitchen runs smoothly.
Why Is Floor Drain Plumbing Different?
Before diving into the tools, it is crucial to understand why a floor drain (often called a “floor stub-up”) changes the game. In a standard installation, the drain exits the wall horizontally. Gravity helps waste move away from the sink immediately.
However, when the pipe comes from the ground, you are fighting gravity twice. First, the water must travel down from the disposal unit. Second, it must navigate the P-trap before entering the vertical floor pipe. If not installed correctly, this setup is prone to standing water, which leads to sediment buildup and severe blockages.
The Physics of the Flow
According to basic fluid dynamics, wastewater needs velocity to carry solid particles (food waste) through the pipes. A vertical drop followed by an immediate horizontal turn can cause “water hammer” or slow drainage if the venting is inadequate. Ensuring the correct slope and trap arm length is vital for maintaining the self-scouring velocity of the water.
Essential Tools and Materials
To successfully install garbage disposal plumbing under the sink from the ground, you will need the following items. Having these ready before you start will save you multiple trips to the hardware store.
Tools List
- Adjustable Wrenches (2): For tightening slip nuts without damaging them.
- Pipe Cutter or Hacksaw: To trim PVC or ABS pipes to the exact length.
- Deburring Tool or Sandpaper: To smooth cut edges and prevent leaks.
- Teflon Tape & Pipe Joint Compound: For threaded connections.
- Bucket and Rags: To catch residual water during removal of old parts.
- Level: To ensure proper slope.
Materials List
- Garbage Disposal Unit: Ensure it fits your sink mount (3-bolt or 5-bolt).
- P-Trap Kit: Specifically designed for floor drains if available, or a standard kit with extra extension tubes.
- Tailpiece Extension: Often required to bridge the gap between the disposal and the trap.
- Rubber Gaskets/Slip Washers: Always use new ones; old ones rarely seal correctly.
- Cleanout Adapter (Optional but Recommended): Allows for easier future snaking of clogs.
Step-by-Step Installation Guide
Follow these steps carefully. Precision is key when dealing with floor-based plumbing.
Step 1: Remove the Old Plumbing
Turn off the power to the disposal at the circuit breaker. Place a bucket under the sink. Unscrew the slip nuts connecting the old P-trap and tailpiece. Remove the old assembly. If there is an old flange in the floor pipe, remove it carefully using a pry bar, ensuring you do not crack the underlying PVC or cast iron pipe.
Step 2: Measure the Drop Distance
This is the most critical step. Measure the distance from the bottom of the garbage disposal outlet to the top of the floor pipe.
- Note: You need enough vertical space to fit the P-trap. Standard P-traps require about 6–8 inches of vertical clearance.
- If the disposal sits too low, you may need to raise the sink slightly or use a shallow-depth P-trap designed for tight spaces.
Step 3: Install the Disposal Unit
Mount the garbage disposal to the sink flange according to the manufacturer’s instructions. Ensure the mounting ring is tight and the unit is secure. Do not plug it in yet.
Step 4: Configure the P-Trap for Floor Connection
Unlike wall drains, a floor drain connection usually requires the P-trap to sit directly above the floor stub-up.
- Insert the trap adapter into the floor pipe. Use a rubber Fernco coupling if the sizes differ (e.g., connecting 1.5-inch disposal pipe to a 2-inch floor pipe).
- Connect the J-bend of the P-trap to the floor adapter.
- Connect the tailpiece from the garbage disposal to the other end of the J-bend.
Pro Tip: If the distance between the disposal and the floor pipe is too long for a standard tailpiece, use a telescoping tailpiece extension. Avoid using multiple flexible hoses, as their ribbed interior catches food debris and causes clogs.
Step 5: Check the Slope and Alignment
Even though the final exit is vertical (into the floor), the arm leading into the trap should have a slight downward slope toward the trap. Ensure all slip nuts are hand-tightened first, then give them a quarter-turn with a wrench. Do not overtighten, as this can crack the plastic nuts or distort the gaskets, leading to leaks.
Step 6: Test for Leaks
Remove the bucket. Turn on the cold water and run the disposal. Let it run for 30 seconds. Check every connection point for drips. If you see water, tighten the nut slightly or reseat the gasket.
For more detailed standards on plumbing fixtures, you can refer to the Uniform Plumbing Code guidelines via Wikipedia to understand regional variations in compliance.
Common Challenges and Solutions
| Challenge | Cause | Solution |
|---|---|---|
| Gurgling Sounds | Poor venting or air lock. | Ensure the sink vent stack is not blocked. Install an Air Admittance Valve (AAV) under the sink if code permits. |
| Slow Drainage | Debris buildup in horizontal arms. | Minimize horizontal pipe length. Use rigid PVC/ABS instead of flexible corrugated pipes. |
| Leaks at Floor Joint | Improper seal on the floor flange. | Use a high-quality rubber coupling (Fernco) and ensure the floor pipe is clean and dry before installation. |
| Vibration Noise | Disposal touching cabinet floor. | Ensure the disposal is hanging freely from the sink mount, not resting on the cabinet bottom. |
FAQ: Garbage Disposal Plumbing From the Ground
1. Can I connect a garbage disposal directly to a floor drain?
No, you cannot connect it directly. You must always have a P-trap between the disposal and the drain line. The P-trap holds water that prevents sewer gases from entering your home. For floor drains, the P-trap is typically installed vertically above the floor opening.
2. What size pipe should I use for a floor drain disposal setup?
Most residential garbage disposals use a 1.5-inch discharge tube. However, the floor stub-up might be 2 inches. You will need a reducer adapter or a rubber coupling (Fernco) to transition from the 1.5-inch trap arm to the 2-inch floor pipe securely.
3. Do I need a vent for a floor drain disposal?
Yes. All plumbing fixtures require venting to allow air to enter the system, preventing vacuum locks that slow drainage. If your existing vent stack is far away, you may need to install an Air Admittance Valve (AAV) under the sink, provided it is allowed by your local building code.
4. Why does my disposal smell even after cleaning?
In floor-drain setups, if the P-trap is not installed correctly or if the unit is rarely used, the water seal can evaporate or be siphoned out. Run water through the disposal for 30 seconds weekly to maintain the seal. Also, check for food debris trapped in the rough interior of flexible pipes if they were used.
5. Is it better to use PVC or ABS pipe?
Both are acceptable, but do not mix them without the correct solvent cement or mechanical couplings. ABS (black pipe) is often preferred for its impact resistance, while PVC (white pipe) is widely available. Check your local code; some jurisdictions prohibit ABS indoors.
6. How do I unclog a floor drain disposal setup?
Because the path is vertical, standard plunging may be less effective. Use a drum auger (snake) inserted through the cleanout plug (if installed) or carefully through the disposal inlet (with power OFF). Avoid chemical drain cleaners, as they can damage the rubber gaskets and metal components of the disposal.
Conclusion
Installing garbage disposal plumbing under the sink from the ground might seem intimidating due to the vertical orientation and space constraints, but it is entirely manageable with the right approach. The key takeaways are ensuring a proper P-trap installation, minimizing horizontal runs to prevent clogs, and verifying that your venting system is adequate to handle the airflow.
By following the steps outlined above, you can achieve a leak-free, efficient setup that complies with general plumbing standards. Remember, if you encounter complex venting issues or old cast-iron piping that refuses to cooperate, it is always wise to consult a licensed plumber.
