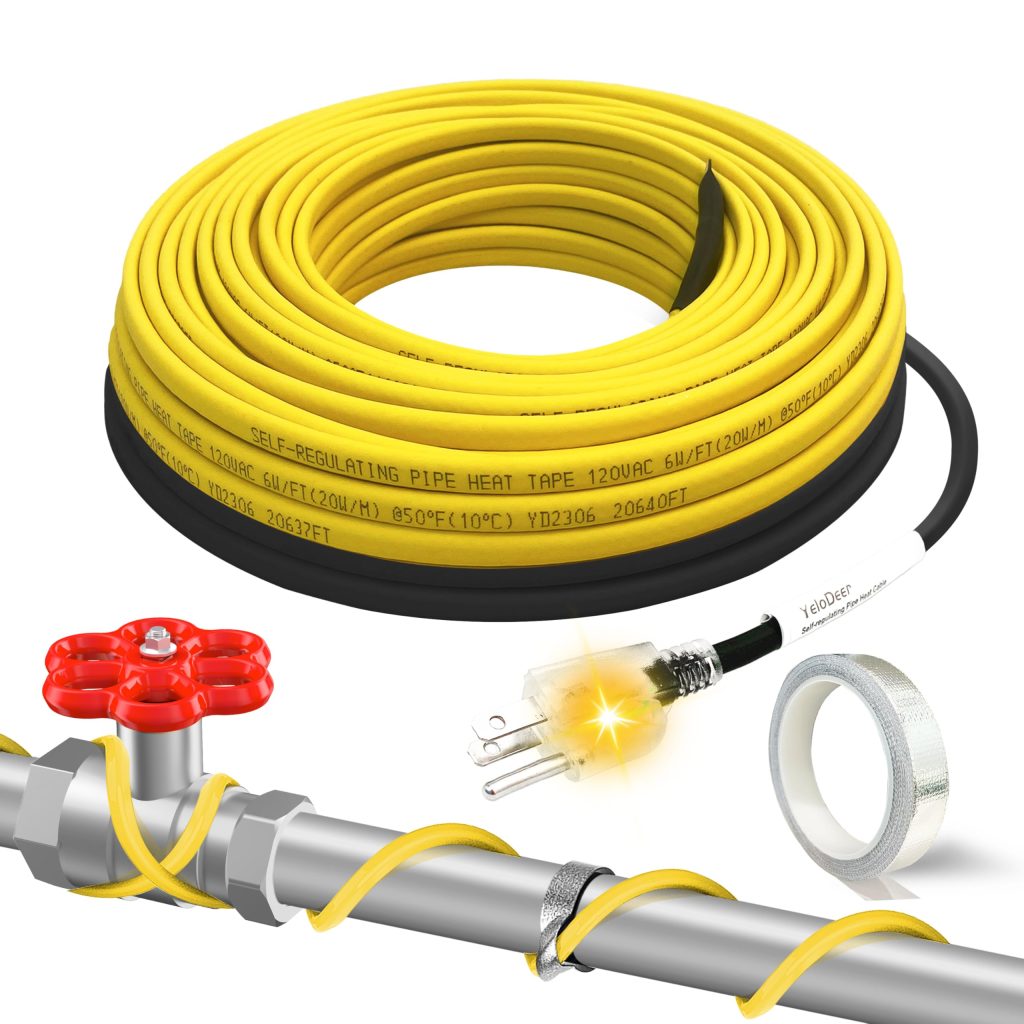

There is nothing quite as stressful as waking up to a silent faucet in the dead of winter, only to realize your pipes have frozen. For homeowners with exposed plumbing in basements, crawl spaces, or exterior walls, this is a recurring nightmare. The solution often lies in a simple yet critical component: heat cable for vertical water pipe used in plumbing.
Whether you are dealing with a stubborn riser in an unheated garage or a supply line running up the side of your house, understanding how to properly apply heat trace technology can save you thousands in repair costs. This guide breaks down everything you need to know, from selection to installation, ensuring your water flows freely even when temperatures plummet below zero.
Why Vertical Pipes Are at Higher Risk
Many homeowners assume that all pipes freeze at the same rate. However, physics tells a different story. Vertical pipes, particularly those running along exterior walls or in uninsulated shafts, are susceptible to a phenomenon known as the “chimney effect.” Cold air sinks, but it can also circulate rapidly around vertical structures, stripping away heat faster than horizontal lines buried in insulation.
According to data from the Insurance Information Institute, water damage and freezing claims average over $10,000 per incident. A significant portion of these claims involves pipes located in vulnerable vertical orientations where standard insulation alone fails to retain enough ambient heat.
The Role of Heat Trace Technology
Heat cables, technically known as electric heat tracing, are designed to compensate for this heat loss. Unlike space heaters that warm the air, heat cables apply thermal energy directly to the pipe surface. For vertical applications, the challenge isn’t just generating heat; it’s keeping the cable in place against gravity while ensuring even distribution.
Expert Insight: “The most common mistake we see in vertical installations is insufficient securing. If the cable sags, it creates cold spots where ice crystals can form, leading to blockages or bursts.” — Senior Plumbing Engineer, HVAC & Plumbing Journal.
How to Choose the Right Heat Cable for Vertical Pipes
Not all heat cables are created equal. Using the wrong type can lead to energy inefficiency or, worse, fire hazards. Here is what you need to look for.
1. Self-Regulating vs. Constant Wattage
| Feature | Self-Regulating Cable | Constant Wattage Cable |
|---|---|---|
| Heat Output | Adjusts automatically based on temperature. | Emits constant heat regardless of temp. |
| Safety | Can overlap without burning out. | Cannot overlap; risk of overheating. |
| Best For | Residential vertical pipes, varying climates. | Industrial use, long constant runs. |
| Cost | Higher upfront cost, lower energy bill. | Lower upfront cost, higher energy use. |
For most US homeowners, self-regulating heat cable is the superior choice for vertical water pipes. It senses the ambient temperature and increases power output only when it gets cold, making it energy-efficient and safer for DIY installation.
2. Voltage and Length
Ensure the voltage matches your home’s supply (typically 120V in the US). Measure the exact length of the vertical pipe. It is better to buy a kit slightly longer than needed (which can be trimmed for self-regulating types) than one that is too short. Never stretch the cable to make it fit.
3. Certification Matters
Always look for cables listed by UL (Underwriters Laboratories) or ETL. This certification ensures the product has been tested for safety standards in wet and damp locations. For more technical details on electrical heating elements, you can refer to the general principles outlined on Wikipedia’s page on Electric Heat Tracing.
Step-by-Step Installation Guide for Vertical Pipes
Installing heat cable on a vertical pipe requires precision. Follow these steps to ensure a safe and effective setup.
Tools You Will Need:
- Self-regulating heat cable kit
- Fiberglass pipe insulation (closed-cell foam is also acceptable)
- Electrical tape (high-quality, UV resistant if exposed)
- Aluminum foil tape
- Zip ties or specific cable mounting clips
- GFCI Outlet (Ground Fault Circuit Interrupter)
Step 1: Prepare the Pipe
Clean the pipe surface thoroughly. Remove any rust, dirt, or old insulation. The pipe must be dry. If the pipe is metal, ensure there are no sharp edges that could cut into the cable jacket.
Step 2: Determine the Routing Pattern
For vertical pipes, you have two main options:
- Straight Run: Running the cable vertically alongside the pipe. This is suitable for mild climates or well-insulated pipes.
- Spiral Wrap: Wrapping the cable around the pipe in a spiral. This provides more surface area contact and is recommended for extremely cold regions (below -10°F).
Recommendation: For most vertical residential pipes, a straight run secured tightly is sufficient if paired with high-quality insulation. If you choose to spiral, maintain a consistent pitch (e.g., one wrap every 6 inches).
Step 3: Secure the Cable
This is the most critical step for vertical applications. Gravity will pull the cable down over time if not secured properly.
- Start from the bottom and work your way up.
- Use aluminum foil tape to secure the cable to the pipe every 12–18 inches. Do not use standard duct tape, as it degrades quickly.
- Ensure the cable lies flat against the pipe. No air gaps should exist between the heater and the pipe surface.
Step 4: Install the End Seal and Power Connection
Follow the manufacturer’s instructions for the end seal kit. Moisture entering the end of the cable is the number one cause of failure. Ensure the seal is watertight. Plug the unit into a GFCI outlet to prevent electrical shock hazards in damp environments.
Step 5: Insulate Over the Cable
Once the cable is secured, cover the pipe and cable with fiberglass or foam insulation.
- Pro Tip: Use aluminum foil tape to seal the seams of the insulation. This reflects heat back toward the pipe and prevents moisture from entering the insulation matrix.
Common Mistakes to Avoid
Even experienced DIYers can stumble when dealing with vertical installations. Here are the pitfalls to watch out for:
- Overlapping the Cable: Unless you are using a specific self-regulating cable rated for overlapping, never let the cable cross over itself. This creates a hotspot that can melt the pipe or the cable jacket.
- Ignoring the Thermostat: Many kits come with a built-in thermostat. Ensure it is positioned correctly to sense the ambient air temperature, not the heat from the pipe itself.
- Using Incompatible Insulation: Some foam insulations contain chemicals that can degrade the cable jacket over time. Check the cable manufacturer’s compatibility list.
- Skipping the GFCI: Water and electricity are a dangerous mix. Always use a GFCI protected outlet. If your outlet isn’t GFCI, install a portable GFCI adapter.
Maintenance and Safety Checks
Installation is not a “set it and forget it” task. To ensure longevity:
- Visual Inspection: Every autumn, check the visible parts of the cable for signs of wear, rodent damage, or sagging.
- Test Run: Before the first hard freeze, plug in the cable and feel the pipe after 30 minutes. It should be warm to the touch.
- Check Insulation: Ensure the outer insulation hasn’t been displaced by pests or weather.
FAQ Section
Q1: Can I leave the heat cable on all winter?
A: Yes, most modern self-regulating heat cables are designed to be left on throughout the season. They automatically adjust their energy usage based on the temperature, so they won’t overheat or waste excessive electricity.
Q2: How much electricity does a heat cable use?
A: A typical self-regulating cable uses between 3 to 5 watts per foot when active. For a 10-foot vertical pipe, this amounts to roughly 30–50 watts. Over a month, this might cost between $5–$10, depending on local electricity rates and how often the cable cycles on.
Q3: Can I cut the heat cable to fit my vertical pipe?
A: Only if it is a self-regulating cable specifically marked as “cuttable.” Constant wattage cables cannot be cut. If you cut a self-regulating cable, you must install a proper end-seal kit to prevent moisture ingress.
Q4: What happens if the power goes out?
A: If the power goes out, the cable stops producing heat. This is why proper insulation is critical. The insulation slows down the freezing process, giving you a buffer time to restore power or drain the pipes if necessary.
Q5: Is heat cable safe for PVC pipes?
A: Yes, but you must be careful. PVC has a lower melting point than copper. Use a self-regulating cable and ensure it is properly controlled by a thermostat. Never use constant wattage cable on PVC unless strictly monitored, as it can deform the plastic.
Q6: Can I install heat cable on a pipe that is already frozen?
A: You can, but proceed with caution. Turn the cable on and allow it to thaw slowly. Do not use high heat settings if available. Keep the faucet open to allow water to flow as it melts, relieving pressure. If the pipe is bulging, do not turn on the heat; call a plumber immediately.
Conclusion
Protecting your home from the dangers of frozen pipes doesn’t have to be complicated. By selecting the right heat cable for vertical water pipe used in plumbing and following proper installation techniques, you create a robust defense against winter’s bite. Remember, the key to success lies in the details: secure mounting, proper insulation, and regular maintenance.
Don’t wait for the first freeze to act. Take proactive steps today to safeguard your plumbing infrastructure. If you found this guide helpful, please share it with your neighbors or on social media to help others keep their homes warm and dry this winter.
