Pre-1970 House Plumbing: Where Do Lines Go?

Owning a charming mid-century home or a vintage property built before 1970 comes with unique character, but it also brings hidden challenges. One of the most critical yet invisible systems is your plumbing, and knowing exactly where do plumbing lines go in these older structures is essential for any renovation or repair project. Unlike modern homes with standardized PVC layouts, pre-1970 houses often feature complex, non-standard routing using materials that are no longer code-compliant.

Understanding the anatomy of your home’s water and waste systems can save you from costly mistakes, such as accidentally drilling into a cast iron stack or misidentifying a supply line. This guide will walk you through the typical pathways of plumbing in older American homes, helping you navigate repairs with confidence and safety.

The Hidden Anatomy: Typical Plumbing Paths in Older Homes

In homes constructed prior to 1970, plumbing installation was less about uniformity and more about practicality based on the architectural style of the era. To understand where the lines go, you must first visualize the two distinct systems at play: the water supply system (bringing fresh water in) and the drain-waste-vent (DWV) system (taking waste out).

Water Supply Lines: The “Small” Pipes

Water supply lines are typically smaller in diameter (usually ½ inch to ¾ inch) and are under pressure. In pre-1970 homes, these lines generally follow a path of least resistance from the main shut-off valve to your fixtures.

• Basement/Crawlspace Origins: In most regions of the US, the main water line enters through the foundation wall, usually near the front of the house where the street connection is located. From there, it rises vertically to feed the kitchen and bathrooms.
• Wall Cavities: Supply lines run vertically inside wall studs. In older homes, you might find them running along the exterior walls to avoid freezing, though this practice varied by climate.
• Under Slabs: If your home has a slab-on-grade foundation (common in warmer states like California, Texas, and Florida), supply lines are often buried directly under the concrete. This makes leak detection significantly harder compared to homes with basements.

Drain-Waste-Vent (DWV) Lines: The “Large” Pipes

Drain lines are larger (1.5 inches to 4 inches) and rely on gravity. They must slope downward toward the main sewer line.

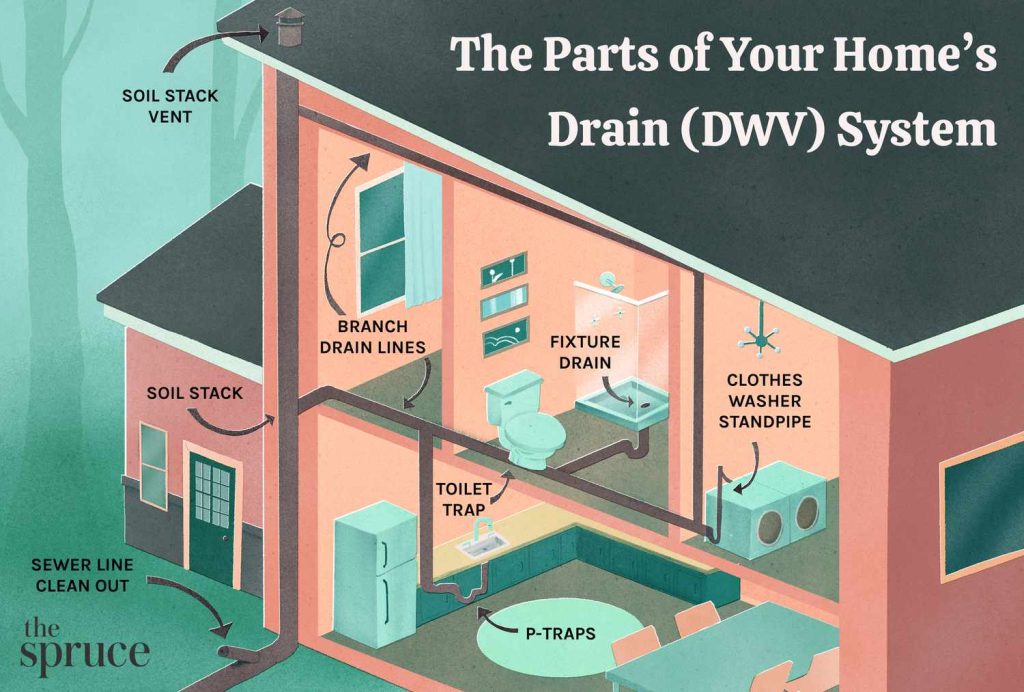

• The Main Stack: The central artery of your plumbing is the main soil stack. In pre-1970 homes, this is almost always located in a central bathroom or kitchen wall. It runs vertically from the basement or crawlspace, through the roof, acting as both a drain for toilets and a vent for the system.
• Horizontal Branches: These connect sinks, tubs, and showers to the main stack. In older homes, these often run through floor joists in the basement ceiling or are embedded within the floor structure itself.

Material Matters: Identifying What Your Pipes Are Made Of

Knowing where the pipes go is only half the battle; knowing what they are made of is equally critical for maintenance. Homes built before 1970 predominantly used three types of materials, each with specific failure points.

Note on Lead: If your home was built before 1986, there is a possibility that lead was used in service lines or solder. While less common in interior branch lines after the 1940s, it is a serious health hazard. For more detailed historical context on plumbing materials, you can refer to this Wikipedia overview on plumbing history.

People Also Ask: Specific Location Questions

1. Where is the main water shut-off valve in an old house?

In pre-1970 homes, the main shut-off is rarely in a convenient, labeled cabinet. You should check:

• The Basement: Look near the front foundation wall, about 12–18 inches from the floor. It may be a gate valve (wheel handle) or a globe valve.
• The Crawlspace: If you don’t have a basement, crawl under the house near the front entrance. Bring a flashlight; the valve is often near where the copper or galvanized pipe emerges from the ground.
• Outside: In some warmer climates, the shut-off may be in an underground box near the street meter, but there is usually a secondary valve inside the home.

2. How do I find hidden drain lines behind walls?

Finding hidden drains requires detective work. Since DWV lines rely on gravity, they are usually located directly below fixtures.

• Look Below: If you have a second-floor bathroom, the drain lines are likely running through the ceiling of the first-floor room directly beneath it.
• Listen: Run water in the sink or flush the toilet. Listen for the sound of rushing water in adjacent walls or ceilings.
• Inspect the Basement: Look up at the ceiling joists. You will see large cast iron or PVC pipes hanging down. Trace these upward to determine which wall they enter. That wall contains the vertical stack.

3. Are plumbing lines in the slab or in the walls?

This depends entirely on your foundation type.

• Basement/Crawlspace Homes: Most supply and drain lines are accessible in the ceiling of the basement or the floor of the crawlspace. They enter the walls only to reach fixtures.
• Slab-on-Grade Homes: Supply lines are buried under the concrete. Drain lines are also under the slab, encased in gravel or sand. Breaking a slab to repair a leak is a major construction project, so non-invasive leak detection is recommended first.

Step-by-Step: How to Map Your Home’s Plumbing

If you are planning a renovation, creating a simple map of your plumbing can prevent disasters. Follow these steps to trace your lines safely.

Step 1: Locate the Main Stack Go to your basement or crawlspace. Identify the largest vertical pipe (usually 3–4 inches in diameter). This is your main stack. Note which wall it passes through. This wall is a “no-drill zone” for electrical wiring or shelving anchors.

Step 2: Trace Horizontal Branches Look for smaller pipes (1.5–2 inches) connecting to the main stack. Follow them back to their source. For example, a 2-inch pipe running toward the front of the house likely serves the kitchen sink. Mark this path on a floor plan.

Step 3: Identify Supply Line Entry Points Find where the main water line enters the house. Trace the copper or galvanized pipe as it rises. It will typically split into branches. One branch usually goes to the water heater, while others go to cold water fixtures.

Step 4: Use a Stud Finder with AC/Metal Detection Modern stud finders can detect metal pipes behind drywall. Scan the walls around your identified paths. Note: This works best for copper supply lines, not plastic or cast iron drains.

Step 5: Verify with Professional Tools (Optional) For precise location, especially in slabs, professionals use acoustic listening devices or thermal imaging cameras. Thermal imaging can detect temperature differences caused by hot water lines or leaking cold lines behind walls.

Risks of Disturbing Old Plumbing

When working on a house built before 1970, caution is paramount. Here are the primary risks:

• Brittle Pipes: Galvanized steel and old cast iron become brittle with age. Even minor vibrations from drilling nearby can cause joints to crack or pipes to shatter.
• Lead Exposure: Drilling into walls or floors can disturb lead paint dust or lead solder residues. Always wear a N95 mask and use HEPA vacuum containment when cutting into old structures.
• Sewer Gas Leaks: If you accidentally puncture a vent line or drain, sewer gas (methane and hydrogen sulfide) can enter your home. This is a health hazard and smells like rotten eggs.

FAQ Section

Q: Can I replace galvanized pipes with PEX myself?

A: While DIY is possible, replacing galvanized pipes with PEX (cross-linked polyethylene) in an old home is complex. You must ensure proper transitions using dielectric unions to prevent corrosion between dissimilar metals. Given the age of the home, hiring a licensed plumber is recommended to ensure code compliance and prevent leaks.

Q: How deep are water lines under a slab foundation?

A: In slab-on-grade constructions, water lines are typically buried 12 to 24 inches below the concrete surface, often wrapped in foam insulation or sand. However, depth varies by local building codes and frost lines.

Q: Why is my water pressure low in my pre-1970 home?

A: Low pressure is a classic sign of corroded galvanized steel pipes. Over decades, mineral deposits and rust build up inside the pipe, narrowing the diameter and restricting flow. Replacing the supply lines with copper or PEX usually resolves this issue.

Q: Do old houses have vent stacks for every fixture?

A: Not necessarily. Older codes were less strict about venting. Some fixtures may share vents, or rely on “wet venting” (using a drain line as a vent). When renovating, you may need to add new vents to meet current International Plumbing Code (IPC) standards.

Q: How can I tell if my sewer line is cast iron or clay?

A: If you can access the main line in the basement, cast iron will be dark gray, heavy, and metallic. Clay tiles (common in very old homes pre-1950s) are orange-brown, lighter, and often have bell-shaped ends sealed with mortar or oakum. Clay is much more prone to root intrusion.

Conclusion

Understanding where do plumbing lines go in a house built before 1970 is the first step toward responsible homeownership. By identifying the main stacks, tracing supply lines, and recognizing the materials used—such as galvanized steel and cast iron—you can approach renovations with greater safety and efficiency. Remember, while DIY mapping is helpful, always consult a professional plumber for major repairs or replacements to ensure your home’s system meets modern safety standards.
