How Close To A Combustion Source Can Plumbing Be?

Installing pipes near furnaces, water heaters, or fireplaces is a common scenario in home renovation, but it raises a critical safety question: how close to a combustion source can plumbing be? Getting this distance wrong isn’t just a code violation; it poses a serious risk of pipe melting, water leaks, or even house fires.

In this guide, we will break down the exact clearance requirements mandated by US building codes, explain the science behind heat transfer, and provide actionable steps to ensure your plumbing system remains safe and compliant. Whether you are a DIY enthusiast or a homeowner verifying a contractor’s work, understanding these distances is essential for peace of mind.

Understanding the Risks: Why Distance Matters

Before diving into the specific numbers, it is crucial to understand why these regulations exist. Combustion sources—such as gas-fired water heaters, furnaces, boilers, and wood-burning stoves—generate intense heat. When plumbing lines (especially PEX or CPVC) are installed too close to these sources, several dangers arise:

1. Material Degradation: Plastic piping materials have maximum operating temperatures. Exceeding these limits, even indirectly through radiant heat, can cause the pipes to soften, warp, or burst.
2. Fire Hazard: If a pipe leaks due to heat damage, the water can short-circuit electrical components in the combustion appliance, potentially sparking a fire. Conversely, if the insulation on a gas line melts, it can lead to a gas leak.
3. Efficiency Loss: Improper placement can interfere with the airflow required for proper combustion, leading to inefficient appliance performance and increased carbon monoxide risks.

According to the National Fire Protection Association (NFPA), maintaining proper clearance is one of the most effective ways to prevent structure fires originating from heating equipment.

General Clearance Rules for Plumbing Near Combustion Appliances

The specific answer to “how close to a combustion source can plumbing be” depends largely on the type of piping material and the type of appliance. However, there are general industry standards that serve as a baseline for most US jurisdictions.

The 6-Inch Rule of Thumb

For most standard residential gas appliances (like water heaters and furnaces), a minimum clearance of 6 inches is typically recommended for combustible materials. While metal pipes (copper, galvanized steel) can withstand higher temperatures, plastic pipes require more protection.

Note: Always check the manufacturer’s installation manual for the specific appliance, as their requirements override general rules.

The Role of Insulation and Shielding

If space constraints prevent you from maintaining the ideal distance, you are not out of options. You can use heat shields or insulation to reduce the required clearance.

• Heat Shields: A sheet of metal (usually 24-gauge galvanized steel) placed between the combustion source and the plumbing can reflect radiant heat.
• Insulation: Wrapping pipes in high-temperature rated insulation (such as fiberglass or foam rated for HVAC use) protects the pipe integrity.

When using a listed heat shield, many codes allow you to reduce the clearance by up to 50%. For example, if the required clearance is 12 inches, a proper shield might allow you to install the pipe 6 inches away.

Specific Scenarios: Water Heaters, Furnaces, and Fireplaces

Different combustion sources emit heat differently. Here is how to handle the most common household scenarios.

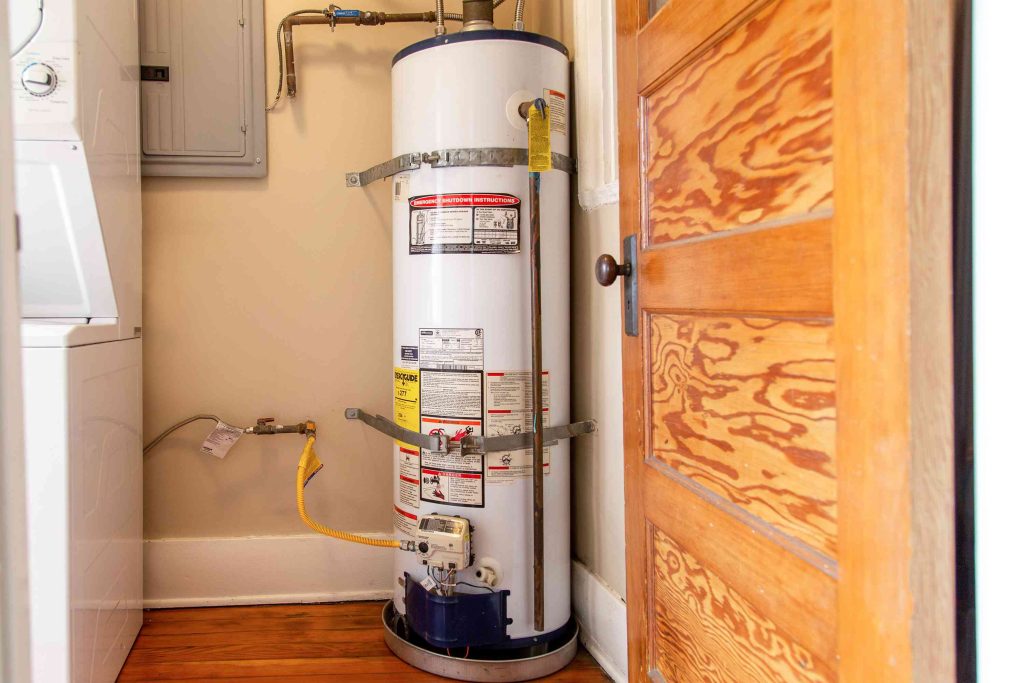

1. Gas Water Heaters

Water heaters are the most common combustion source found in utility closets or basements. The flue (exhaust pipe) at the top of the unit gets extremely hot.

• Clearance: Keep plumbing at least 6 inches away from the sides of the tank and 12 inches above the unit near the flue.
• Cold Water Inlet: Ensure the cold water inlet pipe does not touch the hot water outlet pipe or the burner access panel. Use spacers if necessary.
• TPR Valve Discharge: The Temperature and Pressure Relief (TPR) valve discharge pipe must not be obstructed by other plumbing or debris. It needs clear air flow to safely vent steam in an emergency.

2. Furnaces and Boilers

Furnaces generate heat through a heat exchanger and blow it through ducts. The cabinet itself can get warm, but the exhaust flue is the primary concern.

• Plastic Pipes: Keep PEX or PVC at least 12 inches away from the furnace flue pipe. The flue can reach temperatures exceeding 300°F.
• Metal Pipes: Copper or steel pipes can be closer (3–6 inches) but should still be insulated to prevent condensation issues or heat gain in cold water lines.

3. Wood-Burning Fireplaces and Stoves

These sources produce intense radiant heat and require the strictest clearances.

• Masonry Chimneys: Keep plumbing at least 1 inch away from the exterior of a masonry chimney, but ensure there is an air gap.
• Factory-Built Chimneys: Follow the manufacturer’s label, typically requiring 2 inches of clearance.
• Stovepipes: Single-wall stovepipes require a massive clearance, often 18 inches or more, from any combustible material, including plumbing. Double-wall or insulated pipes reduce this requirement significantly.

For more detailed technical definitions on combustion air and venting, you can refer to the general engineering principles outlined on Wikipedia’s page on Combustion.

Step-by-Step Guide to Safe Installation

If you are installing new plumbing near a combustion source, follow these steps to ensure compliance and safety.

1. Identify the Heat Source: Determine the maximum surface temperature of the appliance and its exhaust flue. Check the appliance’s installation manual for “Clearance to Combustibles.”
2. Measure the Distance: Use a tape measure to determine the distance from the hottest part of the appliance (usually the flue or burner door) to the proposed pipe location.
3. Select the Right Pipe:
   • Use Copper or CPVC for hot water lines near heat sources.
   • Avoid PVC for drain lines directly under high-heat flues unless heavily shielded.
4. Install Heat Shields (If Needed): If you cannot meet the minimum clearance, install a non-combustible heat shield. Secure it firmly with stand-offs to create an air gap between the shield and the wall/pipe.
5. Insulate the Pipes: Wrap the plumbing with high-temperature insulation sleeves. This protects the pipe from radiant heat and prevents condensation on cold water lines.
6. Secure the Pipes: Use metal hangers or straps that are rated for high temperatures. Avoid plastic clips near the heat source, as they can melt and cause the pipe to sag or detach.
7. Final Inspection: Before closing up walls, verify that no part of the plumbing touches the appliance or its venting system. There should be visible air gaps around all connections.

FAQ: Common Questions About Plumbing and Combustion Sources

1. Can PEX pipe touch a water heater?

No. PEX pipe should never directly touch the water heater cabinet or the flue. PEX has a maximum operating temperature of around 180°F (82°C). Direct contact with a hot surface can cause the pipe to degrade, weaken, and eventually fail. Maintain at least a 6-inch gap or use a heat shield.

2. What is the clearance for PVC drain pipes near a furnace?

PVC is highly sensitive to heat. It begins to soften at approximately 140°F (60°C). You should keep PVC drain lines at least 12 to 18 inches away from furnace flues or high-heat zones. If this is not possible, you must install a rigid metal heat shield between the flue and the PVC pipe.

3. Does insulating the pipe reduce the required clearance?

Yes, but with caveats. Insulating the plumbing pipe protects the water inside and the pipe material, but it does not necessarily reduce the clearance required for the combustion source. To reduce clearance, you typically need to install a heat shield on the combustion appliance side or use a listed protective barrier. Always consult local codes before assuming insulation allows for closer placement.

4. Can I run gas lines near a fireplace?

Gas lines (black iron or CSST) can be run near fireplaces, but they must be protected from physical damage and excessive heat. Keep gas lines at least 6 inches away from the firebox opening. If running near a chimney, maintain the required clearance for combustibles (usually 1–2 inches for masonry, more for metal chimneys). Never embed gas lines directly into a chimney structure.

5. What happens if plumbing is too close to a combustion source?

If plumbing is too close, the heat can cause plastic pipes to melt or burst, leading to water damage. In worse cases, if a gas line’s coating melts or a water leak shorts out the appliance’s controls, it can lead to a gas leak, carbon monoxide buildup, or an electrical fire. It is a significant safety hazard that violates building codes.

6. Are there different rules for electric water heaters?

Electric water heaters do not have combustion sources, so they do not produce exhaust gases or flames. However, they still generate heat. The clearance requirements are generally less strict, primarily focusing on access for maintenance rather than fire safety. Still, keep plumbing a few inches away to allow for air circulation and easy servicing.

Conclusion

Knowing how close to a combustion source can plumbing be is a vital aspect of home safety and regulatory compliance. While general rules suggest a 6-to-12-inch clearance, the exact distance depends on your pipe material, the type of appliance, and local building codes.

By respecting these distances, using heat shields when necessary, and choosing the right materials, you protect your home from fire hazards and costly water damage. Remember, when in doubt, always consult the appliance manufacturer’s manual and adhere to the International Residential Code (IRC) or your local jurisdiction’s amendments.
