How to Put Plumbing in House SketchUp: A Pro Guide

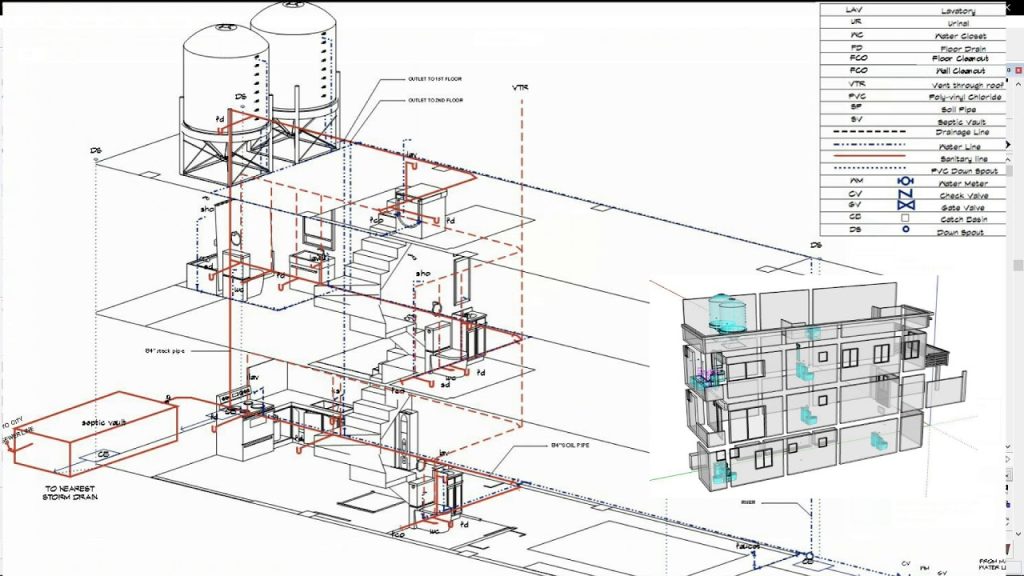

Designing a home is exciting, but hiding the complex network of pipes behind your walls can feel overwhelming. Many DIY enthusiasts and junior architects struggle with visualizing where water lines and drains actually go in a 3D space. If you are wondering how to put plumbing in house SketchUp, you are not alone; it requires a blend of artistic visualization and technical precision.

This guide breaks down the process into manageable steps. We will move beyond simple boxes and show you how to create a functional, visually accurate plumbing system that respects real-world constraints. Whether you are planning a renovation or building from scratch, mastering this skill will save you from costly mistakes during construction.

Why Visualize Plumbing in 3D?

Before diving into the tools, it is crucial to understand why we model plumbing in SketchUp. It is not just about making pretty pictures for clients. It is about clash detection and spatial awareness.

According to industry standards, mechanical, electrical, and plumbing (MEP) conflicts are among the top causes of construction delays. By modeling your plumbing in SketchUp, you can identify if a drain pipe conflicts with a floor joist or if a vent stack interferes with a window header before a single hammer is swung.

Pro Tip: Always model to scale. A pipe that looks fine in a vague sketch might be impossible to install in reality if it doesn’t account for the physical diameter of the fittings.

Step 1: Preparing Your Architectural Model

You cannot plumb a house that isn’t structurally defined. Before drawing a single pipe, ensure your architectural model is “clean.”

Clean Up Your Geometry

• Group Everything: Ensure walls, floors, and ceilings are separate groups or components. This prevents your plumbing lines from merging with the wall geometry, which makes editing a nightmare.
• Define Wall Thickness: Standard US interior walls are typically 2×4 studs with drywall, totaling about 4.5 to 5 inches. Exterior walls are often 2x6s. Know these dimensions, as your pipes must fit inside them.
• Create Layers (Tags): Use SketchUp Tags (formerly Layers) to organize your model. Create tags for Walls, Floor-Joists, Plumbing-Supply, and Plumbing-Drain. This allows you to hide architecture when you need to focus solely on the pipes.

Step 2: Choosing the Right Tools

While you can draw plumbing using the basic Line and Circle tools, it is inefficient and prone to error. For professional results, you need the right extensions.

Native Tools vs. Extensions

For beginners, we recommend starting with Profile Builder or Pipe Maker (available in the Extension Warehouse). For advanced users, plugins like Curic Duct or MEP plugins offer automated routing.

Note: If you are using SketchUp Free (Web), your options are limited to native tools. In this case, use the “Follow Me” tool extensively to create consistent pipe diameters.

Step 3: Understanding Plumbing Basics for Modeling

To model correctly, you must understand the two distinct systems in residential plumbing: Supply and Drain-Waste-Vent (DWV).

The Supply System (Pressurized)

These pipes carry fresh water to fixtures. They are small (usually 1/2″ or 3/4″ copper or PEX) and can run horizontally or vertically without gravity concerns.

• Modeling Tip: Use red lines/components for Hot Water and blue for Cold Water. This visual cue helps prevent confusion during review.

The DWV System (Gravity-Based)

These pipes carry waste away. They are larger (1.5″ to 4″) and must slope downward.

• The Golden Rule: Drain pipes require a slope of 1/4 inch per foot (approx. 2% grade). If you model a horizontal drain pipe perfectly flat, it is technically incorrect and will cause clogs in real life.

For more detailed engineering standards on pipe materials and sizing, refer to the Uniform Plumbing Code overview on Wikipedia, which provides a global context for regulatory standards.

Step 4: Drawing the Pipes – A Step-by-Step Tutorial

Let’s walk through how to model a simple sink drain using native tools and the Follow Me technique.

1. Set Your Component

Create a component for your pipe. Let’s say we are modeling a 1.5-inch PVC drain pipe.

• Draw a circle with a 1.5-inch diameter on the ground plane.
• Push/Pull it slightly to make it a 3D cylinder.
• Right-click and select Make Component. Name it “PVC_1.5_inch”.

2. Establish the Path

• Switch to a side view (Camera > Standard Views > Right).
• Use the Line Tool to draw the path of the pipe.
• Crucial Step: Ensure the line slopes downward. If the sink is 10 feet away from the main stack, the end of your line should be 2.5 inches lower than the start (10 ft x 0.25 inches).

3. Apply the Profile

• Select the circular face of your “PVC_1.5_inch” component.
• Select the Follow Me tool.
• Click on the path line you drew. SketchUp will extrude the pipe along the path, maintaining the correct slope.

4. Adding Fittings (Elbows and Tees)

Native SketchUp does not auto-generate elbows. You have two options:

• Manual Modeling: Draw an elbow using the Arc tool and Push/Pull, then rotate it into place.
• Component Library: Download pre-made 90-degree and 45-degree elbow components from the 3D Warehouse. Search for “PVC 1.5 inch elbow.” Place these at every turn in your pipeline.

Step 5: Routing Through Walls and Floors

This is where most beginners fail. Pipes do not float in mid-air; they pass through structural elements.

Drilling Holes in Joists

If you are running a supply line across a basement ceiling:

1. Model your floor joists explicitly.
2. Use the Circle Tool to draw the hole location on the side of the joist.
3. Use Push/Pull to cut the hole all the way through the joist.
4. Constraint Check: According to building codes, you generally cannot drill a hole larger than one-third the depth of the joist, and it must be in the center third of the span. Model this accurately to ensure your design is buildable.

Vent Stacks

Vent pipes must go straight up through the roof.

1. Locate your toilet or sink drain.
2. Draw a vertical line straight up from the fixture trap.
3. Extrude a 2-inch or 3-inch pipe upwards.
4. Use the Intersect Faces tool to cut the hole in the roof layers where the vent penetrates.

Common Mistakes to Avoid

• Ignoring Clearance: Pipes need room for insulation and drywall. Do not model a pipe touching the edge of a stud; leave at least 1 inch of clearance.
• Forgetting the Trap: Every fixture needs a P-trap. Model this U-shaped bend under every sink and tub. It holds water to block sewer gases.
• Inconsistent Diameters: Ensure your supply lines narrow down correctly. Main lines might be 3/4″, but branch lines to sinks are usually 1/2″.

FAQ Section

Q1: Can I use SketchUp Free for plumbing design?

Yes, but it is limited. You can draw pipes using the Line and Follow Me tools, but you won’t have access to advanced plugins that automate slope calculations or generate bill of materials. It is suitable for visual concepts but not for construction documentation.

Q2: What is the standard slope for a drain pipe in SketchUp?

You should model a slope of 1/4 inch per foot for pipes up to 3 inches in diameter. For larger pipes (4 inches and above), the slope can be reduced to 1/8 inch per foot. Always verify local codes, but this is the general US standard.

Q3: How do I show hidden pipes inside walls?

Use SketchUp’s Section Plane tool. Cut a section through the wall to reveal the interior. Alternatively, change the style of your wall group to “X-ray” mode temporarily, or simply hide the wall group via the Tags panel to see the plumbing behind it.

Q4: Should I model PEX or Copper pipes?

Visually, they look similar in a 3D model. However, PEX is flexible and can curve, while Copper is rigid and requires elbows for every turn. If you are modeling PEX, you can use smoother arcs. If modeling Copper, use sharp 90-degree angles with distinct elbow fittings.

Q5: Is there a plugin that automatically routes plumbing?

Yes, plugins like Curic Duct, Pipe Maker, or Quantum Plugin offer semi-automated routing. Some allow you to click two points, and the software generates the pipe with appropriate fittings and slope. These are highly recommended for professional workflows.

Conclusion

Learning how to put plumbing in house SketchUp transforms your models from simple shells into intelligent, buildable designs. By respecting the physics of gravity-driven drains, organizing your tags, and utilizing the right extensions, you can create plumbing layouts that are both aesthetically pleasing and technically sound.

Remember, the goal is not just to draw lines, but to simulate reality. Take the time to model the slopes, the traps, and the penetrations correctly. Your future self—and your contractor—will thank you.
