Have you ever heard that dreaded “gurgling” sound from your sink after flushing the toilet? It’s more than just an annoying noise; it’s a sign that your plumbing system is struggling to breathe. For many homeowners and DIY enthusiasts, understanding how does a DSU air vent work in plumbing is the key to solving these pressure issues without tearing up walls for traditional roof vents.
In this guide, we will break down the mechanics of the Dual Stack Unit (DSU) or similar dual-function air admittance devices. We will explore why they are critical for modern plumbing, how they maintain sanitary conditions, and what code compliance looks like in the United States. Whether you are renovating a bathroom or just curious about your home’s infrastructure, this article provides the clarity you need.
What Is a DSU Air Vent?
Before diving into the mechanics, we must define what a DSU actually is. In the plumbing industry, “DSU” often refers to a Dual Stack Unit or a specialized Air Admittance Valve (AAV) configuration designed to handle both positive and negative pressure scenarios in complex piping systems.
Unlike a traditional vent that sticks out of your roof, a DSU air vent is a mechanical device installed within the drainage system. Its primary job is to allow air to enter the plumbing system when negative pressure occurs (preventing water trap siphonage) and, in some advanced models, to release positive pressure if necessary.
The Core Problem: Pressure Imbalance
Water flowing down a drain creates a vacuum behind it. If this vacuum isn’t equalized by incoming air, it will suck the water out of your P-traps (the U-shaped pipe under your sink). Once that water seal is gone, sewer gases can enter your home. A DSU vent acts as a one-way valve that opens to let air in, breaking the vacuum instantly.
How Does A DSU Air Vent Work In Plumbing?
To understand how does a DSU air vent work in plumbing, we need to look at the physics of fluid dynamics. The operation relies on a simple yet effective mechanical response to pressure changes.
1. The Idle State (Closed Position)
When no water is flowing through your drains, the DSU vent remains closed. This is crucial because it prevents sewer gases from escaping into your living space. A spring-loaded mechanism or a gravity-based diaphragm keeps the valve sealed tight against the atmosphere.
2. Negative Pressure Event (The Vacuum)
When you flush a toilet or drain a bathtub, water rushes down the vertical stack. This rapid movement creates a zone of negative pressure (a partial vacuum) behind the water column.
- The Reaction: The pressure difference between the inside of the pipe (low pressure) and the outside air (higher atmospheric pressure) pushes the DSU’s diaphragm open.
- The Result: Air is drawn into the plumbing system through the vent. This air fills the vacuum, allowing wastewater to flow freely without pulling water out of nearby fixture traps.
3. Positive Pressure Event (The Blowback)
In some complex multi-story buildings, waste falling from upper floors can compress air in lower sections, creating positive pressure.
- The Reaction: Standard AAVs only let air in. However, a true Dual Stack Unit (DSU) or a specialized venting assembly may include provisions to handle this back-pressure, often by directing it back into the main vent stack or utilizing a separate relief path.
- Note: Most residential “DSU” style devices found in hardware stores are primarily AAVs focused on negative pressure. Always check the manufacturer’s specifications for positive pressure handling.
4. Return to Idle
Once the water has passed and the pressure equalizes, the spring or gravity mechanism snaps the valve shut again. The cycle is complete, and your home remains sealed from odors.
Expert Insight: According to fundamental principles of plumbing engineering, venting is not about removing waste; it is about maintaining atmospheric pressure within the drainage system. Without proper venting, gravity cannot do its job efficiently.
For a deeper understanding of historical venting methods and standard definitions, you can refer to the general overview of plumbing vents on Wikipedia.
DSU Air Vent vs. Traditional Roof Vent
Many homeowners ask if a DSU is a suitable replacement for traditional venting. Here is a comparison to help you decide.
| Feature | Traditional Roof Vent | DSU / Air Admittance Valve |
|---|---|---|
| Installation Complexity | High (requires roof penetration) | Low (installed under sink or in wall) |
| Maintenance | Low (prone to leaf/debris clogs) | Medium (mechanical parts can fail) |
| Cost | Higher (labor intensive) | Lower (DIY friendly) |
| Lifespan | Indefinite (no moving parts) | 10–20 years (depends on usage) |
| Code Acceptance | Universally Accepted | Accepted with restrictions (IPC/UPC) |
When to Use a DSU
- Remodels: When adding a bathroom far from the main stack.

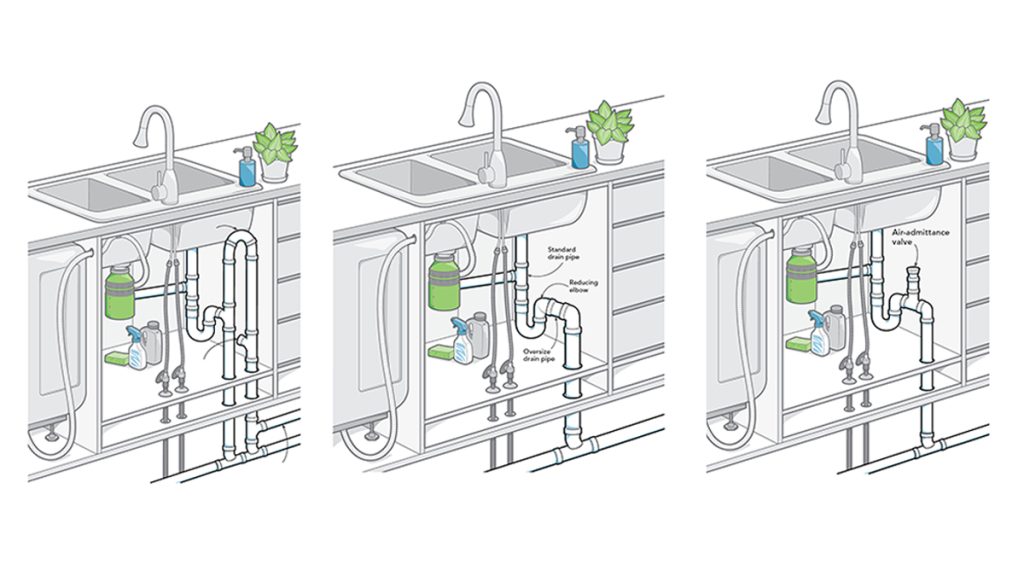

- Island Sinks: Where running a vent up through cabinets is aesthetically pleasingly difficult.
- Cold Climates: To prevent ice blockages in roof vents.
Step-by-Step: Installing a DSU Air Vent
If you are planning to install a DSU or AAV, follow these general guidelines. Note: Always check your local plumbing codes, as regulations vary by state and municipality in the US.
- Identify the Location: Choose a point on the drain line that is at least 4 inches above the horizontal branch drain. This prevents wastewater from splashing into the valve.
- Access the Pipe: Cut into the vertical drain pipe or use a sanitary tee fitting if installing during new construction.
- Prepare the Connection: Ensure the pipe is clean and dry. Use the appropriate adapter (usually ABS or PVC) compatible with your existing plumbing.
- Install the DSU: Screw or glue the DSU unit onto the vertical rise. Ensure it is oriented vertically (most units must be installed within 15 degrees of vertical).
- Secure and Seal: Tighten all connections. If using solvent cement, allow it to cure for the time specified by the manufacturer (usually 2–24 hours).
- Test the System: Run water through the fixture. Listen for gurgling. If the drain flows smoothly and no odors are present, the installation is successful.
Pro Tip: Never install an AAV or DSU in a location where it will be submerged in water or exposed to freezing temperatures without insulation.
Common Issues and Troubleshooting
Even the best-engineered systems can face issues. Here is what to watch out for:
- Valve Sticking Open: If debris gets caught in the diaphragm, the valve may stay open, allowing sewer gas to escape. Solution: Replace the unit; they are generally not repairable.
- Slow Draining: If the DSU is installed too low (below the flood level rim of the fixture), it can cause backflow issues. Solution: Raise the vent height.
- Code Violations: Some older local codes do not permit AAVs. Solution: Check with your local building department before starting work.
FAQ Section
1. Is a DSU air vent legal in the US?
Yes, but with conditions. The International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC) both recognize Air Admittance Valves (AAVs) and specific venting assemblies. However, they typically require that at least one traditional vent stacks through the roof to vent the entire building. Always verify with your local jurisdiction.
2. How long does a DSU air vent last?
A high-quality DSU or AAV is rated for approximately 500,000 cycles. For an average household, this translates to roughly 10 to 20 years of service. If you notice odors or gurgling after a decade, it may be time to replace the unit.
3. Can I use a DSU vent for a toilet?
Generally, no. Toiles require significant venting capacity due to the large volume of water discharged. Most codes require a traditional vent for water closets. DSUs are better suited for sinks, lavatories, and floor drains.
4. Why is my DSU vent making a hissing sound?
A slight hiss indicates air is being drawn in, which is normal during drainage. However, a continuous hiss or a smell of sewage means the valve may be stuck open or failed. Inspect the unit for debris or consider replacement.
5. Does a DSU vent need maintenance?
Minimal maintenance is required. You should visually inspect the area for leaks annually. There are no filters to clean, but ensuring the area around the vent is dry and free of corrosive chemicals will extend its life.
6. Can I install a DSU vent horizontally?
Most manufacturers specify that AAVs and DSUs must be installed vertically (within 15 degrees). Installing them horizontally can cause the internal mechanism to malfunction, leading to leaks or failure to open/close properly.
Conclusion
Understanding how does a DSU air vent work in plumbing empowers you to make smarter decisions about your home’s infrastructure. By allowing air to enter the system only when needed, these devices protect your health by keeping sewer gases at bay and ensuring your drains flow efficiently.
While they are not a one-size-fits-all replacement for traditional roof vents, DSUs and AAVs offer incredible flexibility for remodels and complex layouts. Remember, proper installation and adherence to local codes are paramount.
