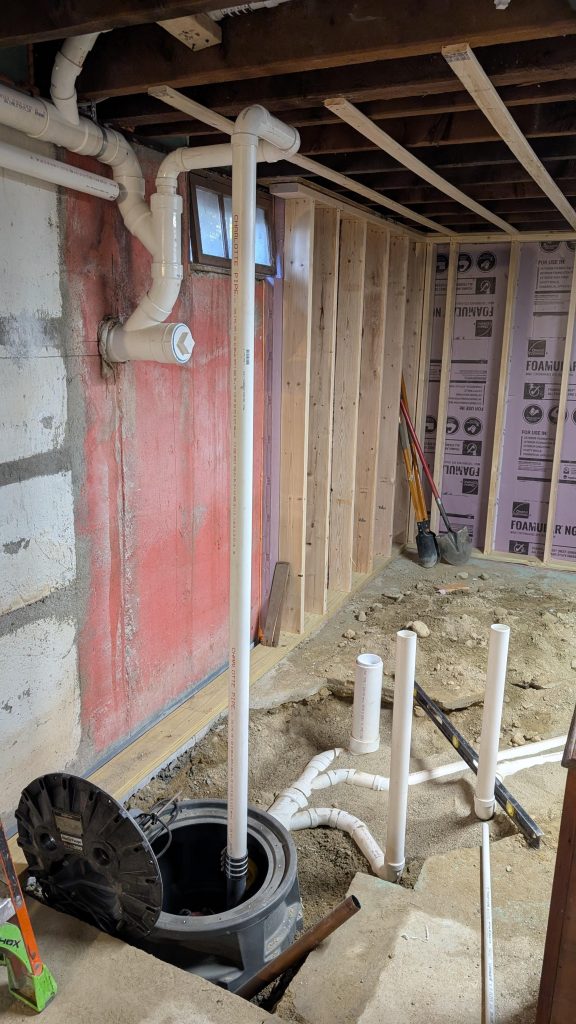

How Far Does Plumbing Need To Be Under Concrete?

Have you ever stared at a blueprint or a construction site, worrying that one wrong move could crack a pipe buried beneath tons of concrete? You are not alone. Many homeowners and DIY enthusiasts struggle with the critical question: how far does plumbing need to be under concrete to ensure safety, compliance, and longevity?

Getting this depth wrong can lead to catastrophic leaks, costly slab repairs, and even structural damage. In this guide, we will break down the exact measurements, code requirements, and best practices to keep your plumbing secure and your concrete solid. Let’s dive in.

The Golden Rule: Minimum Depth Requirements

When asking how far does plumbing need to be under concrete, the short answer varies slightly by location and pipe material, but there is a widely accepted industry standard.

For most residential applications in the United States, plumbing lines embedded in a concrete slab-on-grade should have a minimum cover of 2 to 4 inches. However, this is not a “one-size-fits-all” rule. The specific depth depends on whether the pipe is carrying water, waste, or gas, and the type of concrete being poured.

Why Depth Matters

The primary reason for maintaining a specific depth is protection. Concrete is heavy, and during the pouring and curing process, it exerts significant pressure. If a pipe is too shallow:

1. It may crack under the weight of the concrete or future foot traffic.
2. It becomes vulnerable to temperature fluctuations, leading to condensation or freezing.
3. It risks being punctured by nails or screws if flooring is installed later.

Conversely, if a pipe is buried too deep without proper bedding, it may shift or settle unevenly, causing joint failures.

Code Compliance: What Do the Experts Say?

To build authority and ensure safety, we must look at the governing bodies. In the US, the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC) are the primary references. While local amendments always take precedence, these codes provide the baseline.

IPC and UPC Guidelines

According to general interpretations of these codes:

• Water Supply Lines: Must be protected from physical damage. A minimum of 2 inches of concrete cover is typically required for pipes up to 1 inch in diameter. For larger pipes, 4 inches is often recommended.
• Drain-Waste-Vent (DWV) Lines: These are usually larger and more rigid. They require adequate bedding and often a deeper placement to maintain proper slope (gradient). A minimum of 4 inches of cover is standard to prevent crushing.
• Gas Lines: These have stricter regulations due to safety hazards. They often require a minimum of 6 inches of cover when under concrete, along with specific tracer tape installation.

Expert Note: Always check with your local building department. Cities like Chicago, New York, or Los Angeles may have stricter amendments than the national model codes.

For a broader understanding of building standards and historical context on infrastructure safety, you can refer to Wikipedia’s article on Building Codes, which outlines how these regulations evolved to protect public health and safety.

Material Matters: PEX vs. Copper vs. PVC

The material of your pipe significantly influences how far does plumbing need to be under concrete. Not all pipes react to stress and temperature the same way.

Why PEX is Often Preferred for Slabs

In modern US construction, PEX tubing has become the go-to choice for under-slab plumbing. Why?

• Flexibility: It can expand and contract with temperature changes without cracking.
• Fewer Joints: Long runs can be made with a single continuous piece, reducing leak points.
• Cost-Effective: Generally cheaper than copper and easier to install.

However, even with PEX, you must adhere to the 2-inch minimum rule. Never lay PEX directly on the gravel subbase without protection.

Step-by-Step: How to Install Plumbing Under Concrete

If you are managing a project or hiring a contractor, here is the correct workflow to ensure your plumbing is placed at the right depth.

Step 1: Prepare the Subgrade

Ensure the ground below the slab is compacted and level. Lay down a vapor barrier (usually 6-mil polyethylene sheeting) to prevent moisture from wicking up into the concrete.

Step 2: Install Bedding Material

Do not place pipes directly on sharp rocks or the vapor barrier.

• Use sand or fine gravel as a bedding layer.
• Create a trench or bed that is at least 2 inches deep for smaller pipes and 4 inches for larger DWV lines.
• This bedding cushions the pipe and distributes the load.

Step 3: Lay the Pipes

Place your plumbing lines into the bedding.

• Ensure proper slope for drain lines (typically 1/4 inch per foot).
• Secure water lines to prevent floating during the pour.
• Leave enough slack for expansion, especially with PEX.

Step 4: Pressure Test Before Pouring

This is critical. Pressurize water lines to 100 PSI (or as per local code) and leave them pressurized during the concrete pour. If a leak occurs, you will know immediately because the pressure will drop.

Step 5: Cover and Pour

Cover the pipes with another layer of sand or fine concrete mix to reach the required depth.

• For a 4-inch slab, pipes should ideally sit in the lower third of the slab, not the very bottom.
• Pour the concrete carefully. Avoid dropping heavy chunks of concrete directly onto the pipes.

Common Mistakes to Avoid

Even professionals can make errors. Here are the most frequent issues related to plumbing depth:

1. Ignoring Insulation: In colder US states (like Minnesota or Maine), pipes under slabs near the edges can freeze. Use foam board insulation around the perimeter of the slab.
2. Poor Bedding: Placing PVC directly on jagged gravel is a recipe for cracks. Always use sand.
3. No Tracer Tape: For gas lines and sometimes water lines, installing a metallic tracer tape above the pipe helps locate it later if repairs are needed.
4. Violating the “One-Pipe-Per-Trench” Rule: Do not stack pipes on top of each other. This creates weak points in the concrete and increases the risk of crushing the bottom pipe.

FAQ Section

1. Can I run plumbing on top of the concrete slab instead of under it?

Yes, this is called “surface-mounted” or “chase-installed” plumbing. It is easier to repair but less aesthetically pleasing. It is common in renovations where breaking the slab is too costly. However, for new construction, under-slab is preferred for cleanliness and space efficiency.

2. What happens if my plumbing is too shallow under the concrete?

If plumbing is less than 2 inches under the surface, it risks cracking from surface loads (like furniture legs or foot traffic). It may also cause the concrete above it to crack due to thermal expansion of the pipe.

3. Do I need to insulate water pipes under a concrete slab?

In most moderate climates, no. The earth and concrete provide natural insulation. However, in freeze-prone areas, or for hot water lines to improve energy efficiency, insulation sleeves are recommended.

4. How deep should sewer lines be under a driveway concrete?

Driveways bear heavier loads than interior slabs. Sewer lines under driveways should be at least 12 to 18 inches deep, often encased in a protective sleeve or surrounded by concrete encasement, depending on local codes.

5. Can I repair a leaking pipe under concrete without breaking the whole slab?

Yes. Technologies like epoxy pipe lining or pipe bursting allow repairs with minimal excavation. However, locating the leak precisely requires professional equipment like acoustic listening devices or thermal imaging.

6. Is it code-compliant to have electrical and plumbing in the same slab?

Yes, but they must be separated. Electrical conduits and plumbing pipes should not touch. Maintain at least 12 inches of horizontal separation where possible, and never run them in the same vertical plane to avoid water contacting electricity if a leak occurs.

Conclusion

Understanding how far does plumbing need to be under concrete is not just about following rules—it’s about protecting your home’s infrastructure. By maintaining a minimum depth of 2 to 4 inches, using proper bedding materials, and adhering to local IPC or UPC codes, you ensure a durable, leak-free system.

Remember, the cost of doing it right the first time is far less than the cost of jackhammering through your floor five years later. Whether you are using flexible PEX or rigid PVC, respect the depth, test your lines, and pour with care.
