How Hard Is It To Plumb In A Dishwasher?

Are you staring at a new dishwasher box, wondering if you need to call a professional plumber or if you can handle the job yourself? You are not alone; many homeowners hesitate at the thought of connecting water lines and drainage hoses under the sink. Understanding how hard is it to plumb in a dishwasher is the first step toward saving hundreds of dollars in labor costs and gaining confidence in your home maintenance skills.

The short answer is: for most standard kitchen setups, it is moderately easy. If you have basic handyman skills and the right tools, you can likely complete the installation in under two hours. However, the complexity depends heavily on your existing plumbing configuration. This guide will walk you through everything you need to know, from safety precautions to the final test run, ensuring a leak-free and efficient installation.

Assessing the Difficulty: What Makes It Easy or Hard?

Before you pick up a wrench, it is crucial to evaluate your specific situation. The difficulty of plumbing in a dishwasher generally falls into three categories:

1. Easy (DIY Friendly): You have an existing dishwasher connection under the sink, or your sink drain has a dedicated inlet port for a dishwasher hose.
2. Moderate (Intermediate DIY): You need to install a new “Y” branch tailpiece or an air gap device, but no major pipe cutting is required.
3. Hard (Professional Recommended): You need to run new water lines from a distant source, cut into existing copper or PEX pipes, or modify cabinetry significantly.

According to industry standards, most modern kitchens are pre-plumbed for dishwashers. If your home was built after the 1980s, there is a high probability that the necessary infrastructure is already in place. The primary challenge usually lies not in the plumbing itself, but in the physical maneuvering of the heavy appliance into tight spaces.

Pro Tip: Always check your local building codes. Some municipalities in the US require an air gap device to prevent backflow, while others allow a “high loop” method. Knowing this requirement beforehand prevents costly rework.

Tools and Materials You Will Need

Preparation is half the battle. Having the right tools on hand ensures the process goes smoothly and reduces frustration. Here is a checklist for a standard installation:

• Adjustable Wrenches: Two are recommended—one for holding nuts and one for turning.
• Screwdrivers: Both Phillips and flat-head varieties.
• Teflon Tape: For sealing threaded connections.
• Hose Clamps: Usually included with the dishwasher, but having extras is wise.
• Bucket and Towels: To catch any residual water when disconnecting old lines.
• Electrical Cord: If your dishwasher does not come with a pre-attached power cord (many US models require you to buy this separately).
• Drain Hose Kit: If the existing hose is too short or damaged.

For a deeper understanding of plumbing fixtures and standards, you can refer to general resources on plumbing systems to familiarize yourself with terminology like P-traps and tailpieces.

Step-by-Step Guide to Plumbing In A Dishwasher

If you have determined that your project is in the “Easy” to “Moderate” category, follow these steps carefully. Safety is paramount; always turn off utilities before beginning work.

Step 1: Safety First – Shut Off Water and Power

Locate the shut-off valve under your sink and turn it clockwise to stop the water flow. If there is no individual valve for the dishwasher, you may need to shut off the main water supply to the house. Next, ensure the electrical power to the outlet under the sink is turned off at the circuit breaker. Never work on live electrical connections.

Step 2: Prepare the Drain Connection

The dishwasher needs to drain dirty water into your sink’s plumbing. There are two common methods:

• Direct Connection to Garbage Disposal: If you have a garbage disposal, knock out the plastic plug inside the disposal’s dishwasher inlet using a hammer and screwdriver. Attach the drain hose to this inlet and secure it tightly with a hose clamp.

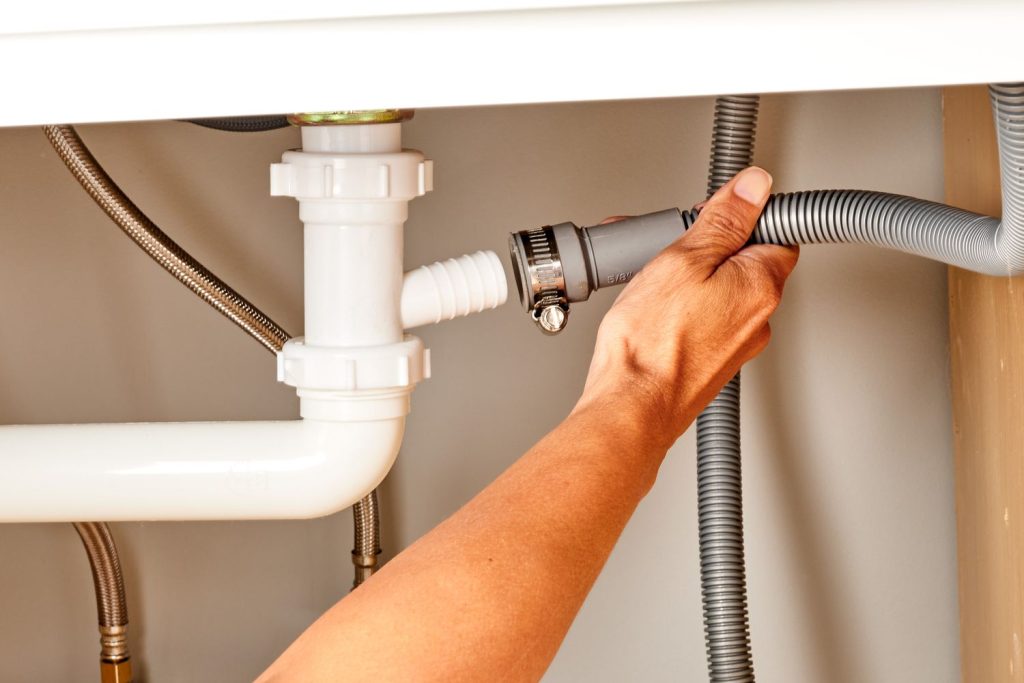

• Connection to Sink Tailpiece: If you do not have a disposal, you will connect the hose to a branch tailpiece on your sink drain. Ensure the connection is secure to prevent leaks.

Important: Check if your local code requires an air gap. An air gap is a small cylinder installed on the countertop or sink deck that prevents dirty sink water from siphoning back into the dishwasher. If required, install it according to the manufacturer’s instructions. If not, you must create a high loop by securing the drain hose to the highest point under the counter before it descends to the drain. This prevents backflow.

Step 3: Connect the Water Supply Line

Most dishwashers use a flexible braided stainless steel supply line.

1. Apply Teflon tape to the threads of the water inlet valve on the dishwasher (usually located at the bottom front).
2. Attach one end of the supply line to the dishwasher’s inlet valve. Hand-tighten first, then use an adjustable wrench to give it a quarter-turn. Do not overtighten, as this can damage the rubber gasket.
3. Connect the other end of the supply line to the hot water shut-off valve under the sink. Again, hand-tighten followed by a slight turn with a wrench.

Note: Always connect to the hot water line. Dishwashers have internal heaters, but starting with hot water improves cleaning efficiency and energy usage.

Step 4: Electrical Connections

If your dishwasher has a junction box, you will need to connect the power cord.

1. Remove the cover of the junction box on the dishwasher.
2. Connect the black wire (hot) to the black wire, the white wire (neutral) to the white wire, and the green or bare copper wire (ground) to the ground screw.
3. Use wire nuts to secure the connections and wrap them with electrical tape for added safety.
4. Secure the wires with a strain relief connector and replace the junction box cover.

If your model uses a simple plug-in cord, simply plug it into the grounded outlet under the sink.

Step 5: Position and Level the Dishwasher

Carefully slide the dishwasher into the cabinet space. Be careful not to kink the drain hose or crush the water supply line.

1. Use a bubble level on the door frame to check for levelness side-to-side and front-to-back.
2. Adjust the leveling legs at the bottom of the dishwasher by turning them clockwise or counter-clockwise.
3. Proper leveling is critical for proper drainage and door alignment. An unlevel dishwasher may leave standing water at the bottom of the tub.

Step 6: Test for Leaks

Before pushing the dishwasher all the way in and securing it to the countertop:

1. Turn the water supply back on slowly.
2. Check both ends of the water supply line for drips.
3. Run a short “rinse” cycle on the dishwasher.
4. Observe the drain hose connection and the air gap (if installed) for any leaks during the drain phase.

If you see any moisture, tighten the connections slightly. Once confirmed leak-free, you can secure the dishwasher to the underside of the countertop using the provided mounting brackets and screws.

Common Challenges and Troubleshooting

Even with careful planning, issues can arise. Here is a quick troubleshooting table for common problems:

FAQ Section

1. Do I need a plumber to install a dishwasher?

Not necessarily. If you have existing hookups and basic DIY skills, you can do it yourself. However, if you need to run new water lines or modify electrical circuits, hiring a licensed professional is recommended for safety and code compliance.

2. Can I connect a dishwasher to a cold water line?

Technically, yes, but it is not recommended. Dishwashers are designed to connect to hot water lines. Using cold water forces the appliance’s internal heater to work harder, increasing energy costs and potentially extending cycle times.

3. What is the difference between an air gap and a high loop?

An air gap is a physical device installed above the sink that creates a visible break in the water line, preventing backflow. A high loop involves routing the drain hose up to the top of the under-sink cabinet before connecting to the drain. Both prevent dirty water from siphoning back into the dishwasher, but air gaps are often required by code in certain states.

4. How long does it take to install a dishwasher?

For a straightforward replacement with existing connections, it typically takes 1 to 2 hours. New installations requiring additional plumbing or electrical work can take 3 to 4 hours or more.

5. Do I need a permit to install a dishwasher?

In most US jurisdictions, a simple replacement of an existing appliance does not require a permit. However, if you are altering plumbing or electrical systems, a permit may be necessary. Always check with your local building department.

Conclusion

So, how hard is it to plumb in a dishwasher? For the average homeowner with a standard kitchen setup, it is a manageable DIY project that offers significant cost savings. By following the steps outlined above—preparing your tools, ensuring safe connections, and testing for leaks—you can successfully install your appliance with confidence.

Remember, the key to success is patience and attention to detail. Take your time to ensure every connection is secure and the unit is perfectly level. If you encounter complex plumbing issues beyond your comfort zone, there is no shame in calling a professional.
