How Far Down Does the Plumbing Go Under a Sink?

If you’ve ever crouched under your kitchen or bathroom sink trying to fix a leak—or just curious what’s hiding beneath—you’re not alone. Many homeowners ask, “How far down does the plumbing go under a sink?” Whether you’re planning a renovation, troubleshooting a clog, or installing new cabinetry, understanding the vertical space your plumbing occupies is essential. In this guide, we’ll break it all down—literally—with practical measurements, expert insights, and real-world examples tailored for U.S. homes.

Why Does Sink Plumbing Depth Matter?

Knowing how deep your plumbing runs isn’t just trivia—it directly impacts cabinet clearance, accessibility for repairs, and even compliance with building codes. Too little space, and you risk damaging pipes during installation. Too much guesswork, and you might end up with awkward gaps or costly rework.

According to the International Residential Code (IRC), proper drainage slope and trap placement are non-negotiable for health and safety. Getting the depth right ensures your system drains efficiently and prevents sewer gases from entering your home.

Standard Depth of Plumbing Under a Sink

In most U.S. residential settings, the plumbing under a standard sink extends 16 to 20 inches below the bottom of the countertop. Here’s a more detailed breakdown:

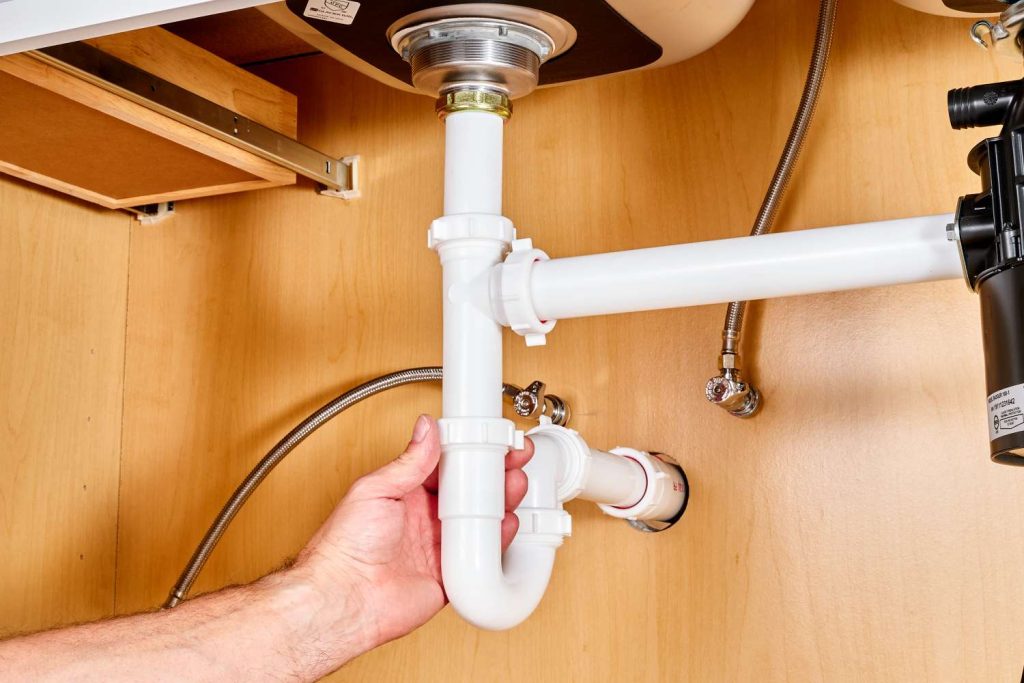

💡 Pro Tip: The P-trap—that U-shaped pipe—is the deepest critical component. It must sit low enough to maintain its water seal but high enough to allow cabinet access.

These dimensions assume a standard 36-inch countertop height (common in kitchens) and 32-inch vanity height (in bathrooms). Adjustments may be needed for custom installations.

Factors That Affect Plumbing Depth

Not all sinks are created equal. Several variables influence how far down your plumbing goes:

1. Sink Type

• Top-mount (drop-in) sinks: Plumbing starts lower due to the sink basin sitting on the counter.
• Undermount sinks: Allow slightly more vertical room since the basin is mounted beneath the counter.
• Vessel sinks: Require taller faucets and often raise the trap location, reducing usable cabinet depth.

2. Cabinet Design

Standard base cabinets are 34.5 inches tall (plus 1.5″ countertop = 36″). If your cabinet has a false bottom or built-in drawers, plumbing may need to be rerouted upward—a job best handled by a licensed plumber.

3. Local Building Codes

While the IRC provides national standards, local jurisdictions may impose stricter rules. For example, some cities require a minimum 2-inch clearance between the P-trap and the cabinet floor for inspection access.

4. Pipe Material & Diameter

• 1.25-inch pipes (common for bathroom sinks) take less vertical space than 1.5-inch kitchen drains.
• PVC is easier to angle than rigid copper, offering more flexibility in tight spaces.

For authoritative context on drainage systems, see the Wikipedia entry on plumbing traps.

Measuring Your Own Sink Plumbing: A Step-by-Step Guide

Want to check your setup? Follow these steps:

1. Clear the area: Remove everything from under the sink.
2. Locate the P-trap: It’s the curved pipe directly below the drain.
3. Measure vertically:
   • From the bottom of the countertop to the lowest point of the P-trap.
   • Use a tape measure; record in inches.
4. Check clearance: Ensure at least 2–3 inches of space between the trap and the cabinet floor.
5. Inspect slope: The horizontal waste arm should slope ¼ inch per foot toward the main drain line.

⚠️ Warning: Never force pipes into cramped spaces. Improper angles cause slow drainage and clogs.

Common Mistakes Homeowners Make

Even seasoned DIYers can misjudge plumbing depth. Here are frequent errors—and how to avoid them:

• Assuming all sinks are the same: Bathroom and kitchen plumbing differ significantly in pipe size and depth.
• Ignoring the cleanout plug: Many forget that P-traps have removable sections for cleaning—these need accessible space.
• Cutting supply lines too short: Shut-off valves should be reachable without disassembling the entire cabinet.
• Overlooking venting: While not part of the “down” plumbing, improper venting affects drainage and may require vertical pipe runs nearby.

Kitchen vs. Bathroom Sink Plumbing: Key Differences

If you’re installing a garbage disposal, expect the plumbing to extend up to 24 inches below the countertop. Always confirm clearance before buying new cabinets!

When to Call a Professional Plumber

While minor adjustments are DIY-friendly, call a licensed plumber if:

• You’re relocating the sink more than 6 inches horizontally.
• The floor or wall needs cutting for new pipe runs.
• You smell sewer gas (indicates a broken trap seal).
• Local code requires permits for plumbing modifications.

The U.S. Bureau of Labor Statistics reports that improper DIY plumbing causes nearly 20% of household water damage claims—a risk not worth taking.

FAQ Section

Q1: Can I move the P-trap higher to gain cabinet space?

A: Only within limits. The trap must remain within 24 inches vertically of the sink drain outlet per IRC P3005.2. Raising it too high breaks the water seal and allows sewer gases to enter.

Q2: How much space do I need under a sink for plumbing?

A: Aim for at least 20 inches of clear vertical space from countertop to cabinet floor. This accommodates standard traps, supply lines, and future maintenance.

Q3: Does plumbing go into the floor under a sink?

A: Usually not directly. Drain lines typically exit through the back wall (bathrooms) or side wall/floor nearby (kitchens). In slab foundations, pipes run just below the concrete—but still connect via wall stub-outs.

Q4: What’s the minimum height for a sink drain?

A: There’s no fixed “minimum height,” but the drain outlet (where water leaves the sink) is typically 6–8 inches below the countertop. The rest depends on trap and waste arm routing.

Q5: Can I install a shelf under my sink without blocking plumbing?

A: Yes—if you leave 3–4 inches of clearance around all pipes. Use adjustable wire shelves or custom-cut wood with notches for supply lines.

Q6: Why does my sink gurgle when I drain it?

A: This often signals improper venting or a partially blocked trap. While not directly about depth, incorrect pipe angles (due to cramped space) can contribute to poor airflow in the system.

Conclusion

Understanding how far down the plumbing goes under a sink empowers you to make smarter decisions—whether you’re upgrading fixtures, maximizing storage, or avoiding costly mistakes. With standard depths ranging from 14 to 24 inches, always measure before modifying your space and respect local codes.

Now that you’re equipped with expert-backed insights, why not share this guide with a friend tackling their own sink project? 💧
👉 Share on Facebook, Pinterest, or Twitter to help others avoid plumbing pitfalls!

Remember: Good plumbing isn’t just about what flows—it’s about what fits.
