How Far Out Of Plumb Can A Chimney Be?

A leaning chimney is one of the most unsettling sights for a homeowner. It raises immediate questions about structural integrity, safety hazards, and potential repair costs. If you have noticed your masonry stack tilting, you are likely asking yourself: how far out of plumb can a chimney be before it becomes a critical danger?

The short answer is that any noticeable lean warrants professional attention, but there are specific industry standards that define when a chimney is structurally compromised versus when it is merely settling. In this guide, we will break down the exact measurements, the science behind chimney stability, and the steps you need to take to protect your home and family.

The General Rule: When Is a Chimney “Too Leaned”?

While every structure is unique, masonry experts and structural engineers generally agree on a specific threshold for safety. A chimney is considered significantly out of plumb if it leans more than 1 inch for every 3 feet of height (or roughly a 15-degree angle from vertical).

However, waiting for a chimney to reach this extreme angle is dangerous. Most home inspectors and certified chimney sweeps will flag a chimney for repair if it shows a lean of ½ inch to 1 inch over its total height, especially if the lean is progressive (getting worse over time).

Why Vertical Alignment Matters

Chimneys are heavy structures built on relatively small footings. They are designed to handle compressive loads (weight pushing down), not lateral loads (weight pushing sideways). When a chimney goes out of plumb:

• Gravity shifts: The center of gravity moves outside the base footprint, creating a tipping moment.
• Mortar joints stress: The mortar between bricks begins to crack and crumble under uneven tension.
• Flue liner damage: The internal clay or metal liner can crack, leading to carbon monoxide leaks or fire hazards.

Understanding the Causes: Why Do Chimneys Lean?

To determine if your chimney is safe, you must understand why it moved in the first place. Not all leans are created equal. Some are cosmetic; others are catastrophic.

1. Foundation Settlement

This is the most common cause. If the soil beneath the chimney footing compresses or shifts, the chimney sinks on one side. This is often seen in older homes where the chimney footing was not poured as deeply as the home’s main foundation.

2. Water Damage and Freeze-Thaw Cycles

Water is the enemy of masonry. In the US, particularly in the Northeast and Midwest, water seeps into brick pores. When it freezes, it expands, causing “spalling” (flaking) and weakening the structural bond. Over decades, this erosion can cause a gradual lean.

3. Seismic Activity or Soil Shifts

In areas prone to earthquakes or expansive clay soils, ground movement can push a chimney off its axis. Even minor tremors can dislodge a chimney that was already slightly unstable.

4. Poor Original Construction

Unfortunately, some chimneys were simply not built correctly. If the footing was too small, or if the mortar mix was incorrect, the chimney may begin to lean within just a few years of construction.

How to Measure Chimney Plumb Accurately

You don’t need to be an engineer to get a preliminary assessment. Here is a simple, step-by-step method to check your chimney’s alignment.

Tools Needed:

• A long, straight level (at least 4 feet) or a plumb bob.
• A tape measure.
• A ladder (use caution) or binoculars for high stacks.

Step-by-Step Measurement:

1. Visual Inspection from Ground Level: Stand back about 20 feet from the house. Look at the chimney from two different angles (front and side). Does it look like it is tilting toward the house or away from it?
2. The Plumb Bob Method (Most Accurate):
   • Attach a plumb bob to the top edge of the chimney crown (the concrete cap at the top).
   • Let the weight hang freely until it stops swinging.
   • Measure the distance from the string to the chimney base at the bottom.
   • Compare this to the distance at the top. The difference is your “out of plumb” measurement.
3. The Level Method:
   • Place a long level against the side of the chimney breast (the part that sticks out).
   • Check the bubble. If it is off-center, note the gap between the level and the brick at the top or bottom.
   • Measure that gap. For example, if there is a 1-inch gap at the top of a 10-foot section, your chimney is 1 inch out of plumb over 10 feet.

Safety Note: Never climb onto a roof that feels unstable or if the chimney shows visible large cracks. If you are uncomfortable using a ladder, hire a professional inspector.

Danger Signs: When to Call a Professional Immediately

Even if the lean seems small, certain accompanying signs indicate immediate danger. If you see any of the following, stop using your fireplace and call a structural engineer or certified chimney sweep right away.

• Horizontal Cracks: Cracks running horizontally along the mortar joints suggest the chimney is separating from the house.
• Gap Between Chimney and House: If you can see daylight between the chimney brickwork and your home’s siding or roofline, the chimney is pulling away.
• Missing Bricks or Mortar: Large sections of missing material compromise structural integrity.
• Tilted Chimney Cap: If the concrete crown is cracked or tilted, water is likely entering the structure, accelerating damage.
• Interior Signs: Cracks in the drywall around the fireplace or on the ceiling directly below the chimney stack.

For more detailed information on masonry standards and construction safety, you can refer to general building principles outlined on Wikipedia’s Masonry page.

Repair Options: Fixing a Leaning Chimney

The solution depends on the severity of the lean and the underlying cause. Here is a comparison of common repair methods.

1. Steel Anchoring and Bracing

If the chimney is leaning but the bricks are still in good condition, a structural engineer may recommend installing steel anchors. These are drilled into the chimney and attached to the home’s main foundation or floor joists. This pulls the chimney back toward plumb and holds it there.

2. Rebuilding the Chimney Stack

If the lean is severe (more than 1-2 inches) or the bricks are spalled, the safest option is often to dismantle the chimney above the roofline and rebuild it. This ensures the new stack is perfectly plumb and uses modern, weather-resistant materials.

3. Foundation Underpinning

If the lean is caused by a sinking footing, the foundation itself must be repaired. This involves digging under the existing footing and pouring new concrete or installing helical piers to stabilize the base. This is a major excavation project and is typically the most expensive repair.

FAQ: Common Questions About Chimney Plumb

1. Can a slightly leaning chimney collapse suddenly?

Yes, it can. While most chimneys lean gradually due to settling, external factors like high winds, heavy snow loads, or minor seismic activity can trigger a sudden collapse if the structure is already compromised. Never ignore a lean, even if it seems small.

2. Does homeowners insurance cover a leaning chimney?

Typically, no. Most standard homeowners insurance policies consider chimney leaning a result of “wear and tear” or “maintenance issues,” which are excluded. However, if the lean was caused by a covered peril like an earthquake (if you have that rider) or a fallen tree, it might be covered. Always check your specific policy.

3. How much does a chimney inspection cost?

A basic Level 1 chimney inspection (visual check) usually costs between $100 and $250. A Level 2 inspection (which includes video scanning of the flue and access to attics/crawl spaces) ranges from $200 to $500. If a structural engineer is needed, expect to pay $300 to $800 for their assessment.

4. Can I fix a leaning chimney myself?

No. Chimney repair involves working at heights, handling heavy masonry, and understanding structural load paths. Incorrect repairs can lead to collapse, fire hazards, or voided insurance claims. Always hire a licensed contractor or structural engineer.

5. Is a metal chimney less likely to go out of plumb?

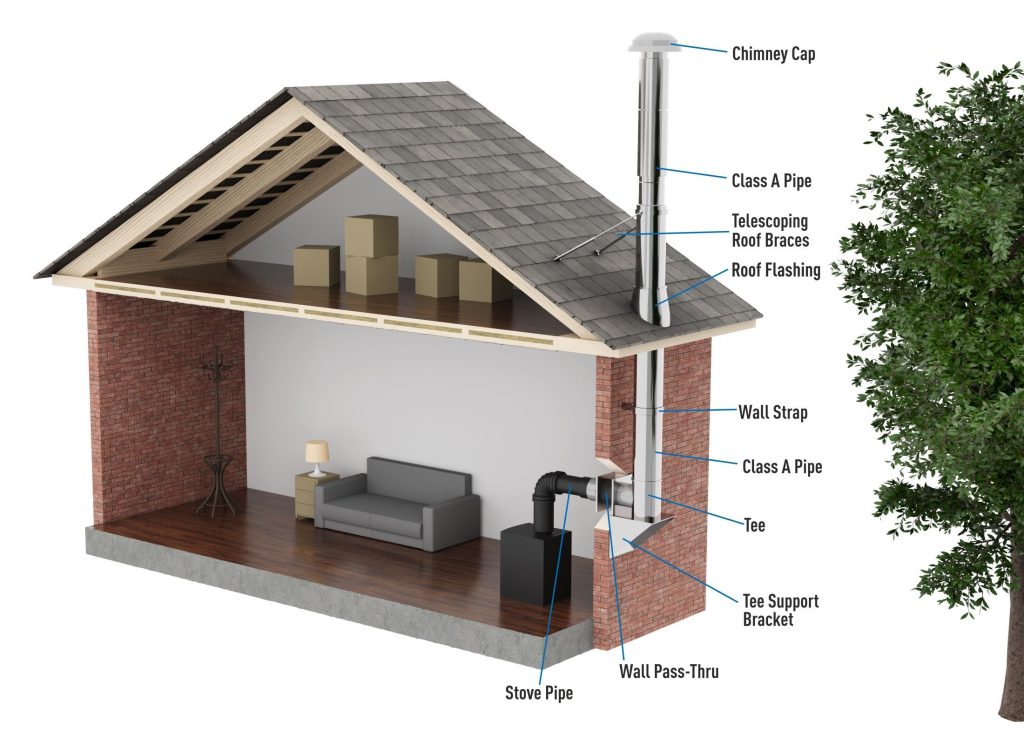

Yes. Factory-built metal chimneys (Class A) are lighter and more flexible than masonry. They are less prone to leaning due to settlement. However, they can still become misaligned if the supporting framing shifts or if the storm collar fails.

6. How often should I check my chimney for plumb?

You should perform a visual check once a year, ideally in the spring or fall. Look for new cracks, changes in alignment, or mortar deterioration. If you live in an area with severe weather or seismic activity, check it after any major events.

Conclusion

Knowing how far out of plumb can a chimney be is crucial for maintaining a safe home. While a slight deviation might not require immediate demolition, any lean indicates an underlying issue that will not resolve itself. The general rule of thumb is that a lean greater than 1 inch per 3 feet is critical, but even smaller deviations should be evaluated by a professional.

Don’t wait for a crack to become a collapse. Regular inspections and timely repairs can save you thousands of dollars and, more importantly, protect your family from fire and structural hazards.
