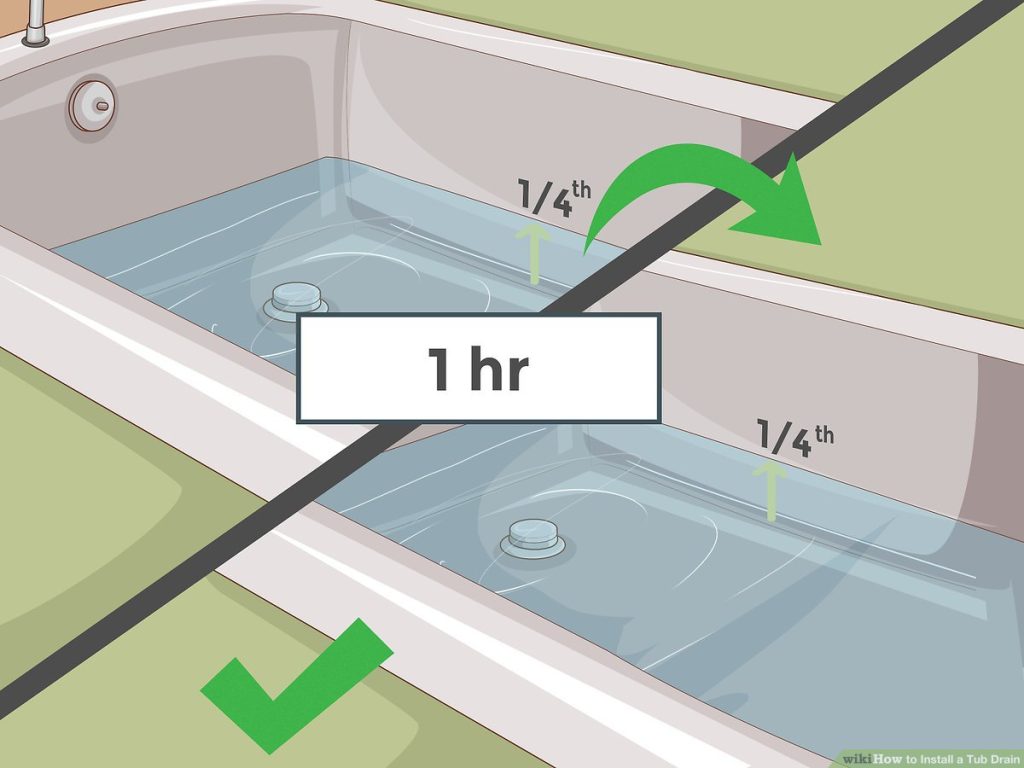

Tub Drain Distance From Wall: The Exact Code Guide

Renovating a bathroom can feel like navigating a maze of pipes and codes, especially when you are staring at an empty alcove wondering about the perfect placement for your new fixture. One of the most critical questions homeowners and DIY enthusiasts face is: how far should tub drain be plumbed from wall? Getting this measurement wrong can lead to costly rework, leaks, or a bathtub that simply doesn’t fit.

In this guide, we will break down the industry standards, building code requirements, and practical tips to ensure your tub drain is positioned correctly the first time. Whether you are installing a standard alcove tub or a custom soakier, understanding these dimensions is key to a smooth, stress-free installation.

The Standard Measurement: What Do the Codes Say?

When asking how far should tub drain be plumbed from wall, the short answer for most standard alcove bathtubs in the United States is 12 inches.

However, “standard” can vary slightly depending on the manufacturer and the specific type of tub. Here is the breakdown:

• Standard Alcove Tubs: The center of the drain is typically located 12 inches from the finished wall where the faucet/heads are located (the “head wall”).
• Offset Drains: Some larger or specialty tubs have offset drains. These may require the drain center to be 10 inches or 14 inches from the wall.
• Freestanding Tubs: These do not rely on wall distance for the drain location but rather follow the floor plan design, often centered under the tub’s waste outlet.

Why 12 Inches?

The 12-inch rule is not arbitrary. It aligns with the standard stud spacing in US construction (16 inches on center). Placing the drain 12 inches from the wall allows plumbers to route the P-trap and drain line efficiently between studs without excessive cutting or compromising structural integrity.

Pro Tip: Always check the “rough-in guide” provided by your specific bathtub manufacturer. While 12 inches is the industry norm, deviating by even half an inch can prevent the waste-and-overflow kit from connecting properly.

People Also Ask: Critical Plumbing Questions Answered

To help you master your bathroom layout, we’ve addressed the most common questions related to tub drain placement.

1. Is the Measurement from the Stud or the Finished Wall?

This is a crucial distinction that trips up many DIYers. The standard 12-inch measurement is taken from the finished wall surface, not the bare studs.

• If you are framing new walls: You must account for the thickness of your drywall or cement board. Standard drywall is 1/2 inch thick. Therefore, if you are measuring from the face of the stud, the center of the drain pipe should be 12.5 inches from the stud to result in 12 inches from the finished wall.
• If you are remodeling: Measure from the existing finished wall. If you are stripping the wall down to the studs, add 1/2 inch to your measurement to compensate for the new drywall.

2. What Is the Required Height for the Tub Drain?

While horizontal distance is vital, vertical height matters just as much for proper drainage and trap functionality.

• Standard Height: The center of the drain pipe should typically be 4 to 6 inches above the subfloor.
• Why this height? This elevation allows enough room for the P-trap assembly underneath the tub. If the pipe is too low, the trap may not fit; if it’s too high, the tub may not sit flush against the floor, causing rocking or instability.

3. Can I Move the Tub Drain Location?

Yes, but it involves significant labor. Moving a drain horizontally requires breaking through the concrete slab (in slab-on-grade homes) or reframing the floor joists (in wood-frame homes).

• Cost Implication: Moving a drain can cost between $500 and $1,500 depending on accessibility.
• Feasibility: If you are sticking with a standard alcove tub, it is almost always cheaper and easier to buy a tub that matches your existing drain location rather than moving the drain to match a new tub.

Step-by-Step: How to Rough-In a Tub Drain Correctly

If you are building from scratch, follow these steps to ensure your tub drain distance from wall is precise.

Step 1: Gather Your Tools

• Tape measure
• Level
• Marker or pencil
• Manufacturer’s rough-in template (usually included with the tub)
• 2-inch ABS or PVC piping (standard for tub drains)

Step 2: Locate the Centerline

Identify the wall where the faucet and showerhead will be installed. This is your reference wall. Measure 12 inches (or the manufacturer’s specified distance) from the finished face of this wall. Mark this spot on the subfloor. This mark represents the center of your drain pipe.

Step 3: Account for Wall Thickness

As mentioned earlier, if you are measuring from the wooden studs, add 1/2 inch to your measurement.

• Example: 12 inches (desired finish) + 0.5 inches (drywall) = 12.5 inches from the stud face.

Step 4: Install the Drain Pipe

Cut your 2-inch drain pipe so that the top of the pipe sits approximately 4 to 6 inches above the subfloor. Ensure the pipe is perfectly vertical using a level. A tilted pipe can cause connection issues with the P-trap later.

Step 5: Secure and Cap

Secure the pipe to the blocking or framing using appropriate pipe hangers. Cap the end of the pipe to prevent debris from entering during the rest of the construction process.

Visualizing the Layout: Key Dimensions Table

To make it easier to digest, here is a quick reference table for standard tub installations.

Understanding the “Why”: Physics and Code Compliance

Why do we care so much about these inches? It comes down to gravity and code compliance.

According to the International Plumbing Code (IPC), which is adopted by most US states, drainage systems must be designed to provide self-cleansing velocity. If the drain is misaligned, the P-trap may not seal correctly, leading to sewer gas entering your home. Furthermore, improper slope or alignment can cause water to pool, leading to mold and structural damage over time.

The 12-inch standard also ensures that the waste-and-overflow kit—the visible metal plate and pipe inside your tub—aligns perfectly with the hidden plumbing behind the wall. If the horizontal distance is off, the flexible shoe (the bottom part of the overflow pipe) may not reach the drain flange, resulting in inevitable leaks.

Common Mistakes to Avoid

Even experienced contractors can make errors. Here are the top pitfalls to watch out for:

1. Ignoring the Finished Floor Height: If you plan to add a thick layer of tile or mortar bed, your “subfloor” measurement might change. Always clarify if the 4–6 inch height is from the structural subfloor or the finished floor level. Usually, it is from the structural subfloor.
2. Forgetting the Flange: The drain flange (the part the tub sits on) adds width. Ensure your hole in the subfloor is large enough to accommodate the flange and the locking nut.
3. Using the Wrong Pipe Size: While 1.5-inch pipe was common in older homes, modern codes often prefer 2-inch pipe for bathtubs to handle higher volume flow, especially if the tub also serves as a shower.

FAQ Section

Q1: What if my tub has a left-hand or right-hand drain?

The “left” or “right” designation refers to the position of the drain relative to the person standing outside the tub facing it. However, the distance from the head wall (the wall with the faucet) usually remains 12 inches. The difference is simply which side of the tub the drain is on. Always verify with the manufacturer’s diagram.

Q2: Can I use a flexible drain hose instead of rigid PVC?

No. Building codes generally require rigid piping (PVC or ABS) for the main drain line. Flexible hoses are only permitted for the final connection between the tub waste outlet and the rigid P-trap, and even then, many inspectors prefer rigid connections for durability.

Q3: Does the type of tub material affect the drain distance?

No. Whether you have an acrylic, fiberglass, cast iron, or stone resin tub, the plumbing rough-in dimensions remain the same. The internal molding of the tub is designed to accommodate standard plumbing placements.

Q4: How do I measure if the wall is not yet built?

If you are in the framing stage, measure from the face of the studs. Remember to add the thickness of your intended wall covering (usually 1/2 inch for drywall or 5/8 inch for cement board in shower areas) to achieve the correct finished dimension.

Q5: What is the maximum distance a tub drain can be from the vent?

According to most plumbing codes, a 2-inch drain line can travel up to 5 feet horizontally before it needs to be vented. However, keeping the run as short as possible is always better for drainage efficiency.

Q6: Is it okay if the drain is 11.5 inches or 12.5 inches from the wall?

It depends on the tub. Some waste-and-overflow kits have a slight amount of play (flexibility), allowing for a +/- 1/2 inch tolerance. However, relying on this tolerance is risky. It is best to aim for exactly 12 inches. If you are off by more than 1/2 inch, you will likely need an offset adapter or extensive rework.

Conclusion

Getting the tub drain distance from wall right is foundational to a successful bathroom renovation. By sticking to the standard 12-inch measurement from the finished wall and ensuring the pipe height is between 4 and 6 inches, you set yourself up for a leak-free, code-compliant installation.

Remember, the key to success is preparation. Always consult your specific tub manufacturer’s rough-in guide before cutting any pipes. A little extra time spent measuring now can save you hundreds of dollars and hours of frustration later.
